BREMBO

Brembo 09.D807.23 Brake Disc

SKU: 09.D807.23
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£415.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LAND ROVER
RANGE ROVER V (L460)
Description Cylinder Capacity Horse Power Year
P400 MHEV AWD 2996 CCM 400 HP From 10/2021
P530 AWD 4395 CCM 530 HP From 10/2021
D300 MHEV AWD 2997 CCM 300 HP From 10/2021
D350 MHEV AWD 2997 CCM 351 HP From 10/2021
D250 MHEV AWD 2997 CCM 249 HP From 10/2021
P440e PHEV AWD 2996 CCM 441 HP From 02/2022
P510e PHEV AWD 2996 CCM 510 HP From 02/2022
P460e PHEV AWD 2996 CCM 460 HP From 05/2023
P550e PHEV AWD 2996 CCM 551 HP From 05/2023
P615 MHEV AWD 4395 CCM 615 HP From 05/2023
P530 MHEV AWD 4395 CCM 530 HP From 05/2023
RANGE ROVER SPORT III (L461)
Description Cylinder Capacity Horse Power Year
3.0 D250 MHEV AWD 2997 CCM 249 HP From 04/2022
3.0 D300 MHEV AWD 2997 CCM 300 HP From 04/2022
P400 MHEV AWD 2996 CCM 400 HP From 04/2022
P440e PHEV AWD 2996 CCM 441 HP From 04/2022
P510e PHEV AWD 2996 CCM 510 HP From 04/2022
P530 AWD 4395 CCM 530 HP From 04/2022
3.0 D350 MHEV AWD 2997 CCM 351 HP From 04/2022
P460e PHEV AWD 2996 CCM 460 HP From 05/2023
P550e PHEV AWD 2996 CCM 551 HP From 05/2023

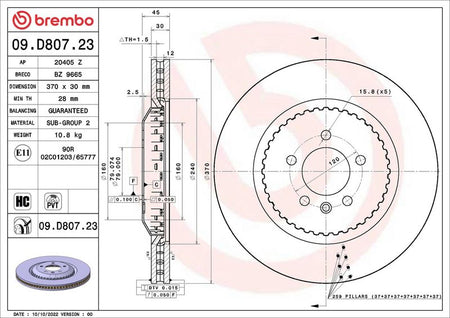

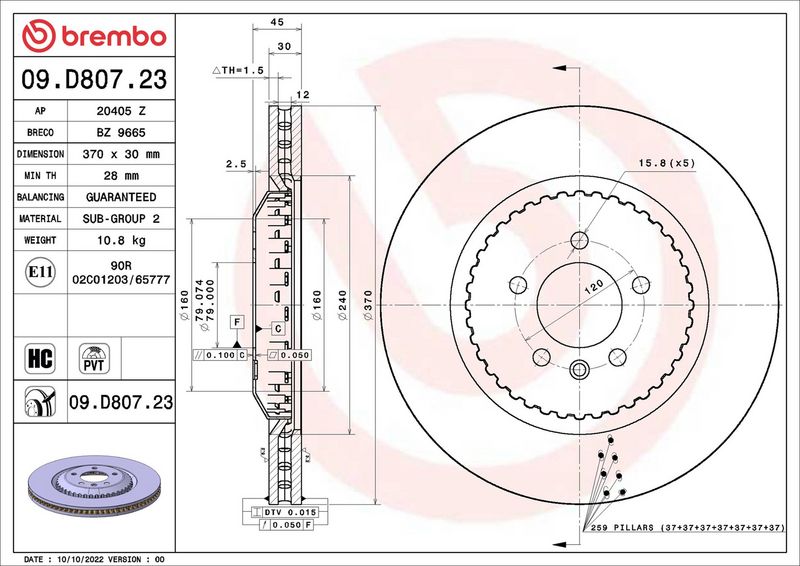

The Brembo 09.D807.23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Steel Brake Disc Hub disc construction, 30 mm brake disc thickness, 5 mounting holes, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Steel Brake Disc Hub
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 45
Centering Diameter [mm] : 79
Outer Diameter [mm] : 370
Machining : High-carbon
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.D807.23
  • Barcode 8020584321607
  • LAND ROVER : LR153550
