BREMBO

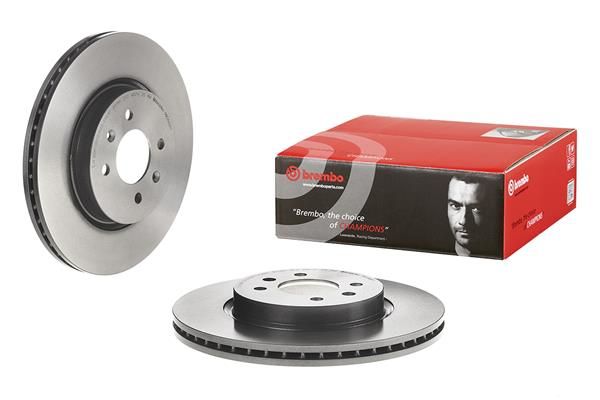

Brembo 09.D880.11 Brake Disc

SKU: 09.D880.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£94.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
BAYON (BC3)
Description Cylinder Capacity Horse Power Year
1.2 MPI 1197 CCM 84 HP From 05/2021
1.0 T-GDI 998 CCM 101 HP From 05/2021
1.0 T-GDI 48V-Hybrid 998 CCM 101 HP From 05/2021
1.0 T-GDI 48V-Hybrid 998 CCM 120 HP From 05/2021
1.2 MPI 1197 CCM 79 HP From 11/2024
i20 III (BC3, BI3)
Description Cylinder Capacity Horse Power Year
1.0 T-GDI 998 CCM 101 HP From 08/2020
1.0 T-GDI hybrid 48V 998 CCM 101 HP From 08/2020
1.0 T-GDI hybrid 48V 998 CCM 120 HP From 08/2020
1.4 MPI 1368 CCM 101 HP From 05/2021
KIA
RIO IV (YB, SC, FB)
Description Cylinder Capacity Horse Power Year
1.0 T-GDI 100 998 CCM 101 HP From 01/2017
1.0 T-GDI 120 998 CCM 120 HP From 01/2017
1.4 1368 CCM 101 HP From 01/2017
1.0 T-GDI 120 Eco-Dynamics+ 998 CCM 120 HP 08/2020 - 04/2023
1.2 CVVT 1197 CCM 84 HP From 05/2020
1.0 T-GDI 100 Eco-Dynamics+ 998 CCM 101 HP 08/2020 - 04/2023
STONIC (YB)
Description Cylinder Capacity Horse Power Year
1.2 CVVT 1248 CCM 84 HP 07/2017 - 12/2025
1.4 CVVT 1368 CCM 99 HP 07/2017 - 12/2025
1.0 T-GDi 998 CCM 120 HP From 07/2017
1.6 CRDi 1582 CCM 110 HP 07/2017 - 12/2025
1.0 T-GDi 998 CCM 101 HP From 08/2018
1.6 CRDi 1598 CCM 116 HP 08/2018 - 12/2025
1.6 CRDi 1598 CCM 136 HP 08/2018 - 12/2025
1.4 LPG 1368 CCM 97 HP 11/2018 - 12/2025
1.0 T-GDi Eco-Dynamics+ 998 CCM 120 HP From 07/2020
1.0 T-GDi Eco-Dynamics+ 998 CCM 101 HP From 01/2021
1.2 CVVT 1197 CCM 84 HP 11/2021 - 12/2025
1.2 CVVT 1197 CCM 79 HP 04/2024 - 12/2025
STONIC Hatchback Van (YB)
Description Cylinder Capacity Horse Power Year
1.0 T-GDi 998 CCM 101 HP From 08/2018
1.6 CRDi 1598 CCM 116 HP From 08/2018

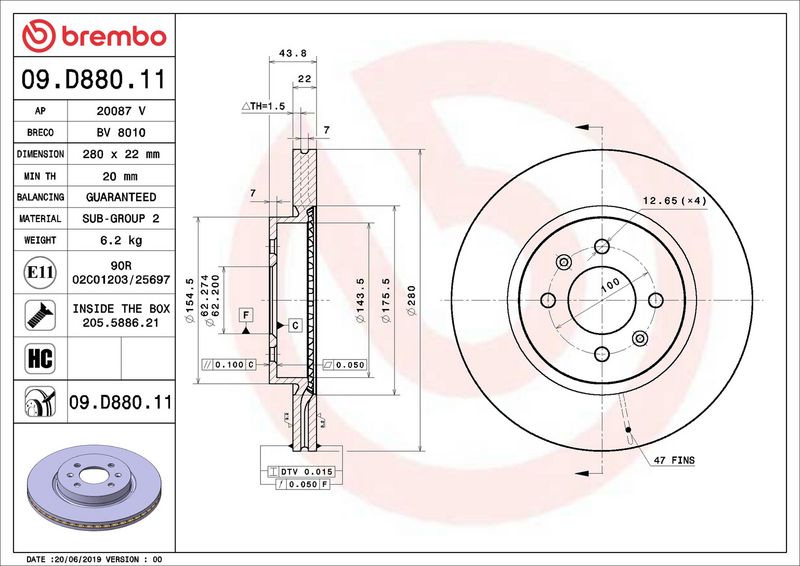

The Brembo 09.D880.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 4 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 4
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 44
Centering Diameter [mm] : 62
Outer Diameter [mm] : 280
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 20
  • Vendor BREMBO
  • SKU 09.D880.11
  • Barcode 8020584310106
  • HYUNDAI : 51712H8580
  • KIA : 51712H8580
  • BLUE PRINT : ADG043201
  • BOSCH : 0 986 479 B05
  • DELPHI : BG4743C
  • FEBI BILSTEIN : 108438
  • HELLA : 8DD 355 125-501
  • MEYLE : 28-15 521 0023/PD
  • MINTEX : MDC2847C
  • TEXTAR : 92288303
  • TRW : DF6025
  • VALEO : 672775
