Brembo 09.D901.23 Brake Disc - 1
Brembo 09.D901.23 Brake Disc - 2
Brembo 09.D901.23 Brake Disc - 1
Brembo 09.D901.23 Brake Disc - 2
BREMBO

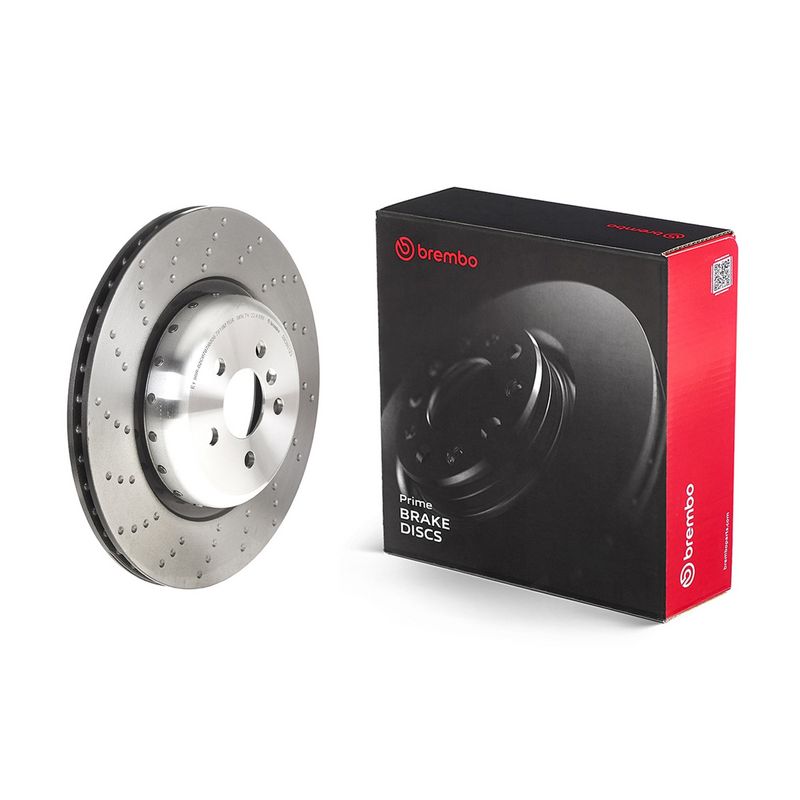

Brembo 09.D901.23 Brake Disc

5.0/5 65 reviews
SKU: 09.D901.23

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£171.06 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

BMW
5 (G30, F90)
Description Cylinder Capacity Horse Power Year
530 i 1998 CCM 252 HP 09/2016 - 06/2020
530 i xDrive 1998 CCM 252 HP 09/2016 - 06/2020
540 i 2998 CCM 340 HP 09/2016 - 06/2020
540 i xDrive 2998 CCM 340 HP 09/2016 - 06/2020
M 550 i xDrive 4395 CCM 462 HP 03/2017 - 06/2019
520 d 1995 CCM 190 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 190 HP 09/2016 - 06/2023
530 d 2993 CCM 265 HP 09/2016 - 06/2020
530 d xDrive 2993 CCM 265 HP 09/2016 - 06/2020
520 d 1995 CCM 163 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 163 HP 09/2016 - 06/2023
540 i 2998 CCM 360 HP 09/2016 - 06/2020
540 i xDrive 2998 CCM 360 HP 09/2016 - 06/2020
530 e Plug-in Hybrid 1998 CCM 252 HP 03/2017 - 06/2020
530 e Plug-in-Hybrid xDrive 1998 CCM 252 HP 03/2017 - 06/2023
5 Touring (G31)
Description Cylinder Capacity Horse Power Year
530 i 1998 CCM 252 HP 03/2017 - 06/2020
540 i xDrive 2998 CCM 340 HP 03/2017 - 06/2020
540 i xDrive 2998 CCM 360 HP 03/2017 - 06/2020
520 d 1995 CCM 190 HP From 03/2017
530 d 2993 CCM 265 HP 03/2017 - 06/2020
530 d xDrive 2993 CCM 265 HP 03/2017 - 06/2020
520 d 1995 CCM 163 HP From 03/2017
M 550 d xDrive 2993 CCM 400 HP From 07/2017
540 d xDrive 2993 CCM 320 HP 07/2017 - 06/2020
525 d 1995 CCM 231 HP 07/2017 - 06/2019
520 d xDrive 1995 CCM 190 HP From 07/2017
530 i xDrive 1998 CCM 252 HP 07/2017 - 06/2020
520 i 1998 CCM 184 HP 07/2017 - 06/2020
520 i 1998 CCM 163 HP 07/2017 - 06/2020
525 d 1995 CCM 211 HP 07/2017 - 06/2019
6 Gran Turismo (G32)
Description Cylinder Capacity Horse Power Year
630 i 1998 CCM 258 HP 07/2017 - 06/2020
640 i 2998 CCM 340 HP 06/2017 - 06/2020
640 i xDrive 2998 CCM 340 HP 06/2017 - 06/2020
630 d 2993 CCM 265 HP 06/2017 - 06/2020
630 d xDrive 2993 CCM 265 HP 06/2017 - 06/2020
640 d xDrive 2993 CCM 320 HP 11/2017 - 06/2020
640 i 2998 CCM 360 HP 06/2017 - 06/2020
640 i xDrive 2998 CCM 360 HP 06/2017 - 06/2020
620 d 1995 CCM 190 HP 07/2018 - 06/2020
620 d xDrive 1995 CCM 190 HP 07/2018 - 06/2020
620 d 1995 CCM 163 HP 07/2018 - 06/2020
620 d xDrive 1995 CCM 163 HP 07/2018 - 06/2020
630 i 1998 CCM 249 HP 06/2017 - 06/2020
630 i xDrive 2998 CCM 258 HP From 07/2019
630 i Mild-Hybrid 1998 CCM 258 HP From 07/2020
7 (G11, G12)
Description Cylinder Capacity Horse Power Year
725 d, Ld 1995 CCM 231 HP 07/2016 - 02/2019
730 i, Li 1998 CCM 265 HP 03/2019 - 06/2022

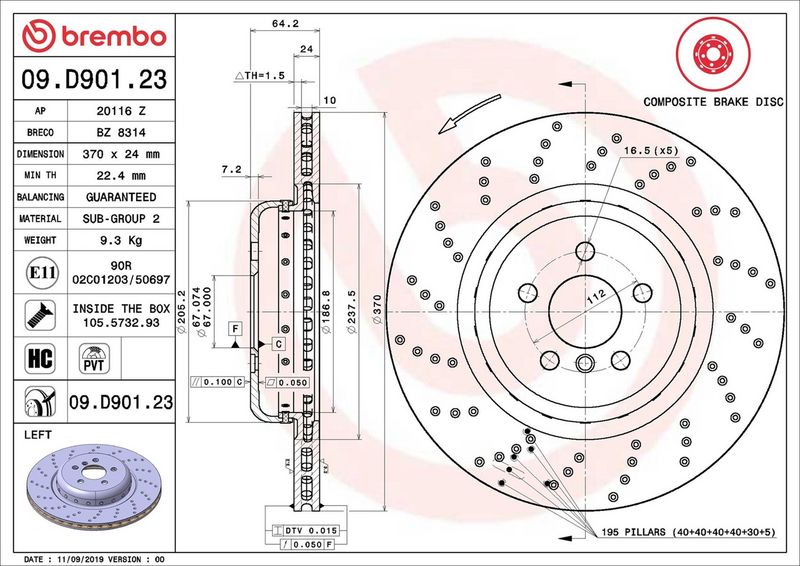

The Brembo 09.D901.23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 64
Centering Diameter [mm] : 67
Outer Diameter [mm] : 370
Machining : High-carbon
Surface : Coated
Paired article number : 09.D901.33
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.D901.23
  • Barcode 8020584238332
  • BMW : 34216878179
  • BLUE PRINT : ADBP430211
  • BOSCH : 0 986 479 G12
  • FEBI BILSTEIN : 193330
  • National : NBD2397
  • VALEO : 673217
