Brembo 09.D904.13 Brake Disc - 1
Brembo 09.D904.13 Brake Disc - 2
Brembo 09.D904.13 Brake Disc - 1
Brembo 09.D904.13 Brake Disc - 2
BREMBO

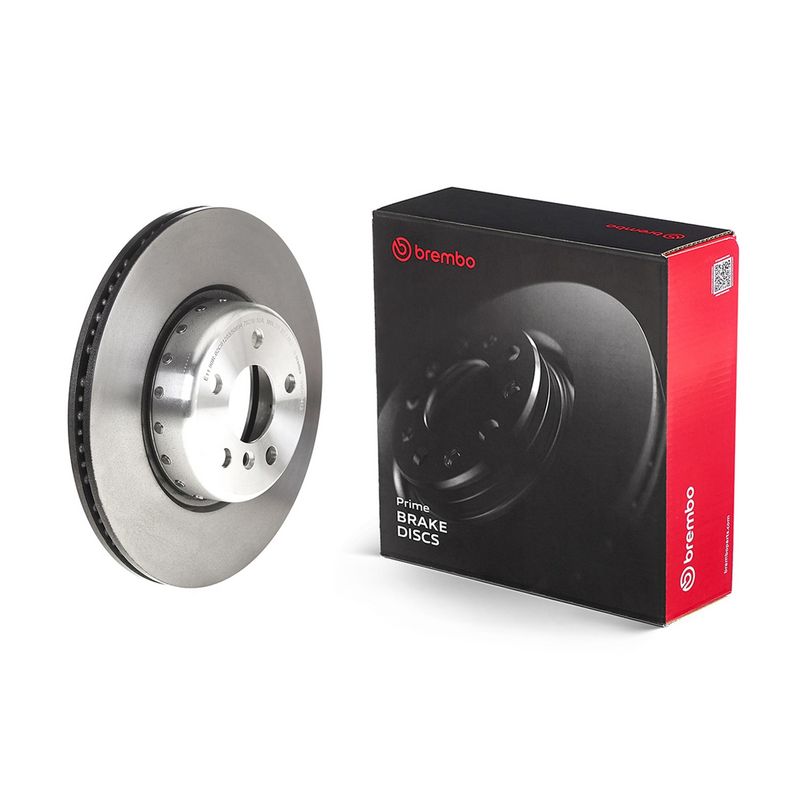

Brembo 09.D904.13 Brake Disc

SKU: 09.D904.13
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£123.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
4 Convertible (G23, G83)
Description Cylinder Capacity Horse Power Year
430 i 1998 CCM 245 HP From 07/2021
5 (G30, F90)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 190 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 190 HP 09/2016 - 06/2023
520 d 1995 CCM 163 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 163 HP 09/2016 - 06/2023
5 Touring (G31)
Description Cylinder Capacity Horse Power Year
520 d 1995 CCM 190 HP From 03/2017
520 d 1995 CCM 163 HP From 03/2017
525 d 1995 CCM 231 HP 07/2017 - 06/2019
520 d xDrive 1995 CCM 190 HP From 07/2017
520 i 1998 CCM 184 HP 07/2017 - 06/2020
520 i 1998 CCM 163 HP 07/2017 - 06/2020
525 d 1995 CCM 211 HP 07/2017 - 06/2019
X3 (G01, F97, G08)
Description Cylinder Capacity Horse Power Year
xDrive 20 d 1995 CCM 190 HP 08/2017 - 03/2020
xDrive 30 i 1998 CCM 252 HP From 08/2017
xDrive 20 i 1998 CCM 184 HP From 12/2017
xDrive 20 d 1995 CCM 163 HP 08/2017 - 03/2020
sDrive 20 i 1998 CCM 184 HP From 12/2017
xDrive 25 d 1995 CCM 231 HP From 04/2018
sDrive 18 d 1995 CCM 150 HP 04/2018 - 06/2020
sDrive 18 d 1995 CCM 136 HP 04/2018 - 06/2020
xDrive 25 d 1995 CCM 211 HP From 04/2018
xDrive 30 d 2993 CCM 249 HP 12/2017 - 06/2020
X3 Van (G01)
Description Cylinder Capacity Horse Power Year
sDrive 18 d 1995 CCM 150 HP From 04/2018
X4 (G02, F98)
Description Cylinder Capacity Horse Power Year
xDrive 20 i 1998 CCM 184 HP From 04/2018
xDrive 30 i 1998 CCM 252 HP From 04/2018
xDrive 20 d 1995 CCM 190 HP 04/2018 - 03/2020
xDrive 20 d 1995 CCM 163 HP 04/2018 - 03/2020
xDrive 20 d Mild-Hybrid 1995 CCM 163 HP From 04/2020
xDrive 20 d Mild-Hybrid 1995 CCM 190 HP From 04/2020
Z4 Roadster (G29)
Description Cylinder Capacity Horse Power Year
sDrive 20 i 1998 CCM 197 HP From 11/2018
sDrive 30 i 1998 CCM 258 HP From 11/2018
M40 i 2998 CCM 340 HP From 11/2018
sDrive 20 i 1998 CCM 163 HP From 11/2018
TOYOTA
SUPRA (DB_)
Description Cylinder Capacity Horse Power Year
2.0 (DB21, DB22, DB23, DB26) 1998 CCM 258 HP From 06/2019
2.0 (DB82, DB81, DB86) 1998 CCM 197 HP From 06/2019

The Brembo 09.D904.13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented, two-piece brake disc, and Aluminium Brake Disc Hub disc construction, 24 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

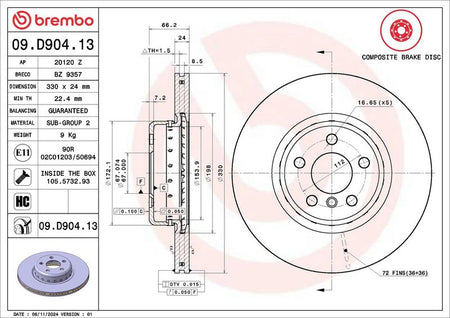

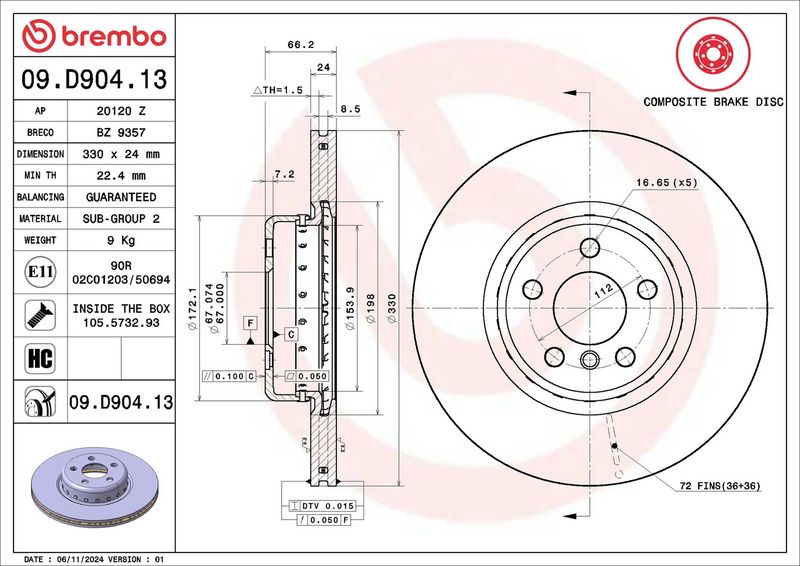

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : two-piece brake disc
Brake Disc Type : Aluminium Brake Disc Hub
Brake Disc Thickness [mm] : 24
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 66
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 22.4
  • Vendor BREMBO
  • SKU 09.D904.13
  • Barcode 8020584238370
  • BMW : 34116860907
  • TOYOTA : 43512WAA01
  • APEC : DSK3404
  • BLUE PRINT : ADBP430064
  • BORG & BECK : BBD7022S
  • BOSCH : 0 986 479 F56
  • BOSCH : 0 986 479 F58
  • BOSCH : 0 986 479 F59
  • DELPHI : BG9454BC
  • FEBI BILSTEIN : 173011
  • FTE : 9082845
  • MEYLE : 383 521 0029/PD
  • NAPA : NBD5946
  • National : NBD2232
  • SKF : VKBD 81348 V1
  • VALEO : 673183
