Brembo 09.D942.11 Brake Disc - 1
Brembo 09.D942.11 Brake Disc - 2
Brembo 09.D942.11 Brake Disc - 1
Brembo 09.D942.11 Brake Disc - 2
BREMBO

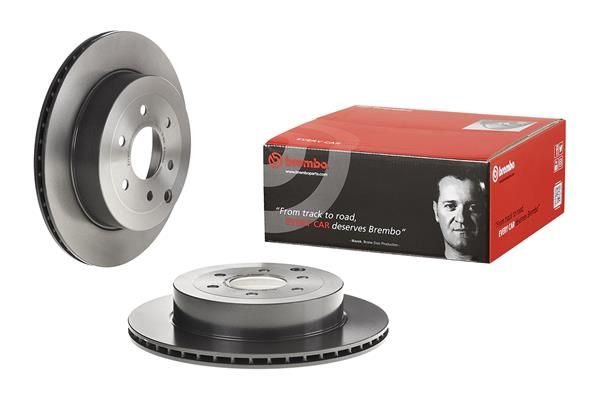

Brembo 09.D942.11 Brake Disc

SKU: 09.D942.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£89.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
X-CLASS (470)
Description Cylinder Capacity Horse Power Year
X 220 d (470.210) 2298 CCM 163 HP 09/2017 - 05/2020
X 220 d 4-matic (470.211) 2298 CCM 163 HP 09/2017 - 05/2020
X 250 d 4-matic (470.231) 2298 CCM 190 HP 09/2017 - 05/2020
X 250 d (470.230) 2298 CCM 190 HP 09/2017 - 05/2020
X 350 d 4-matic (470.252) 2987 CCM 258 HP 07/2018 - 05/2020
NISSAN
NAVARA NP300 Pickup (D23, D23T)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4x4 2488 CCM 190 HP From 07/2014
2.3 dCi (D231) 2298 CCM 163 HP From 01/2015
2.3 dCi 4x4 (D231) 2298 CCM 163 HP From 01/2015
2.3 dCi 4x4 (D231, D23T) 2298 CCM 190 HP From 10/2015
2.3 dCi 2298 CCM 190 HP From 01/2015
NAVARA NP300 Platform/Chassis (D23)
Description Cylinder Capacity Horse Power Year
2.3 dCi 4x4 2298 CCM 163 HP From 01/2015

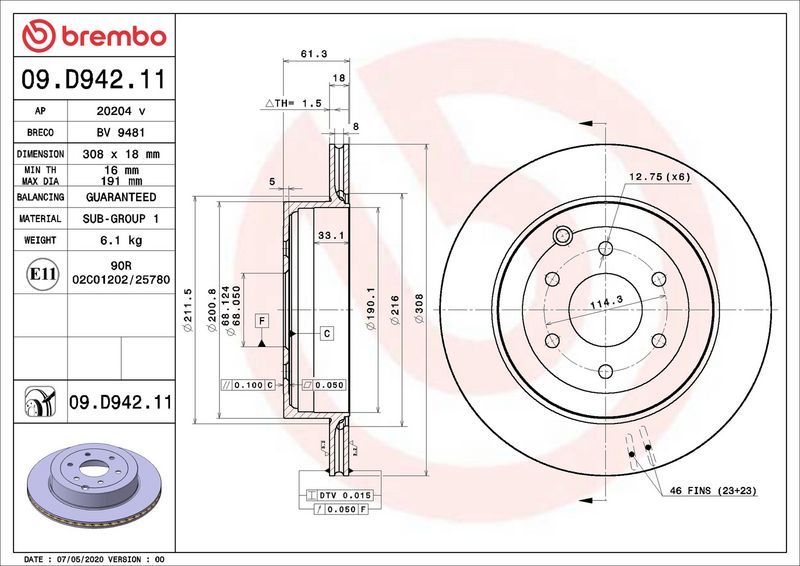

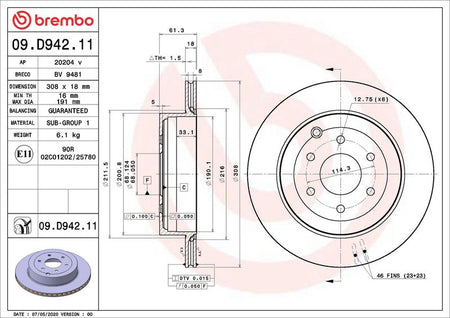

The Brembo 09.D942.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 18 mm brake disc thickness, 6 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 18
Number of Holes : 6
Height [mm] : 61
Centering Diameter [mm] : 68
Outer Diameter [mm] : 308
Surface : Coated
Minimum thickness [mm] : 16
  • Vendor BREMBO
  • SKU 09.D942.11
  • Barcode 8020584313213
  • MERCEDES-BENZ : 4704230200
  • NISSAN : 432065XA0A
  • APEC : DSK3423
  • BLUE PRINT : ADBP430128
  • BLUE PRINT : ADN143119
  • BORG & BECK : BBD5601
  • BOSCH : 0 986 479 J68
  • DELPHI : BG4994C
  • FEBI BILSTEIN : 108440
  • FEBI BILSTEIN : 178650
  • HELLA : 8DD 355 131-391
  • MEYLE : 015 523 0047/PD
  • MINTEX : MDC2845C
  • National : NBD2204
  • SKF : VKBD 90426 V2
  • TEXTAR : 92296403
  • TRW : DF6967
