Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.D965.11 Brake Disc - 1
Brembo 09.D965.11 Brake Disc - 2
Brembo 09.D965.11 Brake Disc - 1
Brembo 09.D965.11 Brake Disc - 2
BREMBO

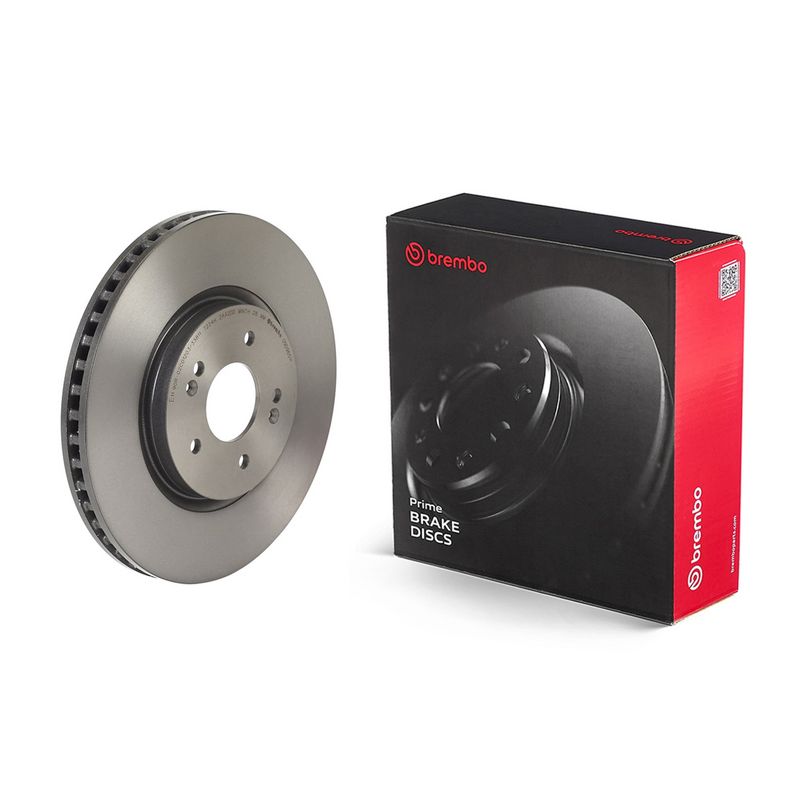

Brembo 09.D965.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.D965.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£121.38 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

HYUNDAI
TUCSON (NX4E, NX4A)
Description Cylinder Capacity Horse Power Year
1.6 T-GDi Hybrid 48V 1598 CCM 150 HP From 11/2020
1.6 T-GDi Hybrid 1598 CCM 230 HP From 11/2020
1.6 T-GDi Hybrid HTRAC 1598 CCM 230 HP From 11/2020
1.6 T-GDi 1598 CCM 179 HP From 07/2021
1.6 T-GDi 1598 CCM 150 HP From 05/2021
1.6 T-GDi Hybrid 48V HTRAC 1598 CCM 179 HP From 11/2020
1.6 T-GDI Plug-in-Hybrid HTRAC 1598 CCM 265 HP From 05/2021
1.6 CRDi 1598 CCM 116 HP From 11/2020
1.6 T-GDi Hybrid 48V 1598 CCM 179 HP From 11/2020
1.6 CRDi 1598 CCM 136 HP From 11/2020
1.6 CRDi HTRAC 1598 CCM 136 HP From 11/2020
1.6 T-GDi 1598 CCM 160 HP From 05/2024
1.6 T-GDi Hybrid 48V 1598 CCM 160 HP From 06/2024
1.6 T-GDi Hybrid 48V All-wheel Drive 1598 CCM 160 HP From 06/2024
1.6 T-GDi Hybrid 1598 CCM 215 HP From 06/2024
KIA
SPORTAGE V (NQ5)
Description Cylinder Capacity Horse Power Year
1.6 CRDi 1598 CCM 116 HP From 11/2021
1.6 T-GDI 1598 CCM 150 HP From 11/2021
1.6 T-GDI MHEV 1598 CCM 150 HP From 11/2021
1.6 T-GDI MHEV AWD 1598 CCM 150 HP From 11/2021
1.6 T-GDI MHEV 1598 CCM 179 HP From 11/2021
1.6 T-GDI MHEV AWD 1598 CCM 179 HP From 11/2021
1.6 CRDi MHEV 1598 CCM 136 HP From 11/2021
1.6 CRDi MHEV AWD 1598 CCM 136 HP From 11/2021
1.6 T-GDi Plug-in Hybrid AWD 1598 CCM 265 HP From 11/2021
1.6 T-GDi Hybrid 1598 CCM 230 HP From 11/2021
1.6 T-GDi Hybrid AWD 1598 CCM 230 HP From 11/2021
1.6 T-GDi Plug-in Hybrid AWD 1598 CCM 252 HP From 02/2024
1.6 T-GDI MHEV 1598 CCM 160 HP From 02/2024
1.6 T-GDi Hybrid AWD 1598 CCM 215 HP From 02/2024
1.6 T-GDi Hybrid 1598 CCM 215 HP From 02/2024

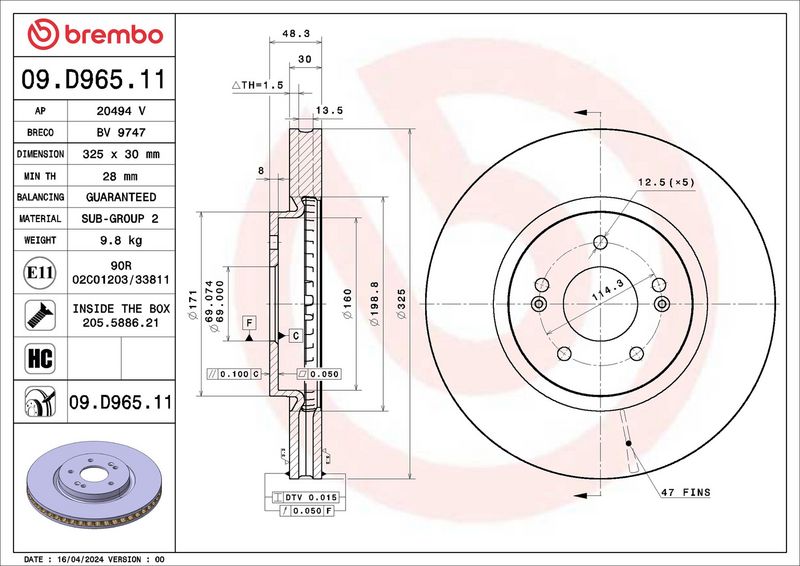

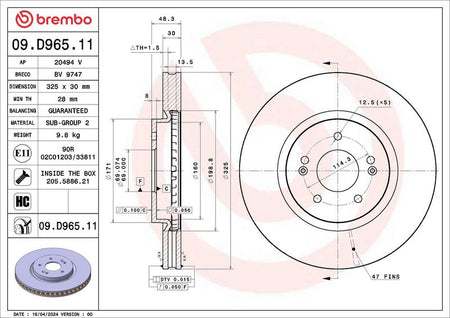

The Brembo 09.D965.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 48.3
Centering Diameter [mm] : 69
Outer Diameter [mm] : 325
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.D965.11
  • Barcode 8020584328163
  • HYUNDAI : 51712CZ100 51712N7100
  • KIA : 51712N7100
  • BLUE PRINT : ADBP430151
  • BORG & BECK : BBD6288S
  • DELPHI : BG9512C
  • HELLA : 8DD 355 134-721
  • MINTEX : MDC3039C
  • TEXTAR : 92337103
  • TRW : DF6829S
