BREMBO

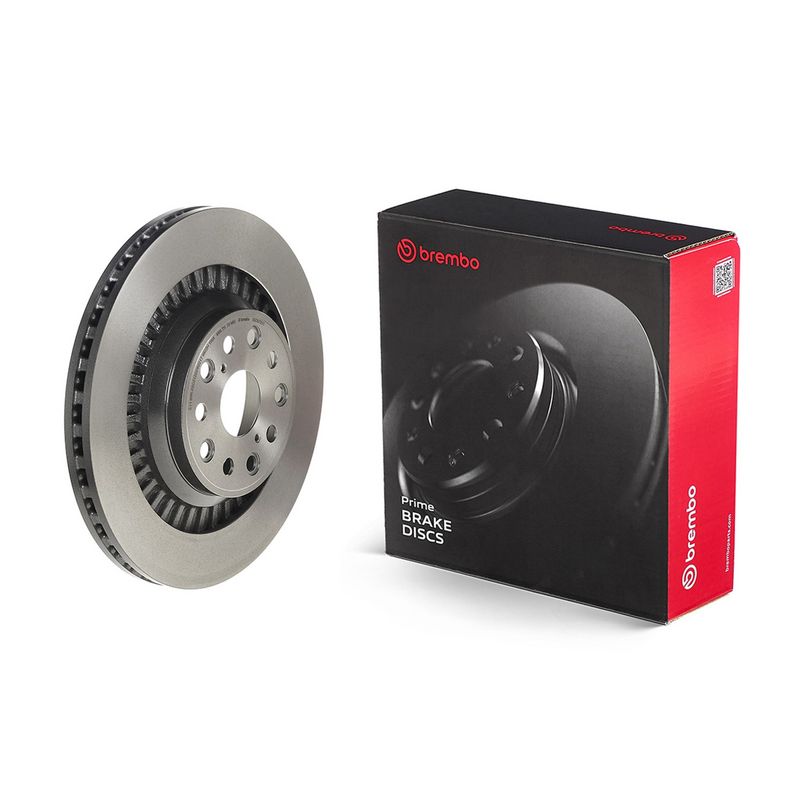

Brembo 09.D975.11 Brake Disc

SKU: 09.D975.11
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£81.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LEXUS
LC Coupe (_Z10_)
Description Cylinder Capacity Horse Power Year
500 (URZ100_, URZ100R) 4969 CCM 477 HP From 11/2016
500 (URZ100) 4969 CCM 464 HP From 11/2018
500h (GWZ100_, GWZ100R) 3456 CCM 359 HP From 05/2017
LC Convertible (_Z10_)
Description Cylinder Capacity Horse Power Year
500 (URZ100) 4969 CCM 477 HP From 07/2020
500h (GWZ100) 3456 CCM 359 HP From 03/2022
500 (URZ100) 4969 CCM 464 HP From 07/2020
LS (_F5_)
Description Cylinder Capacity Horse Power Year
500 (VXFA50_, VXFA50R) 3445 CCM 421 HP From 10/2017
500h (GVF50, GVF50_, GVF50R) 3456 CCM 359 HP From 11/2017
500h AWD (GVF55, GVF55_) 3456 CCM 359 HP From 11/2017

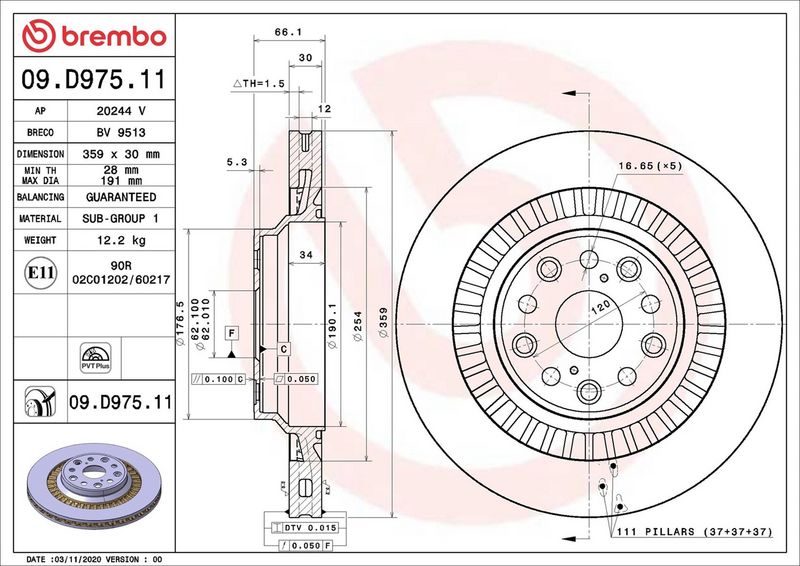

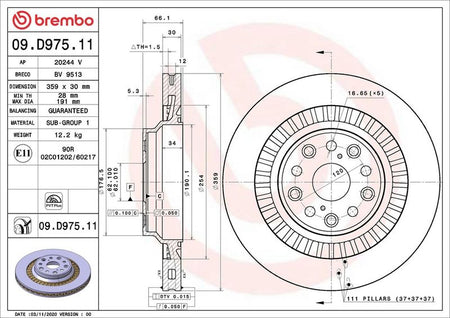

The Brembo 09.D975.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 30 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 30
Number of Holes : 5
Height [mm] : 66
Centering Diameter [mm] : 62
Outer Diameter [mm] : 359
Surface : Coated
Minimum thickness [mm] : 28
  • Vendor BREMBO
  • SKU 09.D975.11
  • Barcode 8020584313237
  • LEXUS : 4243111020 4243211010
  • APEC : DSK3678
