Brembo 09.E034.11 Brake Disc - 1
Brembo 09.E034.11 Brake Disc - 2
Brembo 09.E034.11 Brake Disc - 1
Brembo 09.E034.11 Brake Disc - 2
BREMBO

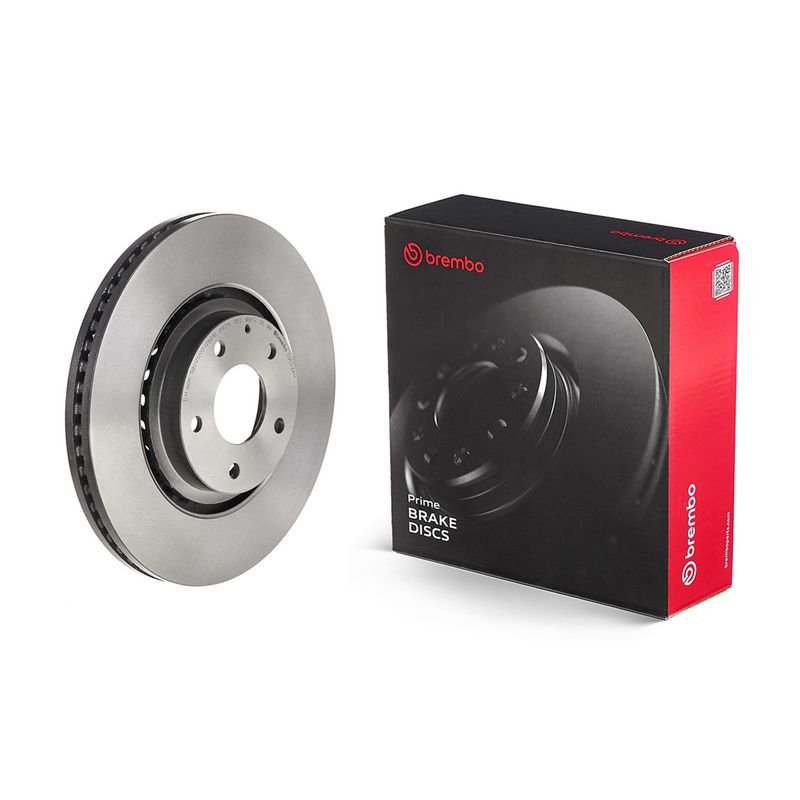

Brembo 09.E034.11 Brake Disc

SKU: 09.E034.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£71.86 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.2 D AWD 2191 CCM 150 HP 12/2012 - 12/2020
2.2 D 2191 CCM 184 HP 03/2018 - 12/2020
2.2 D AWD 2191 CCM 184 HP 03/2018 - 12/2020
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.2 D 2191 CCM 184 HP 03/2018 - 11/2020
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.2 SKYACTIV-D 2191 CCM 184 HP From 02/2021

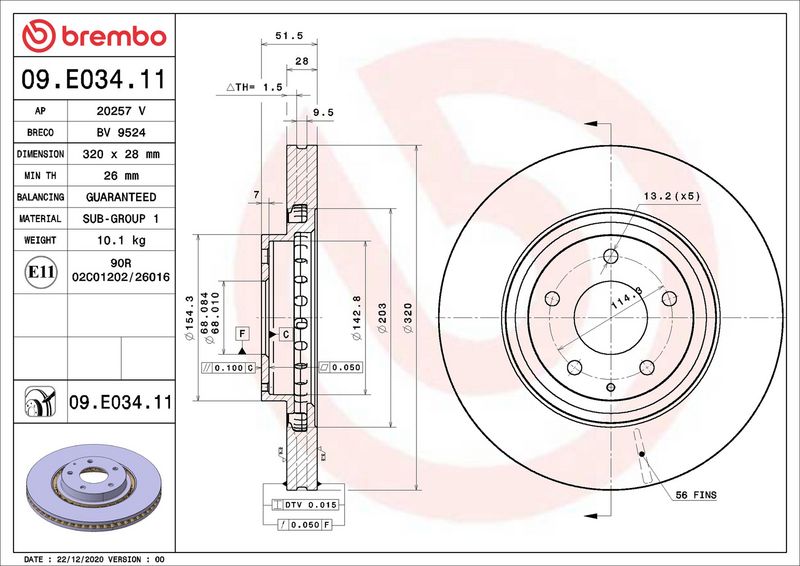

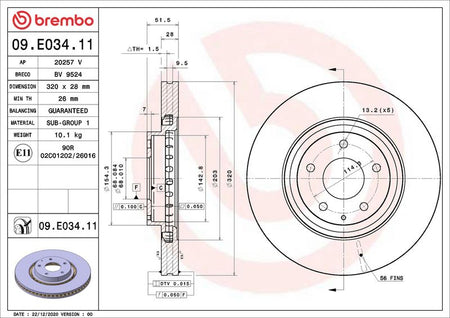

The Brembo 09.E034.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 51.5
Centering Diameter [mm] : 68
Outer Diameter [mm] : 320
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.E034.11
  • Barcode 8020584313459
  • MAZDA : TK7833251A TK7833251B
  • MAZDA (CHANGAN) : TK7833251B
  • APEC : DSK3694
  • BLUE PRINT : ADM543137
  • BORG & BECK : BBD6228S
  • BOSCH : 0 986 479 H02
  • DELPHI : BG9352C
  • HELLA : 8DD 355 132-691
  • MEYLE : 35-15 521 0047/PD
  • MINTEX : MDC2929C
  • NAPA : NBD5979
  • National : NBD2167
  • SKF : VKBD 81406 V1
  • TEXTAR : 92315203
  • TRW : DF4611S
