BREMBO

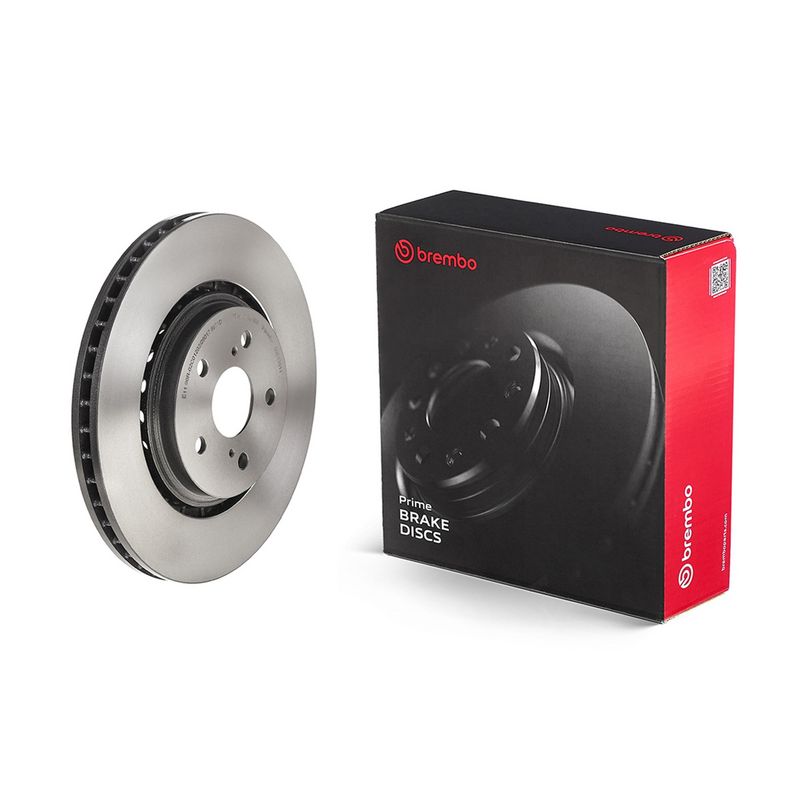

Brembo 09.E126.11 Brake Disc

SKU: 09.E126.11
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£55.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
CAMRY (_V7_, _VA7_, _VH7_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXVH71_, AXVH70, AXVH71R) 2487 CCM 218 HP From 08/2017
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.0 (MXAA52) 1987 CCM 175 HP From 12/2018
2.0 AWD (MXAA54) 1987 CCM 175 HP From 12/2018
2.0 VVTi (MXAA52) 1987 CCM 173 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 173 HP From 02/2019
2.0 VVTi (MXAA52) 1987 CCM 150 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 150 HP From 12/2018
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
LEXUS
ES (_Z10_, _A10_, _H10_)
Description Cylinder Capacity Horse Power Year
300h (AXZH10, AXZH11) 2487 CCM 218 HP From 07/2018
RX (_L2_)
Description Cylinder Capacity Horse Power Year
200t (AGL20R, AGL20_) 1998 CCM 238 HP 10/2015 - 12/2017
200t AWD (AGL25_) 1998 CCM 238 HP 10/2015 - 12/2017
350 4WD (GGL25_, GGL26_, GGL25R, GGL26R) 3456 CCM 300 HP From 10/2015
450h AWD (GYL25_, GYL26_, GYL25, GYL26, GYL25R, GYL26R) 3456 CCM 313 HP From 11/2015
450h (GYL20_, GYL20W) 3456 CCM 313 HP From 10/2015
300 AWD (AGL25_, AGL25R) 1998 CCM 238 HP From 12/2017
350 4WD (GGL25, GGL26) 3456 CCM 294 HP From 10/2015

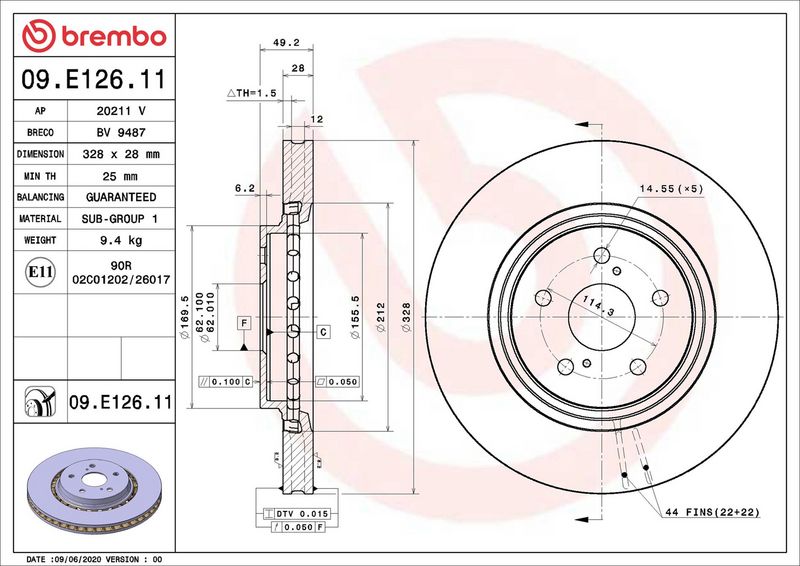

The Brembo 09.E126.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 49
Centering Diameter [mm] : 62
Outer Diameter [mm] : 328
Surface : Coated
Minimum thickness [mm] : 25
  • Vendor BREMBO
  • SKU 09.E126.11
  • Barcode 8020584313527
  • TOYOTA : 4351248130
  • LEXUS : 435120E050 4351248130
  • BLUE PRINT : ADT343278
  • BORG & BECK : BBD5229
  • BOSCH : 0 986 479 T00
  • DELPHI : BG4691C
  • DELPHI : BG5030C
  • FEBI BILSTEIN : 108464
  • FTE : 9082798
  • MINTEX : MDC2629
  • TEXTAR : 92259403
  • TEXTAR : 92259405
  • TRW : DF6858S
  • VALEO : 672698
