Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

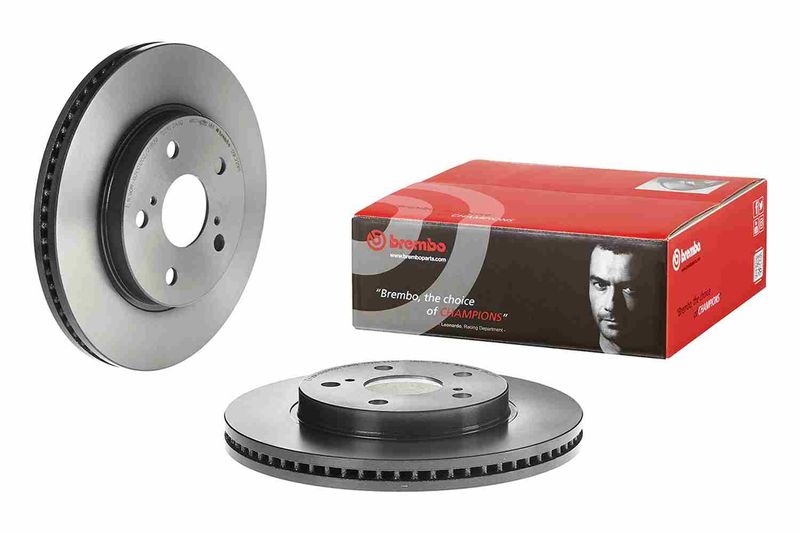

Brembo 09.E229.11 Brake Disc - 1

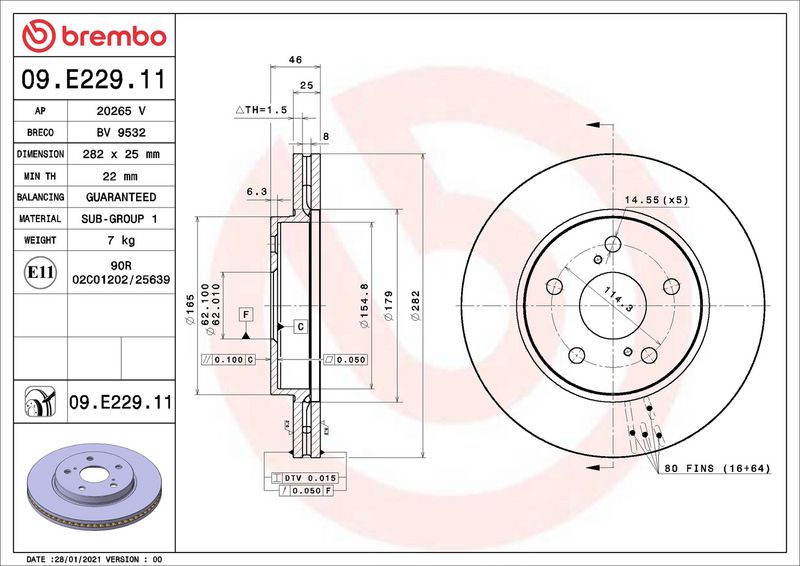

Brembo 09.E229.11 Brake Disc - 2
Brembo 09.E229.11 Brake Disc - 1
Brembo 09.E229.11 Brake Disc - 2
BREMBO

Brembo 09.E229.11 Brake Disc

SKU: 09.E229.11
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£107.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SWACE (AMZ_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid 1798 CCM 102 HP From 10/2020
1.8 Hybrid 1798 CCM 122 HP From 10/2020
1.8 Hybrid 1798 CCM 140 HP From 03/2023
TOYOTA
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
1.2 (NRE210) 1197 CCM 116 HP From 01/2019
1.8 Hybrid (ZWE211, ZWE219) 1798 CCM 122 HP From 10/2018
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Saloon (_E21_)
Description Cylinder Capacity Horse Power Year
1.6 VVTi (ZRE210) 1598 CCM 132 HP From 01/2019
1.6 VVTi (ZRE210) 1598 CCM 122 HP From 01/2019
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid 1798 CCM 126 HP From 01/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
1.2 (NRE210) 1197 CCM 116 HP From 02/2019
1.8 Hybrid (ZWE211W) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA COMMERCIAL (_E21_)
Description Cylinder Capacity Horse Power Year
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 06/2022
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 01/2023
YARIS CROSS (MXP_)
Description Cylinder Capacity Horse Power Year
1.5 (MXPB10) 1490 CCM 125 HP From 09/2020
1.5 Hybrid (MXPJ10) 1490 CCM 116 HP From 09/2020
1.5 Hybrid All-wheel Drive (MXPJ15) 1490 CCM 116 HP From 09/2020
1.5 Hybrid (MXPJ11) 1490 CCM 131 HP From 01/2024
1.5 Hybrid AWD-i (MXPJ16) 1490 CCM 131 HP From 01/2024

The Brembo 09.E229.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 25 mm brake disc thickness, 5 mounting holes, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 25
Number of Holes : 5
Height [mm] : 46
Centering Diameter [mm] : 62
Outer Diameter [mm] : 282
Surface : Coated
Minimum thickness [mm] : 22
  • Vendor BREMBO
  • SKU 09.E229.11
  • Barcode 8020584317426
  • SUZUKI : T435120239
  • TOYOTA : 4351202390
  • APEC : DSK3529
  • BLUE PRINT : ADBP430072
  • BORG & BECK : BBD5600
  • BOSCH : 0 986 479 F92
  • DELPHI : BG5051C
  • FEBI BILSTEIN : 181239
  • FTE : 9082820
  • MEYLE : 11-83 521 0048/PD
  • MINTEX : MDC2962C
  • MINTEX : MDC3094C
  • NAPA : NBD5898
  • National : NBD2166
  • TEXTAR : 92321203
  • TEXTAR : 92341103
  • TRW : DF6838
  • VALEO : 673694
