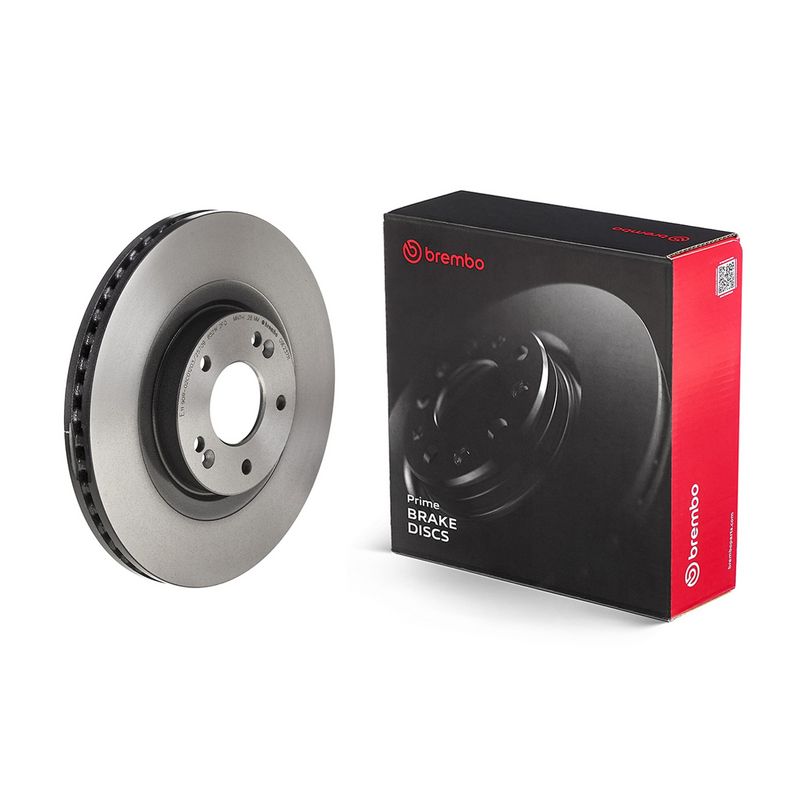

Brembo 09.E237.11 Brake Disc

SKU: 09.E237.11
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£76.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
GRAND SANTA FÉ
Description Cylinder Capacity Horse Power Year
2.2 CRDi All-wheel Drive 2199 CCM 197 HP 06/2013 - 11/2018
SANTA FÉ III (DM, DMA)
Description Cylinder Capacity Horse Power Year
2.4 2359 CCM 192 HP 09/2012 - 10/2015
2.0 CRDi 1995 CCM 150 HP 09/2012 - 08/2018
2.2 CRDi 2199 CCM 197 HP 09/2012 - 12/2018
2.2 CRDi 4WD 2199 CCM 197 HP 09/2012 - 12/2018
2.4 4WD 2359 CCM 192 HP 09/2012 - 10/2015
2.0 CRDi 4WD 1995 CCM 150 HP 09/2012 - 08/2018
SANTA FE IV (TM, TMA)
Description Cylinder Capacity Horse Power Year
2.2 CRDi 2199 CCM 200 HP 07/2018 - 11/2020
KIA
SORENTO II (XM)
Description Cylinder Capacity Horse Power Year
2.4 CVVT 2359 CCM 174 HP 11/2009 - 12/2015
2.4 CVVT 4WD 2359 CCM 174 HP 11/2009 - 12/2015
2.2 CRDi 2199 CCM 197 HP 11/2009 - 12/2015
2.2 CRDi 4WD 2199 CCM 197 HP 11/2009 - 12/2015
2.4 CVVT 4WD 2359 CCM 192 HP 10/2012 - 12/2015
2.4 GDI 4WD 2359 CCM 192 HP 10/2012 - 12/2015
SORENTO III (UM)
Description Cylinder Capacity Horse Power Year
2.2 CRDi 2199 CCM 200 HP 01/2015 - 08/2020
2.2 CRDi 4WD 2199 CCM 200 HP 01/2015 - 08/2020
2.4 GDI 2359 CCM 188 HP 01/2015 - 10/2018
3.3 CVVT 4WD 3342 CCM 250 HP 04/2015 - 12/2020

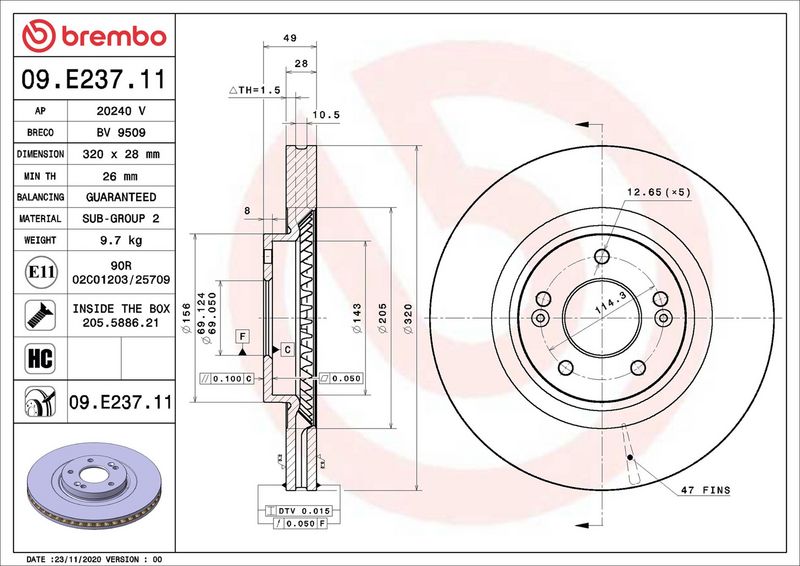

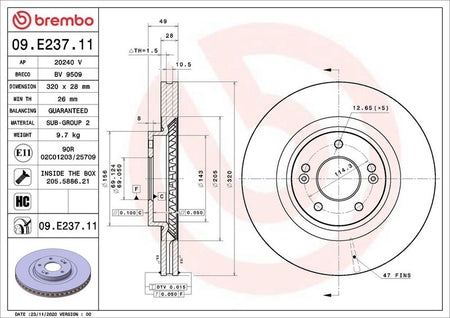

The Brembo 09.E237.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 49
Centering Diameter [mm] : 69
Outer Diameter [mm] : 320
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.E237.11
  • Barcode 8020584313671
  • HYUNDAI : 517122W000 517124Z000
  • KIA : 517122W000
  • HYUNDAI (BEIJING) : 517122W000
  • KIA (DYK) : 517122W000
  • INOKOM : 517122W000
  • BORG & BECK : BBD6112S
  • BOSCH : 0 986 479 F35
  • HELLA : 8DD 355 125-121
  • MINTEX : MDC2736
  • TEXTAR : 92281803
