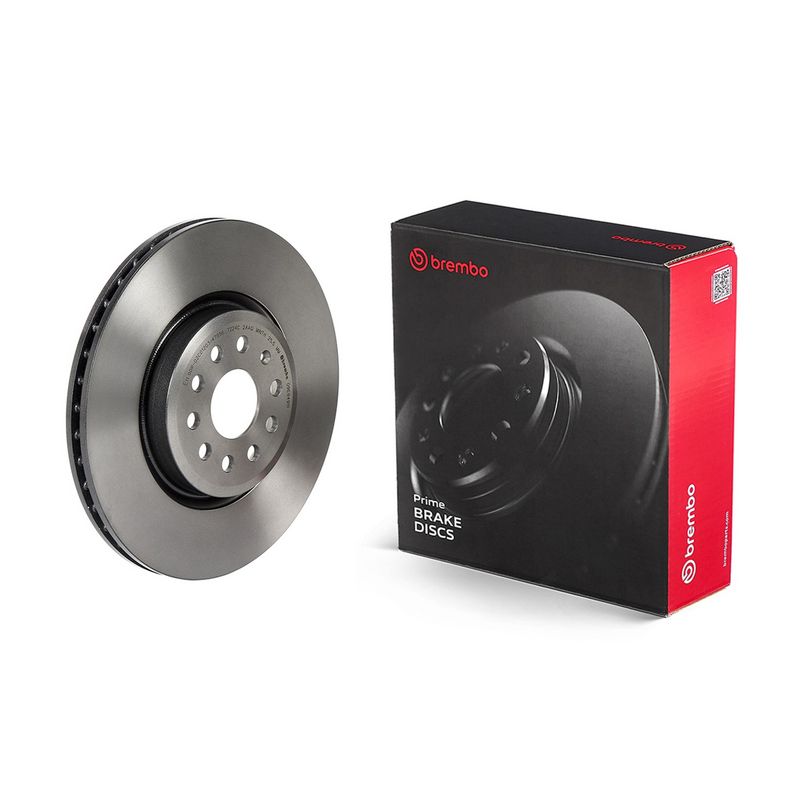

Brembo 09.E949.11 Brake Disc
Your selected vehicle
Regular price
£133.62
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

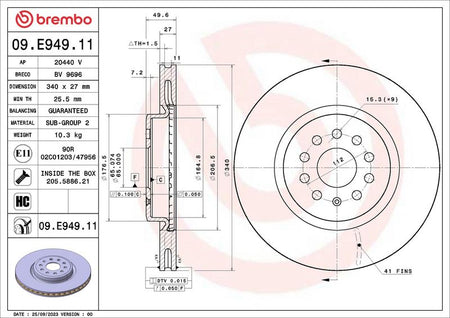

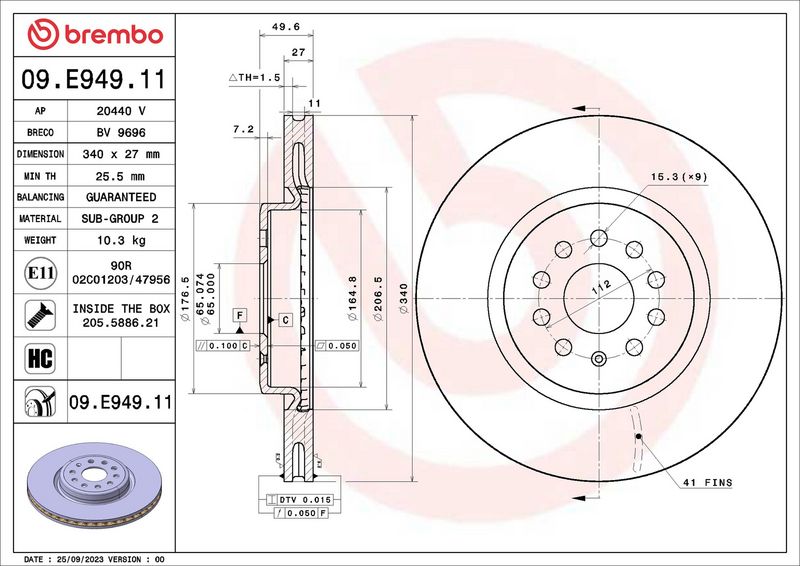

The Brembo 09.E949.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 27 mm brake disc thickness, 9 mounting holes, and 164.8 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
internally vented
Brake Disc Thickness [mm] :
27
Number of Holes :
9
Supplementary Article/Supplementary Info 2 :
with bolts/screws
Height [mm] :
25.7
Centering Diameter [mm] :
164.8
Outer Diameter [mm] :
340
Machining :
High-carbon
Surface :
Coated
Minimum thickness [mm] :
25.5
- Vendor BREMBO
- SKU 09.E949.11
- AUDI : 1EA615301A
- BLUE PRINT : ADBP430183
- DELPHI : BG9494C
- FEBI BILSTEIN : 186335
- FTE : 9082835
- MINTEX : MDC3042C
- TEXTAR : 92337405
- TRW : DF6770S
