BREMBO

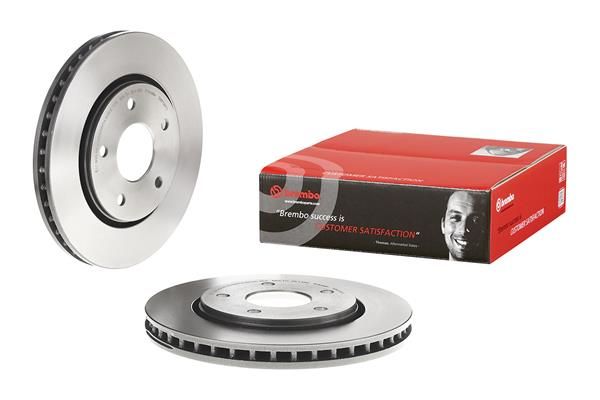

Brembo 09.N124.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.N124.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£131.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CHRYSLER

GRAND VOYAGER V (RT)

Description	Cylinder Capacity	Horse Power	Year
3.3	3301 CCM	170 HP	From 01/2008
3.8	3778 CCM	193 HP	From 10/2007
2.8 CRD	2777 CCM	163 HP	From 10/2007
3.6	3604 CCM	283 HP	From 02/2011
2.8 CRD	2777 CCM	181 HP	From 09/2012
3.8	3778 CCM	200 HP	From 09/2008

DODGE

JOURNEY

Description	Cylinder Capacity	Horse Power	Year
2.7	2736 CCM	185 HP	From 01/2009
2.0 CRD	1968 CCM	140 HP	From 06/2008
2.4	2360 CCM	170 HP	From 01/2009
3.5 AWD	3518 CCM	235 HP	06/2008 - 12/2010
2.4 ECO+	2360 CCM	170 HP	From 06/2008
3.6	3605 CCM	280 HP	06/2012 - 12/2015
3.6	3605 CCM	287 HP	From 01/2012
2.4	2360 CCM	173 HP	From 06/2012
3.6 AWD	3604 CCM	280 HP	From 05/2013
2.0 CRD	1968 CCM	136 HP	06/2008 - 12/2011

JOURNEY VAN (JC)

Description	Cylinder Capacity	Horse Power	Year
2.0 CRD	1968 CCM	140 HP	06/2008 - 12/2011

FIAT

FREEMONT (345_)

Description	Cylinder Capacity	Horse Power	Year
2.0 JTD 4x4	1956 CCM	163 HP	08/2011 - 12/2015
2.0 JTD	1956 CCM	163 HP	08/2011 - 12/2015
3.6 4x4	3604 CCM	280 HP	08/2011 - 12/2015
2.0 JTD	1956 CCM	140 HP	08/2011 - 12/2015
2.0 JTD	1956 CCM	170 HP	08/2011 - 12/2015
2.0 JTD 4x4	1956 CCM	170 HP	08/2011 - 12/2015
2.0 JTD	1956 CCM	136 HP	08/2011 - 12/2015
2.4	2360 CCM	170 HP	08/2011 - 12/2015

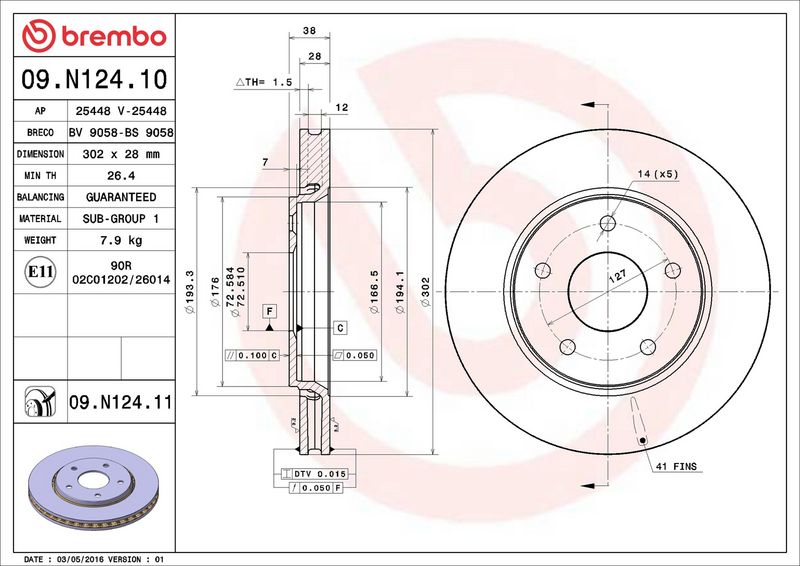

The Brembo 09.N124.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 73 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 28

Number of Holes : 5

Height [mm] : 38

Centering Diameter [mm] : 73

Outer Diameter [mm] : 302

Surface : Coated

Minimum thickness [mm] : 26.4

Tightening Torque [Nm] : 129
