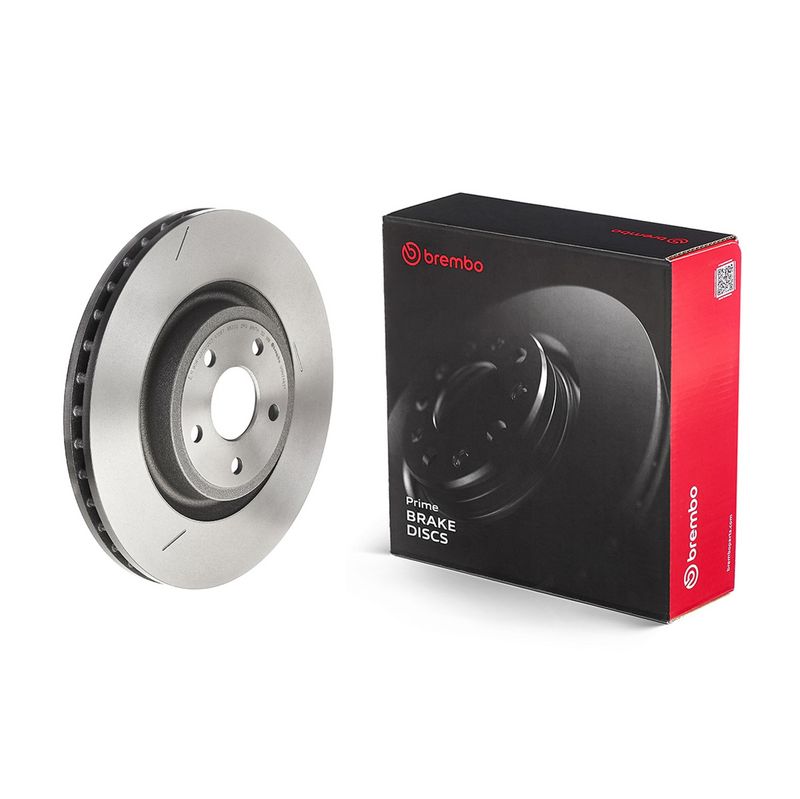

Brembo 09.N246.21 Brake Disc

SKU: 09.N246.21
Your selected vehicle
Out of stock
Out of Stock
£182.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

JEEP
GRAND CHEROKEE IV (WK, WK2)
Description Cylinder Capacity Horse Power Year
3.6 V6 4x4 3604 CCM 286 HP From 11/2010
5.7 V8 4x4 5654 CCM 352 HP From 11/2010
3.0 CRD V6 4x4 2987 CCM 190 HP From 02/2011
3.0 CRD V6 4x4 2987 CCM 241 HP From 02/2011
6.4 SRT8 4x4 6417 CCM 468 HP From 03/2011
3.6 V6 FlexFuel 4x4 3604 CCM 286 HP From 11/2010
3.6 V6 3604 CCM 284 HP From 11/2010
3.6 VVT 4x4 3604 CCM 290 HP From 04/2016
3.0 CRD V6 4x4 2987 CCM 250 HP From 07/2013
6.4 SRT8 4x4 6417 CCM 472 HP From 06/2011
3.0 V6 4x4 2985 CCM 238 HP From 09/2014
3.6 V6 4x4 3604 CCM 281 HP From 11/2010
5.7 4x4 5654 CCM 364 HP From 01/2011
3.0 CRD V6 4x4 2987 CCM 218 HP From 01/2011
6.2 i V8 4x4 6166 CCM 710 HP From 09/2017
GRAND CHEROKEE VAN (WK2)
Description Cylinder Capacity Horse Power Year
V6 VVT 3604 CCM 286 HP From 07/2013
5.7 HEMI 4x4 5654 CCM 352 HP From 07/2013
3.0 CRD 2987 CCM 190 HP From 01/2017
3.0 CRD 2987 CCM 250 HP From 07/2013

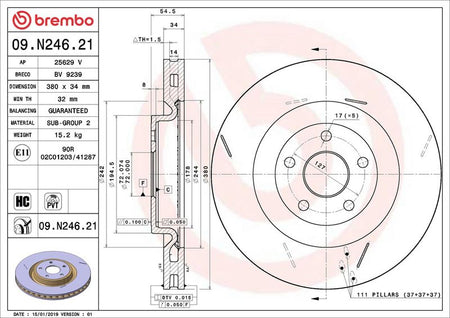

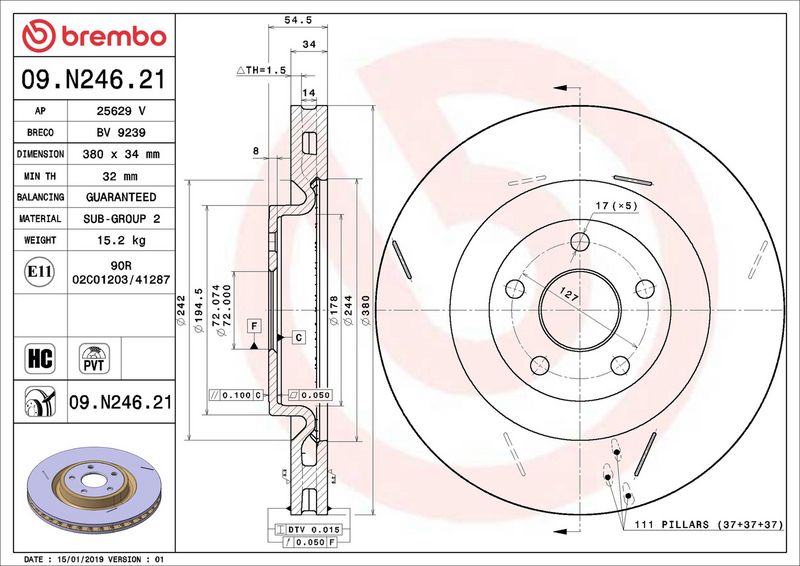

The Brembo 09.N246.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented and slotted disc construction, 34 mm brake disc thickness, 5 mounting holes, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Type : slotted
Brake Disc Thickness [mm] : 34
Number of Holes : 5
Height [mm] : 55
Centering Diameter [mm] : 72
Outer Diameter [mm] : 380
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 32
  • Vendor BREMBO
  • SKU 09.N246.21
  • Barcode 8020584232361
  • JEEP : 5181513AB 5181513AC 5181513AD
  • APEC : DSK4186
  • BORG & BECK : BBD6164S
  • DELPHI : BG9213C
  • HELLA : 8DD 355 125-131
  • MINTEX : MDC2737
  • TEXTAR : 92281905
  • TRW : DF6569S
