BREMBO

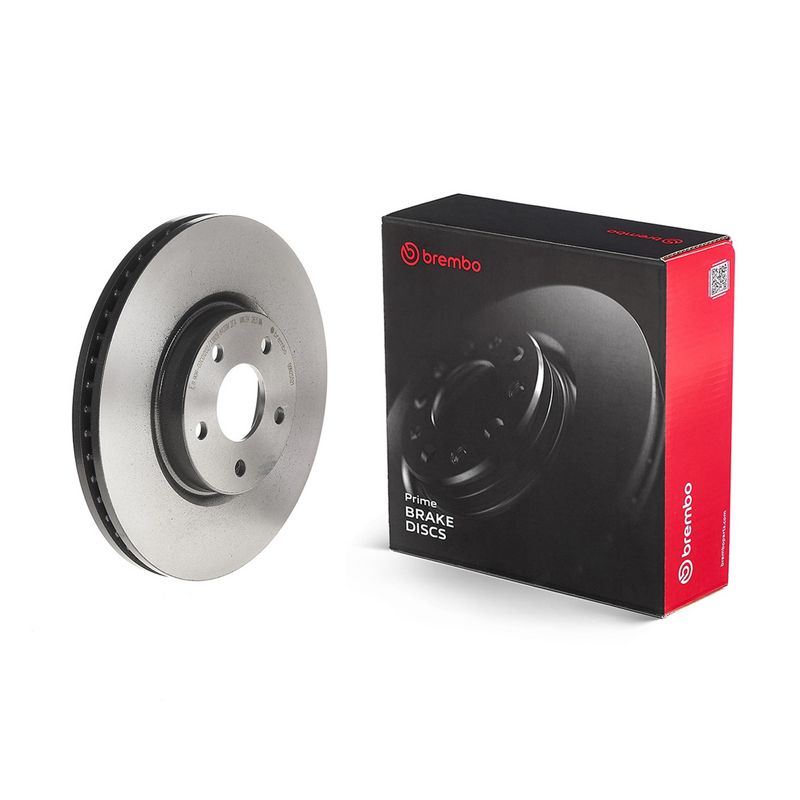

Brembo 09.N255.21 Brake Disc

SKU: 09.N255.21
Your selected vehicle
Out of stock
Out of Stock
£54.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
MONDEO V Saloon (CD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBoost 1999 CCM 240 HP From 05/2015
2.0 Hybrid 1999 CCM 177 HP From 09/2014
2.0 Hybrid 1999 CCM 190 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 05/2015
2.0 TDCi 1998 CCM 180 HP From 05/2015
2.0 EcoBoost 1999 CCM 199 HP From 05/2015
2.5 2489 CCM 149 HP From 05/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 05/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 05/2015
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 4x4 1998 CCM 150 HP From 09/2014
MONDEO V Turnier (CF)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 09/2014
2.0 EcoBoost 1999 CCM 240 HP From 09/2014
1.6 TDCi 1560 CCM 115 HP From 09/2014
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 1998 CCM 180 HP From 09/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015
2.0 TDCi 4x4 1998 CCM 150 HP From 02/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 02/2015
1.5 EcoBoost 1499 CCM 165 HP From 05/2018
2.0 EcoBlue 1995 CCM 120 HP From 01/2019
2.0 EcoBlue 1995 CCM 150 HP From 01/2019
2.0 EcoBlue 1995 CCM 190 HP From 01/2019
MONDEO V Hatchback (CE)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 09/2014
2.0 EcoBoost 1999 CCM 240 HP From 09/2014
1.6 TDCi 1560 CCM 115 HP From 09/2014
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 1998 CCM 180 HP From 09/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015
2.0 TDCi 4x4 1998 CCM 150 HP From 02/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 02/2015
1.5 EcoBoost 1499 CCM 165 HP From 05/2018
2.0 EcoBlue 1995 CCM 120 HP From 01/2019
2.0 EcoBlue 1995 CCM 150 HP From 01/2019
2.0 EcoBlue 1995 CCM 190 HP From 01/2019

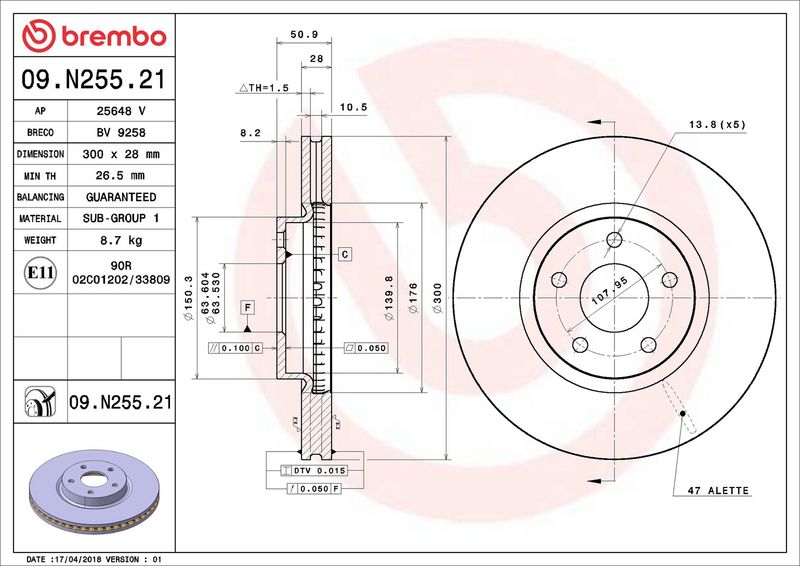

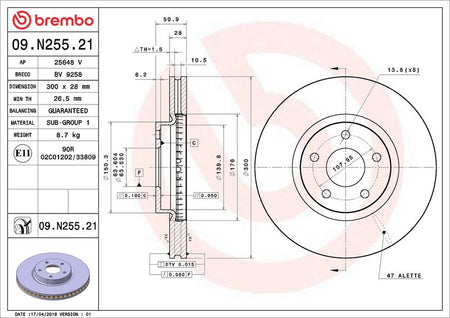

The Brembo 09.N255.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 51
Centering Diameter [mm] : 64
Outer Diameter [mm] : 300
Surface : Coated
Minimum thickness [mm] : 26.5
  • Vendor BREMBO
  • SKU 09.N255.21
  • Barcode 8020584232378
  • FORD : 2017128 2037502 5202199 5322975 DG9C1125AC DG9C1125AD DG9C1125AE DG9C1125AF DG9Z1125GA KS7Z1125A
  • FORD USA : BRRF117 DG9Z1125A
  • FORD (CHANGAN) : 5202199 DG9C1125A4B DG9C1125AC DG9C1125AD
  • BLUE PRINT : ADF124355
  • BORG & BECK : BBD5411
  • BOSCH : 0 986 479 D85
  • DELPHI : BG4702C
  • FEBI BILSTEIN : 104953
  • FTE : 9071166
  • FTE : 9081148
  • FTE : 9082799
  • HELLA : 8DD 355 123-161
  • MEYLE : 715 521 0044/PD
  • MINTEX : MDC2662
  • SKF : VKBD 80301 V2
  • TEXTAR : 92268603
  • TEXTAR : 92268605
  • TRW : DF6811
  • VALEO : 672998
