Brembo 09.N264.11 Brake Disc - 1
Brembo 09.N264.11 Brake Disc - 2
Brembo 09.N264.11 Brake Disc - 1
Brembo 09.N264.11 Brake Disc - 2
BREMBO

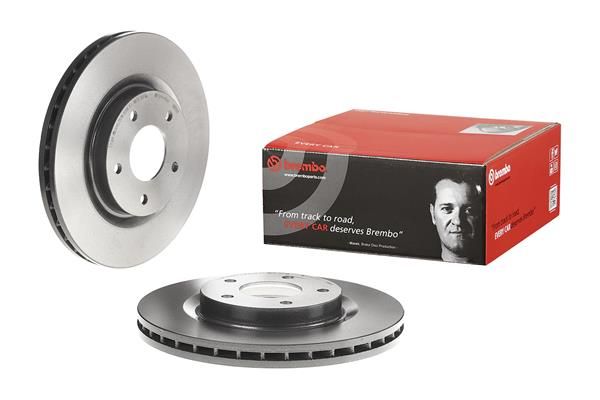

Brembo 09.N264.11 Brake Disc

Position: Front
5.0/5 78 reviews
SKU: 09.N264.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£95.17 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

CITROËN
C4 AIRCROSS
Description Cylinder Capacity Horse Power Year
1.6 1590 CCM 117 HP From 04/2012
1.6 HDi 115 1560 CCM 114 HP From 04/2012
1.6 HDi 115 AWC 1560 CCM 114 HP From 05/2012
1.8 HDi 150 1798 CCM 150 HP From 04/2012
1.8 HDi 150 AWC 1798 CCM 150 HP From 04/2012
MITSUBISHI
ASX (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D (GA6W) 1798 CCM 116 HP From 06/2010
1.8 (GA3W) 1798 CCM 139 HP From 02/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 116 HP From 06/2010
2.0 MIVEC (GA2W) 1998 CCM 150 HP From 06/2010
2.0 MIVEC 4WD 1998 CCM 150 HP From 06/2010
1.6 MIVEC (GA1W) 1590 CCM 116 HP From 05/2010
1.6 MIVEC (GA1W) 1590 CCM 117 HP From 06/2010
1.8 DI-D (GA6W) 1798 CCM 150 HP From 06/2010
1.8 DI-D 4WD (GA6W) 1798 CCM 150 HP From 06/2010
2.2 DI-D 4WD (GA8W) 2268 CCM 150 HP From 04/2013
1.6 DI-D 1560 CCM 114 HP From 07/2015
1.6 DI-D 4WD 1560 CCM 114 HP From 07/2015
ASX Van (GA_W_)
Description Cylinder Capacity Horse Power Year
1.8 DI-D 4WD 1798 CCM 150 HP From 06/2010
ECLIPSE CROSS (GK_, GL_)
Description Cylinder Capacity Horse Power Year
1.5 T-Mivec 4WD 1499 CCM 163 HP From 10/2017
1.5 T-Mivec 1499 CCM 163 HP From 10/2017
2.2 DiD 4WD (GK9W) 2268 CCM 148 HP From 03/2019
LANCER VII (CS_A, CT_A)
Description Cylinder Capacity Horse Power Year
2.0 i 1998 CCM 154 HP 10/2007 - 12/2013
LANCER VIII (CY_A, CZ_A)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 147 HP From 01/2009
2.0 i (CY4A) 1998 CCM 154 HP From 04/2007
2.0 i Ralliart 4WD (CY4A) 1998 CCM 241 HP From 10/2008
OUTLANDER II (CW_W)
Description Cylinder Capacity Horse Power Year
2.0 (CW4W) 1998 CCM 147 HP 11/2006 - 11/2012
2.0 4WD 1998 CCM 147 HP 11/2006 - 11/2012
2.4 4WD (CW5W) 2360 CCM 170 HP 09/2007 - 11/2012
2.4 (CW5W) 2360 CCM 170 HP 11/2006 - 11/2012
OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK)
Description Cylinder Capacity Horse Power Year
2.0 4WD (GF7W, GF2W) 1998 CCM 146 HP 10/2012 - 12/2022
2.0 (GF7W) 1998 CCM 150 HP 08/2012 - 12/2022
2.0 4WD (GF7W) 1998 CCM 150 HP 08/2012 - 12/2022
PEUGEOT
4008
Description Cylinder Capacity Horse Power Year
1.6 HDi AWC 1560 CCM 114 HP From 05/2012
1.8 HDi AWC 1798 CCM 150 HP From 05/2012
1.6 HDi 1560 CCM 114 HP From 05/2012
1.8 HDi 1798 CCM 150 HP From 05/2012
1.6 1590 CCM 117 HP From 05/2012

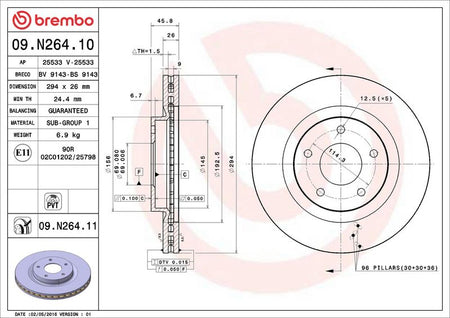

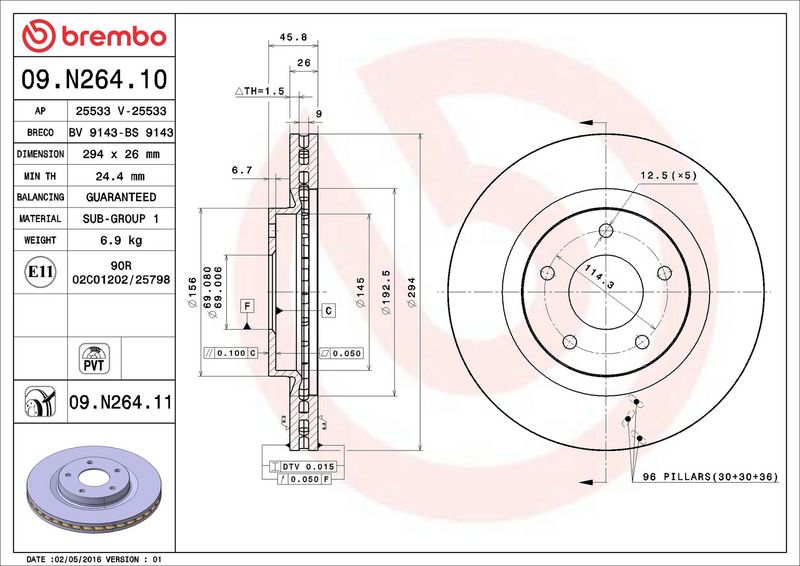

The Brembo 09.N264.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 26
Number of Holes : 5
Height [mm] : 46
Centering Diameter [mm] : 69
Outer Diameter [mm] : 294
Surface : Coated
Minimum thickness [mm] : 24.4
  • Vendor BREMBO
  • SKU 09.N264.11
  • Barcode 8020584222942
  • CITROËN : 1607500580 1610623080
  • MITSUBISHI : 4615A075 4615A117 4615A159 4615A178
  • PEUGEOT : 1607500580 1610623080
  • MITSUBISHI (GAC) : 4615A117 4615A178
  • BLUE PRINT : ADA104309
  • BOSCH : 0 986 479 751
  • DELPHI : BG4246
  • FEBI BILSTEIN : 108436
  • FEBI BILSTEIN : 108456
  • FTE : 9072182
  • HELLA : 8DD 355 115-911
  • MEYLE : 32-15 523 0015/PD
  • MINTEX : MDC2101
  • SKF : VKBD 80054 V2
  • TEXTAR : 92184405
  • VALEO : 197510
  • VALEO : 672926
