BREMBO

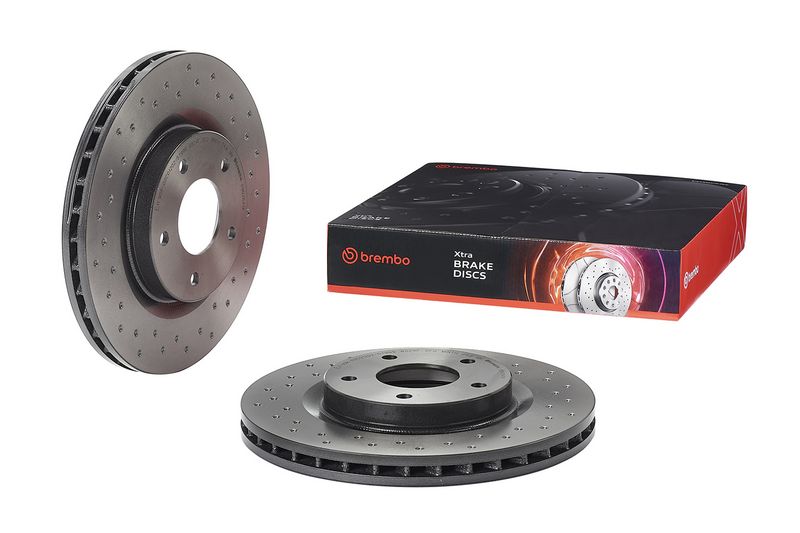

Brembo 09.N264.1X Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 09.N264.1X

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£233.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

CITROËN

C4 AIRCROSS

Description	Cylinder Capacity	Horse Power	Year
1.6	1590 CCM	117 HP	From 04/2012
1.6 HDi 115	1560 CCM	114 HP	From 04/2012
1.6 HDi 115 AWC	1560 CCM	114 HP	From 05/2012
1.8 HDi 150	1798 CCM	150 HP	From 04/2012
1.8 HDi 150 AWC	1798 CCM	150 HP	From 04/2012

MITSUBISHI

ASX (GA_W_)

Description	Cylinder Capacity	Horse Power	Year
1.8 DI-D (GA6W)	1798 CCM	116 HP	From 06/2010
1.8 (GA3W)	1798 CCM	139 HP	From 02/2010
1.8 DI-D 4WD (GA6W)	1798 CCM	116 HP	From 06/2010
2.0 MIVEC (GA2W)	1998 CCM	150 HP	From 06/2010
2.0 MIVEC 4WD	1998 CCM	150 HP	From 06/2010
1.6 MIVEC (GA1W)	1590 CCM	116 HP	From 05/2010
1.6 MIVEC (GA1W)	1590 CCM	117 HP	From 06/2010
1.8 DI-D (GA6W)	1798 CCM	150 HP	From 06/2010
1.8 DI-D 4WD (GA6W)	1798 CCM	150 HP	From 06/2010
2.2 DI-D 4WD (GA8W)	2268 CCM	150 HP	From 04/2013
1.6 DI-D	1560 CCM	114 HP	From 07/2015
1.6 DI-D 4WD	1560 CCM	114 HP	From 07/2015

ASX Van (GA_W_)

Description	Cylinder Capacity	Horse Power	Year
1.8 DI-D 4WD	1798 CCM	150 HP	From 06/2010

ECLIPSE CROSS (GK_, GL_)

Description	Cylinder Capacity	Horse Power	Year
1.5 T-Mivec 4WD	1499 CCM	163 HP	From 10/2017
1.5 T-Mivec	1499 CCM	163 HP	From 10/2017
2.2 DiD 4WD (GK9W)	2268 CCM	148 HP	From 03/2019

LANCER VII (CS_A, CT_A)

Description	Cylinder Capacity	Horse Power	Year
2.0 i	1998 CCM	154 HP	10/2007 - 12/2013

LANCER VIII (CY_A, CZ_A)

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	147 HP	From 01/2009
2.0 i (CY4A)	1998 CCM	154 HP	From 04/2007
2.0 i Ralliart 4WD (CY4A)	1998 CCM	241 HP	From 10/2008

OUTLANDER II (CW_W)

Description	Cylinder Capacity	Horse Power	Year
2.0 (CW4W)	1998 CCM	147 HP	11/2006 - 11/2012
2.0 4WD	1998 CCM	147 HP	11/2006 - 11/2012
2.4 4WD (CW5W)	2360 CCM	170 HP	09/2007 - 11/2012
2.4 (CW5W)	2360 CCM	170 HP	11/2006 - 11/2012

OUTLANDER III (GG_W, GF_W, ZJ, ZL, ZK)

Description	Cylinder Capacity	Horse Power	Year
2.0 4WD (GF7W, GF2W)	1998 CCM	146 HP	10/2012 - 12/2022
2.0 (GF7W)	1998 CCM	150 HP	08/2012 - 12/2022
2.0 4WD (GF7W)	1998 CCM	150 HP	08/2012 - 12/2022

PEUGEOT

4008

Description	Cylinder Capacity	Horse Power	Year
1.6 HDi AWC	1560 CCM	114 HP	From 05/2012
1.8 HDi AWC	1798 CCM	150 HP	From 05/2012
1.6 HDi	1560 CCM	114 HP	From 05/2012
1.8 HDi	1798 CCM	150 HP	From 05/2012
1.6	1590 CCM	117 HP	From 05/2012

The Brembo 09.N264.1X Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 26 mm brake disc thickness, 5 mounting holes, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

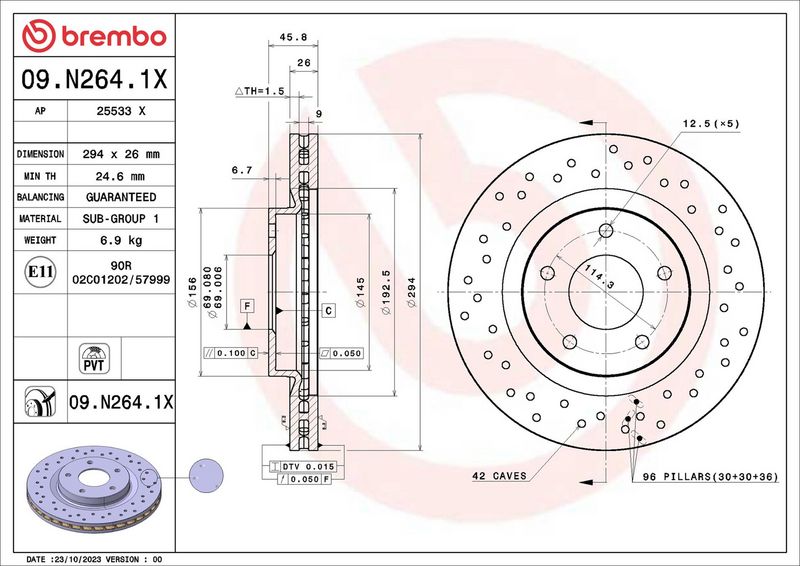

Function : Brake Disc

Brake Disc Type : perforated/vented

Brake Disc Thickness [mm] : 26

Number of Holes : 5

Height [mm] : 46

Centering Diameter [mm] : 69

Outer Diameter [mm] : 294

Surface : Coated

Minimum thickness [mm] : 24.6
