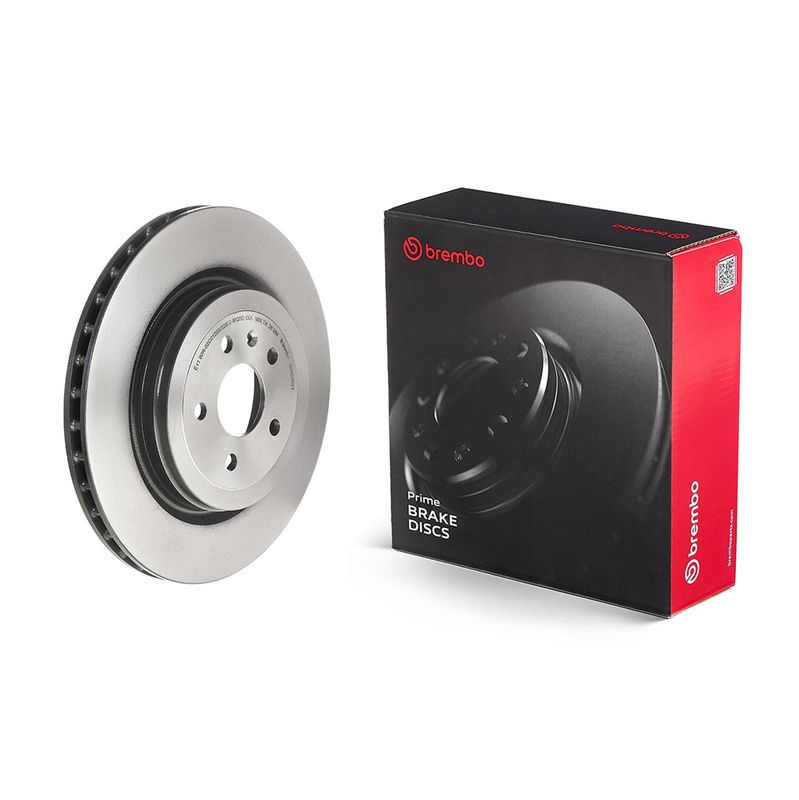

Brembo 09.N266.21 Brake Disc - 1

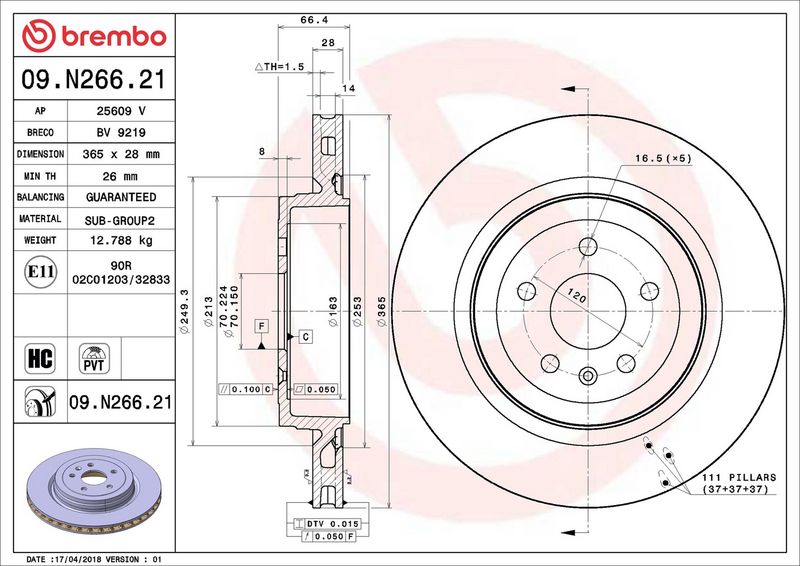

Brembo 09.N266.21 Brake Disc - 2
Brembo 09.N266.21 Brake Disc - 1
Brembo 09.N266.21 Brake Disc - 2
BREMBO

Brembo 09.N266.21 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.N266.21

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£114.49 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TESLA
MODEL S
Description Cylinder Capacity Horse Power Year
85 367 HP 09/2012 - 02/2016
P85 421 HP 11/2013 - 12/2014
60 306 HP 11/2013 - 09/2014
85D AWD 376 HP 10/2014 - 02/2016
60D AWD 376 HP 10/2014 - 04/2015
P85D AWD 700 HP 10/2014 - 02/2016
60 385 HP From 10/2014
85 385 HP 02/2015 - 02/2016
70D AWD 334 HP From 04/2015
85D AWD 421 HP 01/2014 - 02/2016
P85D AWD 772 HP 09/2015 - 02/2016
70D AWD 525 HP From 09/2015
85D AWD 525 HP 10/2014 - 02/2016
85 388 HP 09/2012 - 02/2016
70 388 HP From 09/2015
MODEL X
Description Cylinder Capacity Horse Power Year
90D AWD 525 HP From 09/2015
P90D AWD 772 HP From 09/2015
75D AWD 525 HP From 06/2016
P100D AWD 772 HP From 10/2016
60D AWD 525 HP From 06/2016
100D AWD 525 HP From 08/2017
EV AWD 573 HP From 09/2019
EV AWD 670 HP From 01/2021
Plaid AWD 1020 HP From 01/2021
EV AWD 424 HP From 02/2023

The Brembo 09.N266.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 28 mm brake disc thickness, 5 mounting holes, and 70 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 28
Number of Holes : 5
Height [mm] : 66
Centering Diameter [mm] : 70
Outer Diameter [mm] : 365
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 26
  • Vendor BREMBO
  • SKU 09.N266.21
  • Barcode 8020584223185
  • TESLA : 142063100A 6006431 600643100C 600643100D
  • BLUE PRINT : ADA104379
  • BORG & BECK : BBD6294S
  • BOSCH : 0 986 479 J99
  • DELPHI : BG5280C
  • DELPHI : BG9221C
  • FEBI BILSTEIN : 178233
  • FTE : 9082688
  • HELLA : 8DD 355 132-901
  • MEYLE : 70-83 523 0001/PD
  • MINTEX : MDC2940C
  • TEXTAR : 92313803
  • TRW : DF6702S
  • VALEO : 673701
