Brembo 09.N284.21 Brake Disc - 1
Brembo 09.N284.21 Brake Disc - 2
Brembo 09.N284.21 Brake Disc - 1
Brembo 09.N284.21 Brake Disc - 2
BREMBO

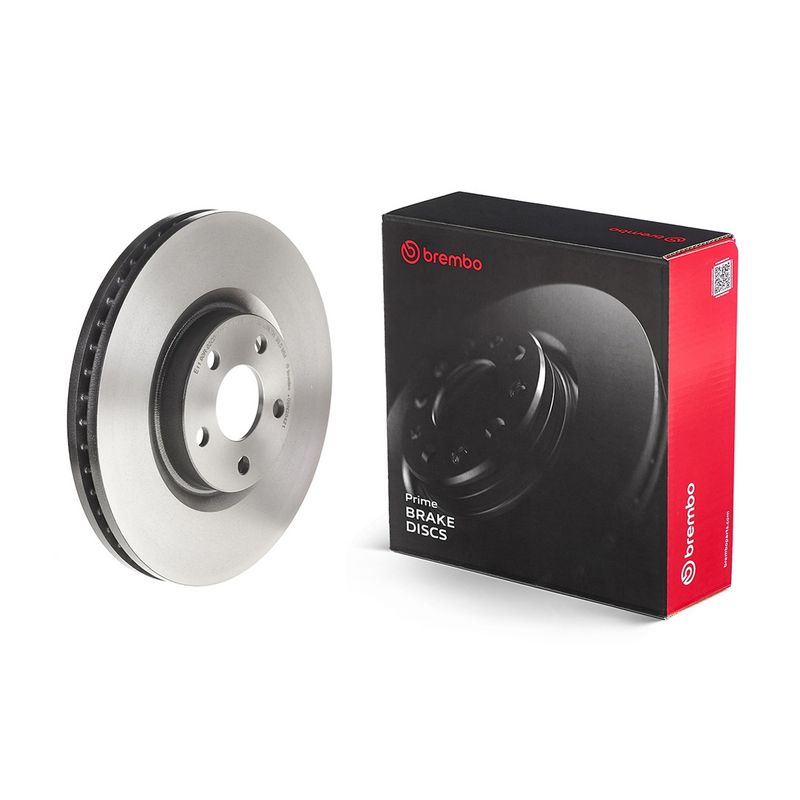

Brembo 09.N284.21 Brake Disc

SKU: 09.N284.21
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£63.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
GALAXY III (CK)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP 01/2015 - 06/2018
2.0 EcoBoost 1999 CCM 240 HP 01/2015 - 04/2023
2.0 TDCi 1997 CCM 120 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 150 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 180 HP 01/2015 - 06/2018
2.0 TDCi Bi-Turbo 1997 CCM 210 HP 01/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 150 HP 05/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 180 HP 05/2015 - 06/2018
2.0 EcoBlue 1995 CCM 120 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 150 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 150 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue Bi-Turbo 1995 CCM 240 HP 07/2018 - 04/2023
1.5 EcoBoost 1499 CCM 165 HP 07/2018 - 04/2023
GALAXY MK III VAN (CK)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 150 HP 03/2019 - 04/2023
2.0 EcoBlue AWD 1995 CCM 190 HP 03/2019 - 04/2023
S-MAX (CJ, WA6)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP 01/2015 - 06/2018
2.0 EcoBoost 1999 CCM 240 HP 01/2015 - 04/2023
2.0 TDCi 1997 CCM 120 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 150 HP 01/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 150 HP 01/2015 - 06/2018
2.0 TDCi 1997 CCM 180 HP 01/2015 - 06/2018
2.0 TDCi 4x4 1997 CCM 180 HP 01/2015 - 06/2018
2.0 TDCi BI-Turbo 1997 CCM 210 HP 01/2015 - 06/2018
2.0 EcoBlue BI-Turbo 1995 CCM 240 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 190 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 120 HP 07/2018 - 04/2023
2.0 EcoBlue 1995 CCM 150 HP 07/2018 - 04/2023
2.0 EcoBlue 4x4 1995 CCM 150 HP 07/2018 - 04/2023
1.5 EcoBoost 1499 CCM 165 HP 07/2018 - 04/2023
FORD USA
EDGE
Description Cylinder Capacity Horse Power Year
2.0 TDCi AWD 1997 CCM 180 HP 08/2015 - 07/2018
2.0 TDCi Bi-Turbo AWD 1997 CCM 210 HP 08/2015 - 07/2018
2.0 EcoBlue AWD 1995 CCM 190 HP From 08/2018
2.0 EcoBlue AWD 1995 CCM 238 HP From 08/2018
2.0 EcoBlue 1995 CCM 150 HP From 08/2018

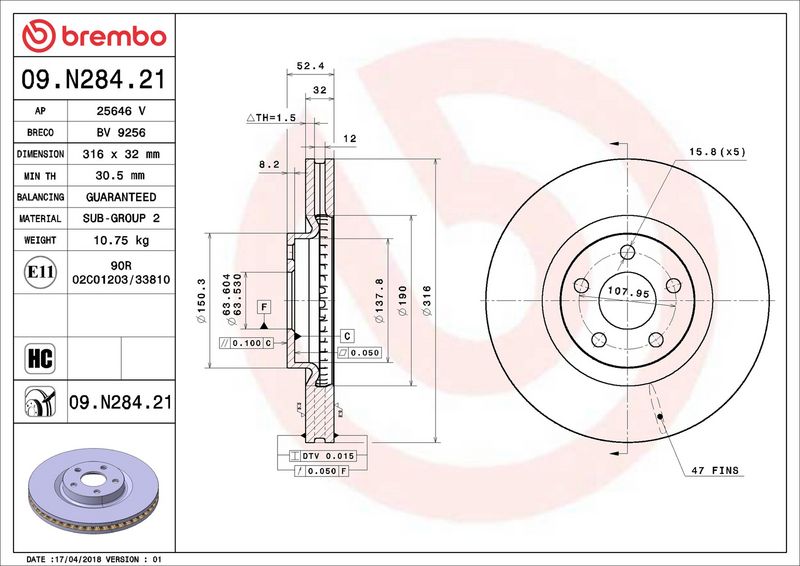

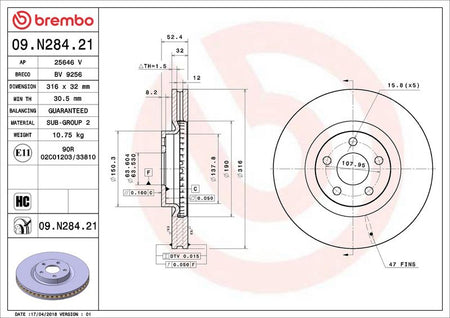

The Brembo 09.N284.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Height [mm] : 52
Centering Diameter [mm] : 64
Outer Diameter [mm] : 316
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 30.5
  • Vendor BREMBO
  • SKU 09.N284.21
  • Barcode 8020584232408
  • FORD : 2019816 2216733 5312312 E1GC1125EC E1GC1125ED E1GZ1125E E1GZ1125F G3GC1125HA G3GZ1125C J1GC1125BA
  • FORD USA : 2019816 5312312 E1GC1125EC E1GC1125ED
  • LINCOLN : G3GZ1125C
  • FORD (CHANGAN) : 5312312 E1GC1125EC E1GC1125ED
  • BLUE PRINT : ADF124374
  • BORG & BECK : BBD6124S
  • BOSCH : 0 986 479 D48
  • BOSCH : 0 986 479 D88
  • DELPHI : BG9203C
  • FEBI BILSTEIN : 107716
  • FTE : 9081135
  • HELLA : 8DD 355 126-701
  • MEYLE : 715 521 0045/PD
  • MINTEX : MDC2820C
  • SKF : VKBD 81333 V1
  • TEXTAR : 92293605
  • TRW : DF6998S
  • VALEO : 673315
