Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Brembo 09.N378.11 Brake Disc - 1
Brembo 09.N378.11 Brake Disc - 2
Brembo 09.N378.11 Brake Disc - 1
Brembo 09.N378.11 Brake Disc - 2
BREMBO

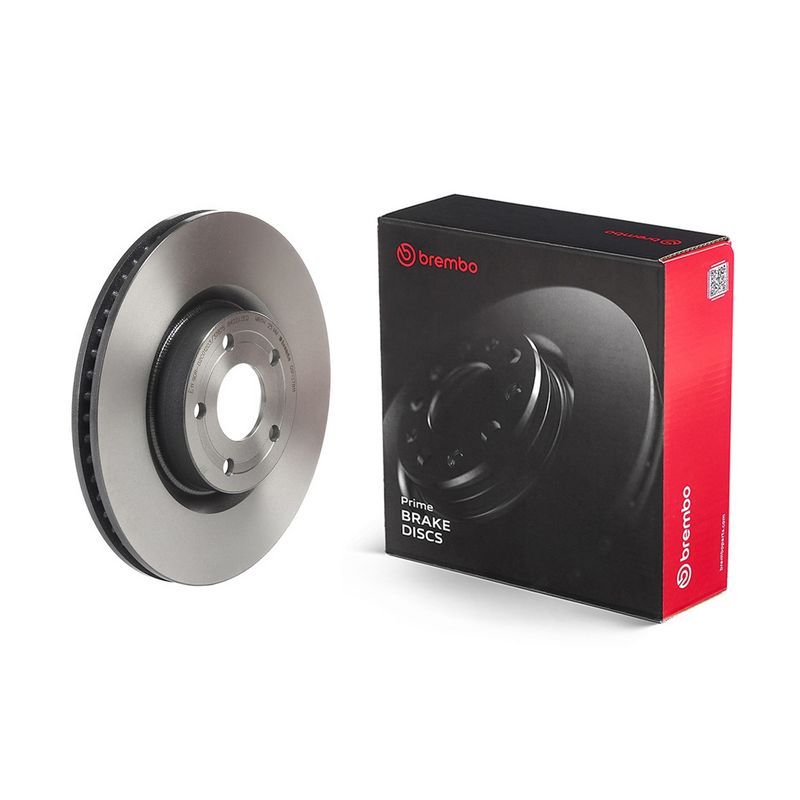

Brembo 09.N378.11 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.N378.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£124.85 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
FOCUS IV (HN)
Description Cylinder Capacity Horse Power Year
1.5 EcoBlue 1499 CCM 95 HP 01/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 01/2018 - 11/2025
2.0 EcoBlue 1995 CCM 150 HP 01/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 123 HP 11/2018 - 11/2025
1.0 EcoBoost mHEV 999 CCM 155 HP 06/2020 - 11/2025
1.0 EcoBoost mHEV 999 CCM 125 HP 06/2020 - 11/2025
1.0 EcoBoost mHEV Active 999 CCM 125 HP 01/2021 - 11/2025
FOCUS IV Turnier (HP)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 85 HP 09/2018 - 11/2025
1.0 EcoBoost 999 CCM 101 HP 09/2018 - 11/2025
1.0 EcoBoost 999 CCM 125 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 95 HP 09/2018 - 11/2025
1.5 EcoBlue 1499 CCM 120 HP 09/2018 - 11/2025
2.0 EcoBlue 1995 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 150 HP 09/2018 - 11/2025
1.5 EcoBoost 1496 CCM 182 HP 09/2018 - 11/2025
1.5 Ti-VCT 1496 CCM 122 HP 09/2018 - 11/2025
1.0 EcoBoost mHEV 999 CCM 155 HP 07/2020 - 11/2025
1.0 EcoBoost mHEV 999 CCM 125 HP 07/2020 - 11/2025
KUGA III (DFK)
Description Cylinder Capacity Horse Power Year
2.5 Duratec Plug-in-Hybrid 2488 CCM 224 HP From 07/2019
2.0 EcoBlue mHEV 1995 CCM 150 HP From 07/2019
2.0 EcoBlue 4x4 1995 CCM 190 HP From 07/2019
1.5 EcoBlue 1499 CCM 120 HP From 07/2019
1.5 EcoBoost 1496 CCM 120 HP From 07/2019
1.5 Ecoboost 1496 CCM 150 HP From 07/2019
2.0 TDCi 1995 CCM 120 HP From 11/2022
2.0 TDCi 4x4 1995 CCM 120 HP From 11/2022
2.5 Duratec Plug-in-Hybrid 4x4 2488 CCM 224 HP From 07/2019
2.5 Duratec FHEV 2488 CCM 179 HP From 01/2024
2.5 Duratec FHEV 4x4 2488 CCM 182 HP From 01/2024
2.5 Duratec PHEV 2488 CCM 242 HP From 01/2024

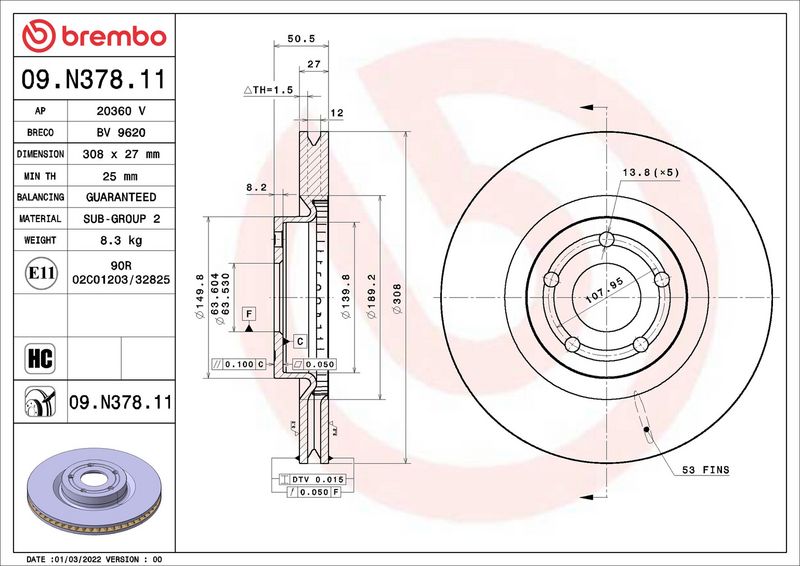

The Brembo 09.N378.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 27 mm brake disc thickness, 5 mounting holes, and 63.6 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 27
Number of Holes : 5
Height [mm] : 50.5
Centering Diameter [mm] : 63.6
Outer Diameter [mm] : 308
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 25
  • Vendor BREMBO
  • SKU 09.N378.11
  • Barcode 8020584319314
  • FORD : 2305506 JX611125BEB LX611125TMA LX6Z1125E LX6Z1125M LX6Z1125N
  • FORD (CHANGAN) : JX6Z1125D LX6Z1125H
  • LINCOLN (CHANGAN) : JX6Z1125D LX6Z1125H
  • APEC : DSK3480
  • BLUE PRINT : ADBP430032
  • BORG & BECK : BBD6225S
  • BOSCH : 0 986 479 H51
  • DELPHI : BG5063C
  • FEBI BILSTEIN : 171480
  • HELLA : 8DD 355 132-291
  • MEYLE : 783 521 0050/PD
  • MINTEX : MDC2892C
  • NAPA : NBD5890
  • SKF : VKBD 81375 V1
  • TEXTAR : 92306703
  • VALEO : 672871
