BREMBO

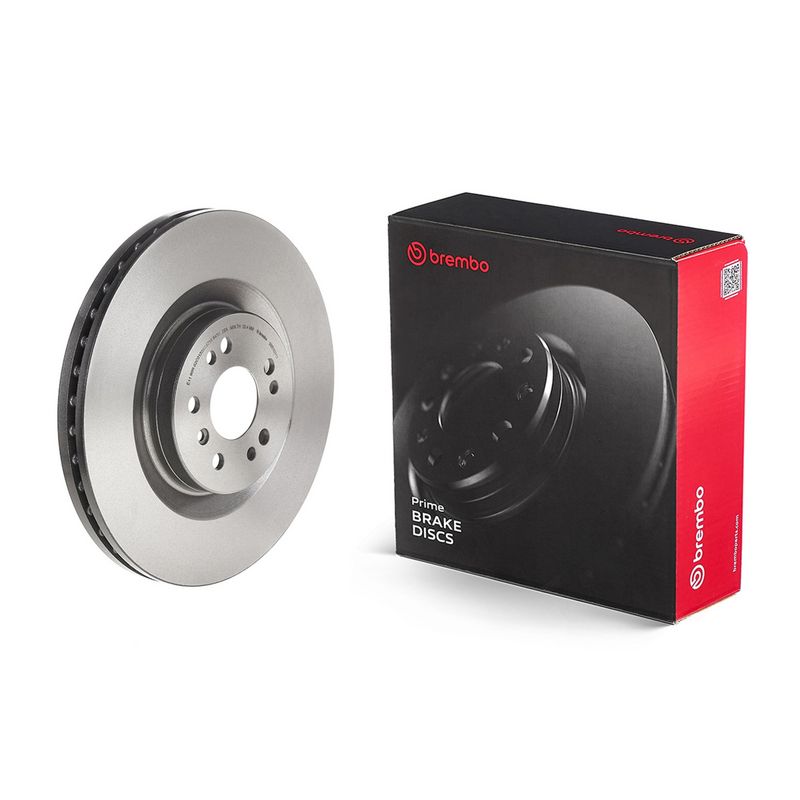

Brembo 09.R103.11 Brake Disc

SKU: 09.R103.11

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£75.58 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ

GL-CLASS (X164)

Description	Cylinder Capacity	Horse Power	Year
GL 350 CDI 4-matic (164.823)	2987 CCM	265 HP	10/2010 - 08/2012
GL 320 CDI 4-matic (164.822)	2987 CCM	224 HP	09/2006 - 05/2009
GL 350 CDI 4-matic (164.822)	2987 CCM	224 HP	05/2009 - 08/2012
GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825)	2987 CCM	211 HP	12/2009 - 08/2012

M-CLASS (W164)

Description	Cylinder Capacity	Horse Power	Year
ML 350 4-matic (164.186)	3498 CCM	272 HP	02/2005 - 12/2011
ML 500 4-matic (164.175)	4966 CCM	306 HP	07/2005 - 12/2011
ML 280 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2005 - 07/2009
ML 320 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2005 - 07/2009
ML 420 CDI 4-matic (164.128)	3996 CCM	306 HP	02/2006 - 09/2009
ML 500 4-matic (164.172)	5461 CCM	388 HP	12/2007 - 12/2011
ML 300 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	211 HP	09/2009 - 12/2011
ML 450 CDI 4-matic (164.128)	3996 CCM	306 HP	09/2009 - 12/2011
ML 300 CDI 4-matic (164.121)	2987 CCM	204 HP	02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	231 HP	02/2010 - 12/2011
ML 320 CDI 4-matic (164.124, 164.125, 164.122)	2987 CCM	211 HP	07/2005 - 07/2011

R-CLASS (W251, V251)

Description	Cylinder Capacity	Horse Power	Year
R 350 CDI 4-matic (251.023, 251.123)	2987 CCM	265 HP	08/2010 - 12/2014
R 350 CGI 4-matic (251.057, 251.157)	3498 CCM	306 HP	10/2011 - 12/2014
R 350 4-matic (251.065, 251.165)	3498 CCM	272 HP	07/2005 - 12/2012
R 500 4-matic (251.075, 251.175)	4966 CCM	306 HP	08/2005 - 12/2014
R 320 CDI 4-matic (251.022, 251.122)	2987 CCM	224 HP	01/2006 - 07/2010
R 280 CDI 4-matic (251.020)	2987 CCM	190 HP	05/2006 - 12/2012
R 280 (251.054, 251.154)	2996 CCM	231 HP	01/2007 - 12/2014
R 350 (251.056, 251.156)	3498 CCM	272 HP	01/2007 - 12/2012
R 280 CDI (251.121, 251.026, 251.126)	2987 CCM	190 HP	05/2006 - 12/2012
R 300 CDI (251.021, 251.121, 251.026, 251.126)	2987 CCM	190 HP	07/2009 - 12/2012
R 300 CDI 4-matic (251.020)	2987 CCM	190 HP	07/2009 - 12/2012
R 350 CDI 4-matic (251.022, 251.122)	2987 CCM	224 HP	07/2009 - 12/2012
R 350 CDI 4-matic (251.124, 251.125)	2987 CCM	211 HP	01/2006 - 12/2014

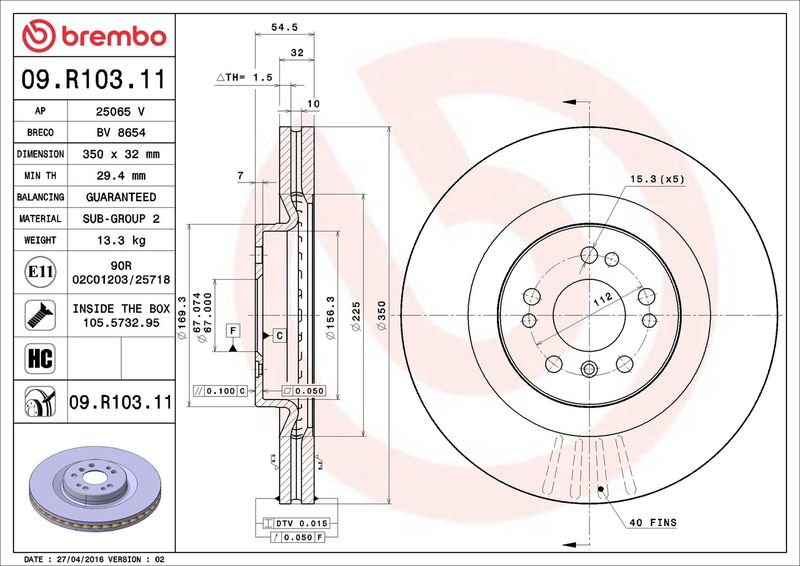

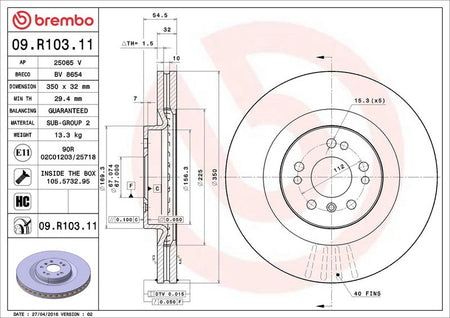

The Brembo 09.R103.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : internally vented

Brake Disc Thickness [mm] : 32

Number of Holes : 5

Supplementary Article/Supplementary Info 2 : with bolts/screws

Height [mm] : 55

Centering Diameter [mm] : 67

Outer Diameter [mm] : 350

Machining : High-carbon

Surface : Coated

Minimum thickness [mm] : 29.4

Tightening Torque [Nm] : 150

APEC : DSK2351
BLUE PRINT : ADU174383
BORG & BECK : BBD5790S
BOSCH : 0 986 479 329
DELPHI : BG9013
FEBI BILSTEIN : 24745
FTE : 9071137
FTE : 9081108
HELLA : 8DD 355 113-191
HELLA : 8DD 355 128-591
MEYLE : 083 521 2096/PD
MINTEX : MDC2067
National : NBD1702
TEXTAR : 92150705
TRW : DF6013S
VALEO : 197667
VALEO : 673276
