BREMBO

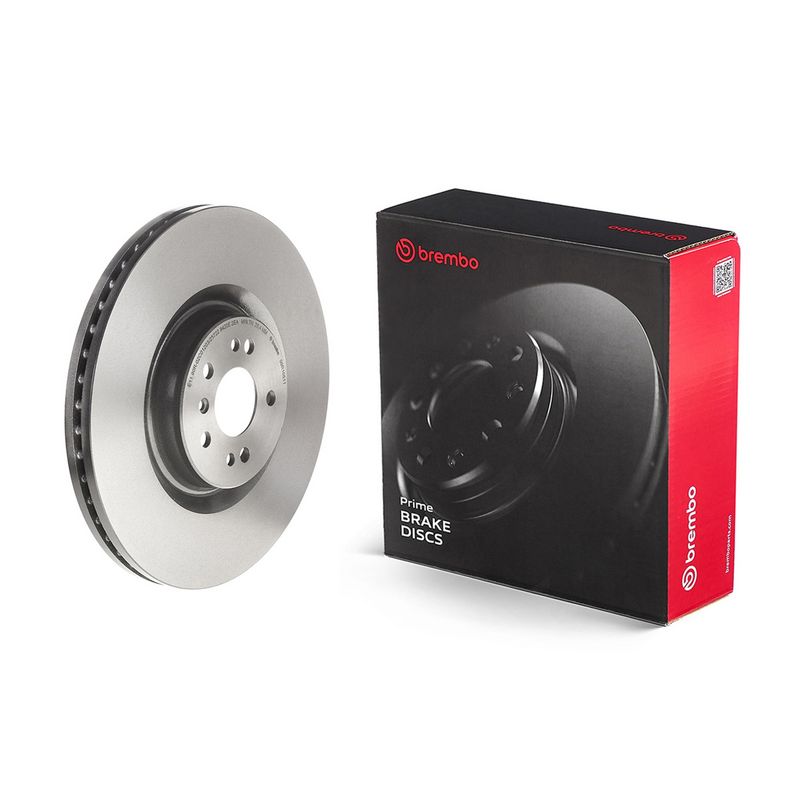

Brembo 09.R105.11 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 09.R105.11

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£85.47 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
GL-CLASS (X164)
Description Cylinder Capacity Horse Power Year
GL 350 CDI 4-matic (164.823) 2987 CCM 265 HP 10/2010 - 08/2012
GL 450 4-matic (164.871) 4663 CCM 340 HP 09/2006 - 08/2012
GL 500 4-matic (164.886) 5461 CCM 388 HP 09/2006 - 12/2012
GL 420 CDI 4-matic (164.828) 3996 CCM 306 HP 09/2006 - 05/2009
GL 320 CDI 4-matic (164.822) 2987 CCM 224 HP 09/2006 - 05/2009
GL 350 CDI 4-matic (164.822) 2987 CCM 224 HP 05/2009 - 08/2012
GL 450 CDI 4-matic (164.828) 3996 CCM 306 HP 05/2009 - 08/2012
GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2987 CCM 211 HP 12/2009 - 08/2012
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 500 4-matic (164.172) 5461 CCM 388 HP 12/2007 - 12/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 500 4-matic (251.072, 251.172) 5461 CCM 388 HP 05/2007 - 12/2014

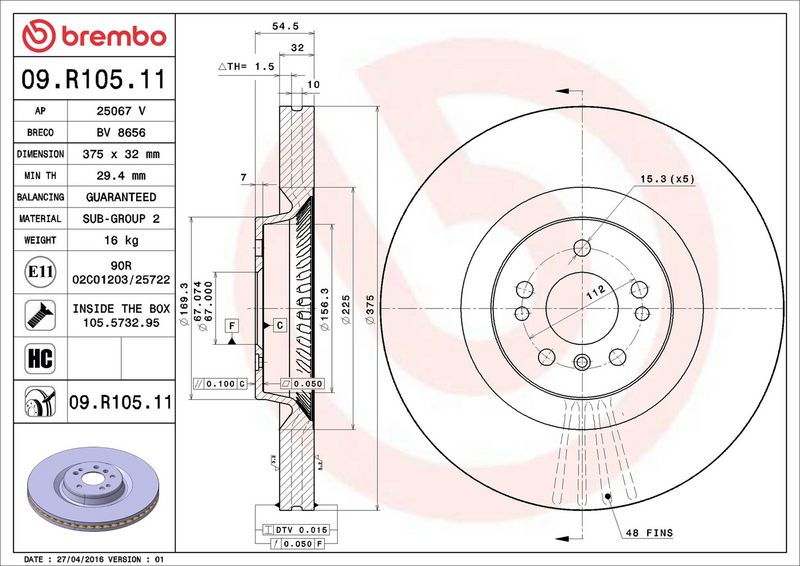

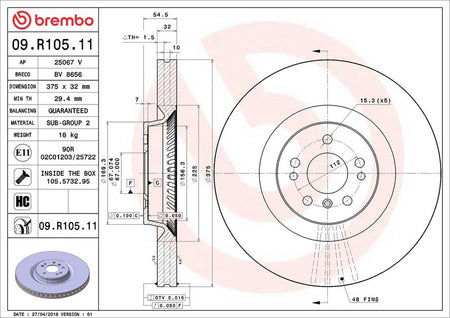

The Brembo 09.R105.11 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 32 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 32
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 55
Centering Diameter [mm] : 67
Outer Diameter [mm] : 375
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 29.4
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 09.R105.11
  • Barcode 8020584014882
  • MERCEDES-BENZ : 1644210612 1644211512 A1644210612 A1644211512
  • APEC : DSK2876
  • BLUE PRINT : ADU174338
  • BORG & BECK : BBD5984S
  • BOSCH : 0 986 479 A26
  • DELPHI : BG9060
  • DELPHI : BG9060C
  • FEBI BILSTEIN : 43997
  • FTE : 9071331
  • FTE : 9081273
  • HELLA : 8DD 355 128-941
  • MINTEX : MDC1917
  • TEXTAR : 92176603
  • TEXTAR : 92176605
  • TRW : DF6456S
