Brembo 09.R124.21 Brake Disc - 1
Brembo 09.R124.21 Brake Disc - 2
Brembo 09.R124.21 Brake Disc - 1
Brembo 09.R124.21 Brake Disc - 2
BREMBO

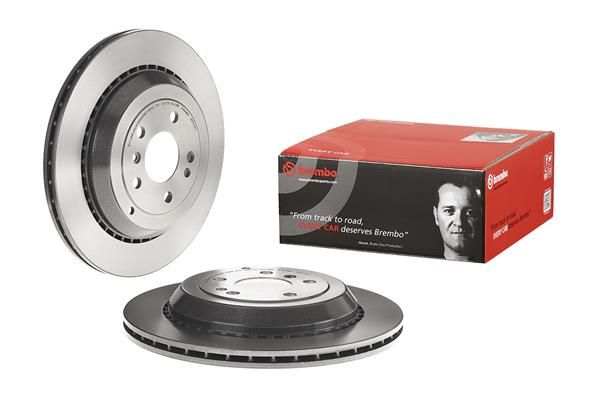

Brembo 09.R124.21 Brake Disc

SKU: 09.R124.21
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£100.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
GL-CLASS (X164)
Description Cylinder Capacity Horse Power Year
GL 350 CDI 4-matic (164.823) 2987 CCM 265 HP 10/2010 - 08/2012
GL 450 4-matic (164.871) 4663 CCM 340 HP 09/2006 - 08/2012
GL 500 4-matic (164.886) 5461 CCM 388 HP 09/2006 - 12/2012
GL 420 CDI 4-matic (164.828) 3996 CCM 306 HP 09/2006 - 05/2009
GL 320 CDI 4-matic (164.822) 2987 CCM 224 HP 09/2006 - 05/2009
GL 350 CDI 4-matic (164.822) 2987 CCM 224 HP 05/2009 - 08/2012
GL 450 CDI 4-matic (164.828) 3996 CCM 306 HP 05/2009 - 08/2012
GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2987 CCM 211 HP 12/2009 - 08/2012
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 350 4-matic (164.186) 3498 CCM 272 HP 02/2005 - 12/2011
ML 500 4-matic (164.175) 4966 CCM 306 HP 07/2005 - 12/2011
ML 280 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2005 - 07/2009
ML 320 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2005 - 07/2009
ML 420 CDI 4-matic (164.128) 3996 CCM 306 HP 02/2006 - 09/2009
ML 500 4-matic (164.172) 5461 CCM 388 HP 12/2007 - 12/2011
ML 300 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 211 HP 09/2009 - 12/2011
ML 450 CDI 4-matic (164.128) 3996 CCM 306 HP 09/2009 - 12/2011
ML 300 CDI 4-matic (164.121) 2987 CCM 204 HP 02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 231 HP 02/2010 - 12/2011
ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2987 CCM 211 HP 07/2005 - 07/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 350 CDI 4-matic (251.023, 251.123) 2987 CCM 265 HP 08/2010 - 12/2014
R 350 CGI 4-matic (251.057, 251.157) 3498 CCM 306 HP 10/2011 - 12/2014
R 350 4-matic (251.065, 251.165) 3498 CCM 272 HP 07/2005 - 12/2012
R 500 4-matic (251.075, 251.175) 4966 CCM 306 HP 08/2005 - 12/2014
R 320 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 01/2006 - 07/2010
R 280 CDI 4-matic (251.020) 2987 CCM 190 HP 05/2006 - 12/2012
R 280 (251.054, 251.154) 2996 CCM 231 HP 01/2007 - 12/2014
R 350 (251.056, 251.156) 3498 CCM 272 HP 01/2007 - 12/2012
R 500 4-matic (251.072, 251.172) 5461 CCM 388 HP 05/2007 - 12/2014
R 280 CDI (251.121, 251.026, 251.126) 2987 CCM 190 HP 05/2006 - 12/2012
R 300 CDI (251.021, 251.121, 251.026, 251.126) 2987 CCM 190 HP 07/2009 - 12/2012
R 300 CDI 4-matic (251.020) 2987 CCM 190 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.124, 251.125) 2987 CCM 211 HP 01/2006 - 12/2014

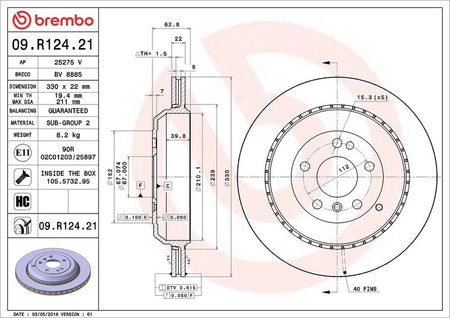

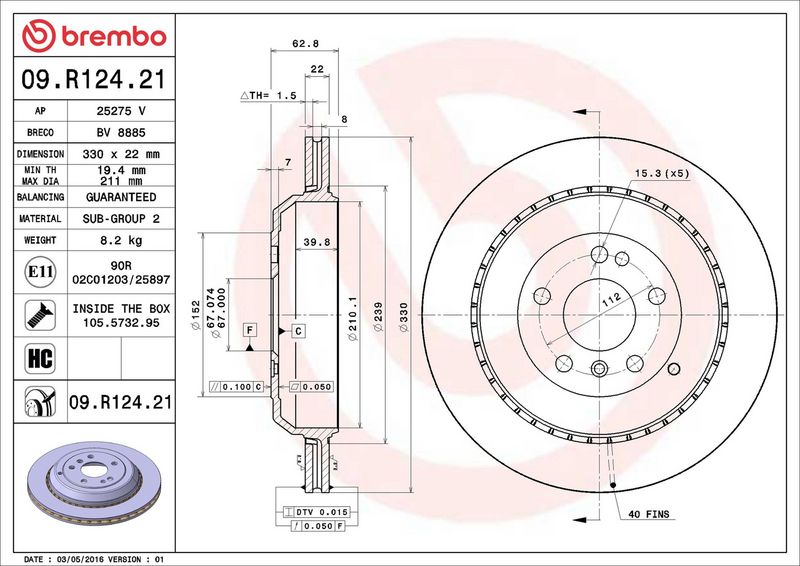

The Brembo 09.R124.21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 22 mm brake disc thickness, 5 mounting holes, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : internally vented
Brake Disc Thickness [mm] : 22
Number of Holes : 5
Supplementary Article/Supplementary Info 2 : with bolts/screws
Height [mm] : 63
Centering Diameter [mm] : 67
Outer Diameter [mm] : 330
Machining : High-carbon
Surface : Coated
Minimum thickness [mm] : 19.4
Tightening Torque [Nm] : 150
  • Vendor BREMBO
  • SKU 09.R124.21
  • Barcode 8020584022306
  • MERCEDES-BENZ : 1644230612 1644231112 1644231312 A1644230612 A1644231112 A1644231312
  • APEC : DSK2384
  • BLUE PRINT : ADU174373
  • BORG & BECK : BBD4543
  • BOSCH : 0 986 479 285
  • DELPHI : BG4030
  • FEBI BILSTEIN : 24748
  • FTE : 9071220
  • FTE : 9081099
  • HELLA : 8DD 355 113-231
  • HELLA : 8DD 355 128-611
  • MEYLE : 015 523 0040
  • MEYLE : 015 523 0040/PD
  • MINTEX : MDC2065
  • NAPA : NBD5994
  • SKF : VKBD 90599 V2
  • TEXTAR : 92150903
  • TRW : DF7352
  • VALEO : 197633
