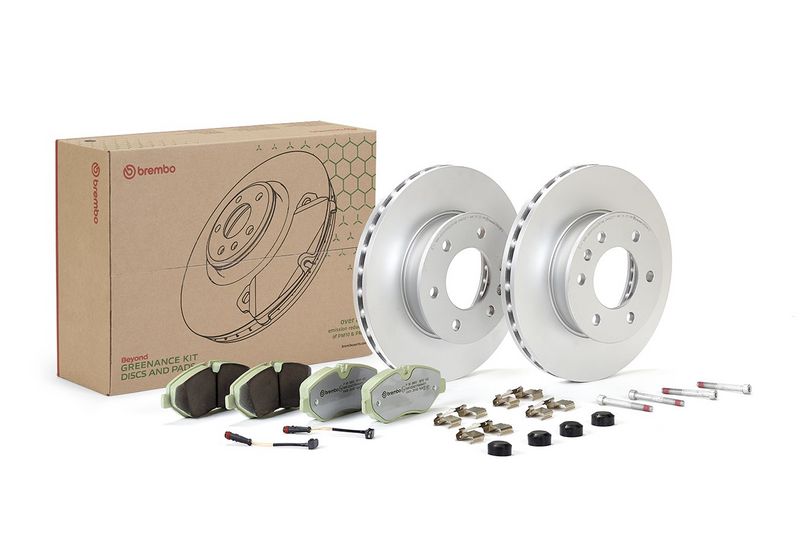

Brembo KT10026 Brake Kit, disc brake - 1
Brembo KT10026 Brake Kit, disc brake - 1
BREMBO

Brembo KT10026 Brake Kit, disc brake

SKU: KT10026
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£253.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
SPRINTER 3-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
224 (906.113, 906.213) 3498 CCM 258 HP 06/2006 - 12/2016
209 CDI (906.111, 906.113, 906.211, 906.213) 2148 CCM 88 HP 06/2006 - 12/2009
211 CDI (906.111, 906.113, 906.211, 906.213) 2148 CCM 109 HP 06/2006 - 12/2009
213 CDI (906.111, 906.113, 906.211, 906.213) 2148 CCM 129 HP 06/2006 - 12/2009
215 CDI (906.111, 906.113, 906.211, 906.213) 2148 CCM 150 HP 06/2006 - 12/2009
218 CDI (906.111, 906.113, 906.211, 906.213) 2987 CCM 184 HP 06/2006 - 12/2009
216 (906.113, 906.213) 1796 CCM 156 HP 09/2008 - 12/2018
213 CDI (906.111, 906.113, 906.211, 906.213) 2143 CCM 129 HP 03/2009 - 12/2016
219 CDI / BlueTEC (906.111, 906.113, 906.211, 906.213) 2987 CCM 190 HP 03/2009 - 12/2018
214 CDI (906.111, 906.113, 906.211, 906.213) 2143 CCM 143 HP 04/2016 - 12/2018
211 CDI (906.111, 906.113, 906.211, 906.213) 2143 CCM 114 HP 04/2016 - 12/2018
SPRINTER 3,5-t Platform/Chassis (B906)
Description Cylinder Capacity Horse Power Year
313 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... 2143 CCM 129 HP 06/2006 - 12/2016
319 CDI / BlueTEC 4x4 (906.131, 906.133, 906.135,... 2987 CCM 190 HP 03/2009 - 12/2018
324 (906.133, 906.135, 906.233, 906.235, 906.132,... 3498 CCM 258 HP 06/2006 - 12/2016
311 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2148 CCM 109 HP 06/2006 - 12/2009
315 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2148 CCM 150 HP 06/2006 - 12/2009
309 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2148 CCM 88 HP 06/2006 - 12/2009
318 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2987 CCM 184 HP 06/2006 - 12/2009
313 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2143 CCM 129 HP 06/2006 - 12/2016
310 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2143 CCM 95 HP 03/2009 - 12/2016
313 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2148 CCM 129 HP 06/2006 - 05/2016
316 (906.133, 906.135, 906.233, 906.235) 1796 CCM 156 HP 09/2008 - 12/2018
316 NGT (906.133, 906.135, 906.233, 906.235) 1796 CCM 156 HP 09/2008 - 12/2018
316 CDI (906.131, 906.133, 906.135, 906.231, 906.233,... 2143 CCM 163 HP 03/2009 - 12/2018
319 CDI / BlueTEC (906.131, 906.133, 906.135, 906.231,... 2987 CCM 190 HP 03/2009 - 12/2018
311 CDI 4x4 (906.131, 906.133, 906.135, 906.231, 906.233... 2148 CCM 109 HP 02/2008 - 12/2009
SPRINTER 3-t Bus (B906)
Description Cylinder Capacity Horse Power Year
224 (906.713) 3498 CCM 258 HP 06/2006 - 12/2013
211 CDI (906.711, 906.713) 2148 CCM 109 HP 06/2006 - 12/2009
215 CDI (906.711, 906.713) 2148 CCM 150 HP 06/2006 - 12/2009
210 CDI (906.711, 906.713) 2143 CCM 95 HP 03/2009 - 12/2016
216 (906.713) 1796 CCM 156 HP 03/2009 - 12/2018
213 CDI (906.711, 906.713) 2143 CCM 129 HP 06/2006 - 12/2016
216 CDI (906.711, 906.713) 2143 CCM 163 HP 06/2009 - 12/2018
211 CDI (906.711, 906.713) 2143 CCM 114 HP 04/2016 - 12/2018
214 CDI (906.711, 906.713) 2143 CCM 143 HP 04/2016 - 12/2018
SPRINTER 3-t Van (B906)
Description Cylinder Capacity Horse Power Year
224 (906.613) 3498 CCM 258 HP 06/2006 - 12/2016
209 CDI (906.611, 906.613) 2148 CCM 88 HP 06/2006 - 12/2009
211 CDI (906.611, 906.613) 2148 CCM 109 HP 06/2006 - 12/2009
213 CDI (906.611, 906.613) 2148 CCM 129 HP 06/2006 - 12/2009
215 CDI (906.611, 906.613) 2148 CCM 150 HP 06/2006 - 12/2009
218 CDI (906.611, 906.613) 2987 CCM 184 HP 06/2006 - 12/2009
210 CDI (906.611, 906.613) 2143 CCM 95 HP 03/2009 - 12/2016
216 (906.613) 1796 CCM 156 HP 09/2008 - 12/2018
216 CDI (906.611, 906.613) 2143 CCM 163 HP 03/2009 - 12/2018
219 CDI / BlueTEC (906.611, 906.613) 2987 CCM 190 HP 03/2009 - 12/2018
213 CDI (906.611, 906.613) 2143 CCM 129 HP 06/2006 - 12/2016
211 CDI (906.611, 906.613) 2143 CCM 114 HP 04/2016 - 12/2018
214 CDI (906.611, 906.613) 2143 CCM 143 HP 04/2016 - 12/2018
SPRINTER 3,5-t Bus (B906)
Description Cylinder Capacity Horse Power Year
318 CDI (906.731, 906.733, 906.735) 2987 CCM 184 HP 02/2008 - 12/2009
319 CDI / BlueTEC (906.731, 906.733, 906.735) 2987 CCM 190 HP 03/2009 - 12/2018
313 CDI 4x4 (906.731, 906.733, 906.735) 2143 CCM 129 HP 08/2011 - 12/2016
313 CDI (906.731, 906.733, 906.735) 2143 CCM 129 HP 08/2011 - 12/2016
319 CDI / BlueTEC 4x4 (906.731, 906.733, 906.735) 2987 CCM 190 HP 03/2009 - 12/2018
316 CDI 4x4 (906.731, 906.733, 906.735) 2143 CCM 163 HP 08/2011 - 12/2018
324 (906.733, 906.735) 3498 CCM 258 HP 06/2006 - 12/2016
311 CDI (906.731, 906.733, 906.735) 2148 CCM 109 HP 06/2006 - 12/2009
315 CDI (906.731, 906.733, 906.735) 2148 CCM 150 HP 06/2006 - 12/2009
310 CDI (906.731, 906.733, 906.735) 2143 CCM 95 HP 03/2009 - 12/2016
316 (906.733, 906.735) 1796 CCM 156 HP 09/2008 - 12/2018
311 CDI 4x4 (906.731, 906.733, 906.735) 2148 CCM 109 HP 02/2008 - 12/2009
315 CDI 4x4 (906.731, 906.733, 906.735) 2148 CCM 150 HP 02/2008 - 12/2009
318 CDI 4x4 (906.731, 906.733, 906.735) 2987 CCM 184 HP 02/2008 - 12/2009
316 CDI (906.731, 906.733, 906.735) 2143 CCM 163 HP 08/2011 - 12/2018
SPRINTER 3,5-t Van (B906)
Description Cylinder Capacity Horse Power Year
319 CDI / BlueTEC 4x4 (906.631, 906.633, 906.635,... 2987 CCM 190 HP 03/2009 - 12/2018
313 CDI (906.631, 906.633, 906.635, 906.637) 2143 CCM 129 HP 05/2009 - 12/2016
313 CDI 4x4 (906.631, 906.633, 906.635, 906.637) 2143 CCM 129 HP 03/2009 - 12/2016
324 (906.633, 906.635, 906.637) 3498 CCM 258 HP 06/2006 - 12/2016
311 CDI (906.631, 906.633, 906.635, 906.637) 2148 CCM 109 HP 06/2006 - 12/2009
315 CDI (906.631, 906.633, 906.635, 906.637) 2148 CCM 150 HP 06/2006 - 12/2009
309 CDI (906.631, 906.633, 906.635, 906.637) 2148 CCM 88 HP 06/2006 - 12/2009
318 CDI (906.631, 906.633, 906.635, 906.637) 2987 CCM 184 HP 06/2006 - 12/2009
310 CDI (906.631, 906.633, 906.635, 906.637) 2143 CCM 95 HP 03/2009 - 12/2016
313 CDI (906.631, 906.633, 906.635, 906.637) 2148 CCM 129 HP 06/2006 - 12/2016
316 (906.635, 906.633) 1796 CCM 156 HP 09/2008 - 12/2018
316 CDI (906.631, 906.633, 906.635, 906.637) 2143 CCM 163 HP 03/2009 - 12/2018
319 CDI / BlueTEC (906.631, 906.633, 906.635, 906.637) 2987 CCM 190 HP 03/2009 - 12/2018
311 CDI 4x4 (906.631, 906.633, 906.635, 906.637) 2148 CCM 109 HP 02/2008 - 12/2009
315 CDI 4x4 (906.631, 906.633, 906.635, 906.637) 2148 CCM 150 HP 02/2008 - 12/2009
SPRINTER 3,5-t Platform/Chassis (B907, B910)
Description Cylinder Capacity Horse Power Year
314 CDI All-wheel Drive (907.133, 907.135, 907.233,... 2143 CCM 143 HP 01/2019 - 12/2021
316 CDI All-wheel Drive (907.133, 907.135, 907.233,... 2143 CCM 163 HP 01/2019 - 12/2021
319 CDI All-wheel Drive (907.133, 907.135, 907.233) 2987 CCM 190 HP 01/2019 - 12/2021
SPRINTER 3,5-t Tourer Bus (B907)
Description Cylinder Capacity Horse Power Year
319 CDI All-wheel Drive (907.733) 2987 CCM 190 HP 01/2019 - 12/2021
314 CDI All-wheel Drive (907.733) 2143 CCM 143 HP 01/2019 - 12/2021
316 CDI All-wheel Drive (907.733) 2143 CCM 163 HP 01/2019 - 12/2021
319 CDI All-wheel Drive (907.733) 1950 CCM 190 HP From 10/2021
SPRINTER 3,5-t Van (B907, B910)
Description Cylinder Capacity Horse Power Year
314 CDI All-wheel Drive (907.633, 907.635, 907.637) 2143 CCM 143 HP 01/2019 - 12/2021
316 CDI All-wheel Drive (907.633, 907.635, 907.637) 2143 CCM 163 HP 01/2019 - 12/2021
319 CDI All-wheel Drive (907.633, 907.635, 907.637) 2987 CCM 190 HP 01/2019 - 12/2021
VW
CRAFTER 30-50 Platform/Chassis (2F_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 142 HP 10/2011 - 12/2016
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 11/2011 - 12/2016
2.0 TDI 1968 CCM 114 HP 11/2013 - 12/2016
2.0 TDI 1968 CCM 140 HP 11/2015 - 12/2016
CRAFTER 30-35 Bus (2E_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 11/2011 - 12/2016
2.0 TDI 1968 CCM 114 HP 11/2013 - 12/2016
CRAFTER 30-50 Van (2E_)
Description Cylinder Capacity Horse Power Year
2.0 TDI 1968 CCM 109 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 136 HP 05/2011 - 12/2016
2.0 TDI 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 142 HP 10/2011 - 12/2016
2.5 TDI 2461 CCM 88 HP 04/2006 - 07/2011
2.5 TDI 2461 CCM 109 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 136 HP 04/2006 - 05/2013
2.5 TDI 2461 CCM 163 HP 04/2006 - 07/2011
2.0 TDI 4motion 1968 CCM 163 HP 07/2011 - 12/2016
2.0 TDI 1968 CCM 114 HP 11/2013 - 12/2016
2.0 TDI 1968 CCM 140 HP 11/2015 - 12/2016

The Brembo KT10026 Brake Kit, disc brake is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records internally vented disc construction, 300 mm outer diameter, 28 mm brake disc thickness, and 25 mm minimum thickness. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Kit, disc brake
Brake Disc Type : internally vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25
Height [mm] : 68.5
Number of Holes : 85
Centering Diameter [mm] : 6
Machining : High-carbon
Surface : Coated
Thickness [mm] : 21
Width [mm] : 163
Number of wear indicators [per axle] : 2
Height 2 [mm] : 67
Wear Warning Contact : incl. wear warning contact
Warning Contact Length [mm] : 109
WVA Number : 29192
  • Vendor BREMBO
  • SKU KT10026
  • Barcode 8432509503683
