Brembo P50146 Brake Pad Set, disc brake - 1
Brembo P50146 Brake Pad Set, disc brake - 2
Brembo P50146 Brake Pad Set, disc brake - 1
Brembo P50146 Brake Pad Set, disc brake - 2
BREMBO

Brembo P50146 Brake Pad Set, disc brake

SKU: P50146
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£45.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
A-CLASS (W177)
Description Cylinder Capacity Horse Power Year
A 180 d (177.003) 1461 CCM 116 HP From 03/2018
A 200 (177.087) 1332 CCM 163 HP From 03/2018
A 180 (177.084) 1332 CCM 136 HP From 06/2018
A 160 (177.082) 1332 CCM 109 HP From 06/2018
A 200 (177.087) 1332 CCM 150 HP From 06/2018
A 200 d (177.012) 1950 CCM 150 HP From 11/2018
A 160 d (177.002) 1461 CCM 95 HP From 05/2019
A-CLASS Saloon (V177)
Description Cylinder Capacity Horse Power Year
A 180 d (177.103) 1461 CCM 116 HP From 09/2018
A 200 (177.187) 1332 CCM 163 HP From 09/2018
A 180 (177.184) 1332 CCM 136 HP From 04/2019
A 200 d (177.112) 1950 CCM 150 HP From 08/2019
A 200 (177.187) 1332 CCM 150 HP From 09/2018
A 160 d (177.102) 1461 CCM 95 HP From 10/2019
A 200 d 4-matic (177.113) 1950 CCM 150 HP From 10/2019
B-CLASS Sports Tourer (W247)
Description Cylinder Capacity Horse Power Year
B 200 d (247.012) 1950 CCM 150 HP From 12/2018
B 180 (247.084) 1332 CCM 136 HP From 12/2018
B 200 (247.087) 1332 CCM 163 HP From 12/2018
B 180 d (247.003) 1461 CCM 116 HP From 12/2018
B 160 (247.082) 1332 CCM 109 HP From 04/2019
B 200 (247.087) 1332 CCM 150 HP From 01/2019
B 160 d (247.002) 1461 CCM 95 HP From 05/2019
B 200 d 4-matic (247.013) 1950 CCM 150 HP 10/2019 - 09/2021
CLA (C118)
Description Cylinder Capacity Horse Power Year
CLA 180 (118.384) 1332 CCM 136 HP From 03/2019
CLA 200 (118.387) 1332 CCM 163 HP From 03/2019
CLA 180 d (118.303) 1461 CCM 116 HP From 03/2019
CLA 200 (118.387) 1332 CCM 150 HP From 03/2019
CLA 200 d (118.312) 1950 CCM 150 HP From 04/2019
CLA 200 d 4-matic (118.313) 1950 CCM 150 HP From 04/2019
CLA Shooting Brake (X118)
Description Cylinder Capacity Horse Power Year
CLA 180 d (118.603) 1461 CCM 116 HP From 06/2019
CLA 200 d (118.612) 1950 CCM 150 HP From 06/2019
CLA 180 (118.684) 1332 CCM 136 HP From 06/2019
CLA 200 (118.687) 1332 CCM 163 HP From 06/2019
CLA 200 (118.687) 1332 CCM 150 HP From 06/2019
CLA 200 d 4-matic (118.613) 1950 CCM 150 HP From 10/2019
CLA 250 e (118.686) 1332 CCM 218 HP From 06/2020
GLA (H247)
Description Cylinder Capacity Horse Power Year
GLA 200 (247.787) 1332 CCM 163 HP From 02/2020
GLA 200 Mild-Hybrid (247.787) 1332 CCM 163 HP From 03/2023

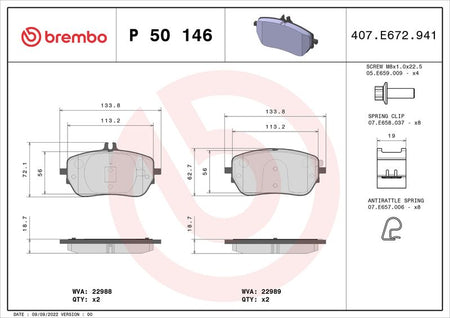

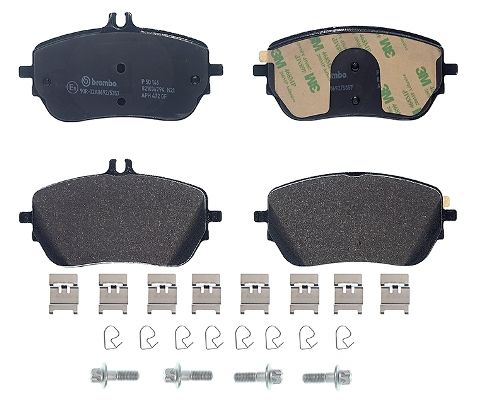

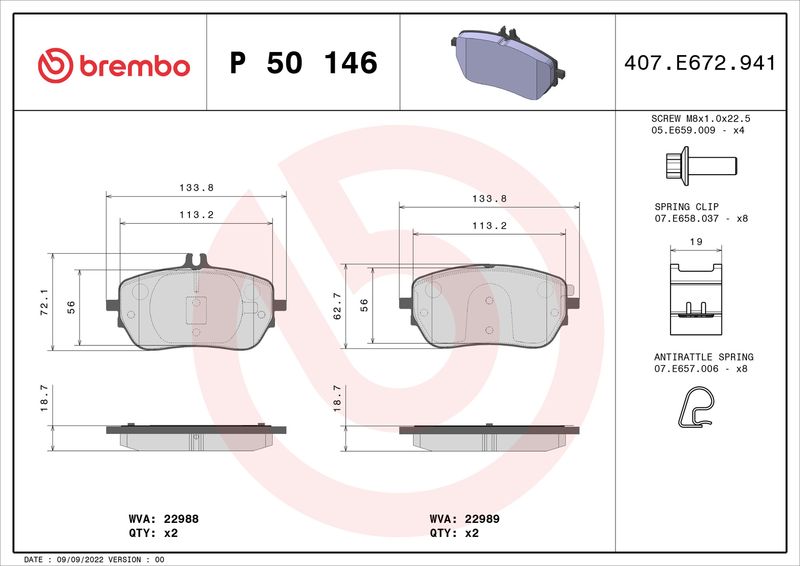

The Brembo P50146 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records prepared for wear warning indicator, with accessories, CBI brake-system specification, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Width [mm] : 134
Thickness [mm] : 19
Height 1 [mm] : 72
Height 2 [mm] : 63
Wear Warning Contact : prepared for wear warning indicator
Supplementary Article/Supplementary Info : with accessories
Brake System : CBI
Supplementary Article/Supplementary Info 2 : with brake caliper screws
Supplementary Article/Supplementary Info 2 : with anti-squeak plate
WVA Number : 22988
WVA Number : 22989
Fitting Position : Front Axle
Vehicle Equipment : for vehicles without sports package
  • Vendor BREMBO
  • SKU P50146
  • Barcode 8020584115138
  • MERCEDES-BENZ : 0004205103 0004206902 0004207000 A0004205103 A0004206902 A0004207000
  • APEC : PAD2244
  • APEC : PD3916
  • BLUE PRINT : ADBP420015
  • BORG & BECK : BBP2808
  • BOSCH : 0 986 424 887
  • DELPHI : LP3485
  • DELPHI : LX0631
  • Fahren : FBP3916
  • FEBI BILSTEIN : 171398
  • FTE : 9011159
  • HELLA : 8DB 355 037-961
  • MEYLE : 025 229 8819/PD
  • MINTEX : MDB4111
  • NAPA : NBP1670
  • National : NP3128
  • SKF : VKBP 81302
  • TEXTAR : 2298801
  • TRW : GDB2330
  • VALEO : 302549
  • VALEO : 302549A
  • BREMBO : 22989
  • BREMBO : 22988
