BREMBO

Brembo P86016 Brake Pad Set, disc brake

SKU: P86016
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£32.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
S60 I (384)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 140 HP 07/2000 - 04/2010
2.4 2435 CCM 170 HP 11/2000 - 04/2010
2.4 T 2435 CCM 200 HP 07/2000 - 04/2010
T5 2319 CCM 250 HP 07/2000 - 04/2010
D5 2401 CCM 163 HP 01/2001 - 04/2010
2.4 T AWD 2435 CCM 200 HP 06/2001 - 04/2010
2.0 T 1984 CCM 180 HP 07/2000 - 04/2010
2.4 Bifuel (CNG) 2435 CCM 140 HP 07/2001 - 04/2010
R 2,5 T AWD 2521 CCM 300 HP 01/2003 - 04/2010
2.4 D 2401 CCM 130 HP 05/2001 - 04/2010
2.5 T 2521 CCM 210 HP 01/2003 - 04/2010
2.5 T AWD 2521 CCM 210 HP 07/2002 - 04/2010
T5 2401 CCM 260 HP 04/2004 - 04/2010
D5 2401 CCM 185 HP 03/2005 - 04/2010
2.4 D 2400 CCM 126 HP 03/2005 - 04/2010
S80 I (184)
Description Cylinder Capacity Horse Power Year
2.9 2922 CCM 204 HP 05/1998 - 07/2006
T6 2783 CCM 272 HP 05/1998 - 12/2001
2.4 2435 CCM 140 HP 01/1999 - 07/2006
2.0 T 1984 CCM 226 HP 06/1998 - 07/2006
2.5 TDI 2460 CCM 140 HP 01/1999 - 07/2006
2.0 1984 CCM 163 HP 06/1998 - 07/2006
2.4 2435 CCM 170 HP 01/1999 - 07/2006
2.9 2922 CCM 200 HP 03/1999 - 07/2006
2.0 T 1984 CCM 180 HP 12/1999 - 07/2006
2.4 T 2435 CCM 200 HP 06/2000 - 07/2006
D5 2401 CCM 163 HP 08/2001 - 07/2006
2.4 Bifuel (CNG) 2435 CCM 140 HP 09/2001 - 07/2006
3.0 2922 CCM 196 HP 06/2001 - 07/2006
T6 2922 CCM 272 HP 06/2001 - 07/2006
2.4 D 2401 CCM 131 HP 10/2001 - 07/2006
V70 Mk II (285)
Description Cylinder Capacity Horse Power Year
T5 2319 CCM 250 HP 11/1999 - 12/2004
2.4 T 2435 CCM 200 HP 11/1999 - 08/2003
2.5 TDI 2460 CCM 140 HP 11/1999 - 08/2007
2.4 2435 CCM 140 HP 03/2000 - 08/2007
2.4 2435 CCM 170 HP 03/2000 - 08/2007
D5 2401 CCM 163 HP 01/2001 - 12/2008
2.4 Bifuel (CNG) 2435 CCM 140 HP 09/2001 - 08/2007
2.0 T 1984 CCM 180 HP 11/1999 - 08/2007
2.4 T AWD 2435 CCM 200 HP 09/2001 - 08/2002
2.4 D 2401 CCM 131 HP 07/2001 - 08/2007
2.5 T AWD 2521 CCM 209 HP 07/2002 - 08/2007
D5 AWD 2401 CCM 163 HP 07/2002 - 08/2007
2.5 T 2521 CCM 209 HP 09/2002 - 10/2007
T5 2401 CCM 260 HP 04/2004 - 08/2007
XC70 I Cross Country (295)
Description Cylinder Capacity Horse Power Year
2.4 T XC AWD 2435 CCM 200 HP 03/2000 - 09/2002
D5 XC AWD 2401 CCM 163 HP 09/2002 - 08/2007
2.5 T XC AWD 2521 CCM 209 HP 09/2002 - 10/2007
D5 AWD 2401 CCM 185 HP 12/2005 - 08/2007
2.4 T XC AWD 2435 CCM 193 HP 11/1997 - 09/2002

The Brembo P86016 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records excl. wear warning contact, Teves brake-system specification, front axle fitting position, and 286 and 305 mm for brake disc diameter. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake

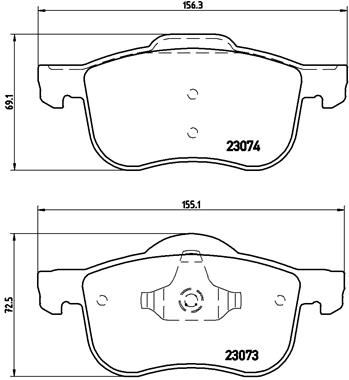

Thickness [mm] : 19
Height 1 [mm] : 69
Height 2 [mm] : 73
Wear Warning Contact : excl. wear warning contact
Supplementary Article/Supplementary Info : with accessories
Brake System : Teves
Width 1 [mm] : 155
Width 2 [mm] : 156
Supplementary Article/Supplementary Info 2 : with piston clip
Supplementary Article/Supplementary Info 2 : with anti-squeak plate
WVA Number : 23073
WVA Number : 23074
Fitting Position : Front Axle
for brake disc diameter [mm] : 286
for brake disc diameter [mm] : 305
Brake Size : 15"
Brake Size : 16"
  • Vendor BREMBO
  • SKU P86016
  • Barcode 8020584059043
  • VOLVO : 272401 2724010 2724011 2743359 30648385 30648386 30648387 30776712 31262506 86238615 8634921 86349210 86349214
  • APEC : PAD1075
  • APEC : PD3044
  • BLUE PRINT : ADF124223
  • BORG & BECK : BBP1695
  • BOSCH : 0 986 424 540
  • BOSCH : 0 986 495 061
  • DELPHI : LP1458
  • DELPHI : LX0236
  • Fahren : FBP3044
  • FEBI BILSTEIN : 16359
  • FTE : 9010316
  • HELLA : 8DB 355 008-851
  • MEYLE : 025 230 7318
  • MEYLE : 025 230 7318/PD
  • MINTEX : MDB1944
  • NAPA : NBP1439
  • SKF : VKBP 80215
  • TEXTAR : 2307303
  • TEXTAR : 2307381
  • TRW : GDB1388
  • TRW : GDB1388DTE
  • TRW : GDB1576
  • VALEO : 301479
  • VALEO : 598479
  • BREMBO : 23074
  • BREMBO : 23073
  • BREMBO : D794 7664
