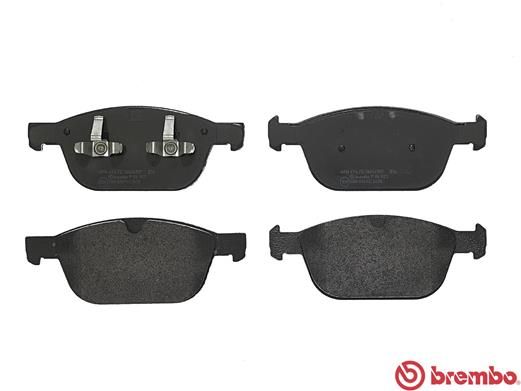

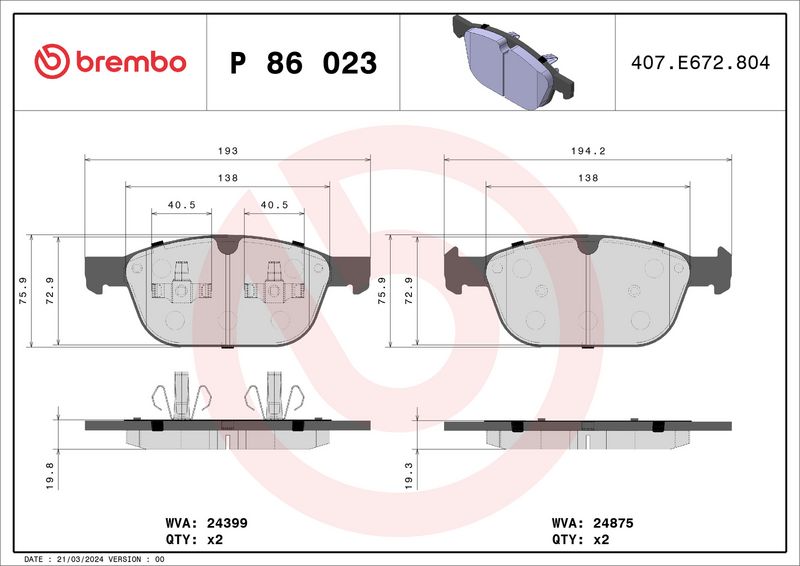

Brembo P86023 Brake Pad Set, disc brake - 1
Brembo P86023 Brake Pad Set, disc brake - 2
Brembo P86023 Brake Pad Set, disc brake - 1
Brembo P86023 Brake Pad Set, disc brake - 2
BREMBO

Brembo P86023 Brake Pad Set, disc brake

SKU: P86023
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£48.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
T5 1999 CCM 241 HP 09/2010 - 02/2017
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D5 2400 CCM 215 HP 06/2011 - 02/2017
T6 AWD 2953 CCM 286 HP 05/2008 - 12/2010
2.4 D / D3 / D4 AWD 2400 CCM 163 HP 05/2008 - 02/2017
D5 AWD 2400 CCM 185 HP 05/2008 - 12/2009
D5 AWD 2400 CCM 205 HP 07/2009 - 06/2011
2.4 D 2400 CCM 175 HP 04/2009 - 12/2010
3.2 AWD 3192 CCM 238 HP 07/2009 - 12/2010
2.0 T 1999 CCM 203 HP 12/2009 - 12/2012
3.2 AWD 3192 CCM 243 HP 03/2010 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2014
D3 1984 CCM 136 HP 04/2012 - 12/2015
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 136 HP 09/2013 - 12/2015
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017
XC90 I (275)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 200 HP 01/2011 - 12/2014
3.2 AWD 3192 CCM 243 HP 04/2010 - 09/2014
2.5 T AWD 2521 CCM 209 HP 10/2002 - 09/2014
T6 AWD 2922 CCM 272 HP 10/2002 - 12/2006
D5 AWD 2401 CCM 163 HP 10/2002 - 12/2006
V8 AWD 4414 CCM 316 HP 01/2005 - 12/2010
D5 AWD 2401 CCM 185 HP 04/2005 - 12/2012
3.2 AWD 3192 CCM 238 HP 03/2006 - 12/2010
D3 / D5 2400 CCM 163 HP 04/2009 - 12/2014
3.2 3192 CCM 238 HP 09/2011 - 09/2014
V8 AWD 4414 CCM 320 HP 09/2004 - 12/2005
2.5 T AWD 2497 CCM 209 HP 10/2012 - 09/2014
D5 AWD 2400 CCM 163 HP 10/2007 - 12/2010

The Brembo P86023 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records excl. wear warning contact, with accessories, Teves brake-system specification, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Thickness [mm] : 20
Height [mm] : 76
Wear Warning Contact : excl. wear warning contact
Supplementary Article/Supplementary Info : with accessories
Brake System : Teves
Width 1 [mm] : 193
Width 2 [mm] : 194
Supplementary Article/Supplementary Info 2 : with piston clip
Supplementary Article/Supplementary Info 2 : with anti-squeak plate
WVA Number : 24399
WVA Number : 24875
Fitting Position : Front Axle
Model Year to : 2015
Vehicle Identification Number (VIN) to : 785803
  • Vendor BREMBO
  • SKU P86023
  • Barcode 8020584091067
  • VOLVO : 30793943 307939430 31277334 312773340 31687104 316871040
  • APEC : PAD1719
  • APEC : PAD1719B
  • APEC : PD3692
  • BLUE PRINT : ADF124203
  • BORG & BECK : BBP2093
  • BOSCH : 0 986 494 305
  • DELPHI : LP2140
  • DELPHI : LX0360
  • Fahren : FBP3692
  • FEBI BILSTEIN : 16773
  • FTE : 9010847
  • HELLA : 8DB 355 014-541
  • MEYLE : 025 243 9920
  • MEYLE : 025 243 9920/PD
  • MINTEX : MDB3024
  • NAPA : NBP1117
  • National : NP2844
  • SKF : VKBP 80188
  • TEXTAR : 2439901
  • TRW : GDB1821
  • VALEO : 302427
  • VALEO : 601381
  • BREMBO : 24875
  • BREMBO : 24399
  • BREMBO : D1412 8525
