Home / Car Parts / Fuel System / Injector Seals
Corteco 49364232 Seal Ring, nozzle holder - 1

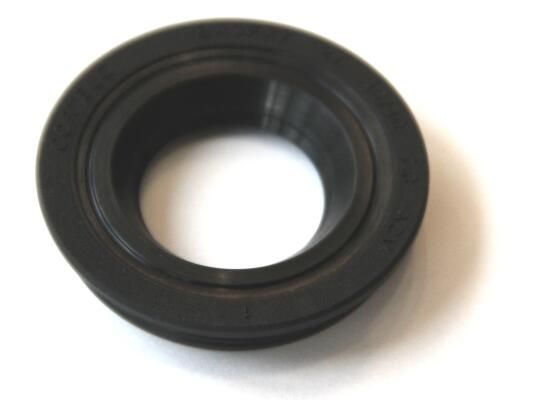

Corteco 49364232 Seal Ring, nozzle holder - 2

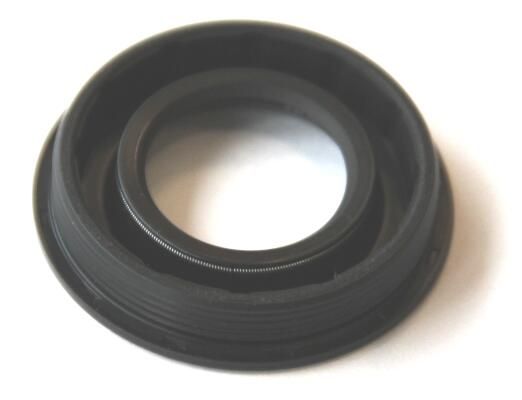

Corteco 49364232 Seal Ring, nozzle holder - 3
Corteco 49364232 Seal Ring, nozzle holder - 1
Corteco 49364232 Seal Ring, nozzle holder - 2
Corteco 49364232 Seal Ring, nozzle holder - 3
CORTECO

Corteco 49364232 Seal Ring, nozzle holder

SKU: 49364232
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£7.39 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.4 TDCi 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi 2402 CCM 140 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
3.2 TDCi 3199 CCM 200 HP 02/2008 - 08/2014
2.2 TDCi 2198 CCM 140 HP 10/2007 - 08/2014
2.2 TDCi 2198 CCM 115 HP 10/2008 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
LAND ROVER
DEFENDER Station Wagon (L316, L315)
Description Cylinder Capacity Horse Power Year
2.4 Td4 4x4 (L316) 2402 CCM 122 HP 10/2006 - 02/2016
DEFENDER Cabrio (L316)
Description Cylinder Capacity Horse Power Year
2.4 Td4 4x4 (L317) 2402 CCM 122 HP 05/2007 - 02/2016
DEFENDER Pick Up (L316)
Description Cylinder Capacity Horse Power Year
2.4 Td4 4x4 (L317) 2402 CCM 122 HP 05/2007 - 02/2016

The Corteco 49364232 Seal Ring, nozzle holder is a replacement sealing component that helps maintain the intended joint seal between mating parts. Its catalogue specification records 7 mm height, 21 mm inner diameter, 36 mm outer diameter, and ACM (Polyacrylate) construction. Compare the reference, material, profile, dimensions and application below with the removed part; clean the mating surfaces and follow the specified sealant and tightening procedure.

Function : Seal Ring, nozzle holder
Height [mm] : 7
Inner Diameter [mm] : 21
Outer Diameter [mm] : 36
Material : ACM (Polyacrylate)
  • Vendor CORTECO
  • SKU 49364232
  • Barcode 3358960249111
  • FORD : 1434568 6C1Q6K780AA 1372494 6C1Q6K780AB
  • LAND ROVER : LR004650 LR019663
  • FEBI BILSTEIN : 174029
  • CORTECO : BASFX7
