CORTECO sealing and vibration-control parts

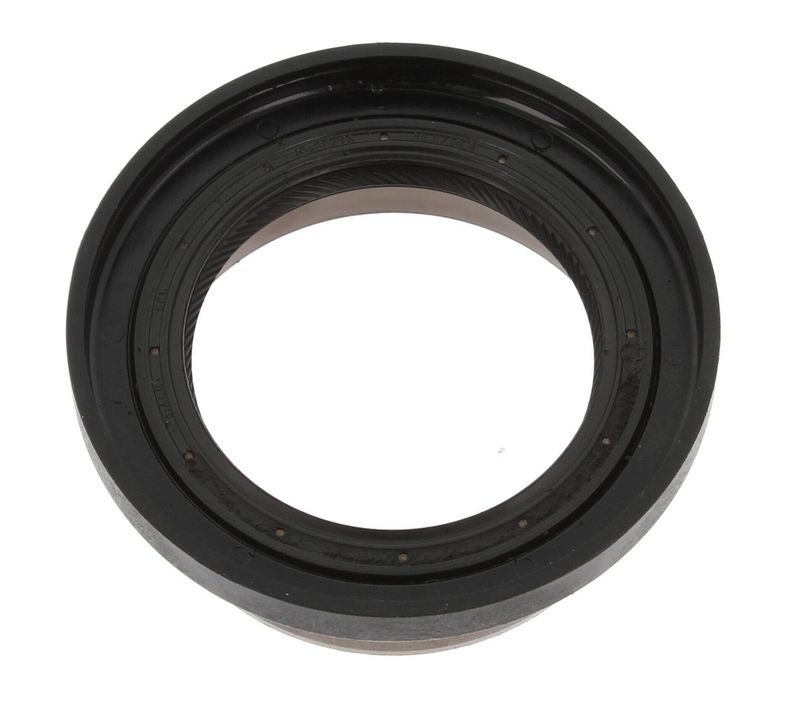

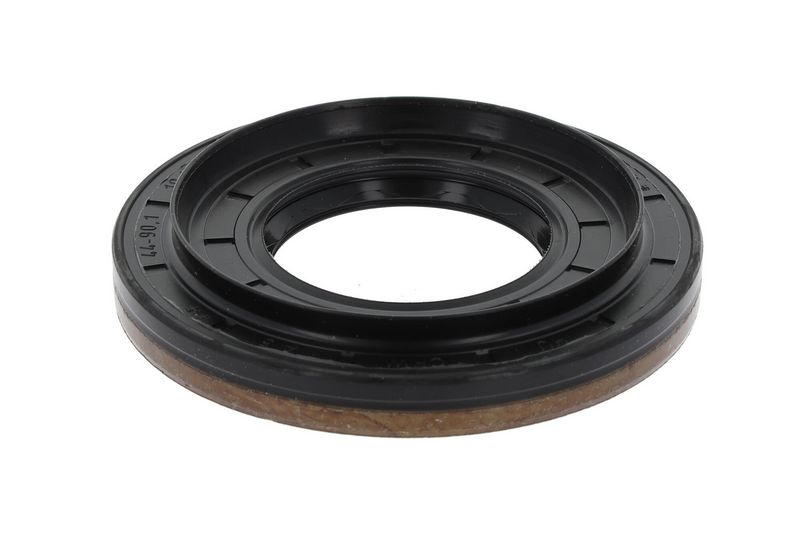

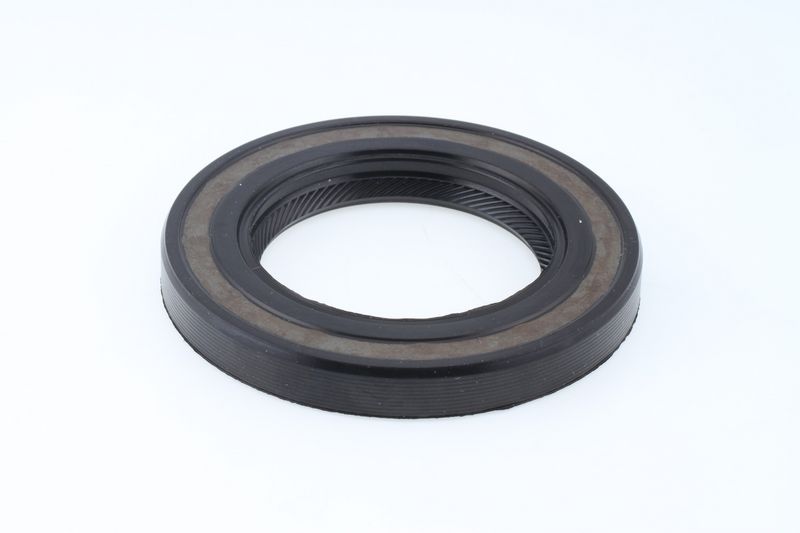

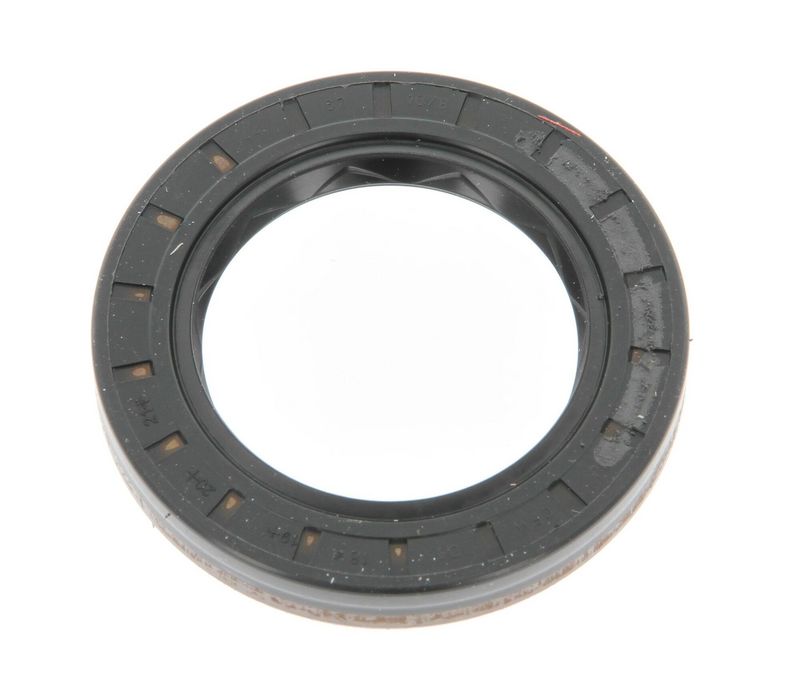

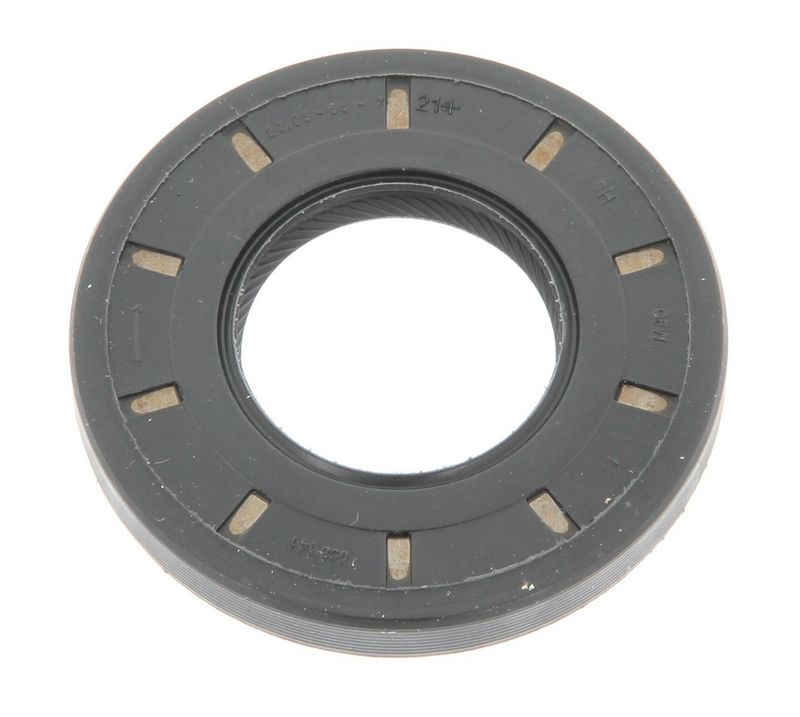

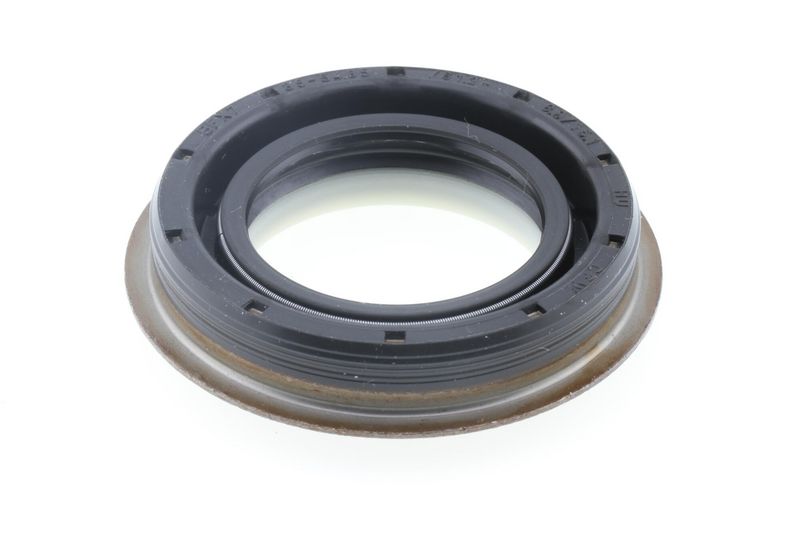

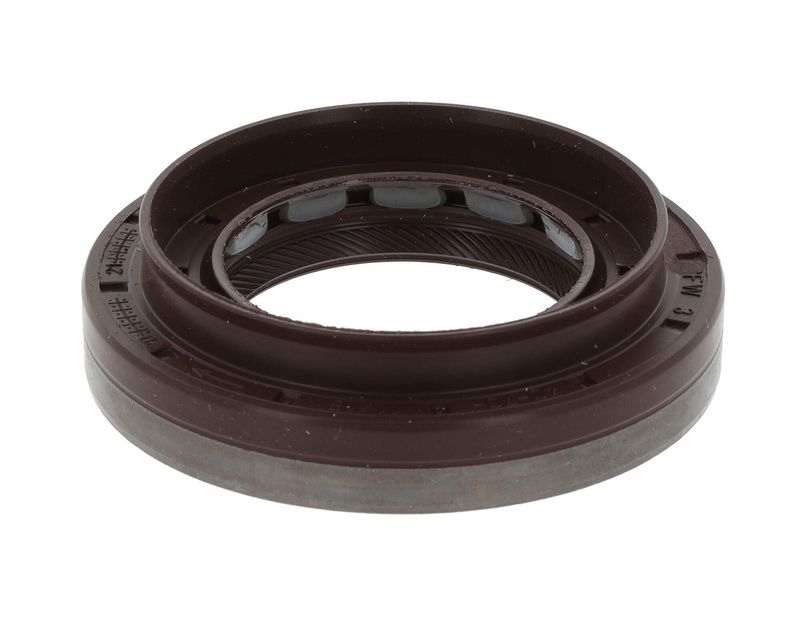

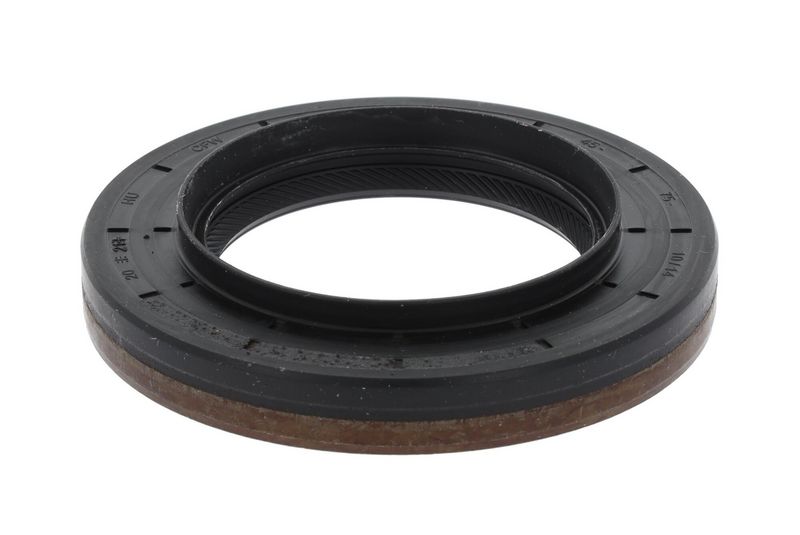

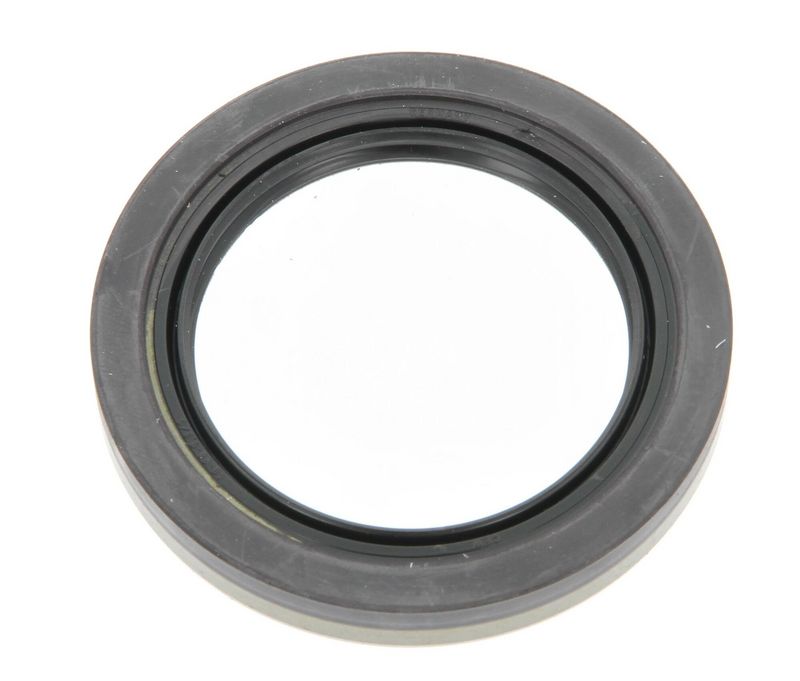

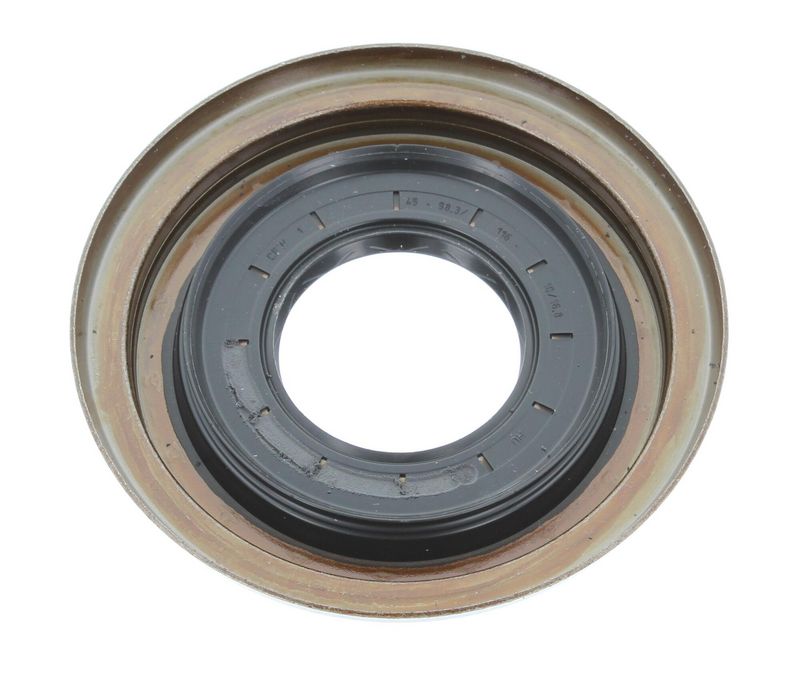

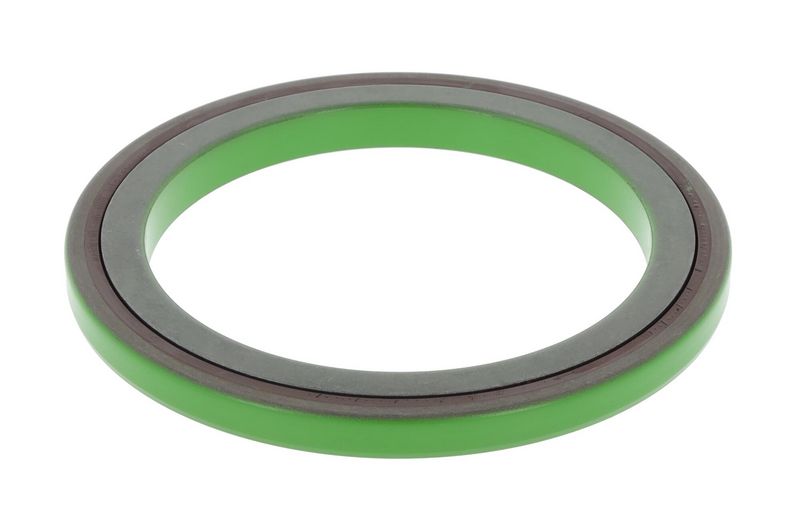

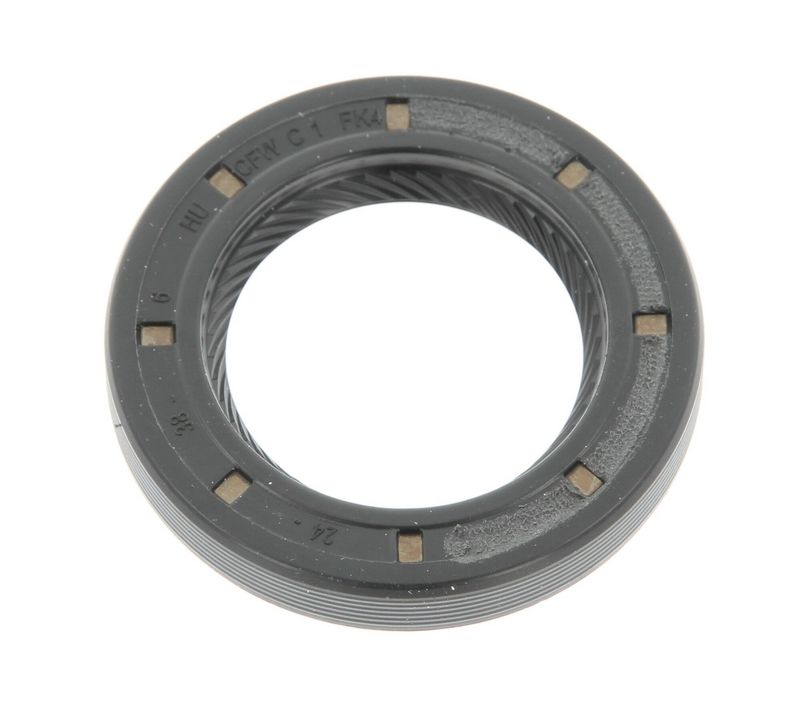

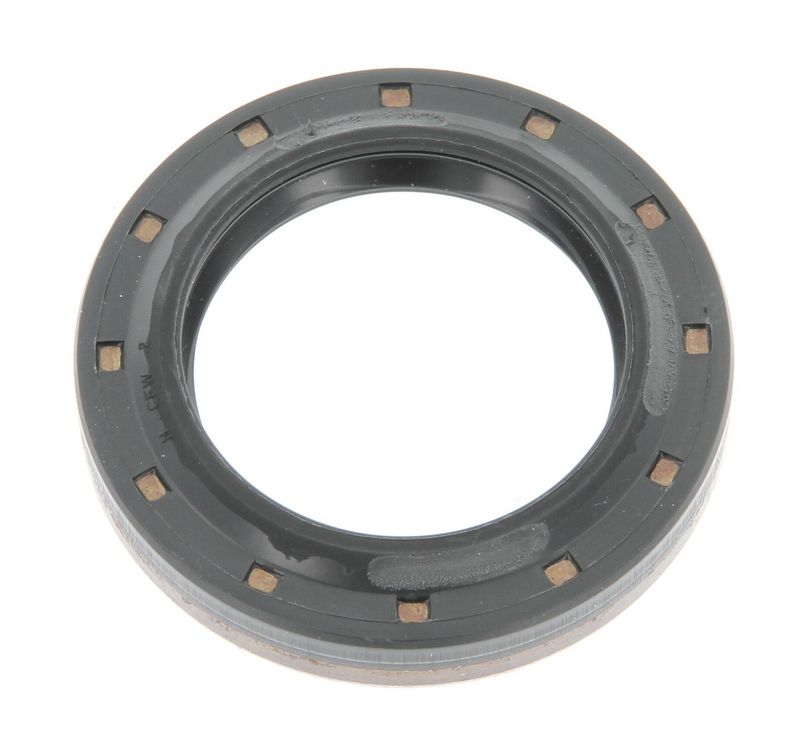

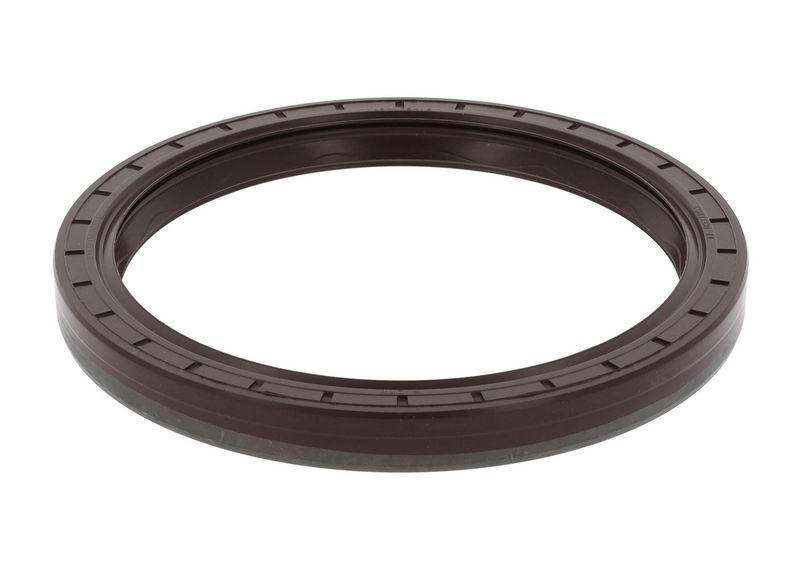

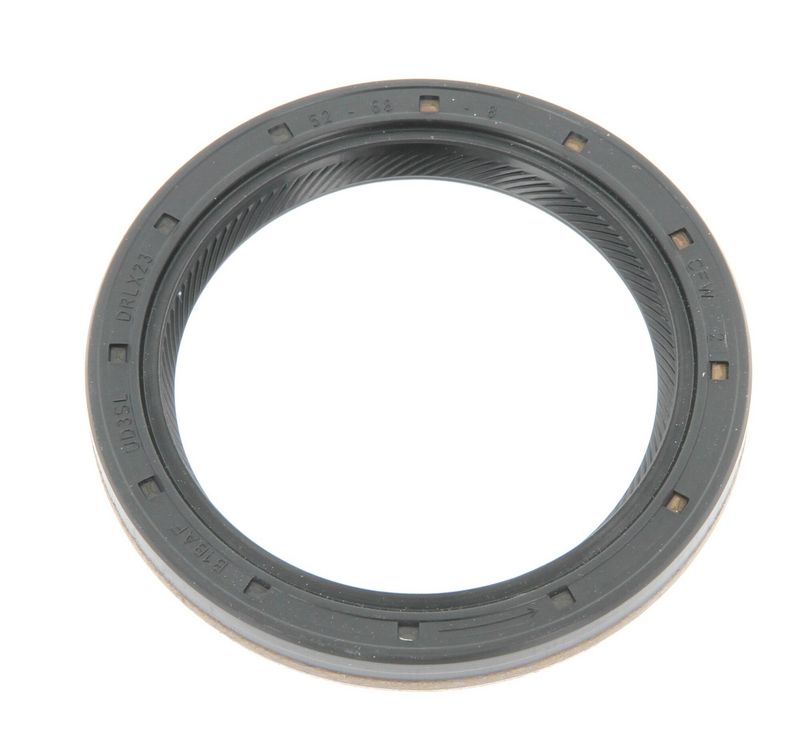

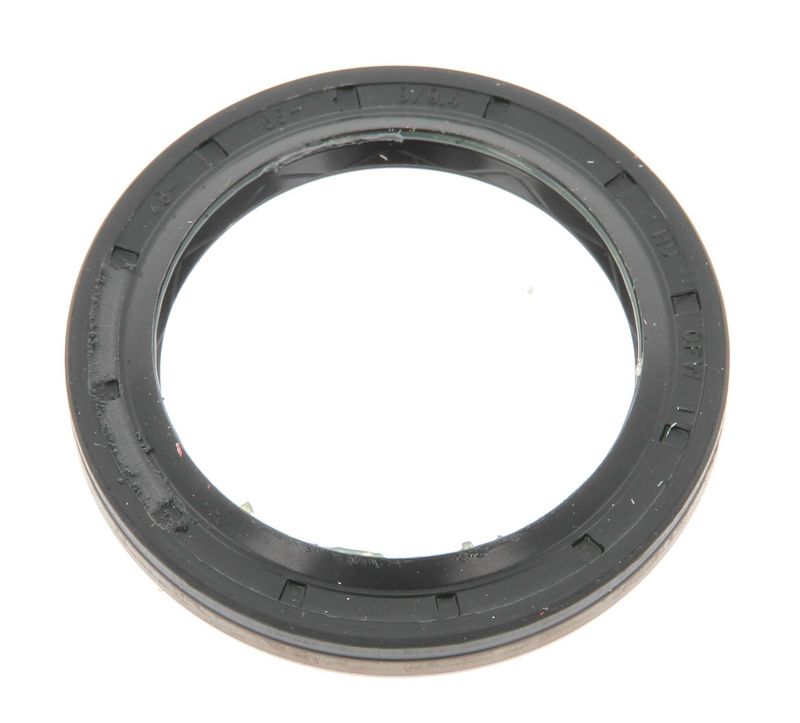

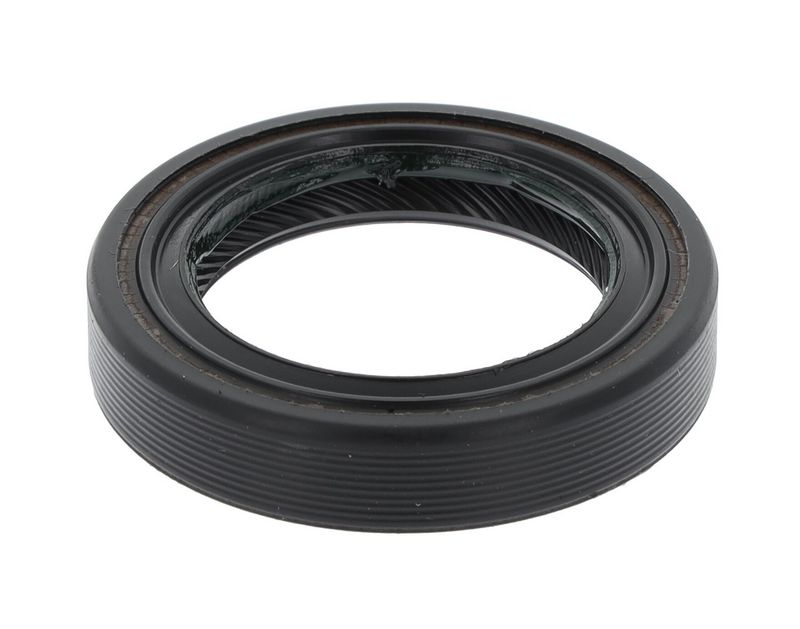

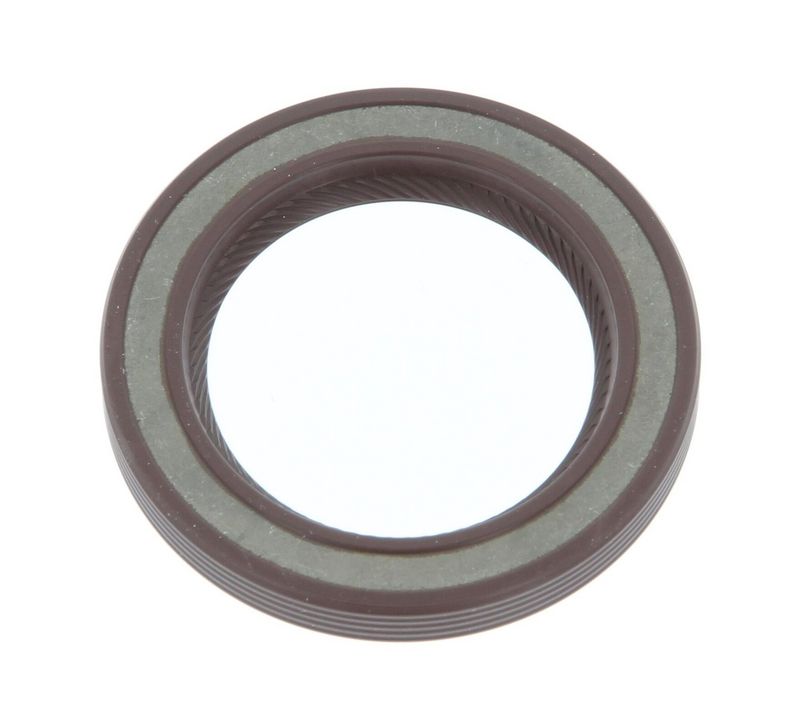

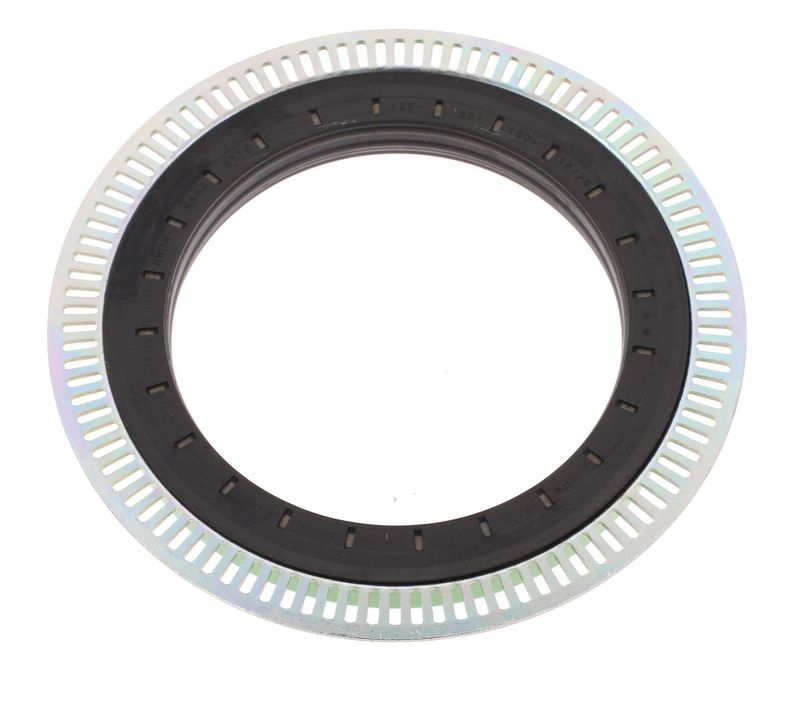

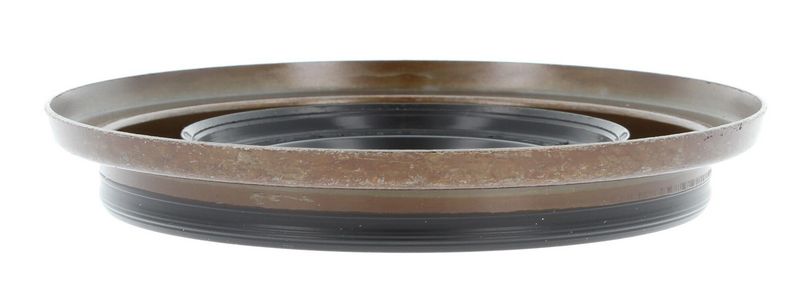

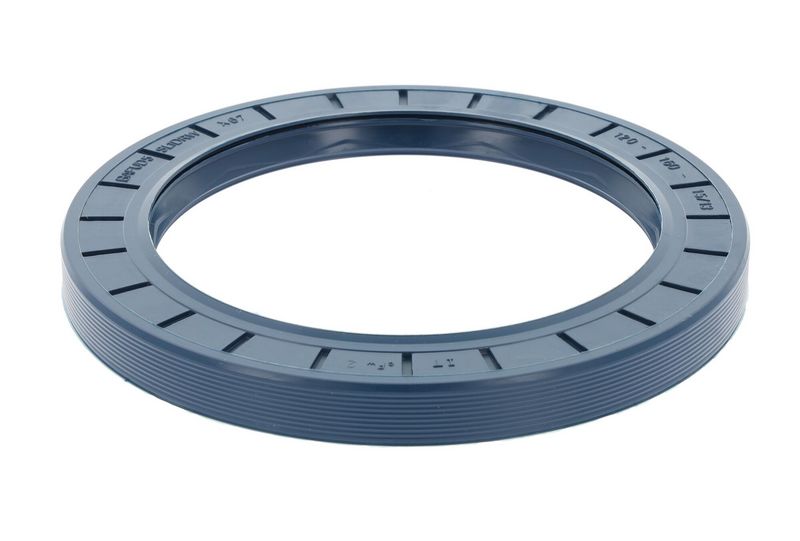

CORTECO's official range covers sealing, vibration control and cabin filtration. The products available here occupy a narrower technical area. Of 207 represented items, 67 are differential shaft seals, 26 manual-transmission seals, 20 wheel-hub seals and 17 crankshaft seals. Thirty engine mountings and eight gearbox or transmission mountings create a second strong family. The remainder includes pulleys, seal rings, guide sleeves, hoses, gaskets and a handful of suspension products.

This concentration makes exact identification essential. A rotary seal is defined by more than its nominal bore; a mounting is defined by geometry and load path as well as bolt holes. The evidence snapshot contains no model-specific compatibility records, so fitment must come from current CORTECO application data and dependable vehicle identification. Use VIN, engine and transmission codes, production date, installed component details and the complete part number.

What the represented CORTECO range contains

Rotary seal geometry and material

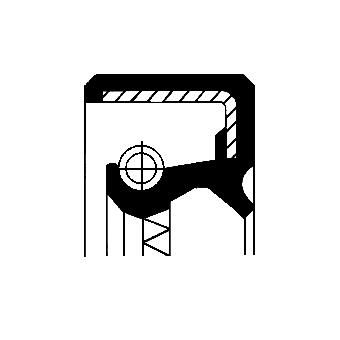

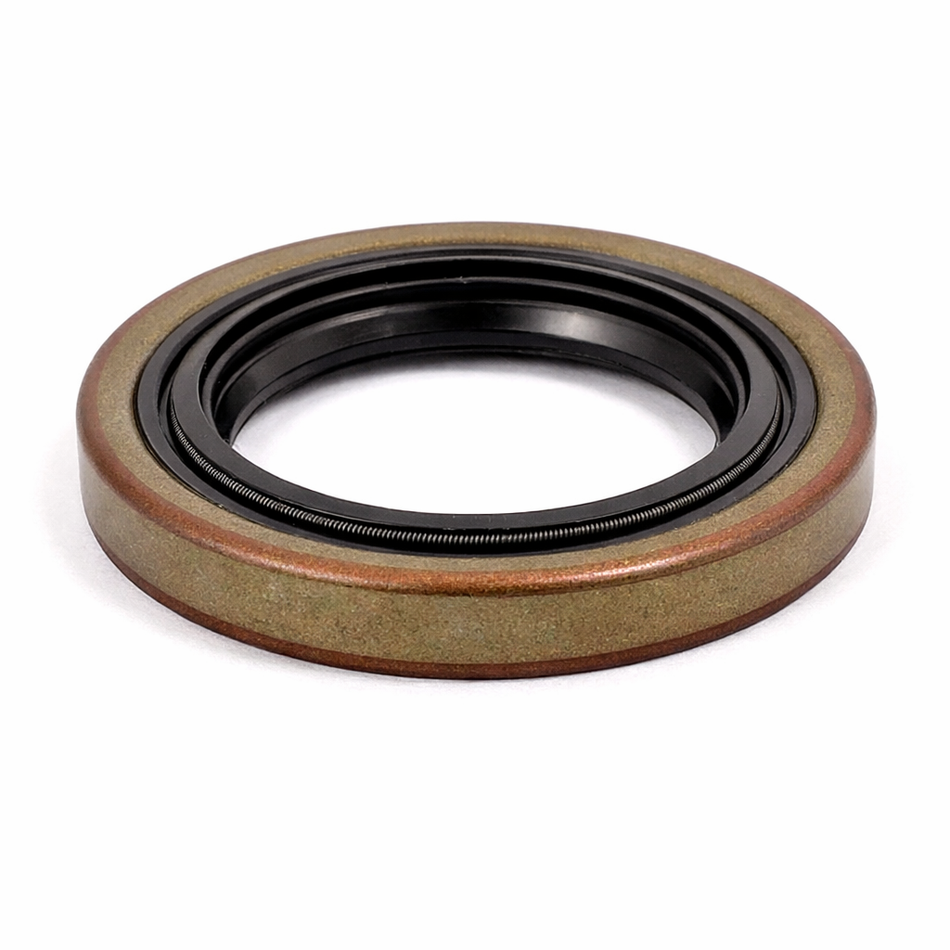

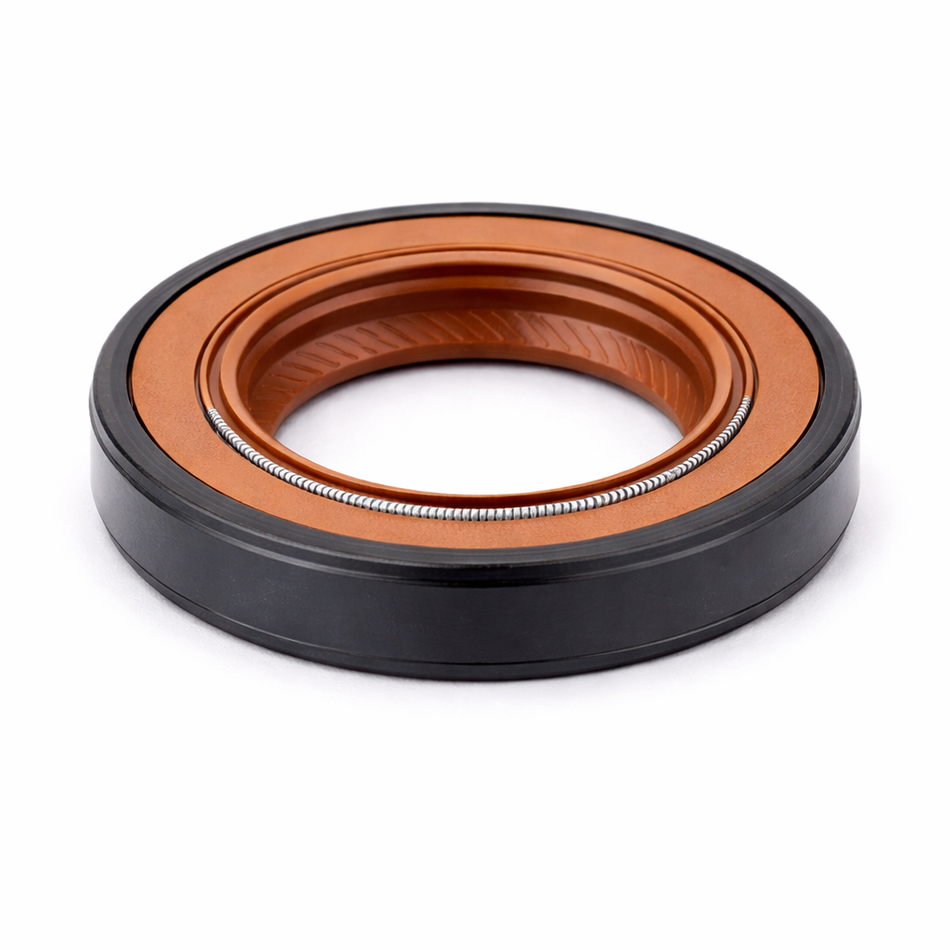

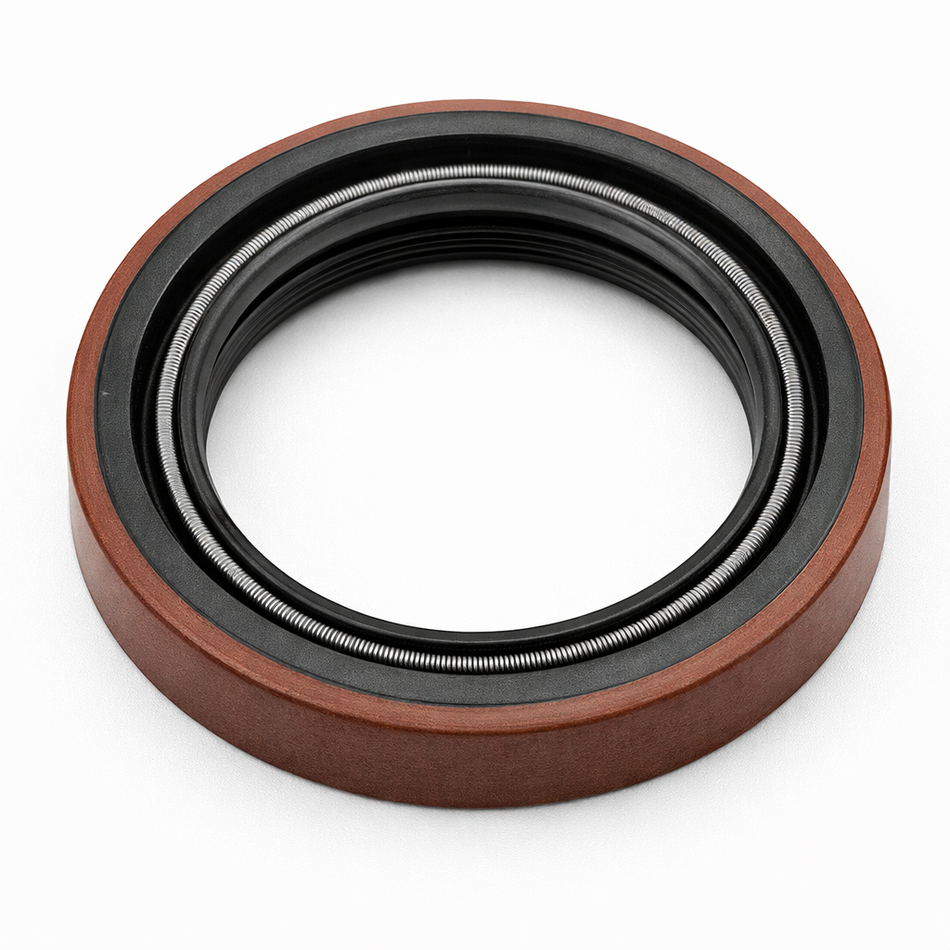

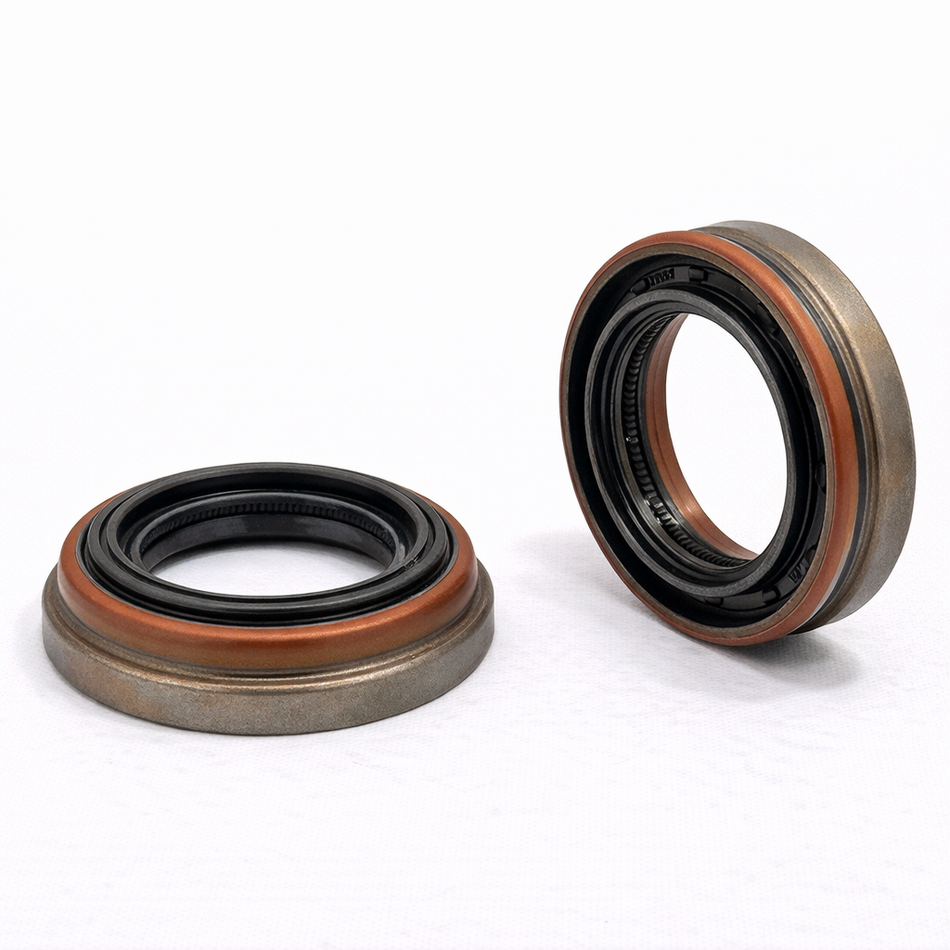

A shaft seal separates fluid from the surrounding environment while allowing a rotating member to pass through the housing. Its working edge, support, dust exclusion and pumping features are designed for a defined shaft direction, speed, pressure and lubricant. CORTECO sample specifications show meaningful variation: frontal and transmission-side crankshaft positions, right-hand twist details, dust lips, flanges and mounting sleeves.

Dimensions must all correspond. Inner diameter relates to the shaft running surface, outer diameter to the housing and height to the axial space and installation depth. Multi-piece flange seals may add further diameters or heights. Measuring a distorted removed seal can help expose a mismatch, but current application data and the new part specification are stronger evidence than a worn component alone.

Represented product descriptions name PTFE, FPM and ACM, sometimes in combined constructions. Material affects temperature, chemical response, flexibility and fitting practice. It does not provide a licence to substitute any seal made from the same polymer. Lip geometry, filler, case and surface finish still differ. Follow the leaflet or CORTECO technical information supplied for that reference.

Diagnose the reason for leakage first

A wet seal area identifies a symptom, not necessarily the failed source. Clean the assembly and trace fluid from its highest point. Engine oil may travel from a cover, breather or pressurised gallery; gearbox oil can spread along a casing seam; grease from a damaged boot can imitate a hub-seal leak. Confirm the fluid and origin before dismantling.

Inspect the shaft for a polished groove, pitting, burrs and excessive radial or axial movement. Check housing damage and breather function. A blocked crankcase or transmission vent can raise pressure. Bearing wear may allow a shaft to move beyond the seal's working capacity. Replacing the seal alone in those conditions is unlikely to provide a durable repair.

Also establish whether the old seal was installed squarely and at the intended depth. Evidence of a rolled lip, spring displacement, tool marks or sealant contamination helps explain early failure. Photograph the original arrangement before removal when access will later obscure orientation.

Installation practice for CORTECO seals

Cleanliness and controlled force are central. Drain the system as required and prevent workshop grit entering the open housing. Remove the old seal without scoring the bore or shaft. Dress only damage that service information allows; do not polish away a critical dimension. Clean the seating face and check that no fragment of metal case or gasket remains.

Protect the new lip from threads, splines and keyways with the specified sleeve or suitable smooth protection. Apply lubricant only where the exact instructions call for it. Certain PTFE sealing lips require dry assembly onto a dry shaft and a defined waiting period before operation. A generic "oil every seal" habit can defeat that design.

Press on the correct face with a tool that supports the seal evenly. Keep it square and stop at the specified depth. Hammering one edge can distort the case. For a flange assembly, use the fastener sequence and torque given for the engine or transmission. Turn the shaft only when permitted, then refill with the correct liquid and inspect after initial operation and a suitable road test.

Engine and gearbox mounting diagnosis

A powertrain mounting carries mass, limits movement and isolates vibration. CORTECO's official material identifies engine mounts within its vibration-control range. The represented products include engine, manual-transmission and automatic-transmission mountings, but their construction is not uniform. Some applications may use conventional rubber-to-metal parts while others use hydraulic arrangements.

Look for split or perished elastomer, separated bonding, collapsed height, impact marks, escaped fluid and metal-to-metal contact. Compare movement under controlled loading with service criteria. Excess vibration alone is not proof: engine misfire, incorrect idle speed, a bent exhaust bracket, driveshaft condition or another mount can transmit similar symptoms.

Support the engine or gearbox with suitable equipment before loosening a mount. Do not put load through an oil pan or casing unless an approved method and load spreader are specified. Align brackets without forcing them, start all fixings correctly and tighten at the prescribed stage. Some mount bolts are single-use or angle-tightened; confirm before reuse.

Crankshaft pulleys, bolts and clutch guide sleeves

A torsional crankshaft pulley may include an elastomeric damping layer. Inspect for cracking, rubber extrusion, separation, wobble, timing-mark movement and belt misalignment. Noise can also originate from a tensioner, overrunning alternator pulley or accessory bearing. Remove belts and test components only by an authorised diagnostic process.

Crankshaft fasteners can have specialised torque-angle and reuse rules. Lock the engine using designated tools and points; do not rely on the transmission or improvised wedges. Confirm whether pulley replacement affects engine timing. Where consequences include valve-to-piston contact, the work calls for precise service data and competent execution.

Clutch guide sleeves combine a sliding surface with sealing in some represented descriptions. Check bore, flange, length and supplied shaft seal. Inspect the release bearing, input shaft and clutch contamination while access is open. A new sleeve should not be asked to conceal shaft play or a leaking upstream component.

Brake hoses, gaskets and other smaller groups

Brake hoses must remain free from twisting, stretching and rubbing through full steering and suspension travel. Opening the hydraulic system requires controlled fluid handling and bleeding. Suspension struts store substantial spring energy, so use suitable equipment and procedures. These jobs should not be attempted without the competence to verify the entire safety-critical assembly.

MOT relevance and safe under-vehicle work

The DVSA MOT manual examines fluid leaks, engine and transmission mountings where their condition affects security, brake hoses, suspension components and relevant warning indications. A hydraulic brake-fluid leak can be a serious defect, while excessive fluid leakage elsewhere may fail where it creates environmental or road-safety risk. A new component is not an MOT promise because the tester assesses the complete vehicle.

Many CORTECO jobs take place beneath a raised vehicle or supported powertrain. HSE guidance says never to rely on a jack alone and highlights correct support, wheel chocking and stability. Use equipment rated for the load, at proper lifting points, on firm ground. Keep hands away from a supported engine's pinch zones and never remove a mount until the load path is understood.

CORTECO fitting mistakes to avoid

• Ordering a shaft seal from two diameters while ignoring width, position and lip direction.
• Lubricating a PTFE lip without checking whether dry installation is required.
• Driving a seal against one edge instead of pressing it square with a supported tool.
• Leaving a shaft groove, bearing play or blocked breather uncorrected.
• Replacing one mounting without checking the remaining supports and exhaust clearance.
• Allowing engine weight to bear on an unsuitable sump or casing.
• Reusing a crankshaft bolt where service information specifies renewal.
• Fitting a brake hose with hidden twist or inadequate clearance at full lock.

CORTECO questions and answers

Q: Which parts dominate this CORTECO selection?

A: Differential, gearbox, hub and crankshaft seals lead the range, followed by engine and transmission mountings.

Q: Can I choose a seal by inner and outer diameter?

A: Not safely; width, lip design, material, rotational feature, position and installation form also matter.

Q: What do PTFE, FPM and ACM refer to?

A: They identify sealing materials found in individual represented specifications, each with product-specific handling and application.

Q: Should every new rotary seal be oiled first?

A: No. Some PTFE designs require clean, dry fitting, so obey the instructions for the exact reference.

Q: Why use a mounting sleeve?

A: Where supplied, it can protect and position the sealing lip as designed during assembly.

Q: Will a new seal cure leakage from a worn shaft?

A: A deep groove, corrosion or excessive shaft movement must be addressed as part of the repair.

Q: Does vibration prove an engine mount has failed?

A: No. Inspect all supports and rule out engine-running, driveline and exhaust-contact causes.

Q: Can an engine mounting be changed without supporting the engine?

A: The powertrain needs an approved, stable support method before its load-bearing mount is released.

Q: Are crankshaft pulley bolts reusable?

A: That depends on the engine procedure; replace them whenever the service information marks them single-use.

Q: Is sealant helpful on a rocker-cover gasket?

A: Apply it only at locations and in quantities explicitly required by the repair instructions.

Q: What must be checked after brake-hose fitting?

A: Verify routing through full movement, leak-free unions, correct bleeding, pedal condition and secure retention.

Q: Does replacing a leaking CORTECO part guarantee roadworthiness?

A: No. The surrounding system and all other prescribed MOT items still have to be sound.
