Home / Car Parts / Electrical / Alternator
Denso DAN1069 Alternator - 1
Denso DAN1069 Alternator - 2
Denso DAN1069 Alternator - 3
Denso DAN1069 Alternator - 1
Denso DAN1069 Alternator - 2
Denso DAN1069 Alternator - 3
DENSO

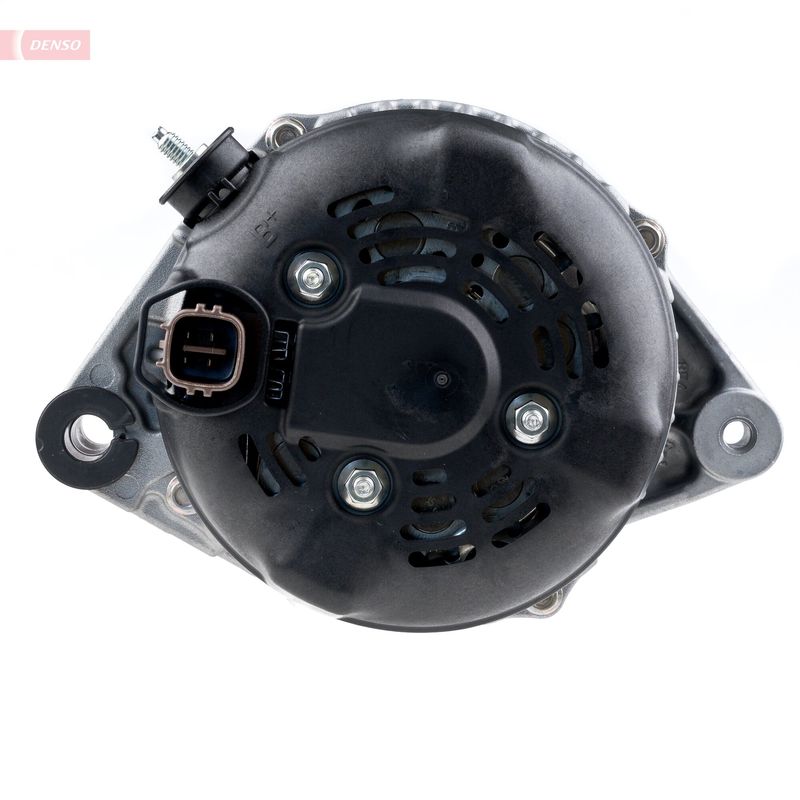

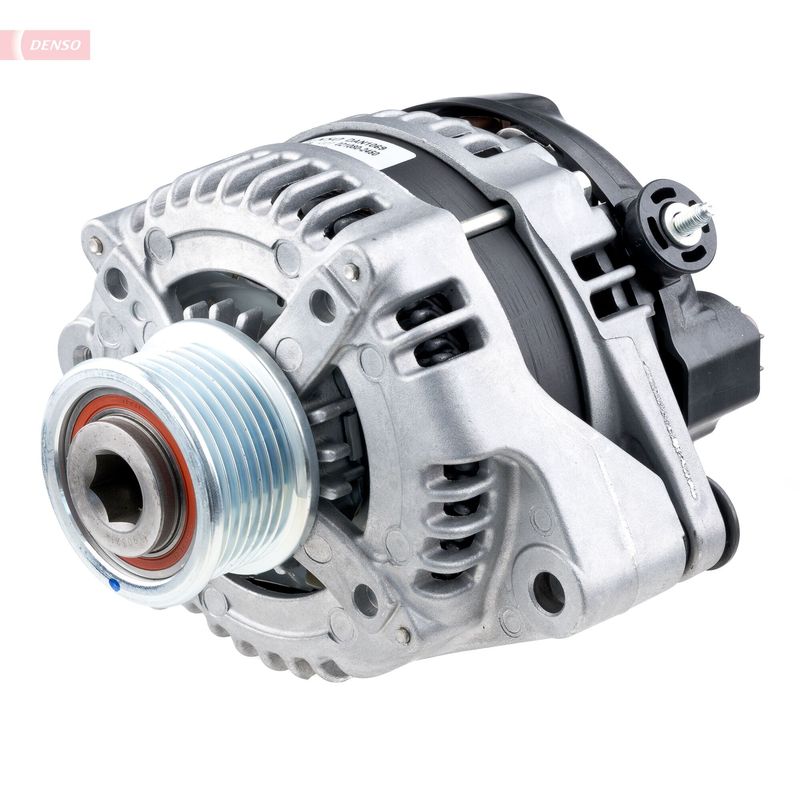

Denso DAN1069 Alternator

5.0/5 65 reviews
SKU: DAN1069

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£308.92 inc. VAT

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

TOYOTA
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) 2494 CCM 102 HP From 06/2004
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH202) 2494 CCM 102 HP From 09/2006
LAND CRUISER PRADO (_J12_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 163 HP 09/2002 - 08/2009
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 166 HP 07/2004 - 08/2009
3.0 D-4D (KDJ120, KDJ125, KDJ121) 2982 CCM 173 HP 09/2002 - 12/2010
3.0 D-4D (KDJ120_) 2982 CCM 204 HP 08/2006 - 07/2009
LAND CRUISER PRADO (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) 2982 CCM 190 HP From 08/2009
3.0 D-4D (KDJ150_, KDJ150, KDJ155) 2982 CCM 173 HP From 08/2009
LAND CRUISER VAN (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D4d 4WD (KDJ155, KDJ150) 2982 CCM 190 HP From 01/2011

The Denso DAN1069 Alternator is a replacement starting or charging-system component that supports electrical power generation, storage or engine cranking in the vehicle. Its catalogue specification records 14 V electrical rating, 130 A alternator charging current, 7 number of ribs, and with freewheel belt pulley pulleys. Match the reference, voltage, output or capacity, terminals, mounting and vehicle application before fitting; isolate the electrical system and follow the manufacturer's coding procedure where required.

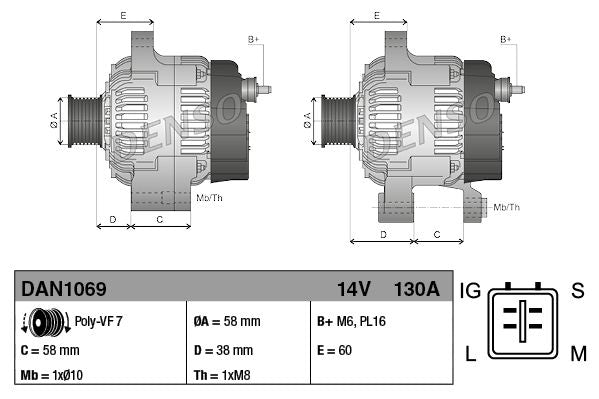

Function : Alternator
Voltage [V] : 14
Alternator Charging Current [A] : 130
Number of ribs : 7
Pulleys : with freewheel belt pulley
Belt Pulley Ø [mm] : 58
Vehicle Main Current : for vehicles with 12V main current
Quality : DENSO
Gross Weight [g] : 6,220
usable for vehicles with alternator charging current [A] : 130
Climate Zones : for cold climate zones
  • Vendor DENSO
  • SKU DAN1069
  • Barcode 8717613039250
  • TOYOTA : 27060-30070 27060-30100 27060-30140 27060-30141 27060-30170 27060-30171 27060-30220
  • APEC : AAL1680
  • BORG & BECK : BBA3054
  • Carwood Group : BREF032116637
  • HELLA : 8EL 015 637-491
  • LUCAS : LRA03067
  • LUCAS : LRA03201
  • NAPA : NAL1680
  • WAI : 20779N
  • WAI : 24056N
  • WAI : A131.088
