DENSO Car Parts

DENSO automotive parts in this range

DENSO Corporation was established in Japan in 1949 and describes itself as a global manufacturer of automotive technologies, systems and components. That identity is relevant here because the range is not confined to a single service area. It crosses ignition, engine management, diesel starting, rotating electrics, air conditioning, engine cooling, filtration and wiping. The strongest groups are spark plugs and lambda sensors, while compressors, radiators, alternators and starters add substantial workshop depth.

The presence of a technology in DENSO's wider portfolio does not mean every item below has that technology. A spark plug should only be called Iridium TT, Nickel TT, Platinum Longlife or another named family when the individual reference says so. The same restraint applies to an SC alternator, planar lambda sensor, variable-displacement compressor or carbon cabin filter. Part-level specifications decide what is being supplied.

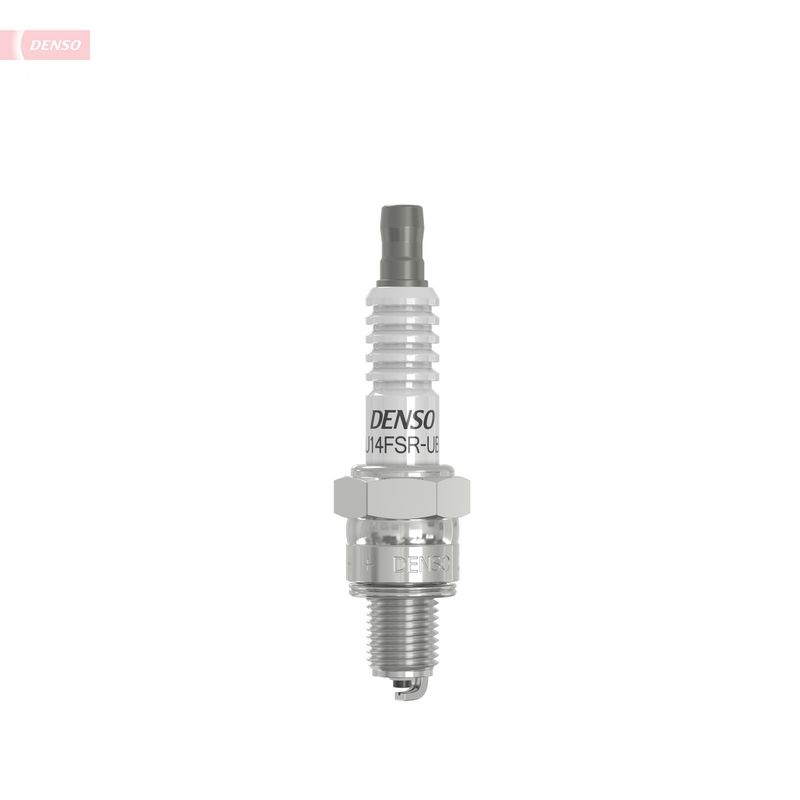

Choosing DENSO spark plugs and glow plugs

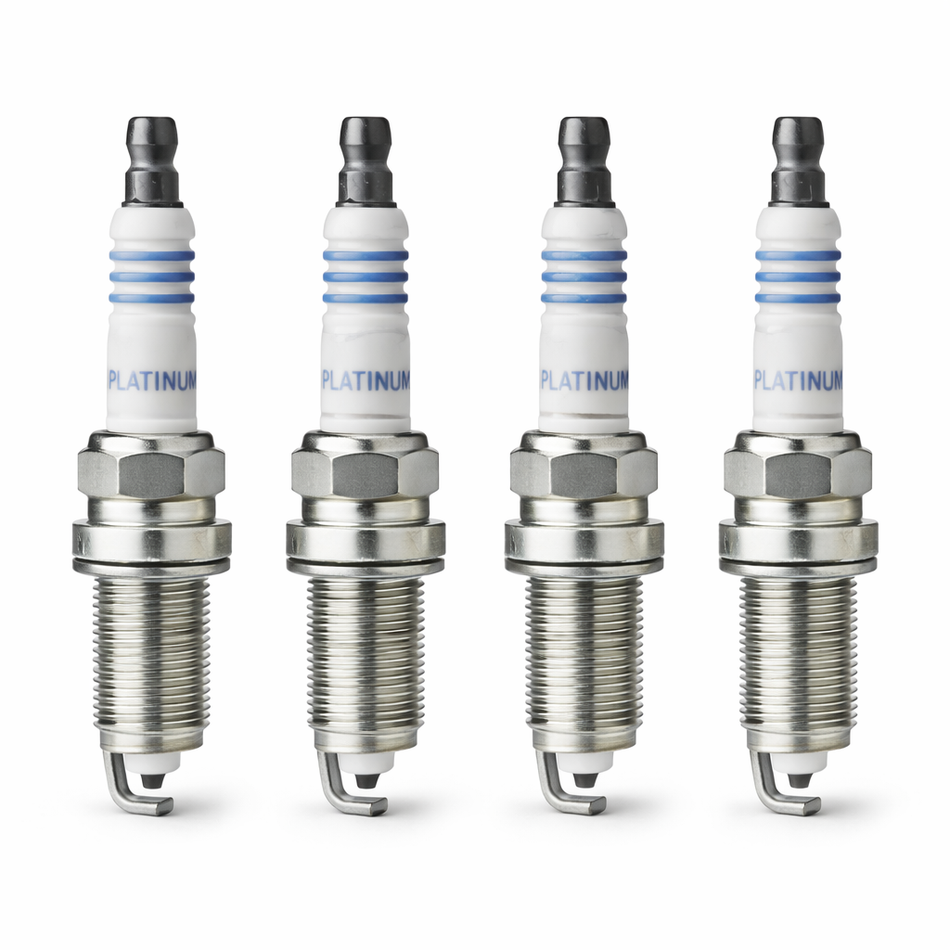

A spark plug has to match the combustion chamber mechanically and thermally. Thread diameter, pitch and reach determine whether it seats correctly without damaging the cylinder head or protruding too far. A gasket seat and taper seat require different tightening behaviour. Hex size affects access, while the projected tip, electrode clearance and suppression value can affect operation. DENSO advises considering heat range and physical dimensions when identifying a replacement.

DENSO documents several electrode families. Nickel TT uses twin fine tips without precious metal on the electrodes; Iridium TT combines a fine iridium centre electrode with a fine ground electrode. Platinum and Iridium Longlife types use precious metals to resist erosion. These descriptions are useful for understanding a marked product, but they do not create an upgrade route by themselves. The authorised cross-reference must support any change from the engine manufacturer's specified plug.

Do not alter a pre-set fine-wire plug gap unless the applicable instruction requires it and the correct method is available. Levering against a fine centre electrode can crack the insulator or distort the tip. Start plugs by hand on a cold engine, ensure the seat is clean, and use the specified torque for the exact thread, seat and cylinder-head condition. Too little torque can impair heat transfer; too much can stretch the shell or damage the head.

A glow plug is an electrical heater for diesel starting and combustion support. Similar-looking plugs can differ in rated voltage, control strategy, heating profile, length and connector. Resistance alone is not a complete identity check. Before replacing one, diagnose the supply circuit and controller, and follow the approved removal procedure because carbon loading or corrosion can make a long glow plug vulnerable to breakage.

Lambda, temperature and air-flow sensors

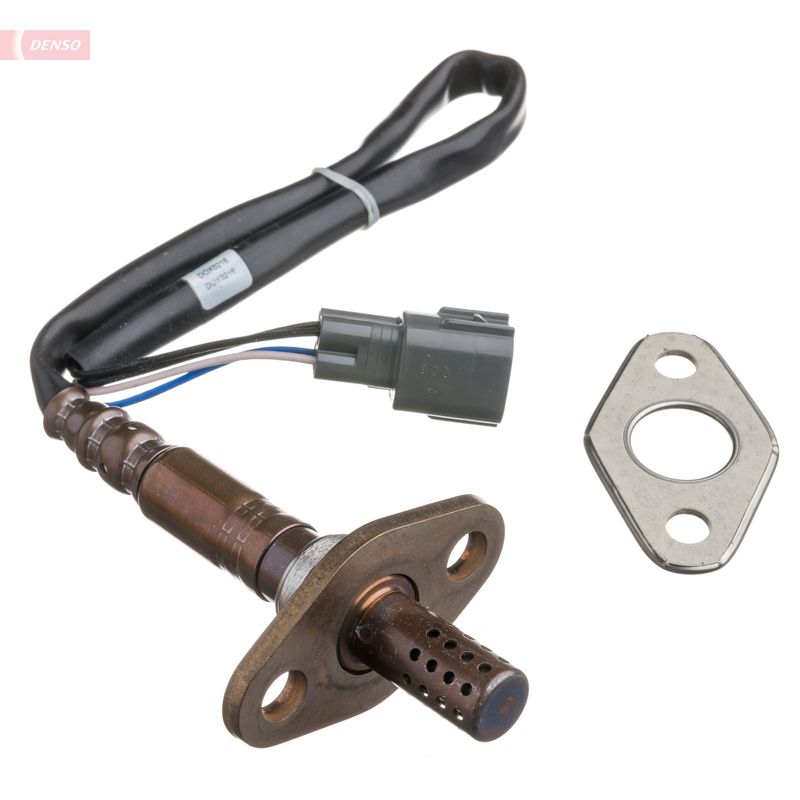

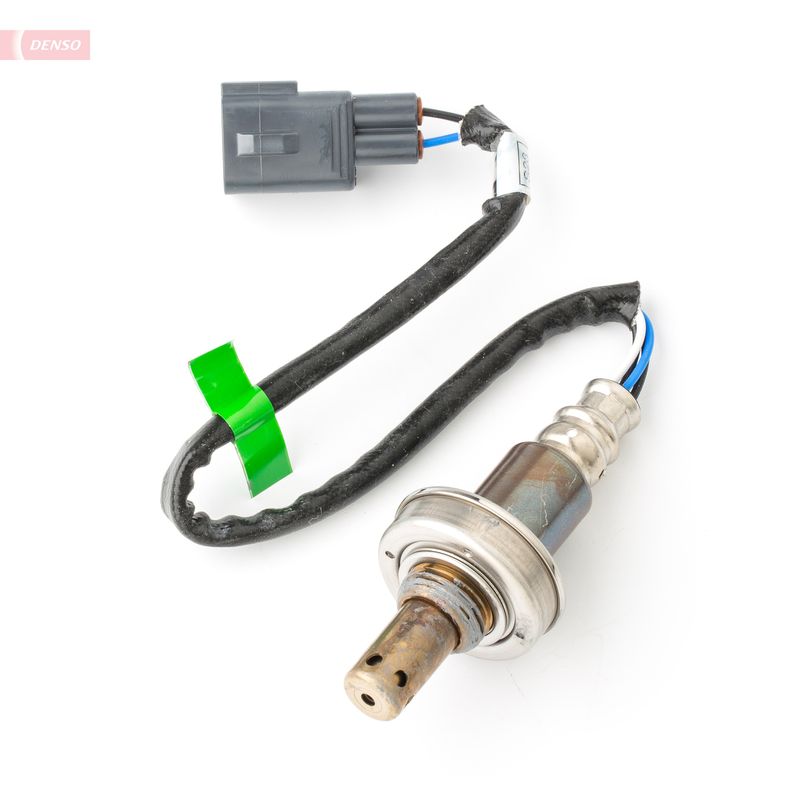

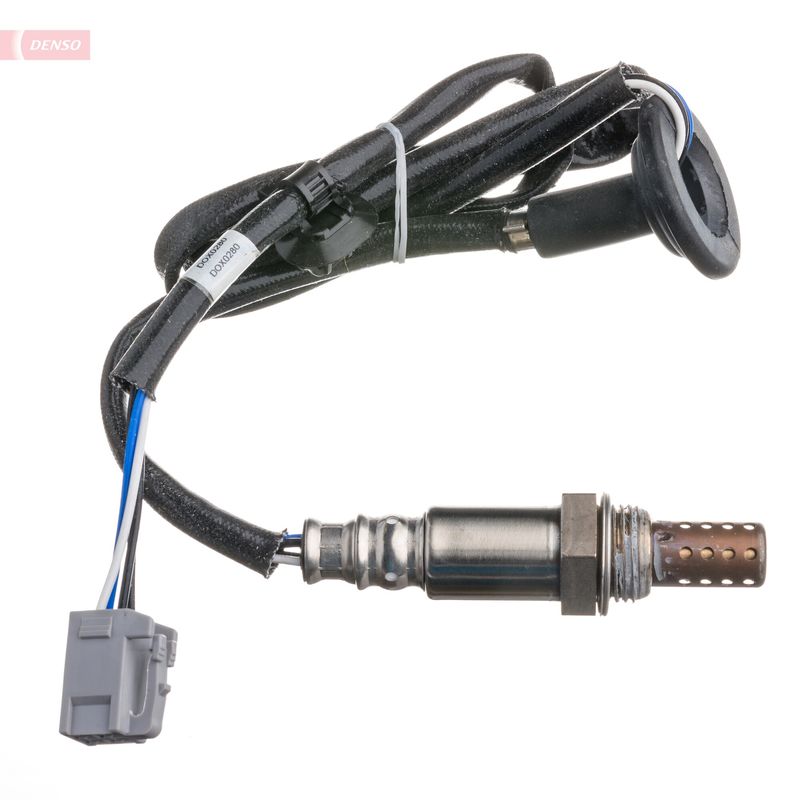

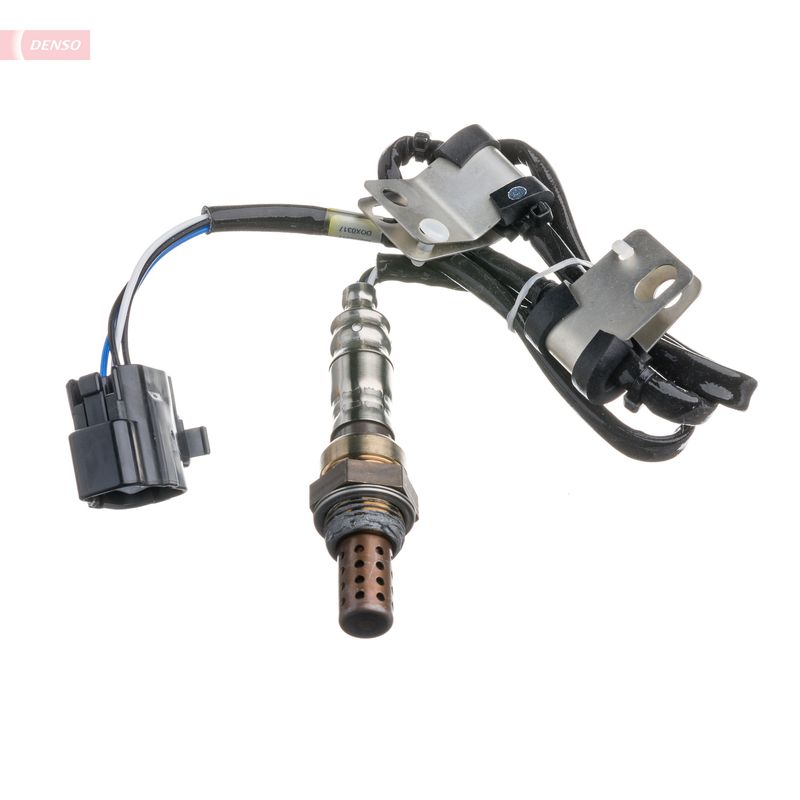

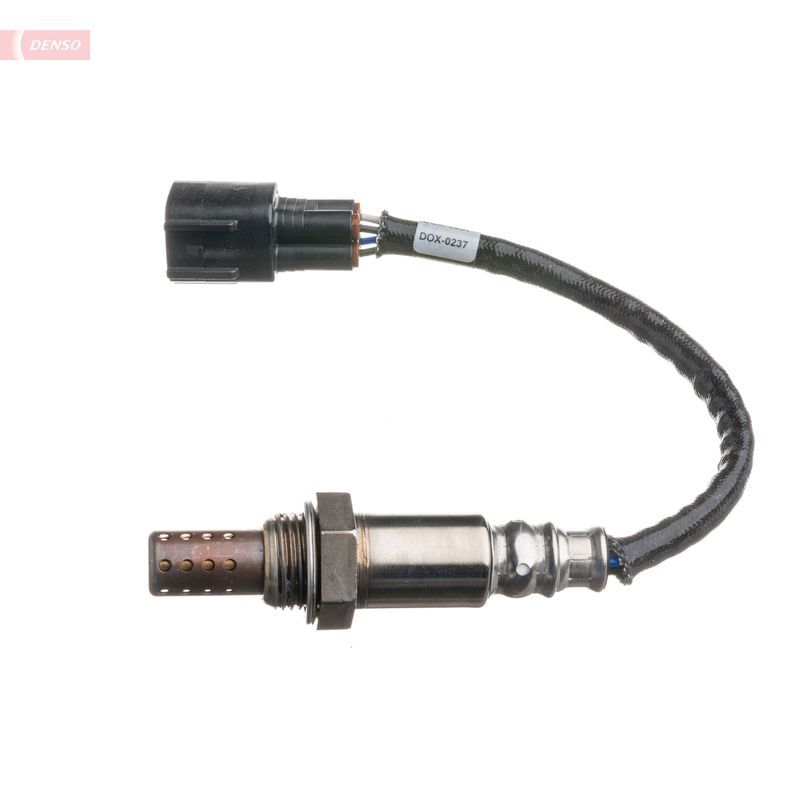

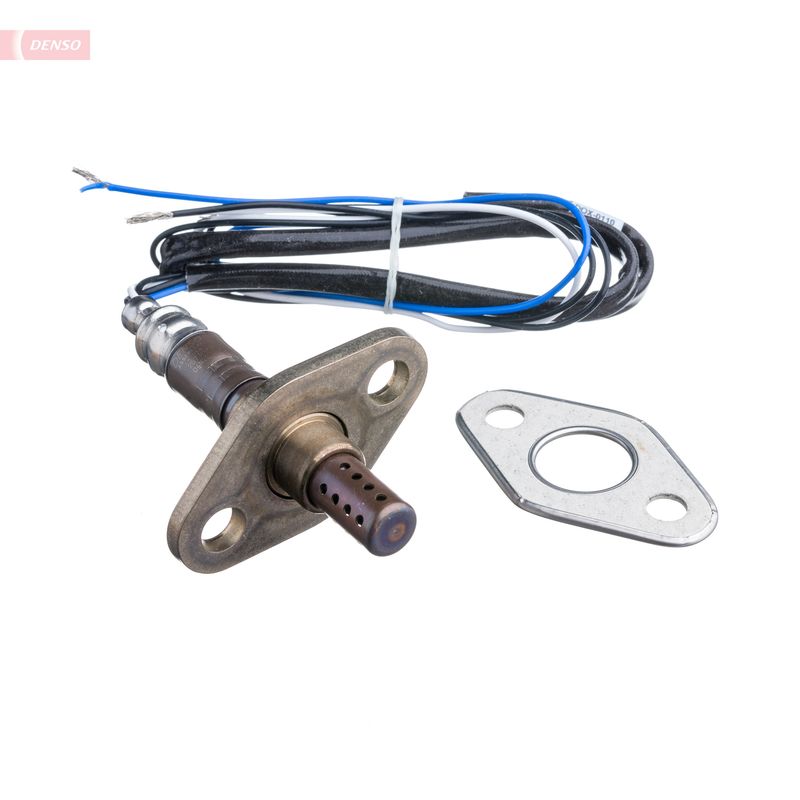

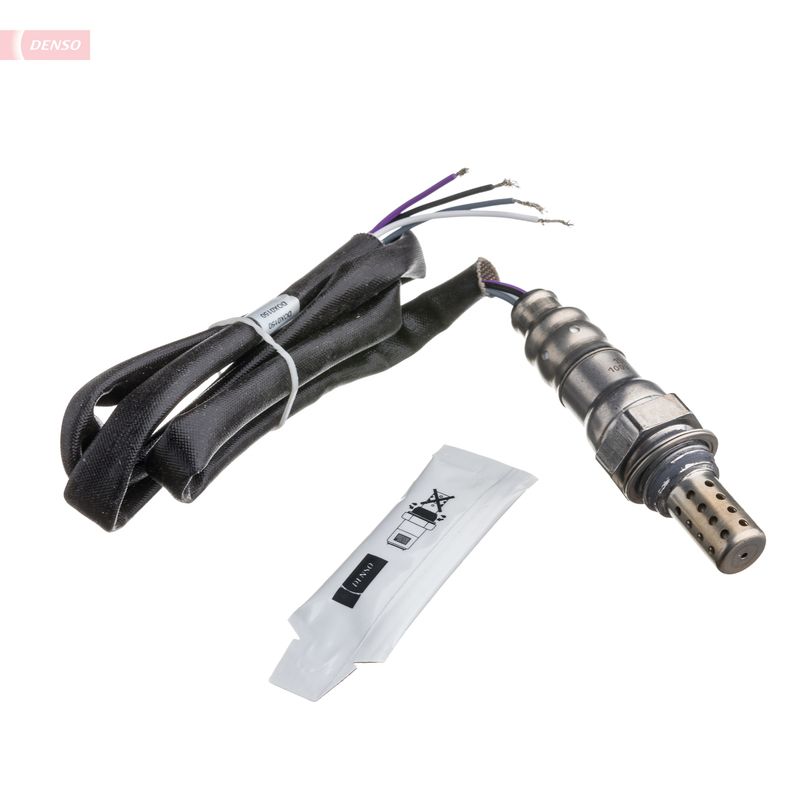

DENSO distinguishes conventional oxygen sensors from air/fuel ratio sensors. A conventional type produces a switching signal around the target mixture, whereas an air/fuel sensor provides a more linear indication of oxygen quantity. Thimble and planar constructions also differ. The engine control unit, wiring and diagnostic strategy are designed for a particular type, so wire count or connector shape alone is not enough.

Position matters. A pre-catalyst sensor is normally used for mixture control, while a downstream sensor can monitor catalyst performance, although exact strategies vary. Confirm bank and sensor number on multi-bank engines. Compare connector keying, lead length, retaining clips and thread. Route the lead away from exhaust heat and moving parts, and never allow anti-seize or cleaning chemicals onto the sensing element. Where a DENSO universal-fit reference is specified, make only the connection described in its instructions.

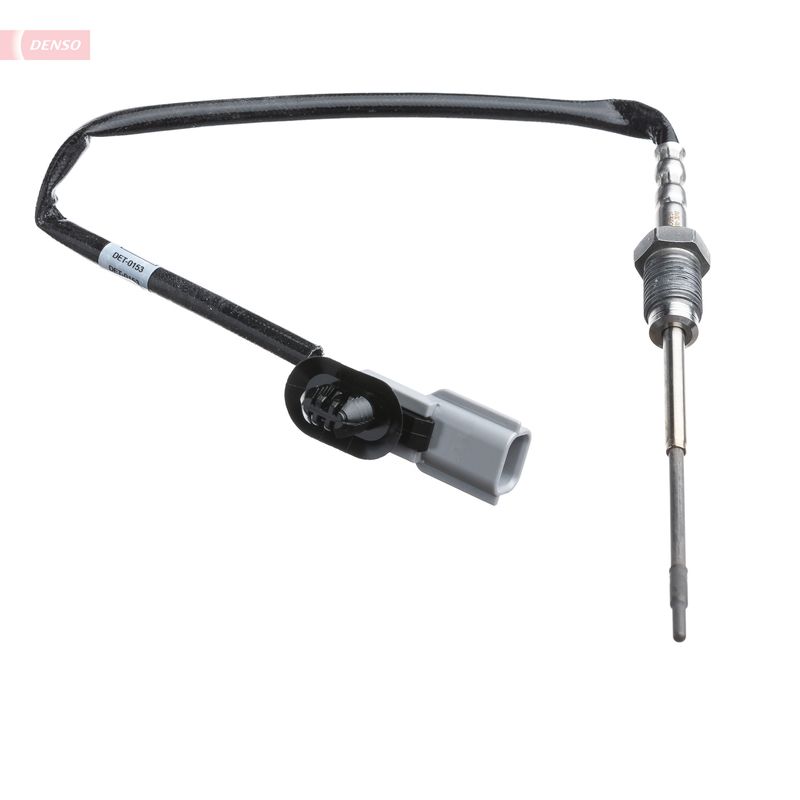

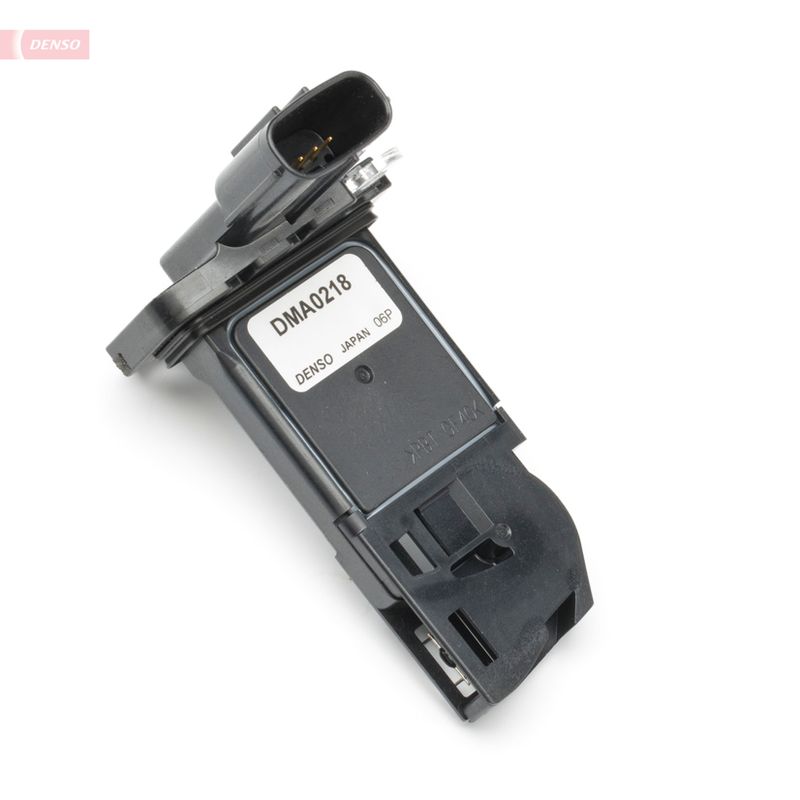

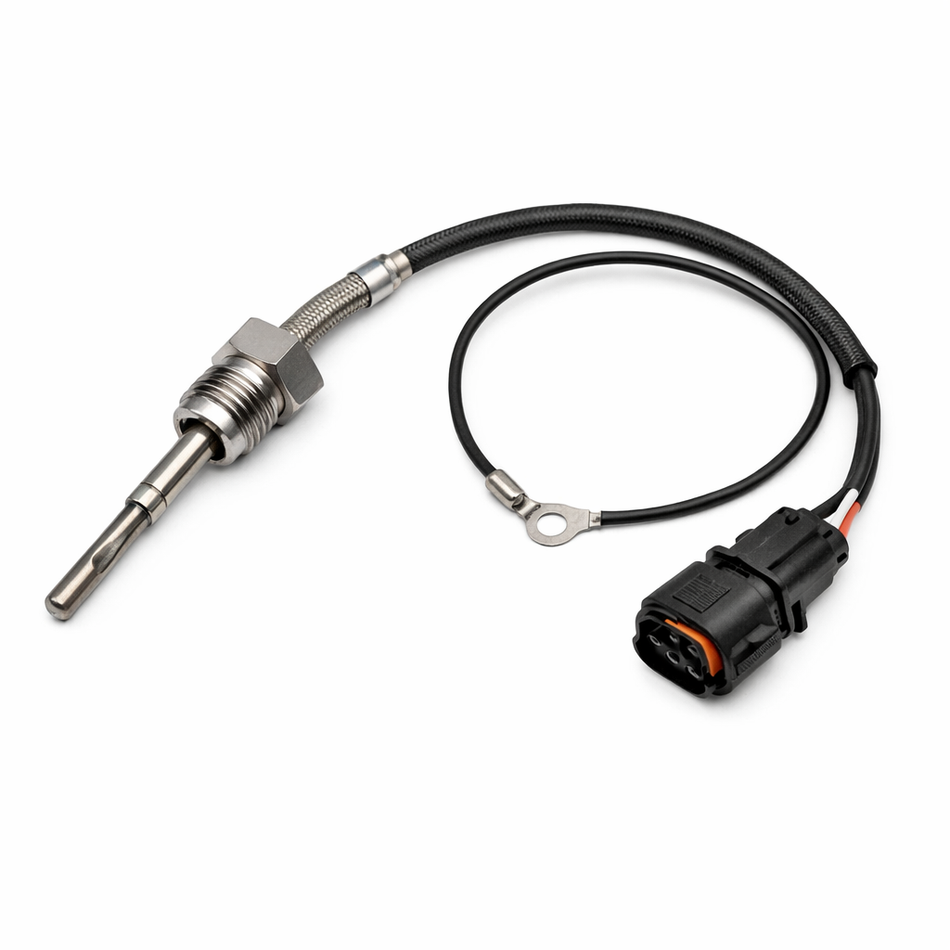

Exhaust-gas temperature sensors operate in a severe thermal environment and can be installed before a turbocharger, catalyst or particulate filter. A fault code may also arise from damaged wiring, an implausible supply, an exhaust leak or an underlying regeneration problem. Mass-air-flow sensors are calibration-sensitive: air leaks after the sensor, contamination, a restricted filter or incorrect housing can skew readings. Check live data against operating conditions instead of condemning a sensor from one stored code.

Alternators and starters: specification before substitution

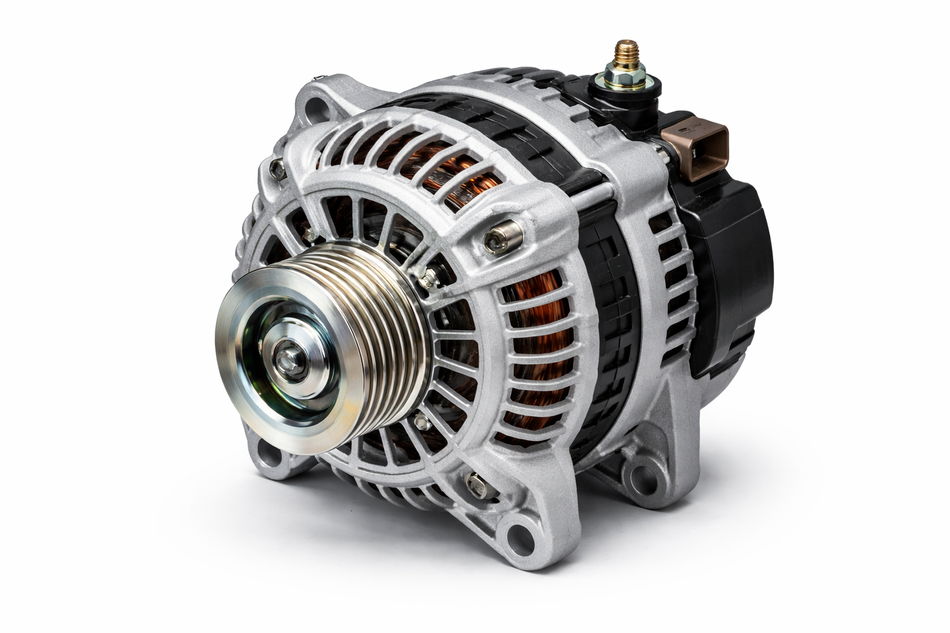

An alternator converts mechanical input from the engine into electrical power and charges the battery. DENSO's published designs include compact internally fanned units and SC types using rectangular segment conductors. The product name alone does not identify which design a given vehicle uses. Match rated output, system voltage, pulley diameter and grooves, freewheel or solid pulley type, mounting geometry, regulator connection, main terminal and any intelligent charging communication.

Diagnosis should include battery state of charge, voltage drop on positive and earth paths, belt condition and tensioner operation. Charging voltage varies on smart systems, so an apparently low reading at one moment is not conclusive. Use a suitable test plan and observe electrical safety around the unfused output terminal. Disconnecting a battery while the engine runs is not a valid alternator test and risks damaging electronics.

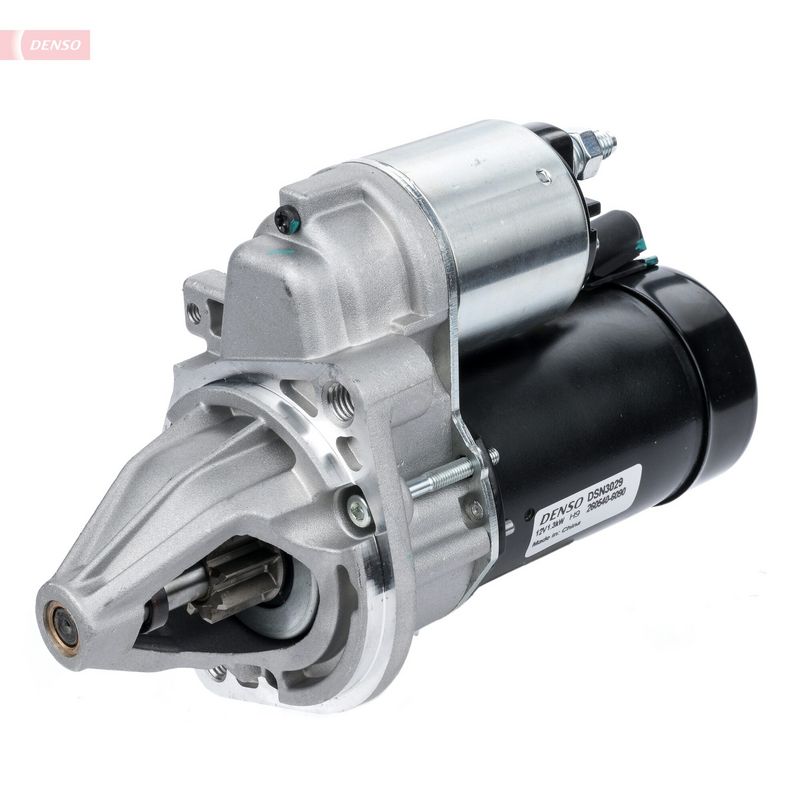

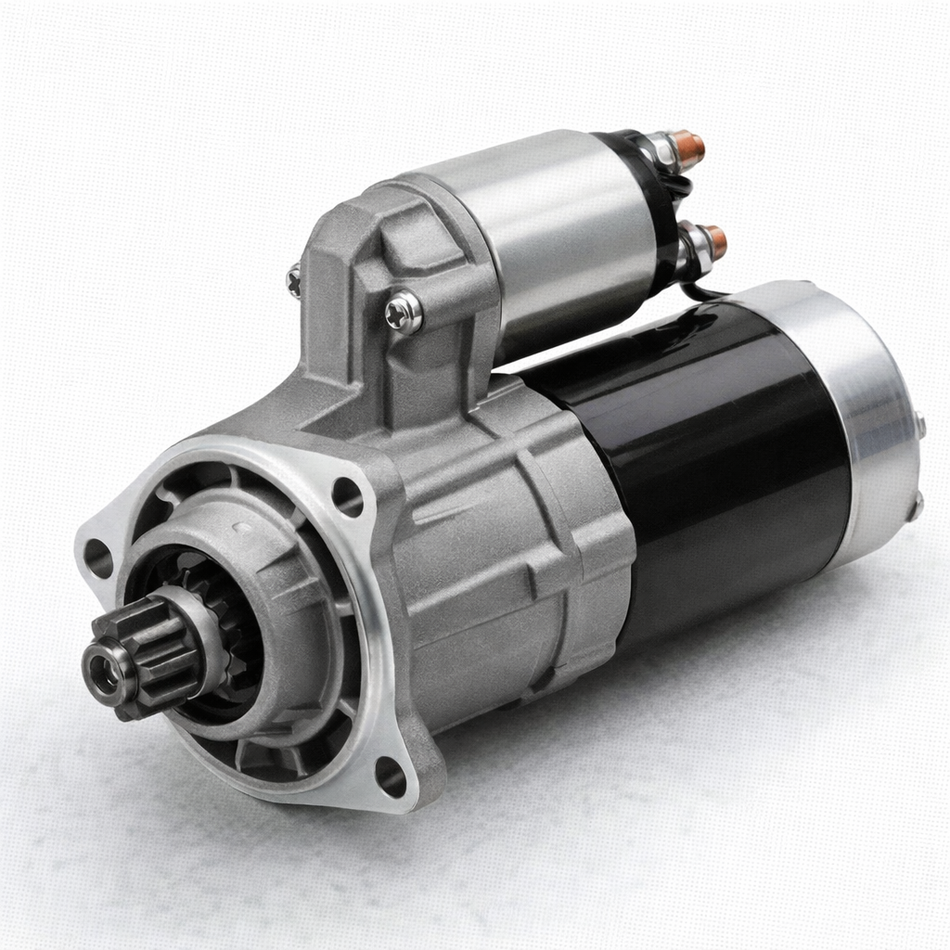

DENSO explains that a starter uses battery power to turn the engine fast enough to begin combustion. Its planetary and reduction designs can produce high cranking output from compact units. Correct selection still requires the mounting flange, nose and housing orientation, pinion teeth, rotation, power rating, terminals and stop-start suitability specified for the application. A click or slow crank can result from a weak battery, corroded connection, poor earth, mechanical engine load or damaged ring gear as well as the starter itself.

Air conditioning and engine cooling

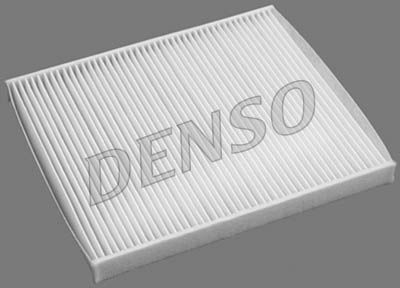

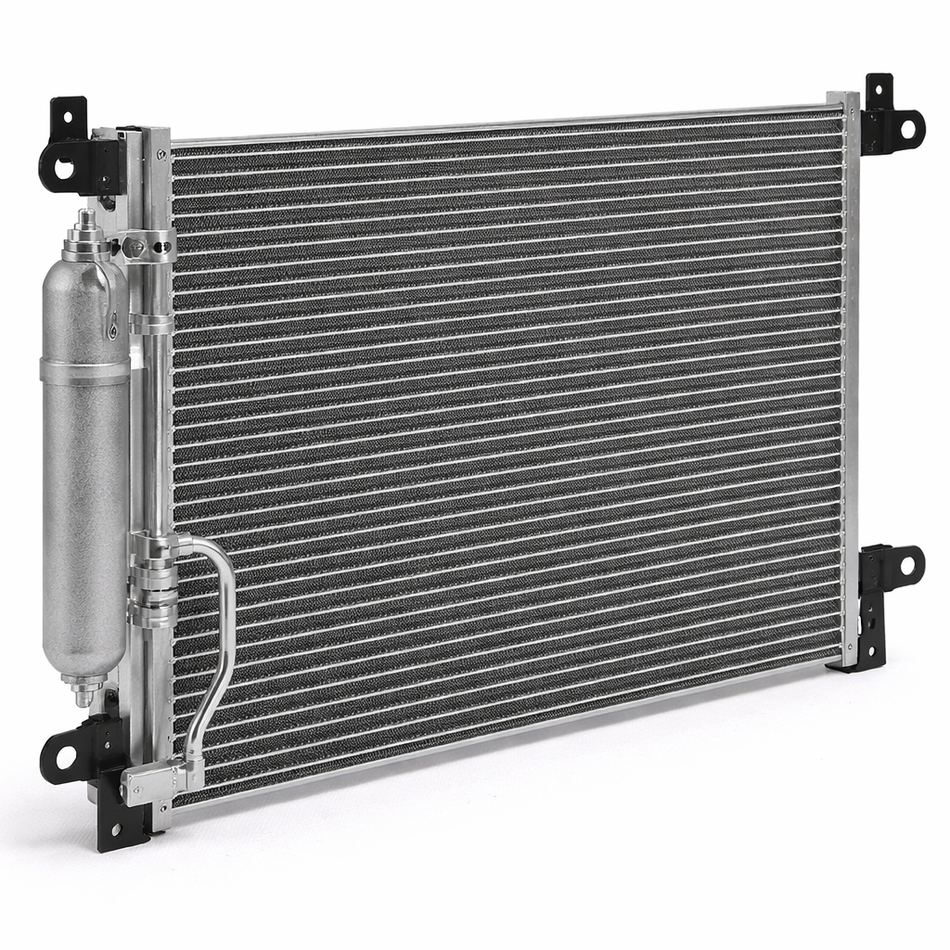

The DENSO thermal range represented here includes compressors, condensers, radiators, cabin filters, interior blowers, cooling fans and heater matrices. These components are application-specific even when their outer dimensions look close. A condenser may be supplied with a receiver-drier, and product data can separate manual from automatic climate control or identify a particular refrigerant. Radiator variations can follow transmission, engine, towing package, hose layout or sensor provision.

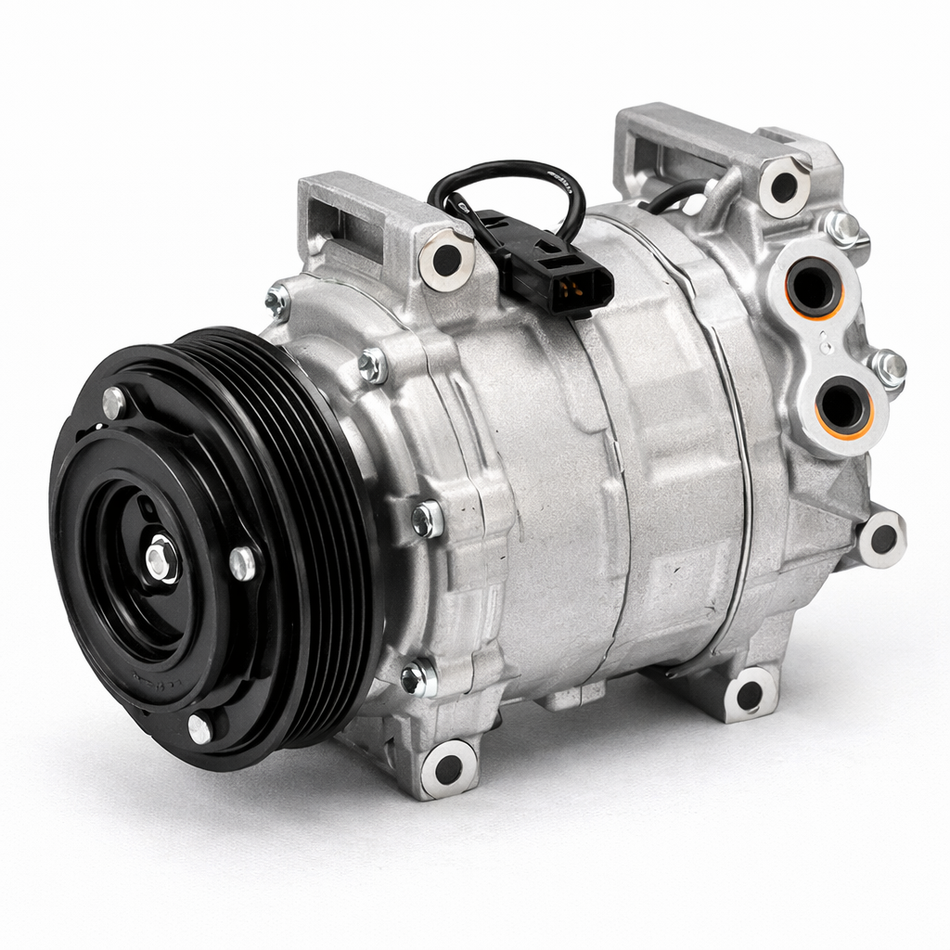

For an AC compressor, identify mounting, pulley and clutch arrangement or clutchless control, connector, ports, displacement control and refrigerant application. DENSO states that its aftermarket compressors are supplied with the specified oil charge, but the fitter must still follow the exact oil-balance and flushing instructions. Adding an arbitrary quantity can be as harmful as running with too little. If the previous compressor failed internally, find the cause and assess contamination, condenser design, expansion device, receiver-drier and line condition before commissioning the replacement.

Refrigerant must be recovered and charged by suitably qualified personnel using appropriate equipment. R134a and R1234yf circuits are not interchangeable, and oils can differ in chemistry and electrical insulation needs. Pressure readings should be interpreted with ambient temperature, vent temperature, compressor command and airflow. A warm cabin does not prove compressor failure; low charge, a faulty fan, restricted condenser, blend-door issue or control fault can produce similar results.

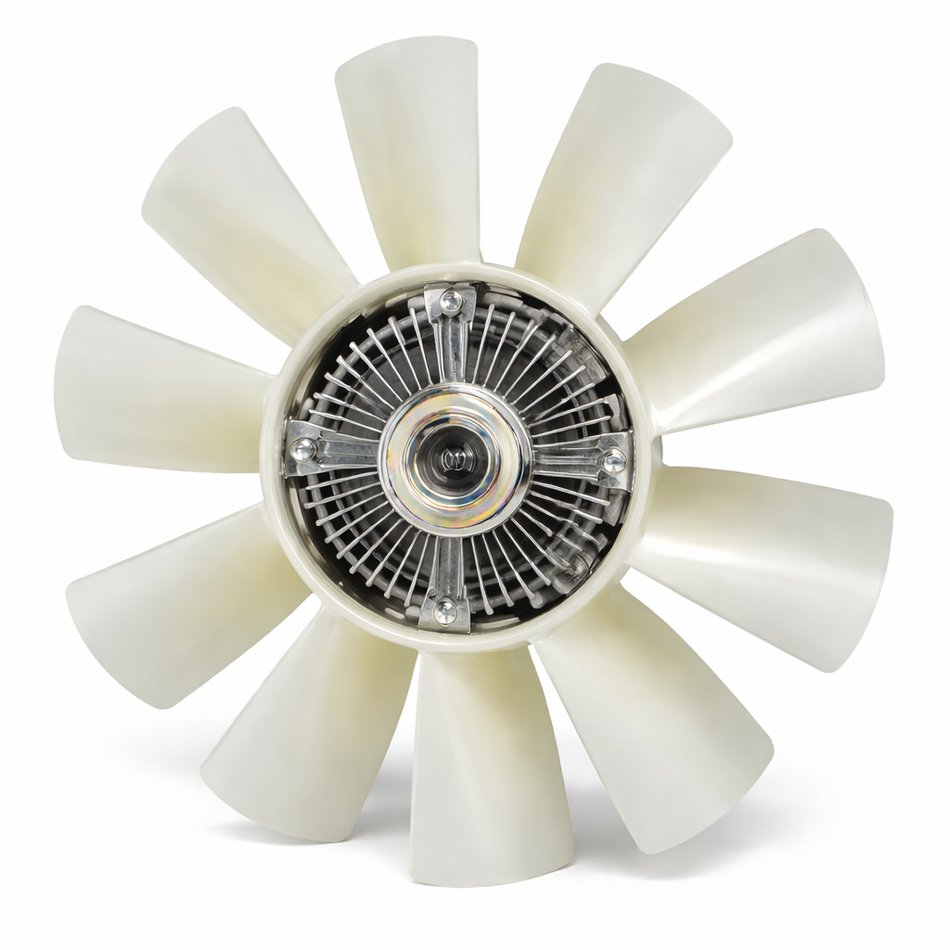

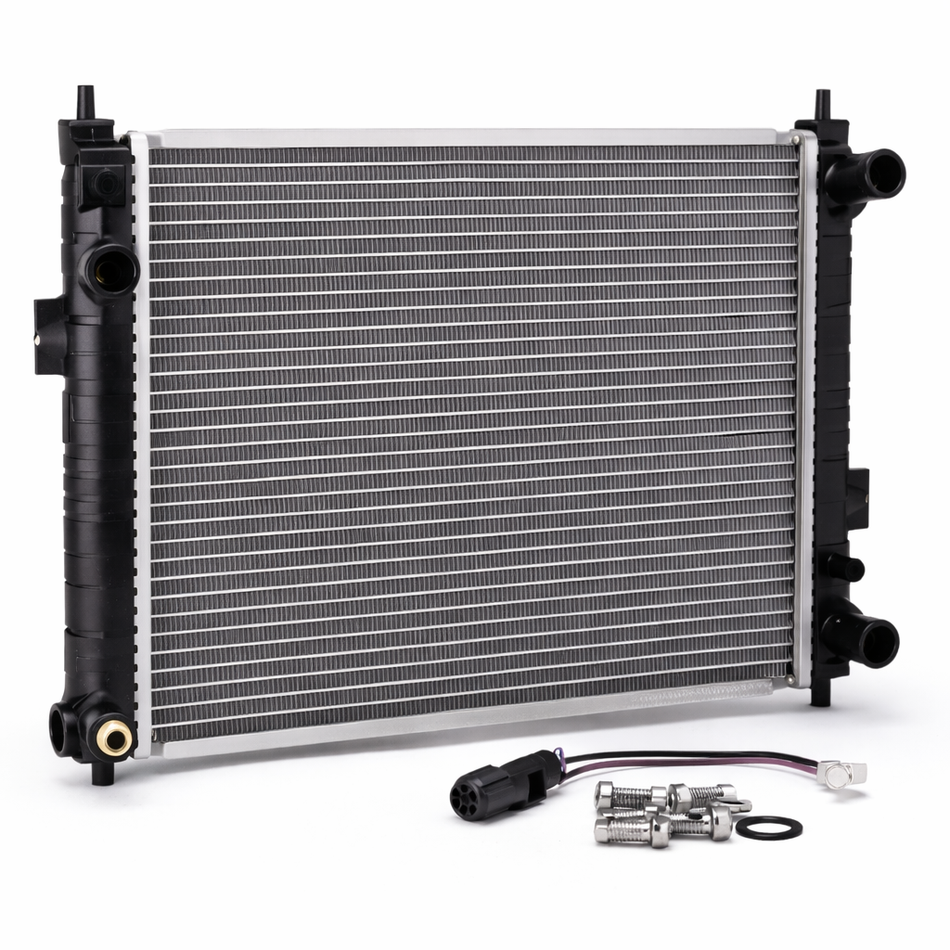

Cooling-system parts require clean sealing faces, correct coolant and proper bleeding. Compare radiator core dimensions, tank layout, drain and sensor ports, and the location of hose necks. Confirm fan diameter, connector, shroud and rotation. An interior blower must suit the heater case, direction of rotation, power and left- or right-hand-drive layout. Cabin filters can be standard particulate or activated-carbon types when specifically listed; their airflow arrow and service access should be respected.

Inspection, replacement and common errors

• Record the complete DENSO number and vehicle engine code before removing a serviceable reference label.
• Support an electrical diagnosis with voltage-drop, supply, earth and signal checks under relevant load.
• Keep sensor tips, plug insulators, refrigerant ports and cooling-system openings clean during work.
• Replace seals, single-use fixings and ancillary items only as directed for the specific repair.
• Do not use radiator or condenser dimensions as the sole compatibility test; connection layout and equipment splits matter.
• After installation, clear faults only when recorded data is no longer needed and verify operation through a complete test.

UK safety and MOT considerations

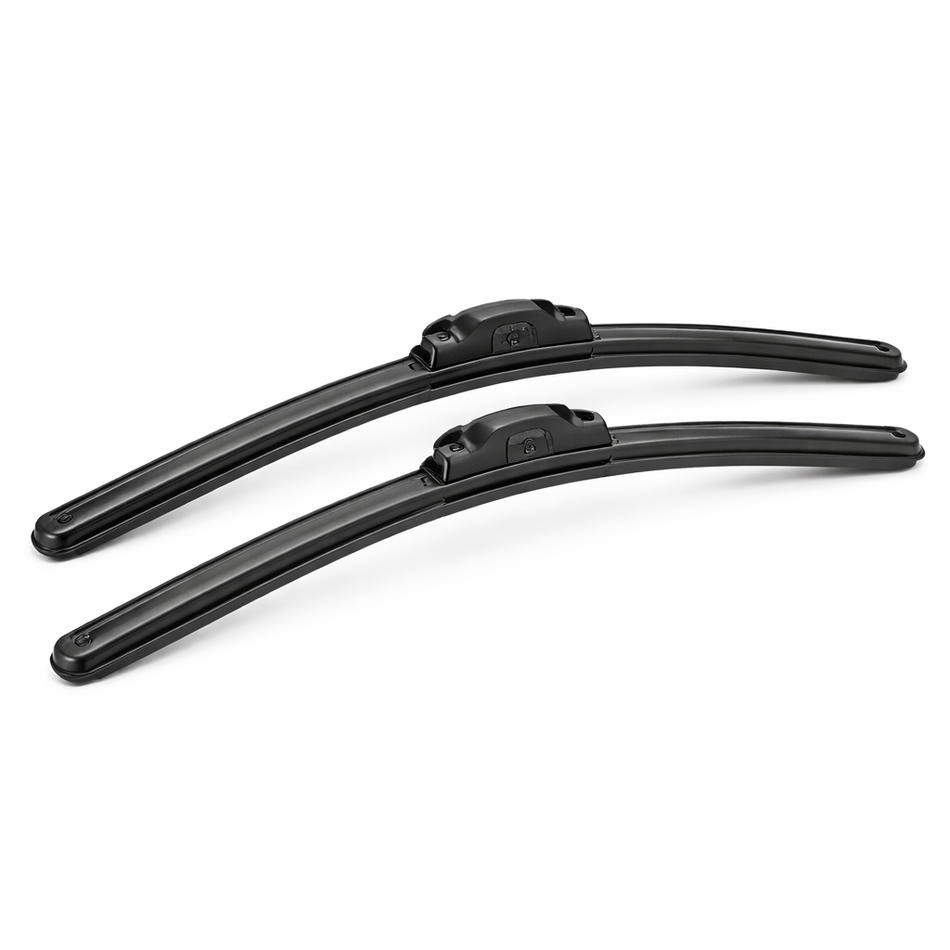

Several DENSO categories can influence an MOT outcome without being named as standalone test items. Engine-management faults may illuminate an emissions-related warning lamp or contribute to exhaust emissions outside the applicable limits. Wiper blades and washers must provide the required swept visibility. Cooling or charging faults can make a vehicle unreliable, while an incorrectly installed sensor cable or electrical lead may become insecure or heat-damaged.

An MOT pass is a minimum inspection at a point in time, not a diagnosis or service-life guarantee. Repair warning lamps and driveability faults using the vehicle procedure, preserve emissions-control equipment, and do not modify a lighting, wiping or engine-control system merely to extinguish a fault. Air-conditioning work also carries refrigerant-handling and high-voltage hazards, particularly on electric and hybrid compressors.

DENSO questions and answers

Q: Can I choose a DENSO spark plug only from its thread size?

A: No. Reach, seat, heat range, projection, electrode design and the authorised engine application must also agree.

Q: Is an iridium plug always an upgrade for a nickel plug?

A: Not automatically. Use an upgrade only where DENSO lists the exact alternative for that engine and operating requirement.

Q: Should I adjust the gap on a DENSO fine-wire plug?

A: Follow the reference-specific instruction. Many arrive pre-set, and careless adjustment can damage the fine electrode or ceramic.

Q: What is the difference between an oxygen sensor and an air/fuel sensor?

A: DENSO describes conventional oxygen sensors as switching types and air/fuel sensors as providing a more proportional oxygen reading; the control systems are not interchangeable.

Q: Can a lambda-sensor code prove that the sensor has failed?

A: No. Wiring faults, intake or exhaust leaks, mixture problems and catalyst issues should be considered with live data.

Q: How do I match a DENSO alternator?

A: Compare output, pulley, mountings, rotation, terminals and regulator communication against the exact vehicle specification.

Q: Why does a new battery still crank slowly?

A: High-resistance cables, a poor earth, starter wear, low temperature or mechanical engine drag can remain after battery replacement.

Q: Are DENSO compressors supplied with oil?

A: DENSO says its aftermarket compressors are pre-filled, but oil balancing and circuit preparation must follow the instructions for that compressor and repair.

Q: Must the AC system be flushed after compressor failure?

A: The required process depends on failure debris, component design and DENSO guidance; assess the complete circuit rather than fitting a compressor in isolation.

Q: Will any radiator with matching width and height work?

A: No. Thickness, hose and sensor ports, mounting points, transmission cooling and vehicle-equipment notes can all differ.

Q: Can left- and right-hand-drive cars use different blower motors?

A: Yes. Heater-case geometry and rotation can vary, so the steering position and full application must be checked.

Q: What should be checked after fitting a DENSO electrical part?

A: Verify secure wiring, correct belt or mechanical engagement, charging or cranking performance, fault status and any required learned values.
