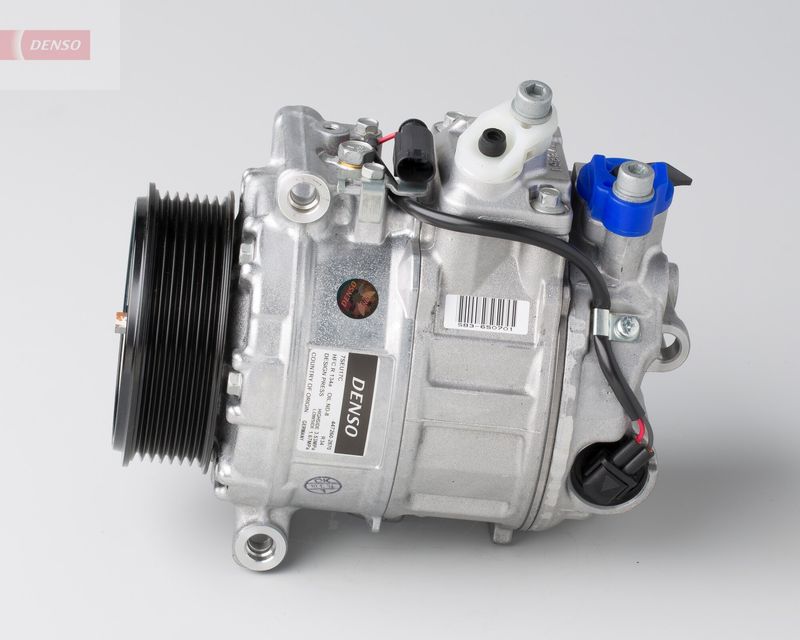

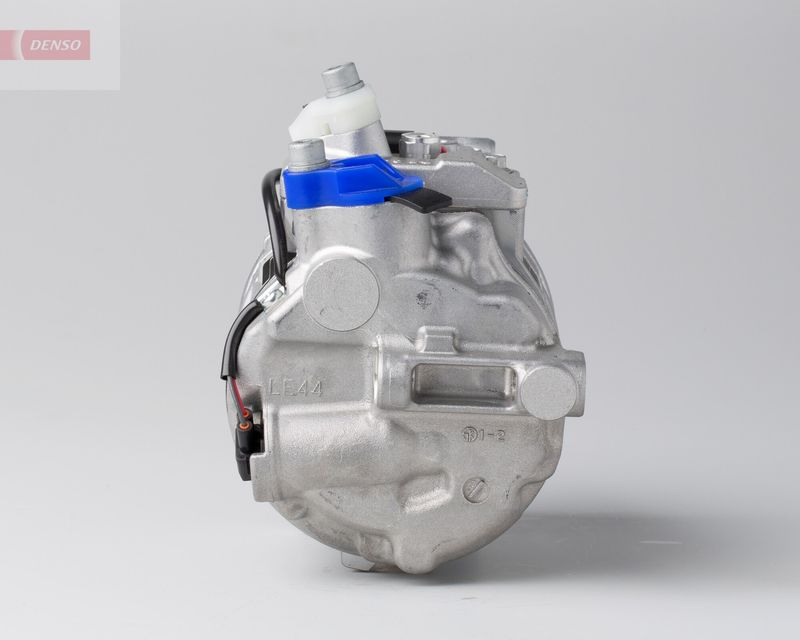

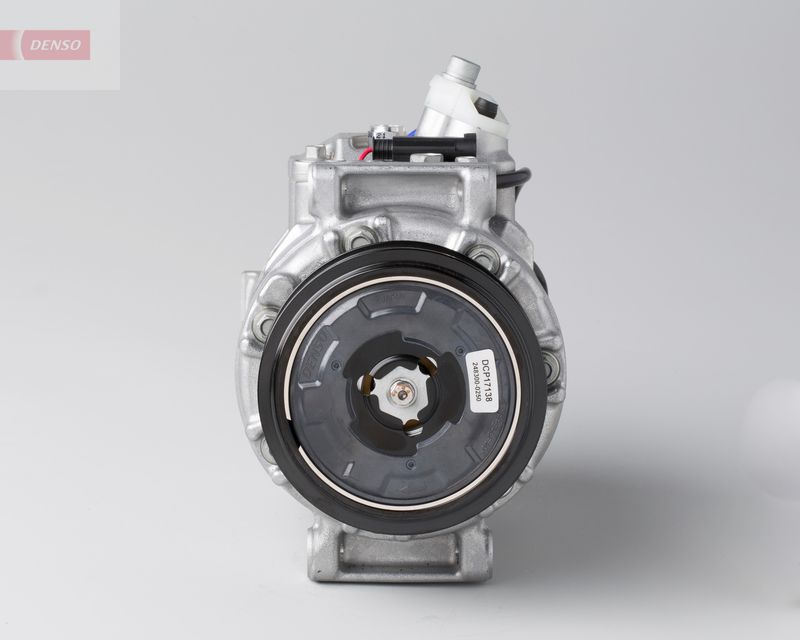

Denso DCP17138 Compressor, air conditioning - 1

DENSO

Denso DCP17138 Compressor, air conditioning

SKU: DCP17138

Your selected vehicle

Out of stock

Out of Stock

£425.39 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

GL-CLASS (X164)

Description	Cylinder Capacity	Horse Power	Year
GL 350 CDI 4-matic (164.823)	2987 CCM	265 HP	10/2010 - 08/2012
GL 320 CDI 4-matic (164.822)	2987 CCM	224 HP	09/2006 - 05/2009
GL 350 CDI 4-matic (164.822)	2987 CCM	224 HP	05/2009 - 08/2012
GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825)	2987 CCM	211 HP	12/2009 - 08/2012

M-CLASS (W164)

Description	Cylinder Capacity	Horse Power	Year
ML 320 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2005 - 07/2009
ML 300 CDI 4-matic (164.120)	2987 CCM	190 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.122)	2987 CCM	224 HP	07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	211 HP	09/2009 - 12/2011
ML 300 CDI 4-matic (164.121)	2987 CCM	204 HP	02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124)	2987 CCM	231 HP	02/2010 - 12/2011

R-CLASS (W251, V251)

Description	Cylinder Capacity	Horse Power	Year
R 350 CDI 4-matic (251.023, 251.123)	2987 CCM	265 HP	08/2010 - 12/2014
R 300 CDI (251.021, 251.121, 251.026, 251.126)	2987 CCM	190 HP	07/2009 - 12/2012
R 300 CDI 4-matic (251.020)	2987 CCM	190 HP	07/2009 - 12/2012
R 350 CDI 4-matic (251.124, 251.125)	2987 CCM	211 HP	01/2006 - 12/2014

The Denso DCP17138 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 28.4 mm inlet diameter, 13 mm outlet diameter, Bolted mounting type, and 216.4 mm length. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning

Oil Fill Quantity [ml] : 110

Number of grooves : 7

Belt Pulley Ø [mm] : 100

Inlet Diameter [mm] : 28.4

Outlet Diameter [mm] : 13

Compressor ID : 7SEU17C

Manufacturer Restriction : DENSO

Manufacturer Restriction : MERCEDES-BENZ

for OE number : A0022305811

Refrigerant : R 134a

Compressor Oil : ND-8

Mounting Type : Bolted

Quality : DENSO

Length [mm] : 216.4

Height [mm] : 138

Number of ribs : 7

Weight [g] : 4,890

Gross Weight [g] : 5,700

Construction Year to : 11.2010

Engine Code : 642.940

Vehicle Equipment : for vehicles with rear air conditioning

Denso DCP17138 Compressor, air conditioning
