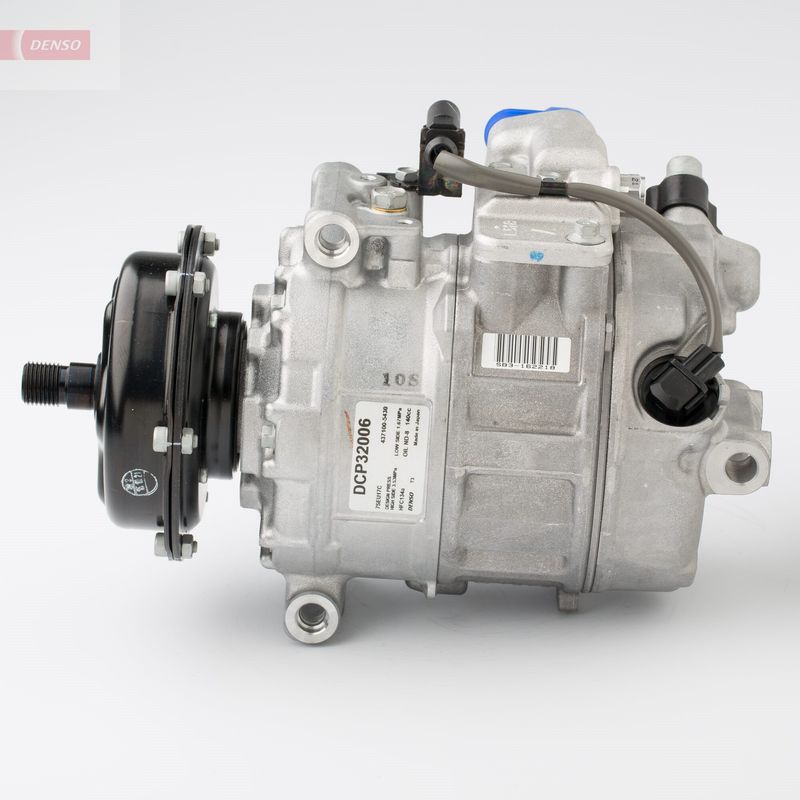

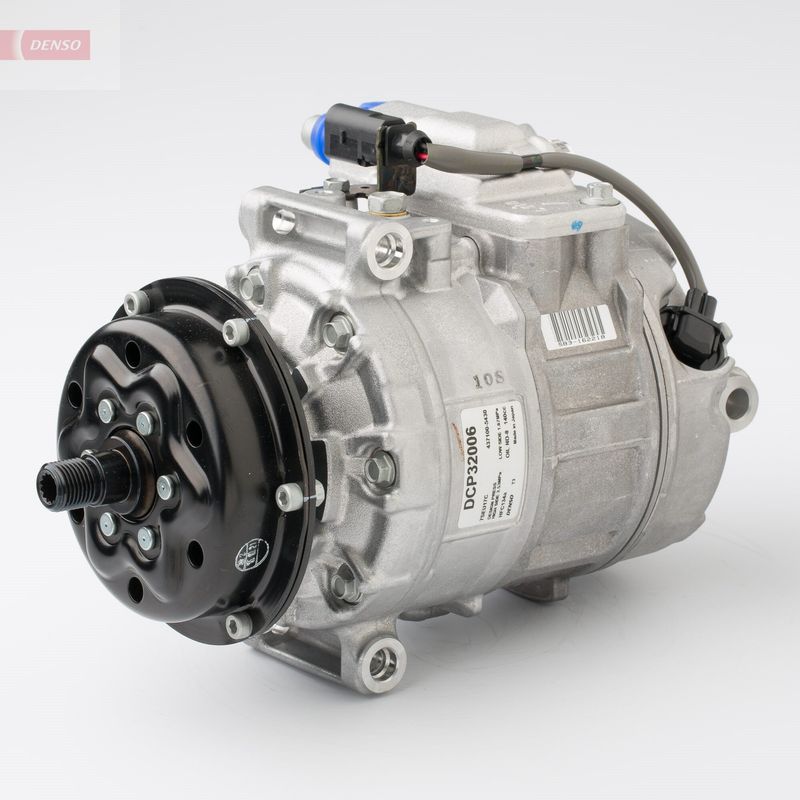

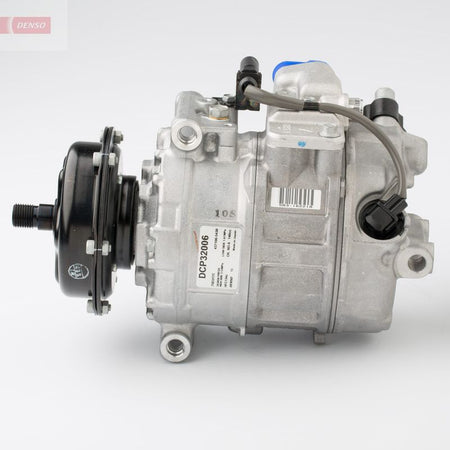

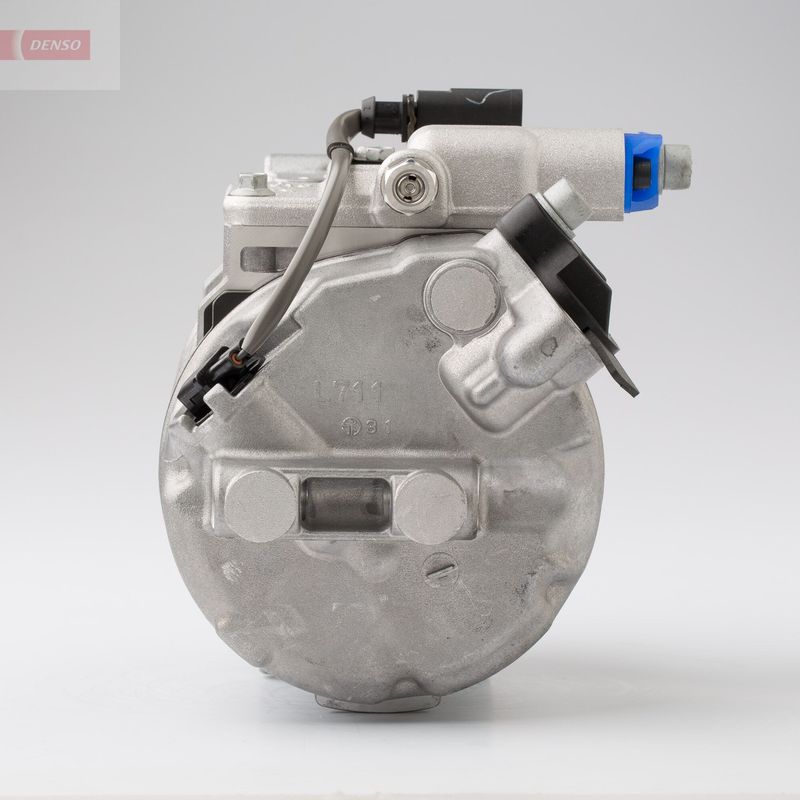

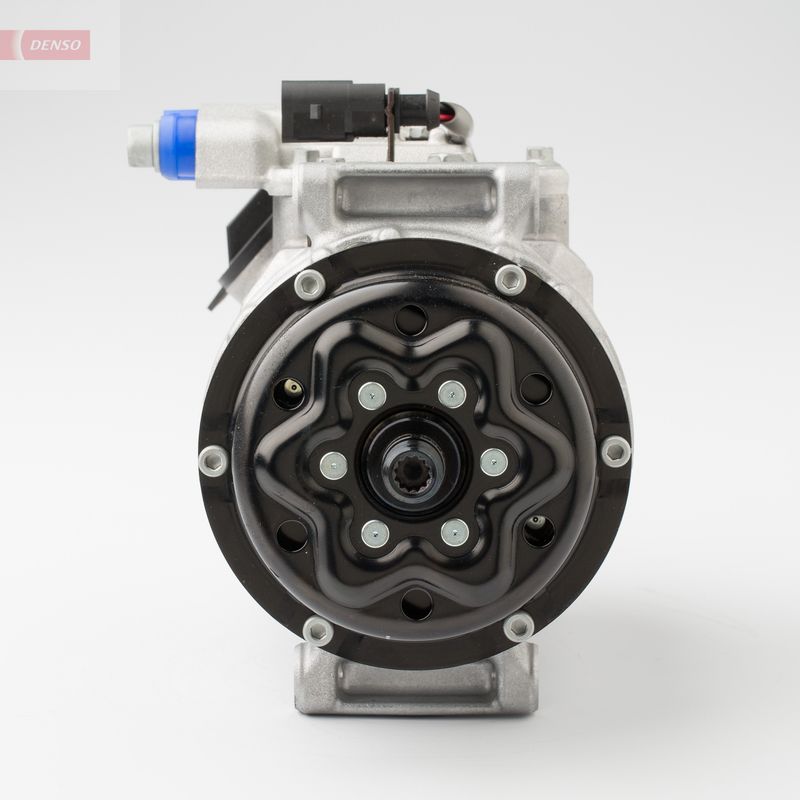

Denso DCP32006 Compressor, air conditioning

SKU: DCP32006
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£320.90 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)
Description Cylinder Capacity Horse Power Year
5.0 V10 TDI 4motion 4921 CCM 313 HP 11/2002 - 10/2006
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
5.0 V10 TDI 4921 CCM 313 HP 10/2002 - 05/2010
2.5 R5 TDI 2461 CCM 174 HP 01/2003 - 05/2010
5.0 R50 TDI 4921 CCM 350 HP 08/2007 - 05/2010
2.5 R5 TDI 2461 CCM 163 HP 08/2003 - 05/2010
TRANSPORTER Mk V Platform/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ,
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 04/2004 - 11/2009
TRANSPORTER / CARAVELLE Mk V Bus (7HB, 7HJ, 7EB, 7EJ)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009
2.5 TDi 2461 CCM 163 HP 11/2003 - 11/2009
TRANSPORTER Mk V Van (7HA, 7HH, 7EA, 7EH)
Description Cylinder Capacity Horse Power Year
2.5 TDI 2461 CCM 130 HP 04/2003 - 11/2009
2.5 TDI 2461 CCM 174 HP 04/2003 - 11/2009
2.5 TDI 4motion 2461 CCM 130 HP 07/2004 - 11/2009
2.5 TDI 4motion 2461 CCM 174 HP 07/2004 - 11/2009

The Denso DCP32006 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 28.4 mm inlet diameter, 15.4 mm outlet diameter, Bolted mounting type, and 260 mm length. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Oil Fill Quantity [ml] : 140
Number of grooves : 1
Inlet Diameter [mm] : 28.4
Outlet Diameter [mm] : 15.4
Compressor ID : 7SEU17C
Manufacturer Restriction : DENSO
Manufacturer Restriction : VW-Group
for OE number : 7H0820805J
Refrigerant : R 134a
Compressor Oil : ND-8
Mounting Type : Bolted
Quality : DENSO
Length [mm] : 260
Height [mm] : 138
Number of ribs : 1
Weight [g] : 6,160
Gross Weight [g] : 6,970
alternative item : DCP32006K = With fre
Construction Year to : 05.2006
  • Vendor DENSO
  • SKU DCP32006
  • Barcode 8717613459782
  • VW : 3D0820805B 3D0820805Q 7H0820805 7H0820805A 7H0820805B 7H0820805C 7H0820805E 7H0820805F 7H0820805G 7H0820805H 7H0820805J
  • DELPHI : TSP0155451
  • DELPHI : TSP0159451
  • HELLA : 8FK 366 201-101
  • LUCAS : ACP233
  • MAHLE : ACP 93 000P
  • MAHLE : ACP 93 000S
  • NRF : 32148
  • NRF : 32148G
  • NRF : 380011
  • NRF : 380825
  • NRF : 380835
  • NRF : 38460
  • VALEO : 813329
