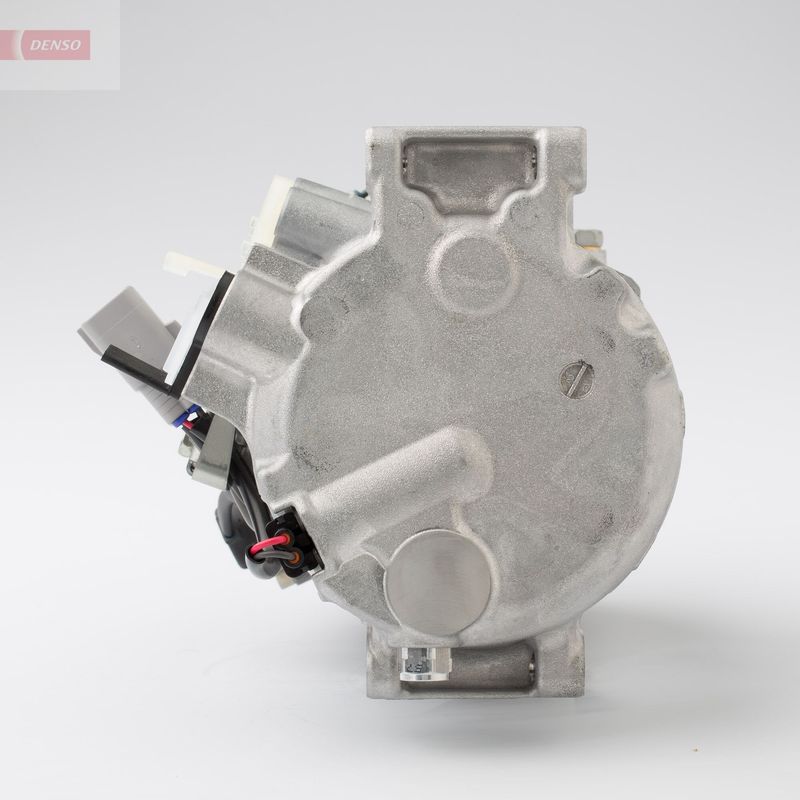

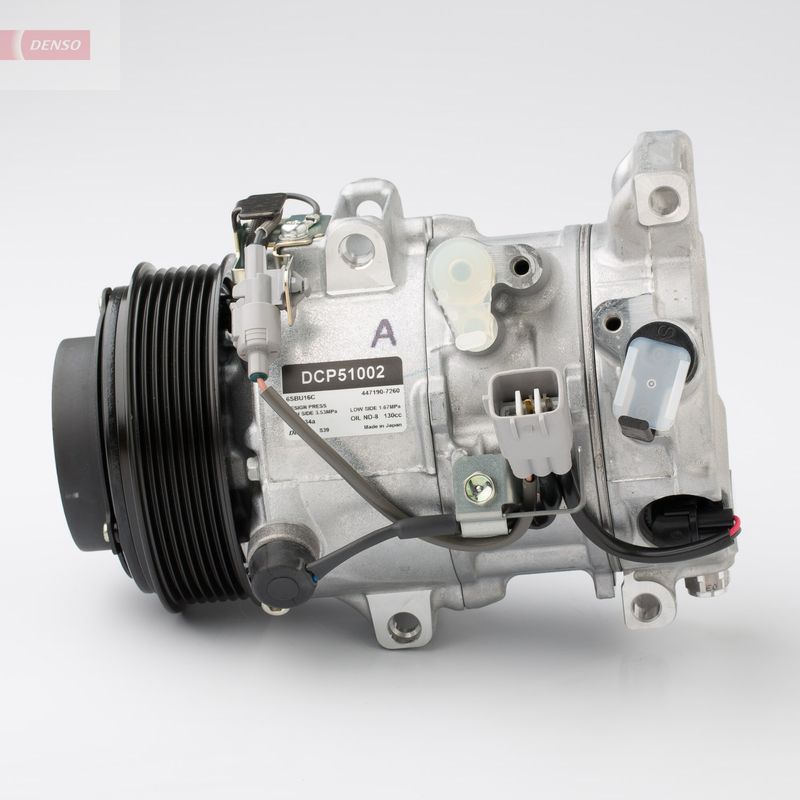

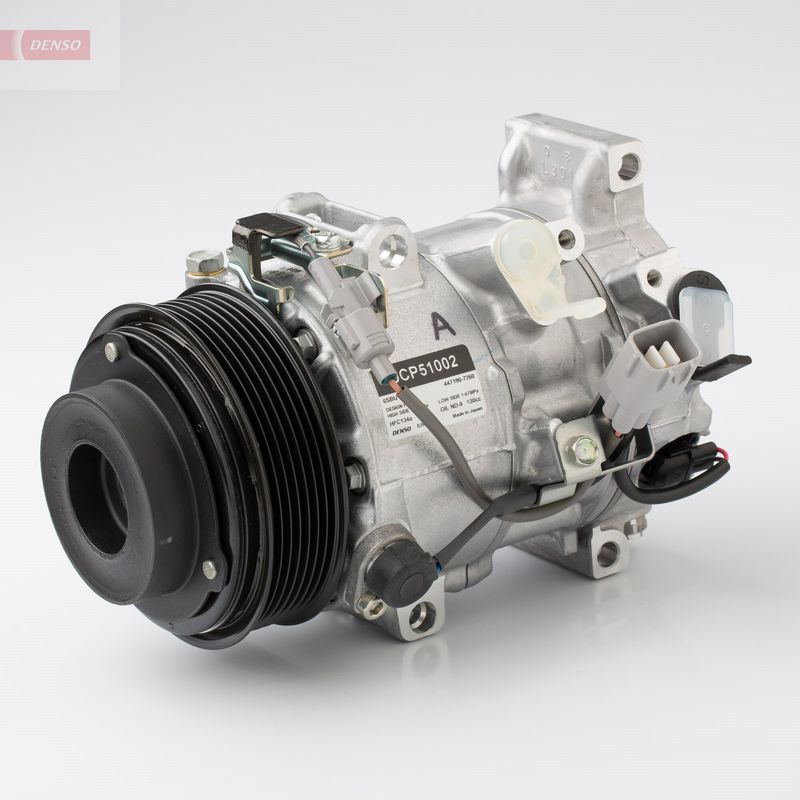

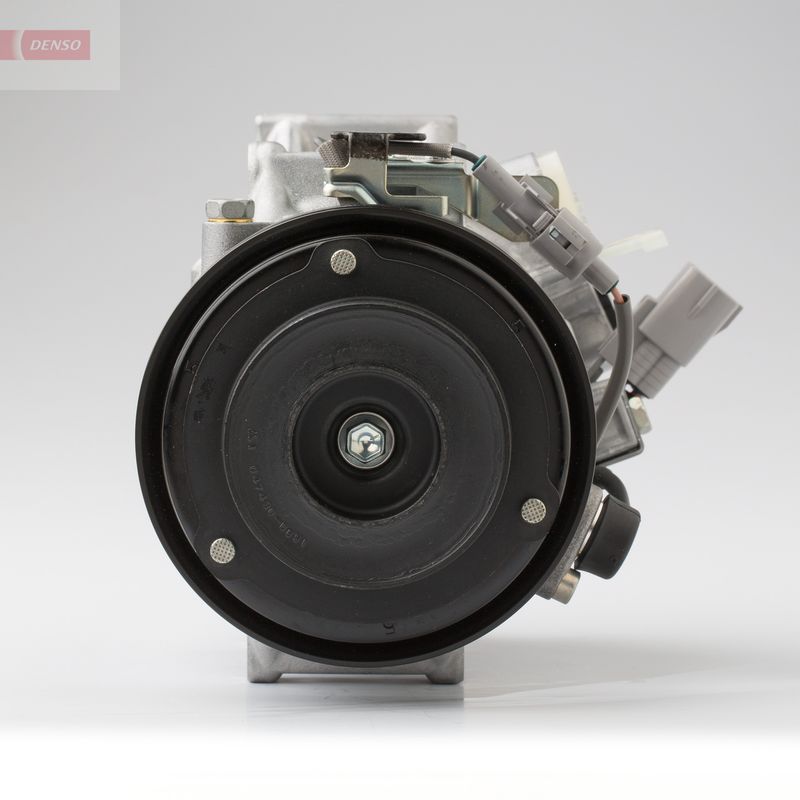

Denso DCP51002 Compressor, air conditioning

SKU: DCP51002
Your selected vehicle
Out of stock
Out of Stock
Regular price £535.89 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
CROWN (CRS_, JZS_, GRS18_, UZS_)
Description Cylinder Capacity Horse Power Year
3.0 4WD (GRS183) 2995 CCM 256 HP 12/2003 - 02/2008
3.0 (GRS182) 2994 CCM 231 HP 09/2004 - 02/2008
LEXUS
GS (_S19_)
Description Cylinder Capacity Horse Power Year
300 (GRS190_, GRS190R) 2995 CCM 249 HP 04/2005 - 11/2011
IS II (_E2_)
Description Cylinder Capacity Horse Power Year
250 (GSE20) 2499 CCM 208 HP 08/2005 - 03/2013
250 AWD (GSE25_) 2499 CCM 208 HP 10/2005 - 03/2013
IS C (GSE2_)
Description Cylinder Capacity Horse Power Year
250 (GSE20) 2499 CCM 208 HP 04/2009 - 06/2015

The Denso DCP51002 Compressor, air conditioning is a replacement heating, ventilation or air-conditioning component that supports refrigerant heat exchange or controlled airflow within the vehicle climate system. Its catalogue specification records 12 V electrical rating, with magnetic clutch, 130 ml oil fill quantity, and Bolted mounting type. Match the reference, refrigerant-system specification, dimensions, connections, electrical details and vehicle application before fitting; refrigerant work must be carried out with approved recovery and charging equipment.

Function : Compressor, air conditioning
Voltage [V] : 12
Supplementary Article/Supplementary Info 2 : with magnetic clutch
Oil Fill Quantity [ml] : 130
Number of grooves : 7
Belt Pulley Ø [mm] : 115
Compressor ID : 6SBU16C
Manufacturer Restriction : DENSO
Manufacturer Restriction : TOYOTA
for OE number : 88310-3A430; 88310-3
Refrigerant : R 134a
Compressor Oil : ND-8
Mounting Type : Bolted
Quality : DENSO
Number of ribs : 7
Weight [g] : 6,950
Gross Weight [g] : 7,760
for OE number : 88320-3A300
  • Vendor DENSO
  • SKU DCP51002
  • Barcode 8717613047996
  • TOYOTA : 88310-0N010 88310-3A430 88310-3A431 88320-3A250 88320-3A300 88410-3A280 88410-3A290
  • HELLA : 8FK 366 202-781
  • LUCAS : ACP958
  • MAHLE : ACP 264 000S
  • NRF : 32897G
