DENSO

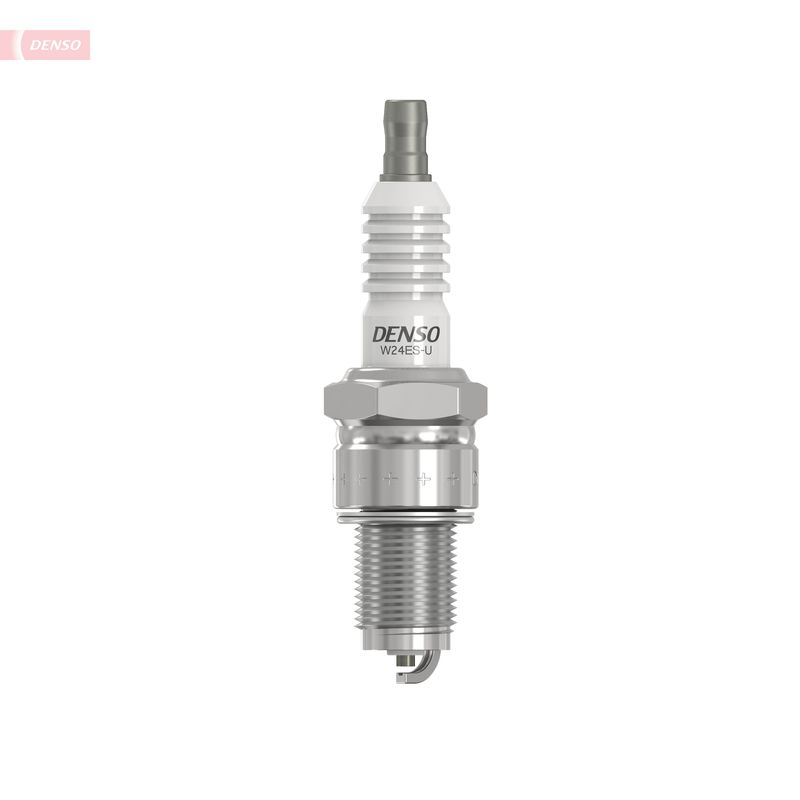

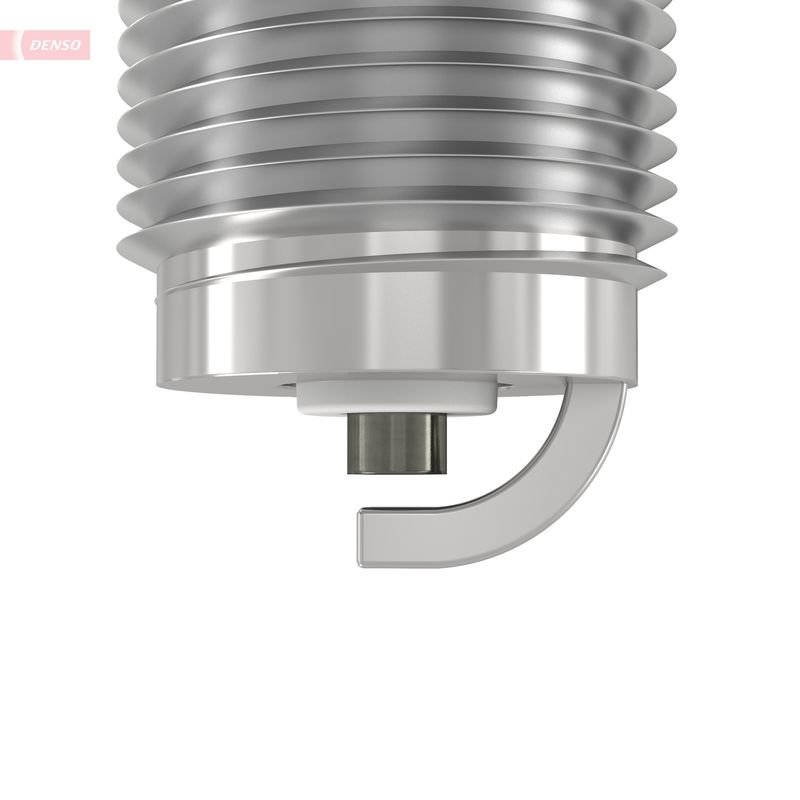

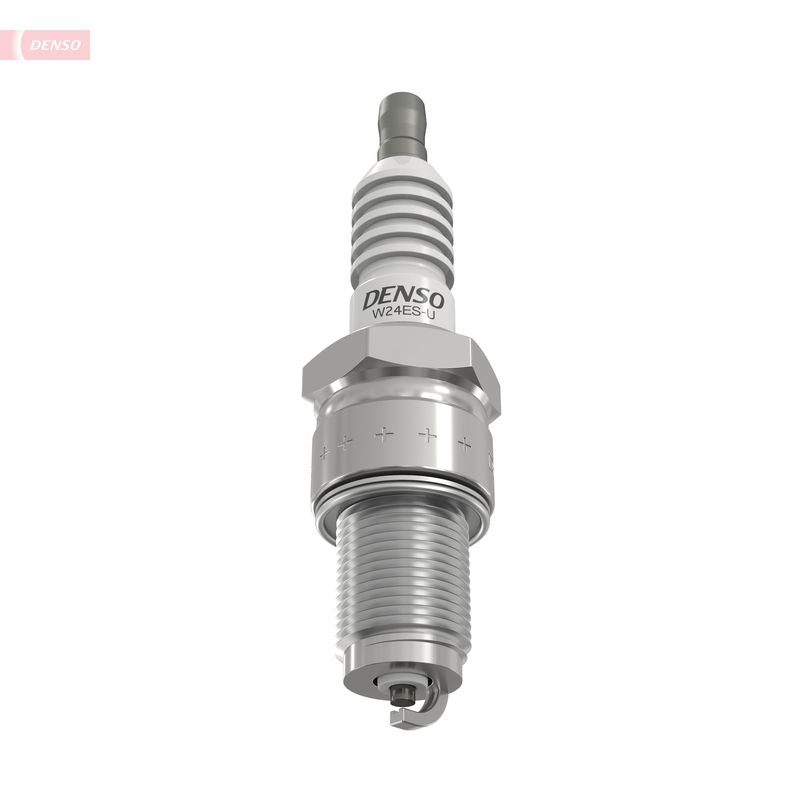

Denso W24ES-U Spark Plug

SKU: W24ES-U
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£6.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
CB ( - 250cc)
Description Cylinder Capacity Horse Power Year
CB 250 G 249 CCM 27 HP 01/1974 - 12/1977
MBX
Description Cylinder Capacity Horse Power Year
MBX 50 (AC05) 49 CCM 3 HP 01/1985 - 12/1987
MTX
Description Cylinder Capacity Horse Power Year
MTX 50 (AD04) 49 CCM 3 HP 01/1982 - 12/1985
PORSCHE
356 Coupe
Description Cylinder Capacity Horse Power Year
B 2000 GS Carrera 2 1966 CCM 130 HP 01/1961 - 12/1964
C 2000 GS Carrera 2 1966 CCM 130 HP 01/1961 - 12/1964
356 Cabriolet/Speedster
Description Cylinder Capacity Horse Power Year
A 1600 GS Carrera 1588 CCM 115 HP 01/1955 - 12/1959
A 1500 GS Carrera 1498 CCM 110 HP 01/1955 - 12/1959
C 2000 GS Carrera 2 1966 CCM 140 HP 01/1963 - 12/1965
B 2000 GS Carrera 2 1966 CCM 140 HP 01/1959 - 12/1963
SUZUKI
GS
Description Cylinder Capacity Horse Power Year
GS 750 GL 748 CCM 68 HP 01/1981 - 12/1981
GS 750 E 748 CCM 63 HP 01/1976 - 12/1980
GS 750 G 748 CCM 68 HP 01/1980 - 12/1981
TRIUMPH
TIGER ( - 999cc)
Description Cylinder Capacity Horse Power Year
Tiger 750 Trail 744 CCM 42 HP 01/1981 - 12/1982
Tiger 750 744 CCM 40 HP 01/1982 - 04/1989
YAMAHA
DT
Description Cylinder Capacity Horse Power Year
DT 125 E (1G0) 125 CCM 15 HP 01/1976 - 12/1979
DT 50 M (2M4) 49 CCM 3 HP 01/1978 - 12/1983
DT 50 MX (1NN) 49 CCM 4 HP 01/1986 - 12/1989
DT 50 R (3MN) 49 CCM 3 HP 01/1989 - 12/1998
DT 50 MX-S (102282, 2UM) 49 CCM 4 HP 01/1986 - 12/1989
YZ
Description Cylinder Capacity Horse Power Year
YZ 80 80 CCM 5 HP From 01/1978
YZ 80 LW 80 CCM 5 HP From 01/1978
YZ 80 W 80 CCM 5 HP From 01/1978
KAWASAKI
K
Description Cylinder Capacity Horse Power Year
KE 125 (K1) 124 CCM 10 HP 01/1976 - 12/1982
CAGIVA
125
Description Cylinder Capacity Horse Power Year
SST 123 CCM 10 HP From 01/1981
SX 123 CCM 18 HP From 01/1981
MOTO GUZZI
V 65
Description Cylinder Capacity Horse Power Year
V 65 GT Sessantacinque 643 CCM 50 HP 01/1988 - 12/1995
V 65 NTX 650 643 CCM 45 HP 01/1987 - 12/1988
V 65 Florida 643 CCM 27 HP 01/1986 - 12/1994
V 65 TT 643 CCM 45 HP 01/1984 - 12/1988
V 65 Florida 643 CCM 48 HP 01/1986 - 12/1994
V 65 643 CCM 50 HP 01/1982 - 12/1987
V 65 SP 643 CCM 50 HP 01/1983 - 12/1987
V 65 Lario 643 CCM 58 HP 01/1984 - 12/1988

The Denso W24ES-U Spark Plug is a replacement engine ignition or starting-aid component that supports controlled combustion by providing the specified spark or pre-heating function. Its catalogue specification records M14x1.25 thread size, 19 mm thread length, 14 mm diameter, and Removable SAE connector type. Confirm the reference, electrical rating, thread or connector details and engine application before fitting; use the specified installation torque and test procedure.

Function : Spark Plug
Spark Plug : 1 - Earthed Electrode
Spark Plug : Nickel Middle Electrode
Electrode Gap [mm] : 0.8
Thread Size : M14x1.25
Thread Length [mm] : 19
Diameter [mm] : 14
Connector type : Removable SAE
Spanner Size : 20.6 mm
Tightening Torque [Nm] : 22
Weight [g] : 56
Gross Weight [g] : 59
alternative item : IW24
MPN W24ESU
  • Vendor DENSO
  • SKU W24ES-U
  • Barcode 042511040304
  • HONDA : 98079-588-24 98079-588-2401 98079-588-53 98079-588-5301
  • SUZUKI : 09482-00196
  • TOYOTA : 90098-24505
  • KAWASAKI : 92070-1009
  • DENSO : IW24
  • LUCAS : LSP050
  • NGK : 2411
  • DENSO : 4030
