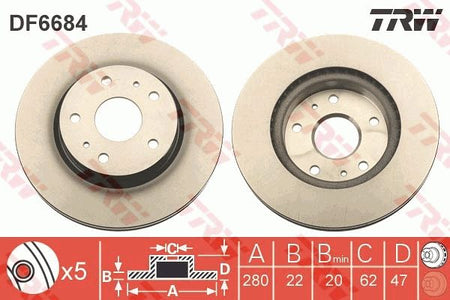

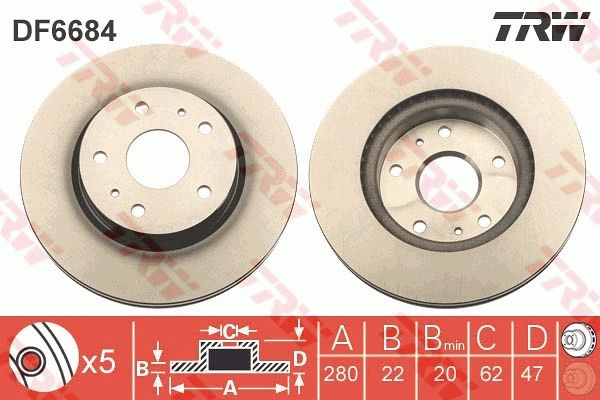

Brake Disc - DF6684
Regular price
£10.00
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Brake Disc Type :
Vented
Number of Holes :
5
Outer Diameter [mm] :
280
Centering Diameter [mm] :
62
Height [mm] :
47
Brake Disc Thickness [mm] :
22
Minimum thickness [mm] :
20
Bolt Hole Circle Ø [mm] :
114.3
Bore Diameter 1 [mm] :
12.7
Thread Size 2 :
M8
Colour :
black
Surface :
painted
Test Mark :
E1 90R-02 C0176/0003
SVHC :
No information available, please contact the manufacturer!
- Vendor TRW
- SKU DF6684
- SUZUKI : 55311-80J02
- User manual
- APEC : DSK3207, SDK6839
- BLUE PRINT : ADK84334
- BORG & BECK : BBD5207
- BOSCH : 0 986 479 403
- BREMBO : 09.A296.11, 09.A296.14
- DELPHI : BG4093, BG4093C
- FEBI BILSTEIN : 108614
- FTE : 9072833, 9082532
- HELLA : 8DD 355 116-771
- MEYLE : 33-15 521 0016, 33-15 521 0016/PD
- MINTEX : MDC2179
- National : NBD1758
- SKF : VKBD 80100 V2
- TEXTAR : 2156101-2221-00, 2428001-2221-00, 2597901-2221-00, 92222100
