TRW Car Parts

TRW braking components across the complete system

TRW is presented by ZF Aftermarket as a braking and chassis brand. Its passenger-car portfolio spans disc brakes, drum brakes and actuation systems rather than treating pads in isolation. That pattern is clear here: pad sets, flexible hoses and calipers lead, while discs, shoes, fitting kits, cylinders, servos, cables, wear contacts and wheel-speed sensors cover the components that transmit, apply and monitor braking force.

Brake parts interact closely. The correct pad still performs poorly in a seized caliper; a new master cylinder cannot compensate for air or leakage; an undamaged sensor may report erratically through a corroded encoder. Selection and diagnosis therefore need a system view, followed by the exact repair procedure for the vehicle.

Map each TRW family to its role

Application data must identify the brake package

Vehicle registration is a useful starting point, but brakes can change with engine, axle load, wheel size, trim, production date or option code. Confirm the VIN and the brake manufacturer's marks where available. Measure the existing disc only after recognising that wear removes thickness but not nominal diameter or height. Pad outline and connector position provide further evidence.

The parking-brake cable records in this range are especially instructive. They distinguish rear and front cable sections, left and right parts, drum and disc brakes, ordinary and extended wheelbases, left-hand-drive versions and production breaks. Cable length alone cannot establish the correct end fittings, bracket positions or routing.

TRW pad technology and fitting details

ZF states that TRW passenger-car pads sold in Europe use the COTEC silicate friction coating to support initial bedding. TRW also describes DTEC as a low-dust formulation and Electric Blue as a noise-focused range for electric and hybrid vehicles. Those family names should be confirmed on the selected reference; not every pad in this collection should be relabelled from appearance alone.

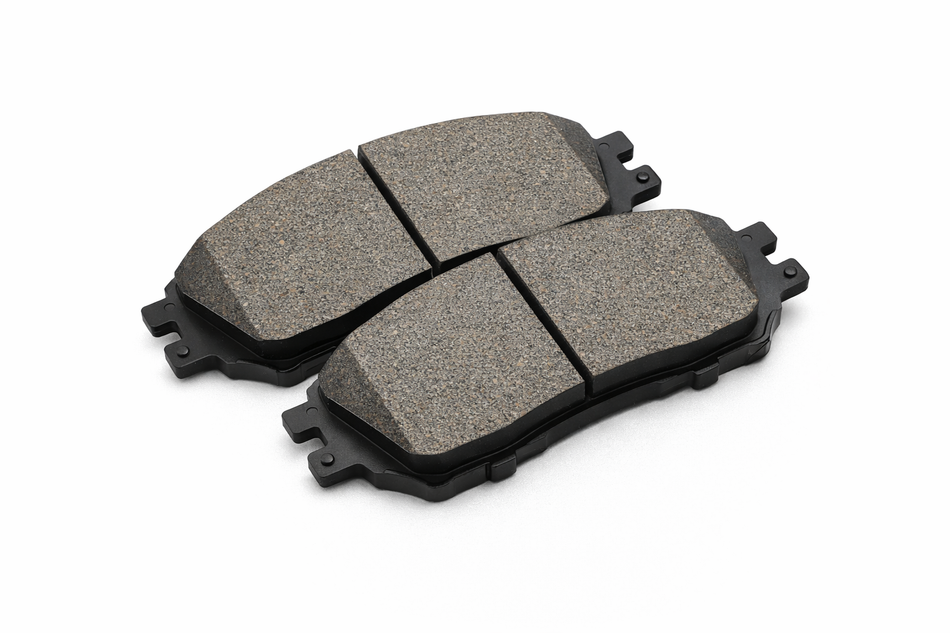

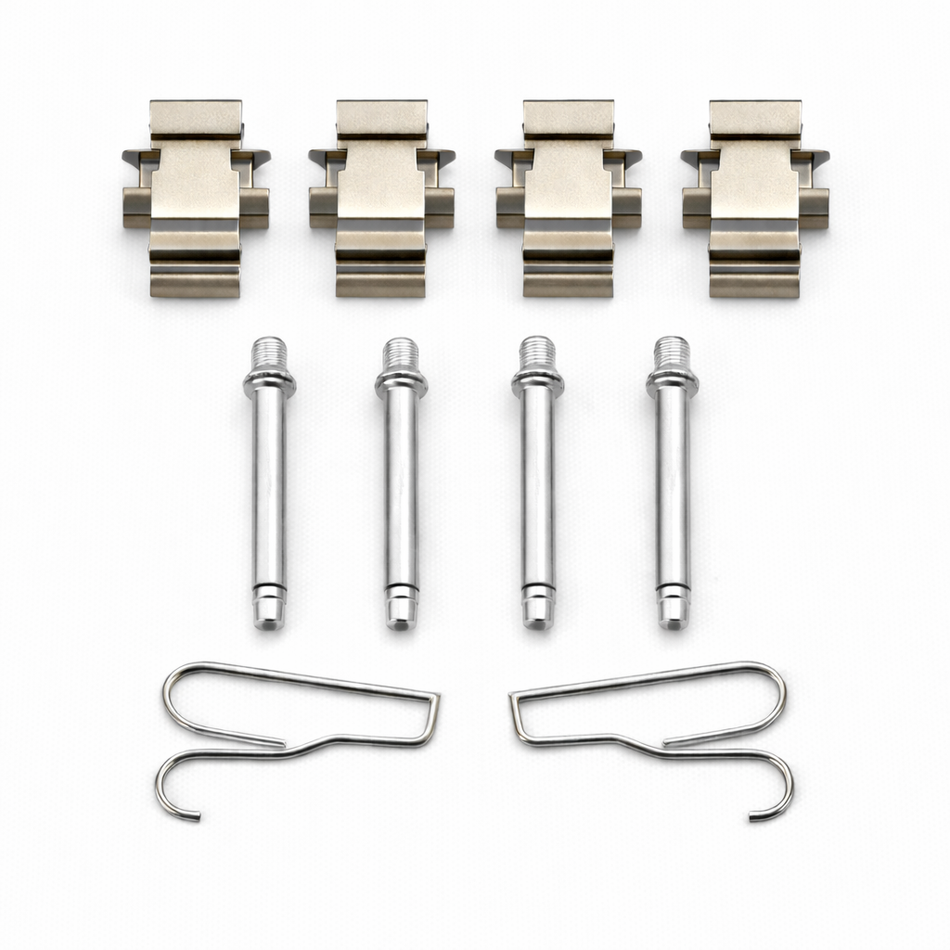

Pad variants can be inner or outer, left or right, and may use different shims, chamfers, slots, springs or wear contacts. ZF's fitting guidance explains that wrong pad or accessory position can cause noise or reduced performance. Lay the old parts out by corner, compare new components before dismantling the opposite side and follow any arrows or piston-orientation markings.

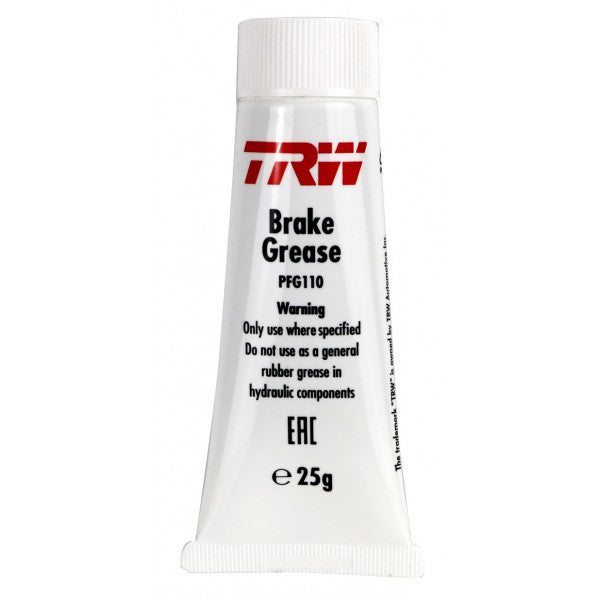

Never coat friction material or the disc face with lubricant. Apply only the specified product, sparingly, to authorised metal contact or guide points. Pads with adhesive backing or rubberised shims may specifically require a clean, dry interface. Copper-rich compounds are not a universal brake lubricant and can be unsuitable around electronic or material systems.

Discs: measurements, run-out and axle balance

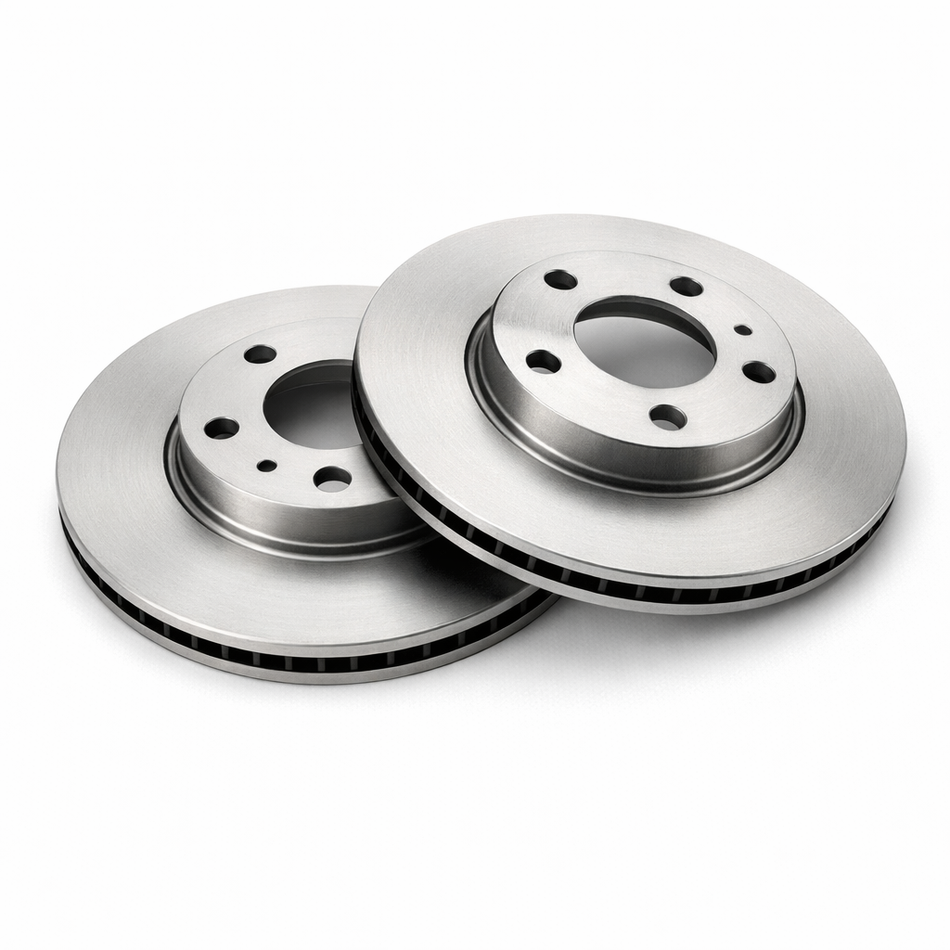

Verify nominal diameter, new thickness, minimum thickness, overall height, centring diameter and number of holes. Solid, vented and two-piece forms are not interchangeable just because their outside dimensions resemble one another. Some TRW disc references can include integrated bearings or ABS rings in the wider official programme; kit contents and fitting method must be checked at reference level.

Measure used discs at several positions away from the wear lip. Deep scoring, heat cracking, severe corrosion or thickness below limit requires action under the vehicle method. Replace paired friction components across the axle when specified so left and right braking response remains comparable.

Run-out begins at the mounting stack. Clean the hub face and disc bore, remove scale without cutting the hub, and check bearing condition. Clamp the disc evenly for measurement before blaming its casting. Marking the disc and indexing it on the hub can distinguish hub run-out from disc variation, provided the repair information permits the method.

Calipers, sliders and uneven wear

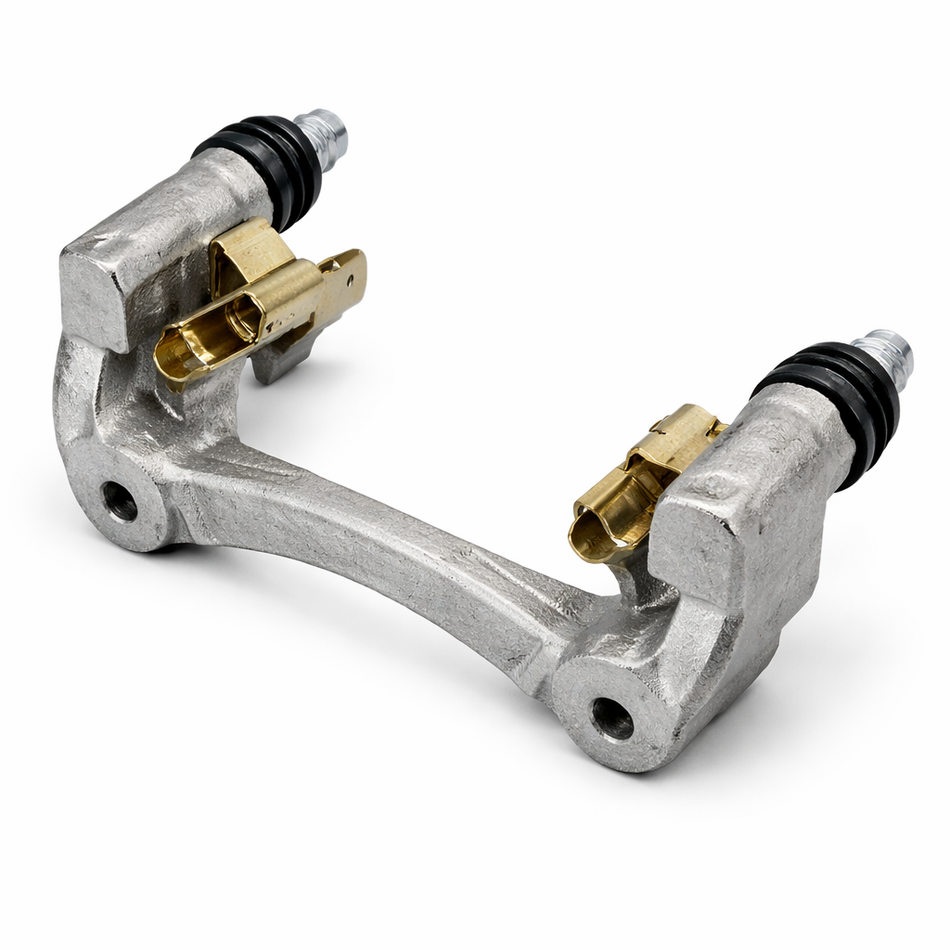

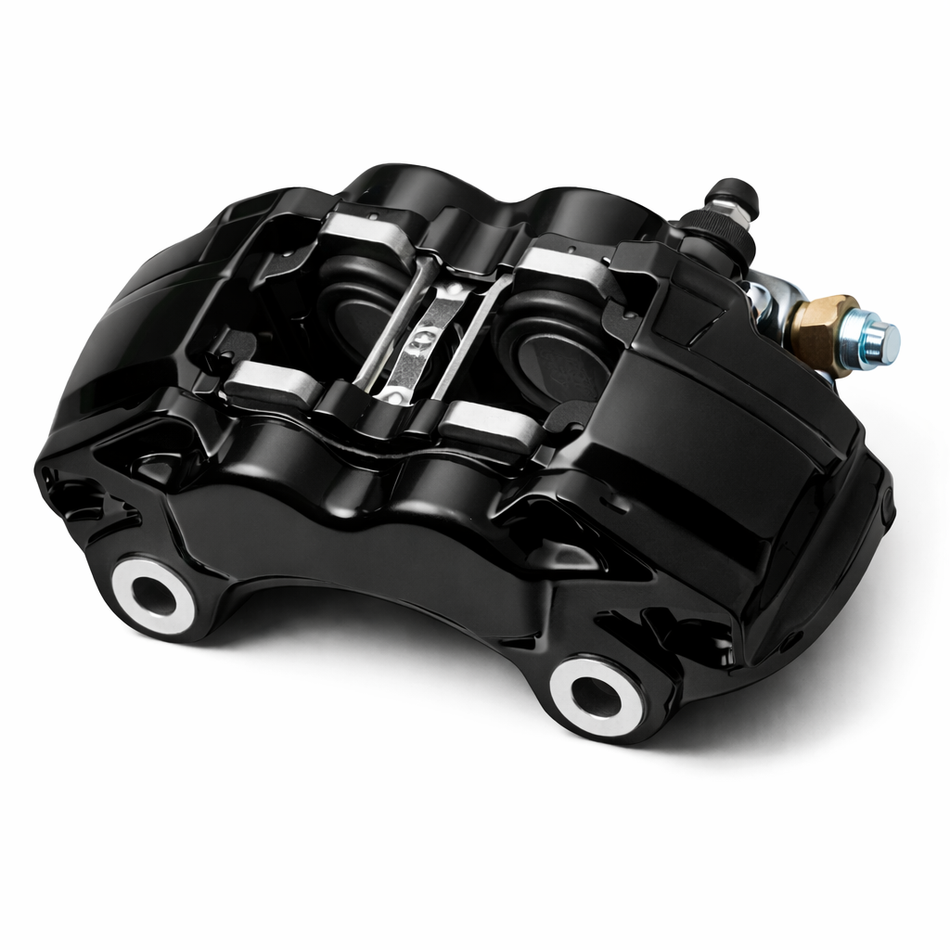

A replacement caliper may be supplied with or without a carrier, motor or bracket. Compare bleed-screw and fluid-port positions; the bleed screw must be at the appropriate high point in service. Do not swap left and right units merely because their mountings align. Refit every anti-rattle spring and cap in its correct position.

Electronic parking brakes usually need diagnostic service mode before piston retraction and a closing or calibration routine afterwards. Forcing or winding a motor-driven mechanism by an unapproved method can damage gears. Support the caliper during work and never let it hang from the flexible hose.

Brake hoses and hydraulic actuation

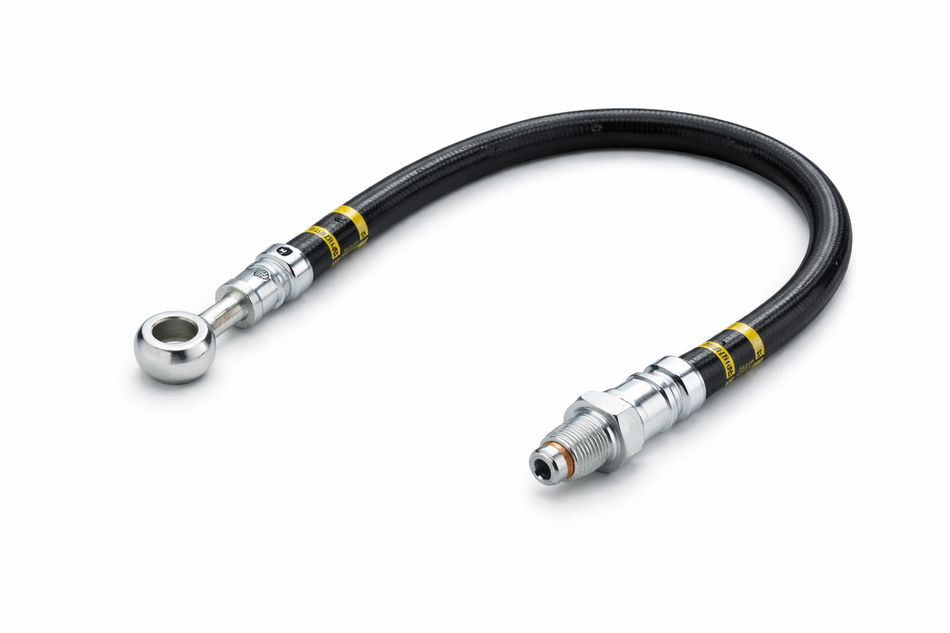

Inspect flexible hoses for cracks, blisters, chafing, corrosion at ferrules and wetness. Internal damage can create a flap that allows pressure in but restricts release, causing a dragging brake without an obvious external leak. Compare pressure release at the caliper and upstream only with safe procedures and suitable containment.

Route a replacement through its intended clips without twist. Turn steering from lock to lock and move the suspension through its safe working range, checking that the hose does not stretch or contact tyre, wheel, spring or driveshaft. Tighten unions with the correct flare-nut tools and torque. A hose should not be used to pull a caliper into position.

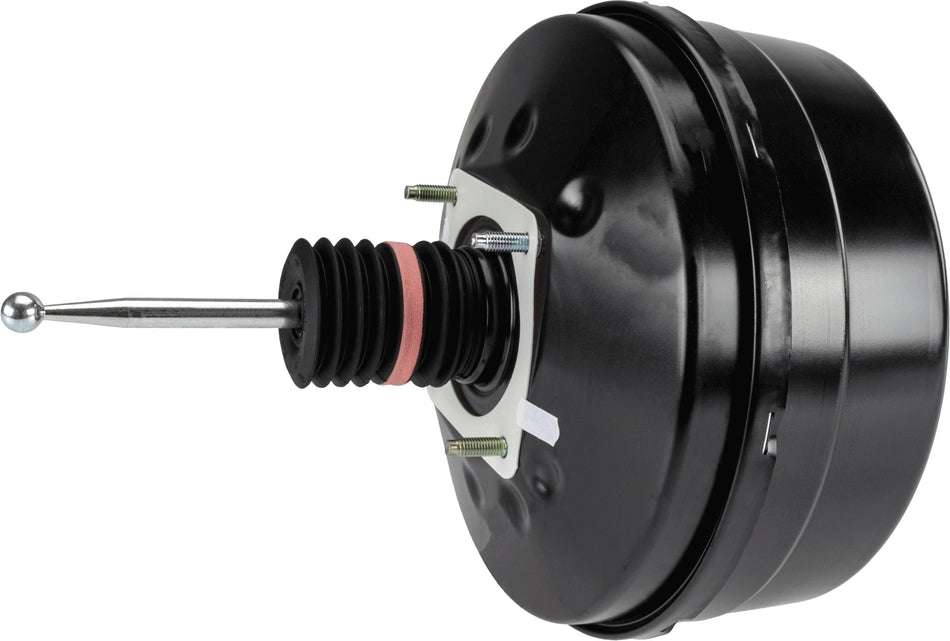

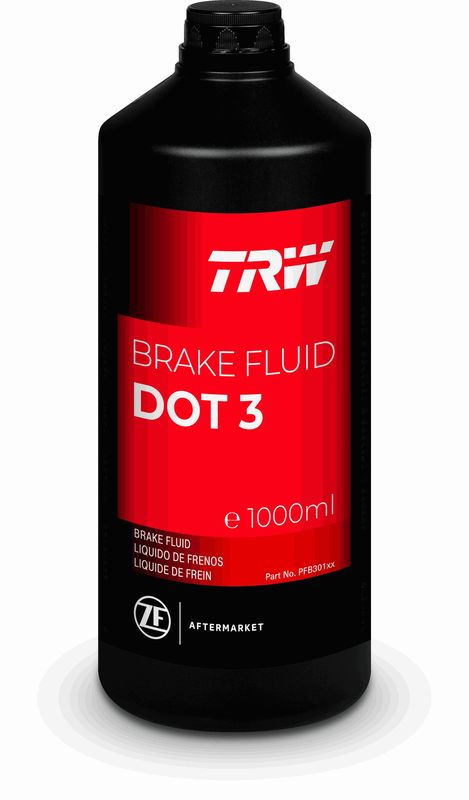

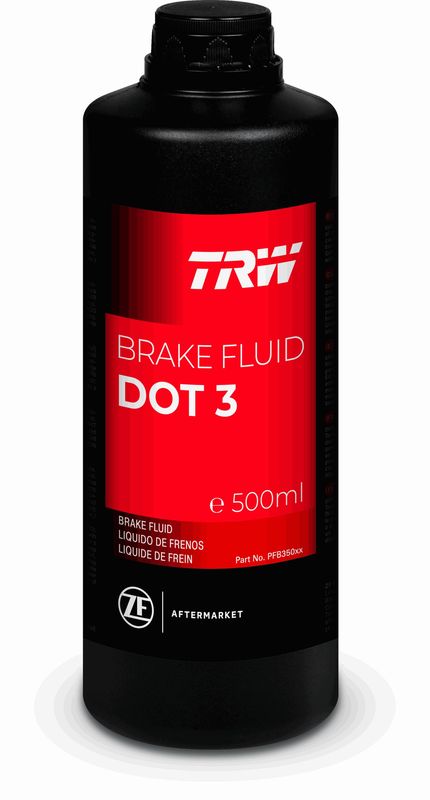

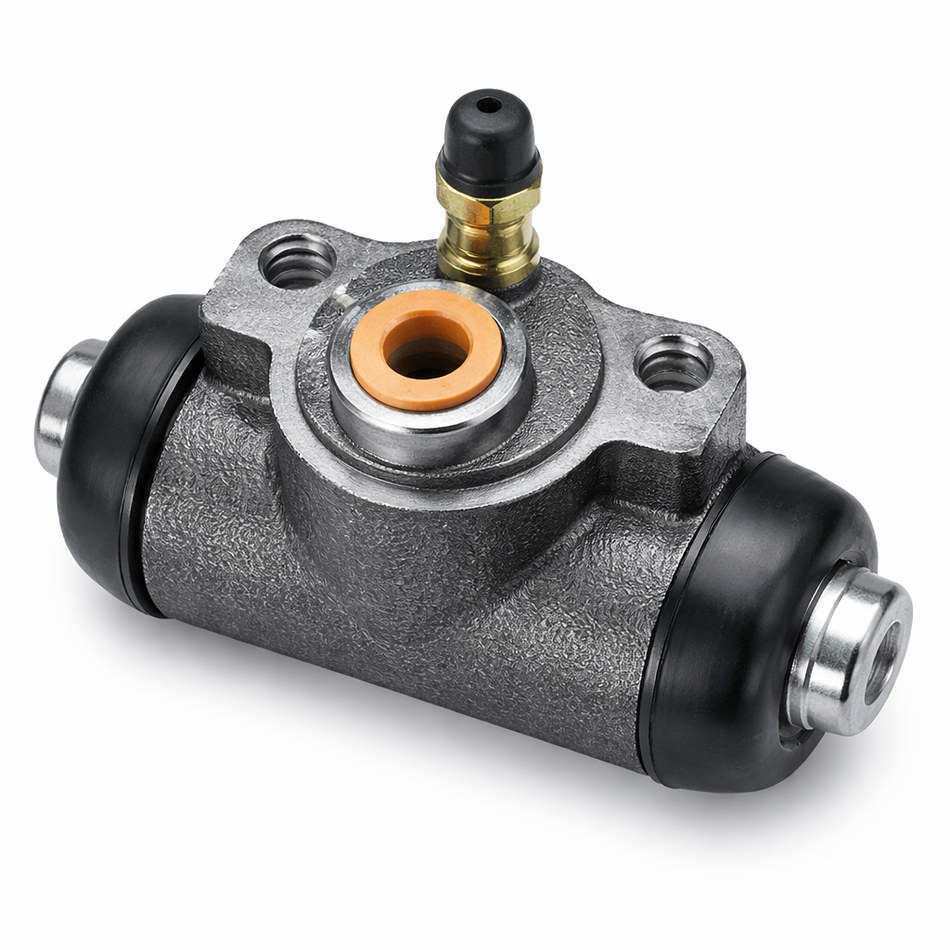

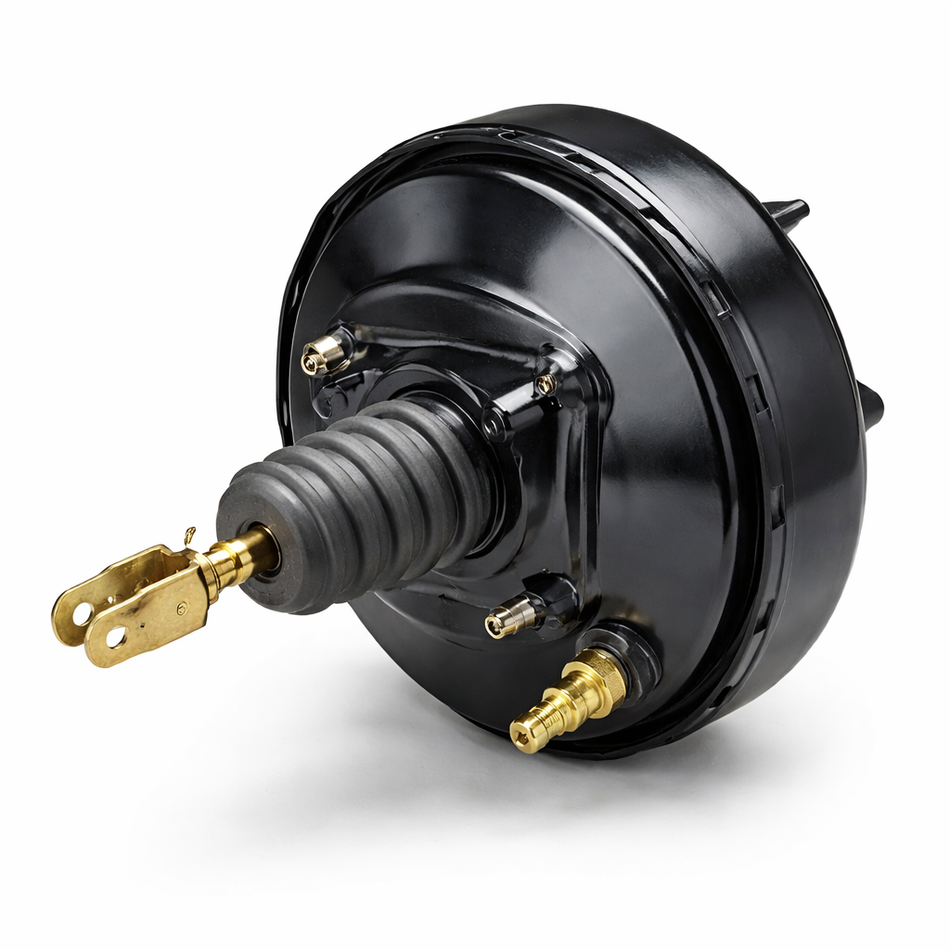

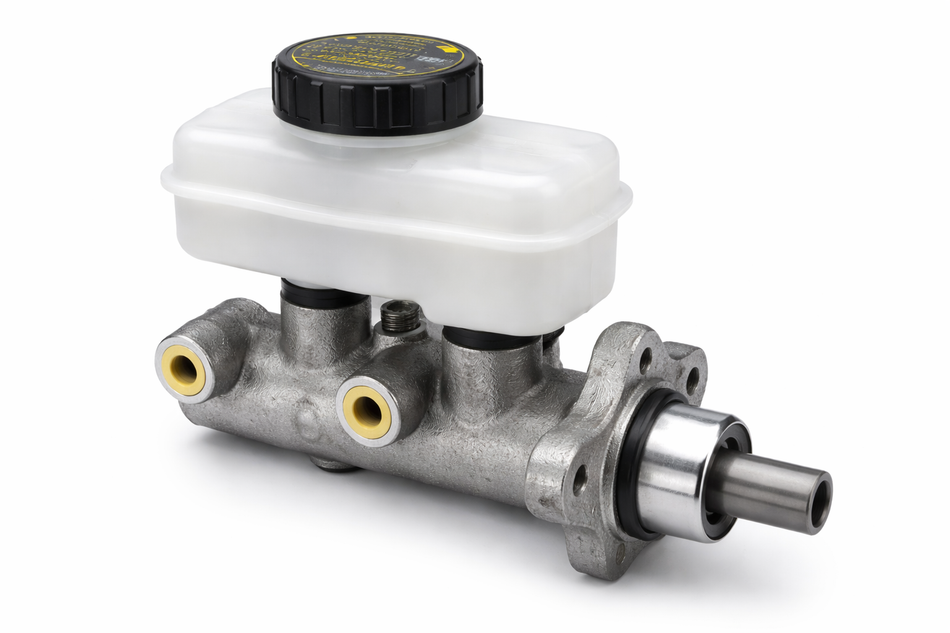

Master cylinders, wheel cylinders and servos need diagnosis rather than symptom substitution. A sinking pedal may indicate external leakage, trapped air, flexible expansion or internal bypass. Poor assistance may involve vacuum supply, non-return valves or an electronic booster. Preserve cleanliness when opening hydraulics and use only the specified brake fluid from a clean sealed container.

Drum brakes, shoe hardware and parking cables

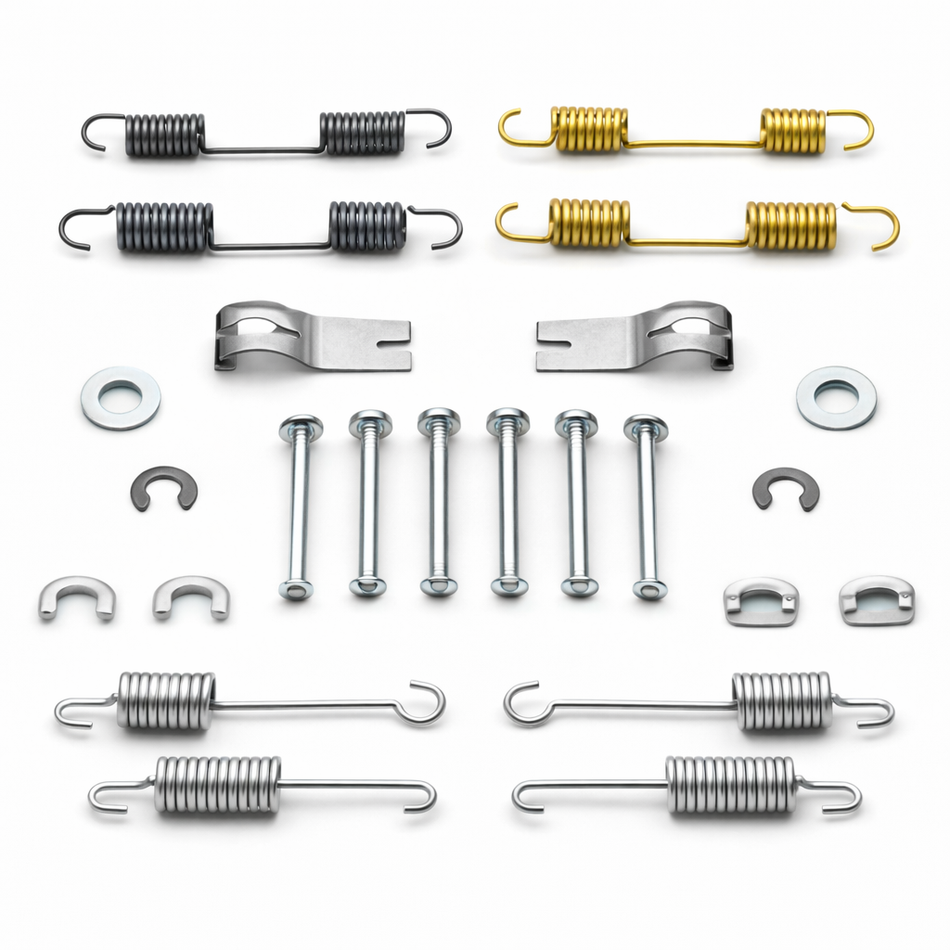

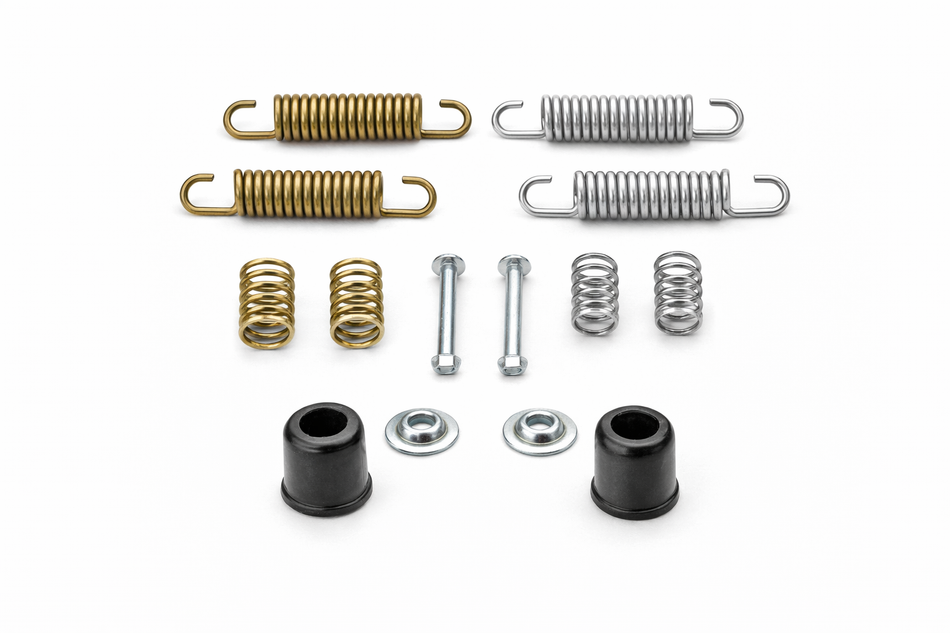

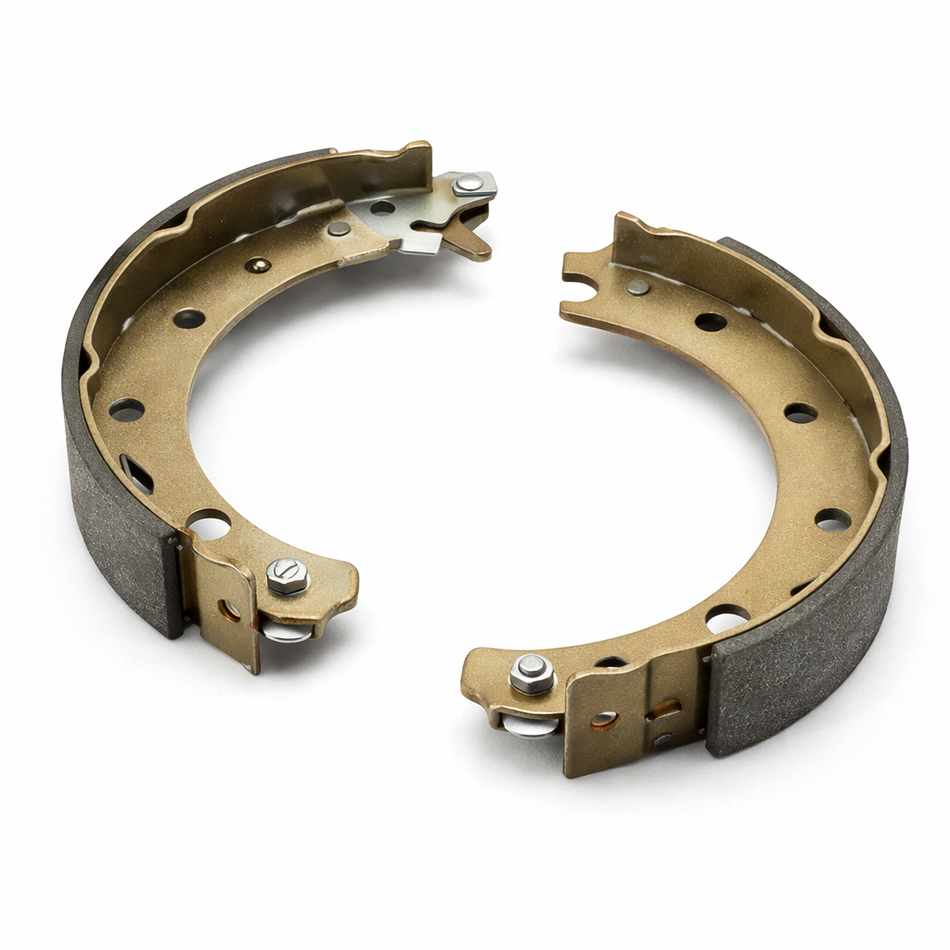

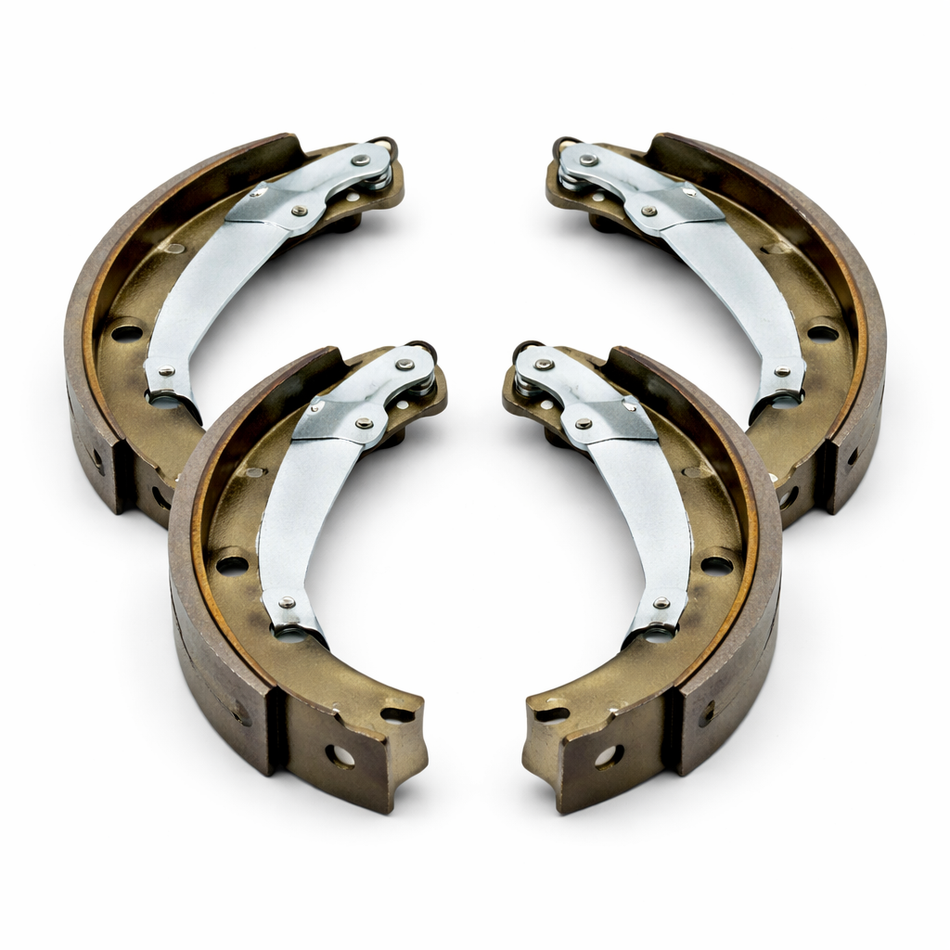

Before stripping a drum assembly, photograph and compare the spring, adjuster and lever arrangement. Left and right mechanisms may mirror one another. A fitting kit can include springs, pins and retainers, but it does not automatically include wheel cylinders, adjusters or every parking-brake lever. Confirm the TRW reference and contents.

Clean with a method that controls brake dust; do not blow residues with compressed air. Inspect drum diameter and surface, cylinder boots, backing-plate contact points and cable movement. Keep lubricant off linings and drums. Adjust shoes and the parking brake in the sequence stated by the vehicle manufacturer, because cable adjustment cannot compensate for a seized or incorrectly set shoe mechanism.

A new cable needs correct routing, clips and heat protection. Avoid tight bends and make sure both sides return fully. With the vehicle secured, operate and release the brake repeatedly, then confirm equal holding and free wheel rotation. Electronic parking systems require their prescribed calibration instead of manual cable-style adjustment.

Wear contacts, ABS sensors and warning lamps

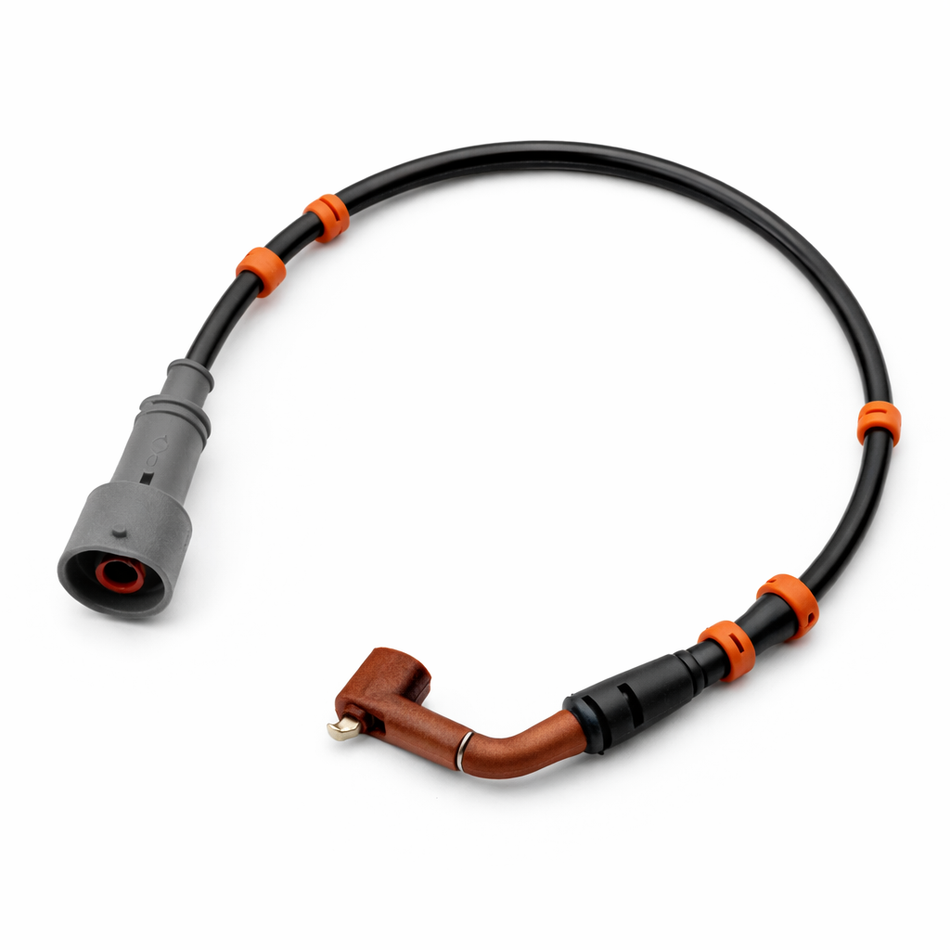

A pad-wear contact may be reusable when undamaged or may be sacrificial once it touches the disc; the application determines which. Route the lead away from the rotating disc and wheel and engage each clip. Replacing pads without a consumed separate sensor can leave the warning active.

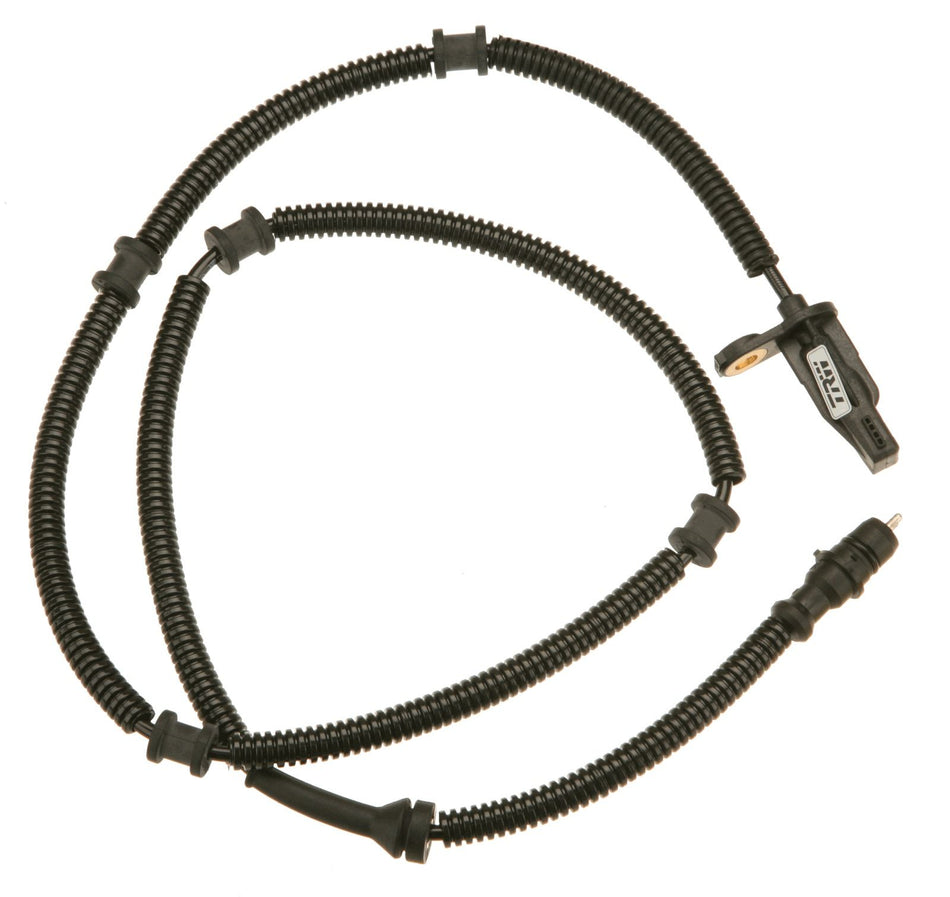

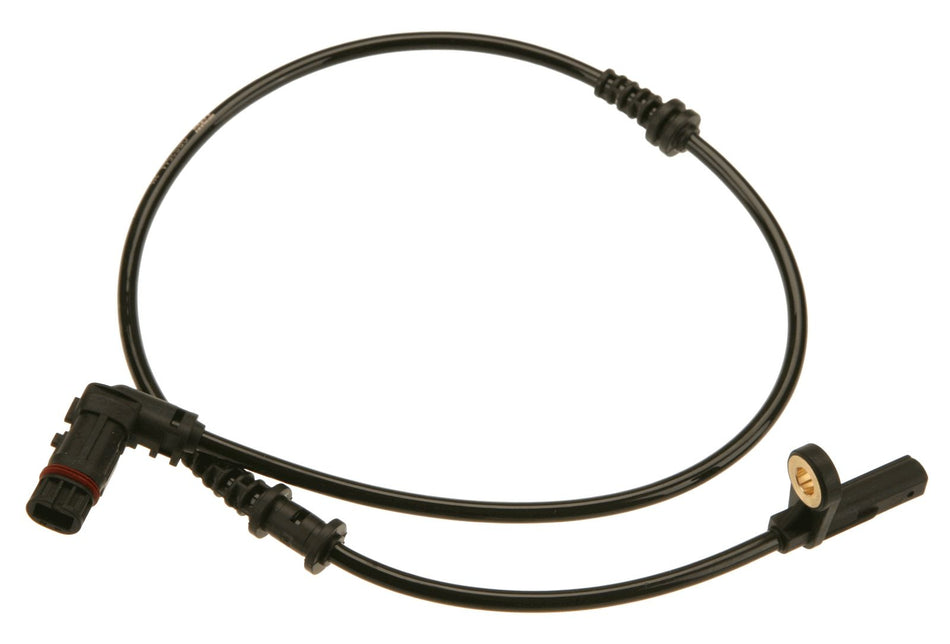

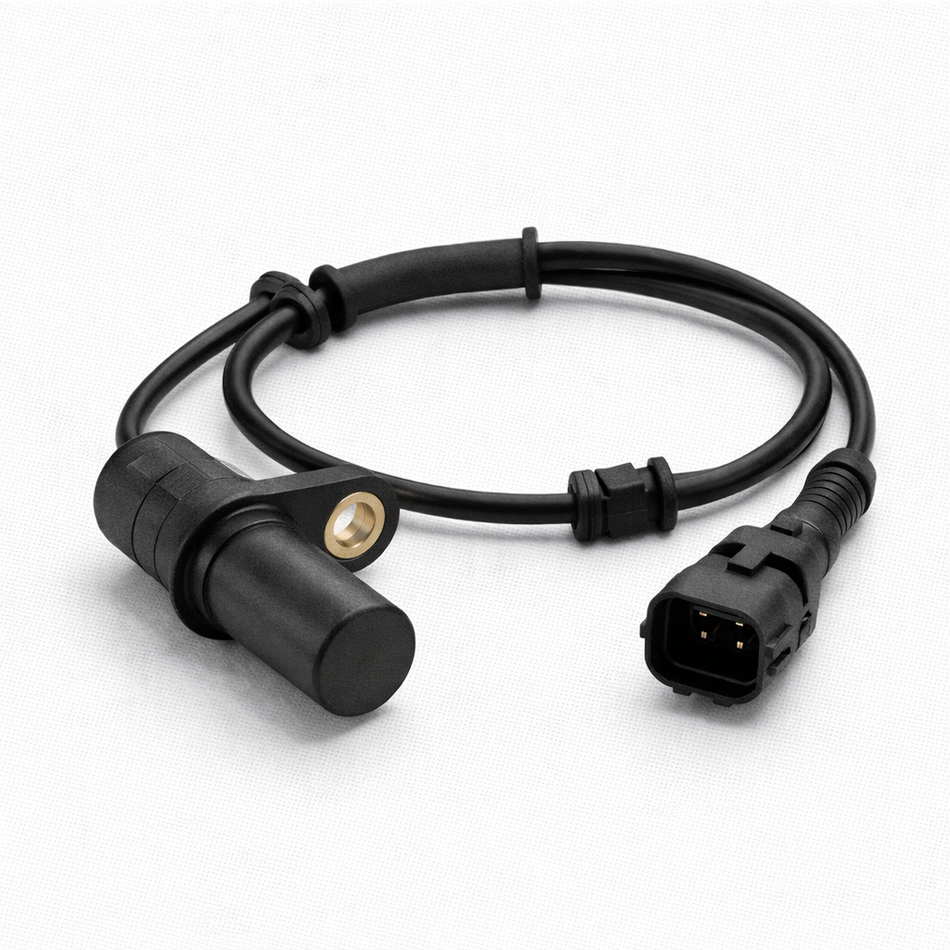

For wheel-speed faults, compare live speed data and inspect the supply, connector, harness, air gap and encoder. Bearing play and corrosion under the sensor can disturb the signal. An ABS fault code identifies the circuit where the controller saw a problem; it does not prove the TRW sensor element is defective.

Bleeding, bedding and final safety checks

1. Confirm every joint is tight, each hose is untwisted and all bleed screws are accessible and closed.
2. Bleed or pressure-fill in the specified sequence, including diagnostic valve operation where required.
3. Set fluid level correctly and press the pedal until it is firm before attempting to move.
4. Restore electronic parking-brake operation, adaptations and warning systems.
5. Check for leakage under sustained pedal pressure and verify free wheel rotation.
6. Perform a controlled brake test and follow the pad and disc bedding guidance.

New friction surfaces need controlled bedding, but COTEC or any other initial coating is not permission for an aggressive first stop. Avoid sustained pedal application against very hot new pads and discs where the instructions warn against it. Recheck the repair if the vehicle pulls, the pedal changes, a wheel heats or a warning reappears.

The UK MOT examines service and parking brakes, hydraulic condition, ABS and relevant warning lamps. A leak, insecure hose, defective brake component or significant performance imbalance can be a major or dangerous condition. The test does not replace routine inspection, and a vehicle with altered braking or fluid loss should not be driven merely because its certificate remains current.

Errors that compromise a brake repair

• Ordering pads by vehicle model while ignoring the fitted caliper system.
• Cleaning only the disc face when corrosion remains trapped between disc and hub.
• Lubricating shims or adhesive surfaces that are intended to remain dry.
• Letting a caliper hang by the hose during suspension or brake work.
• Adjusting a parking cable to conceal seized shoe adjusters.
• Reusing contaminated brake fluid or an opened container of uncertain condition.
• Replacing an ABS sensor without checking its encoder and wiring.
• Moving the vehicle before the pedal has been restored and tested.

TRW brake parts questions and answers

Q: Which TRW products are most prominent here?

A: Disc pad sets lead, followed by brake hoses and calipers, with substantial drum, disc, hydraulic, cable and sensor coverage.

Q: How do I identify the correct pad set?

A: Confirm axle, brake system, disc size, production qualifiers, pad outline and any wear lead or directional detail.

Q: What is TRW COTEC?

A: ZF describes it as a thin silicate friction coating used on European TRW passenger-car pads to support initial bedding behaviour.

Q: Should brake pads be replaced in axle sets?

A: Yes where specified; paired replacement helps maintain comparable friction condition on the left and right of that axle.

Q: Can I grease the back of every brake pad?

A: No. Follow the pad instructions, because adhesive layers and some shims must remain clean and dry.

Q: Why is one pad wearing faster?

A: Check piston release, sliders, carrier abutments, hose restriction and pad movement instead of blaming friction material alone.

Q: Are left and right calipers interchangeable?

A: Usually not; bleed-screw, hose and parking-mechanism positions make the side designation important.

Q: How can a hose cause brake drag?

A: Internal damage may allow pressure towards the caliper but restrict its return even without visible exterior leakage.

Q: Does a parking cable fit if its total length matches?

A: Not necessarily. End fittings, outer sections, brackets, wheelbase and brake type also determine suitability.

Q: Must an electronic parking brake be put in service mode?

A: Follow the vehicle procedure; many systems require diagnostic retraction and calibration to avoid motor damage.

Q: Does an ABS code confirm a failed sensor?

A: No. Wiring, connector, encoder damage, corrosion, air gap and wheel-bearing movement can produce the same circuit symptom.

Q: What should happen before the first road test?

A: Establish a firm pedal, prove there are no leaks, restore electronic functions and check each wheel for free and correct operation.
