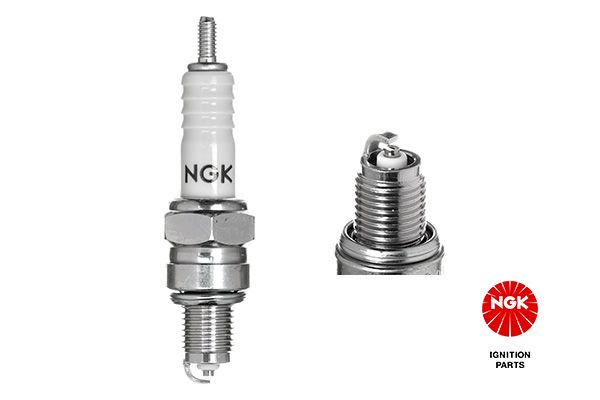

NGK 3228 Spark Plug
Your selected vehicle
Regular price
£6.43
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The NGK 3228 Spark Plug is a replacement engine ignition or starting-aid component that supports controlled combustion by providing the specified spark or pre-heating function. Its catalogue specification records 16 mm spanner size, M10 x 1,0 thread size, 12.7 mm thread length, and Connector Type M4, Nickel Middle Electrode, and 1 - Earthed Electrode spark plug. Confirm the reference, electrical rating, thread or connector details and engine application before fitting; use the specified installation torque and test procedure.
Function :
Spark Plug
Spanner Size :
16 mm
Thread Size :
M10 x 1,0
Thread Length [mm] :
12.7
Spark Plug :
Connector Type M4
Spark Plug :
Nickel Middle Electrode
Spark Plug :
1 - Earthed Electrode
Spark Plug :
no interference suppression
Spark Plug :
with gasket seat
Spark Position [mm] :
1.65
- Vendor NGK
- SKU 3228
- HONDA : 98056-56713 98056-56713-00 98056-56713-01 98056-56723
- MAZDA : 242-18-110
- SUZUKI : 09482-00295
- TOYOTA : 90098-20415 90098-20765
- HITACHI : L 14 W
- LEXUS : 90098-20415 90098-20765
- YAMAHA : 94700-00256 94700-00841 94700-00850 94700-00850-00IV 94701 00256 94703-00214 94703-00256
- KAWASAKI : 9207 01114 9207 01114 C E 9207 01114 C E920701114
- BORG & BECK : BES231
- BORG & BECK : BTR5438
- BOSCH : 0 986 486 552
- BREMBO : E 06 005
- DELPHI : LL40062
- DELPHI : LW60289
- DELPHI : LY1140
- DELPHI : TA2469
- DENSO : U20FS-U
- FEBI BILSTEIN : 23883
- FEBI BILSTEIN : 26590
- FEBI BILSTEIN : 46664
- FIRST LINE : FTR5438
- FTE : 3101322
- FTE : 9010279
- HELLA : 1GA 005 060-001
- HELLA : 1GA 005 060-005
- HELLA : 8GM 002 094-121
- KYB : RH3247
- LUCAS : LRS02775
- NRF : 727131
- PHILIPS : 12818CP
- SACHS : 110 014
- SACHS : 170 462
- SACHS : 290 134
- SACHS : 6283 600 102
- SACHS : 998 444
- SKF : VKDL 31593
- TRW : PJH190
- TRW : PJH208
- VALEO : 3101322
- VALEO : 810604
- NGK : C6HSA
