NGK ignition and engine-management range

NGK is the ignition-parts brand used by Niterra. In official Niterra material, spark plugs, glow plugs, ignition coils, leads and caps sit under NGK Ignition Parts, while oxygen and temperature sensors and other engine-management electronics are presented under NTK Vehicle Electronics. This collection is named NGK and includes both the dominant ignition families and several associated sensor products.

Spark plugs account for well over half of the evidenced range. Glow plugs, lambda sensors, exhaust-gas-temperature sensors and ignition coils make up most of the rest. Spark-plug caps are also present, together with a limited selection of position sensors, an exhaust-pressure sensor and an EGR valve. Product type and exact reference should take priority over assumptions based on the collection name.

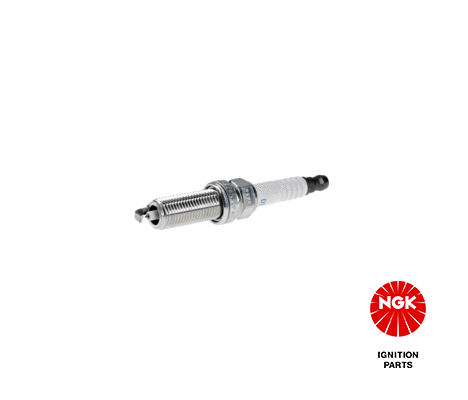

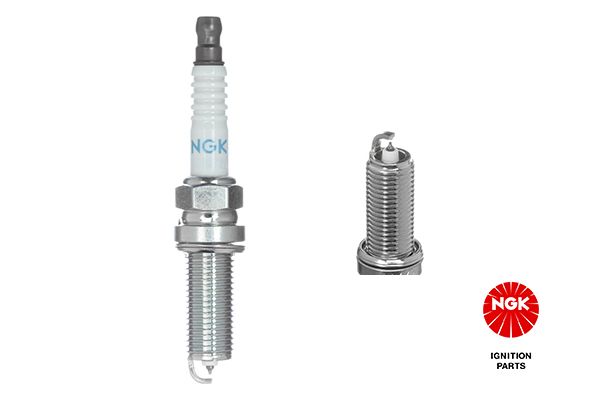

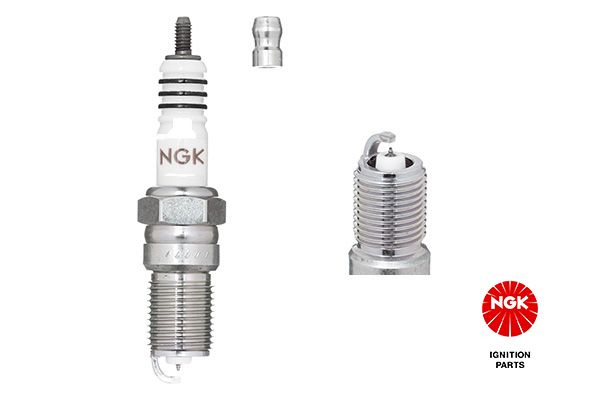

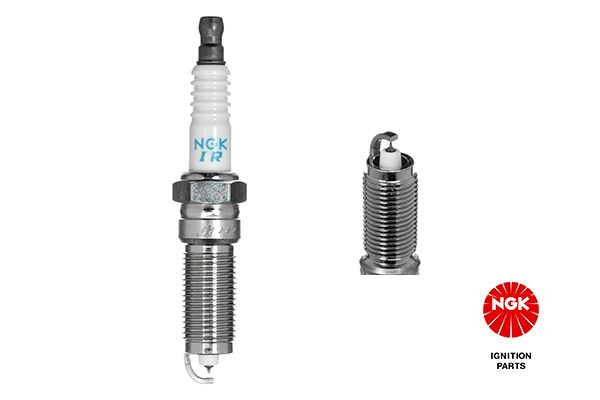

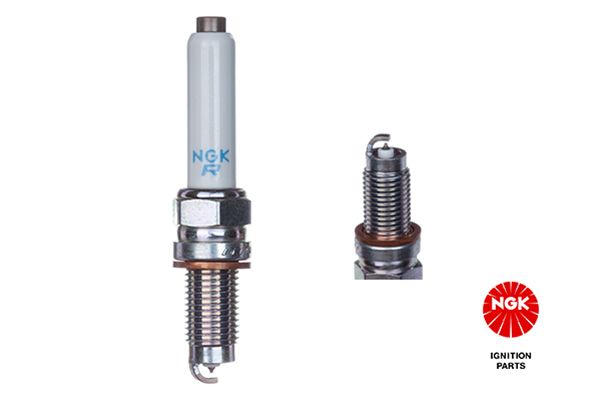

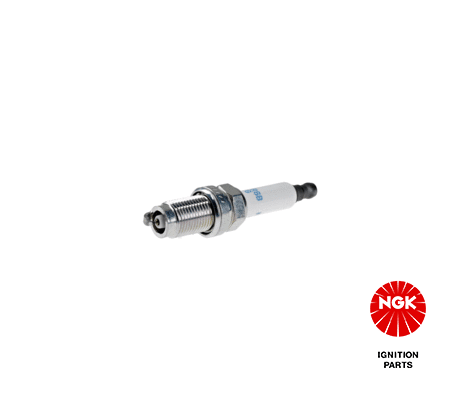

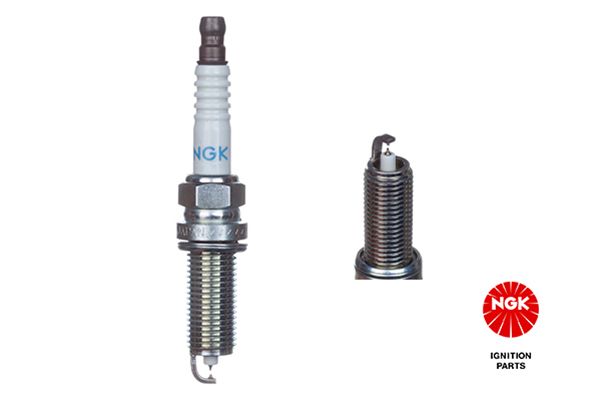

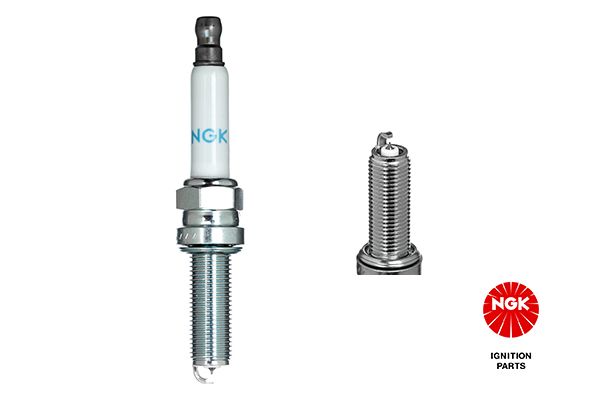

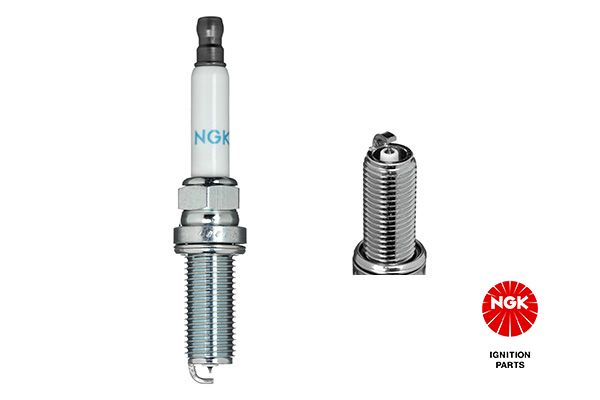

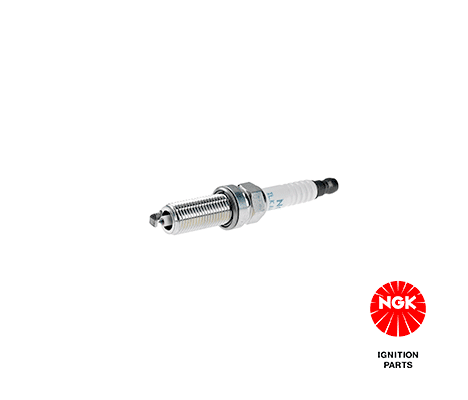

Selecting the correct spark plug

A spark plug is specified as part of the combustion system. Its heat range controls how rapidly heat travels from the firing end, while thread reach positions the electrodes in the chamber. The seat - commonly gasket or taper - determines how the plug seals and transfers heat. Installing a plug with the wrong reach can expose threads, interfere with internal parts or leave the spark in the wrong location.

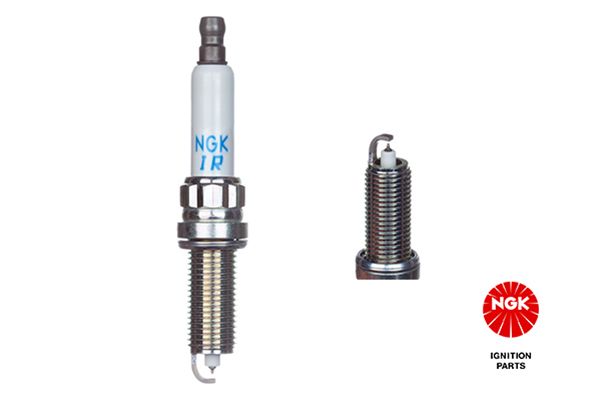

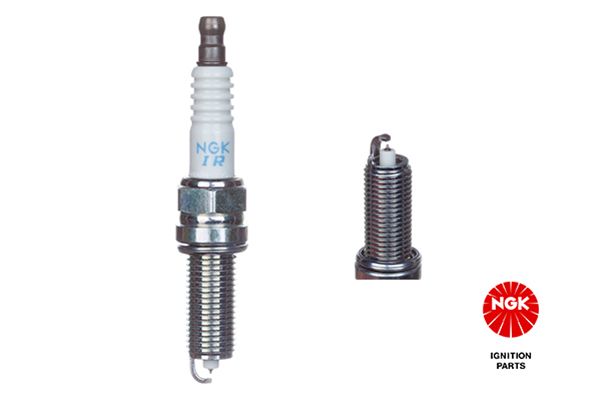

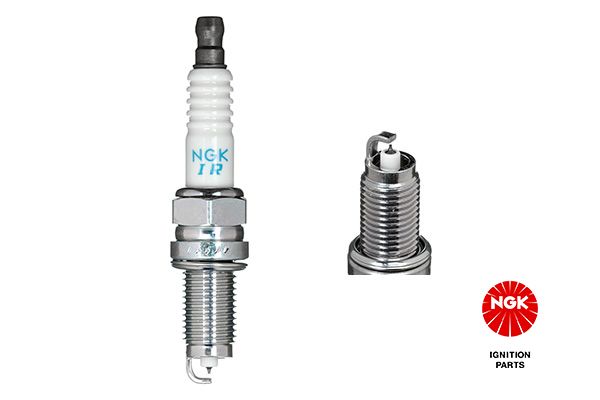

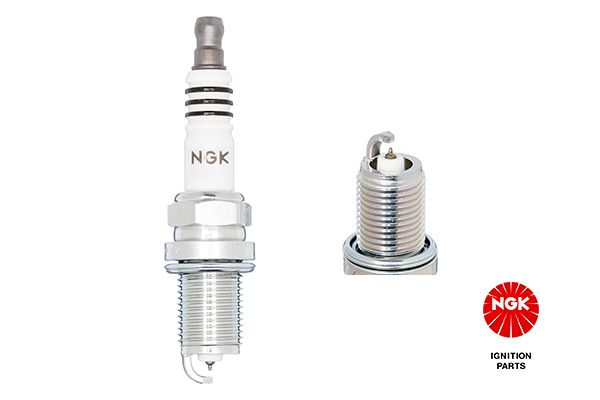

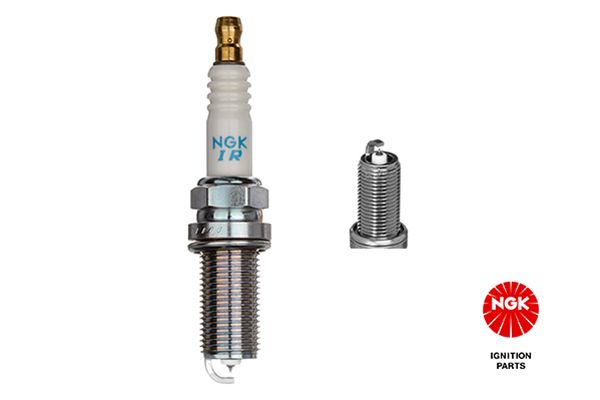

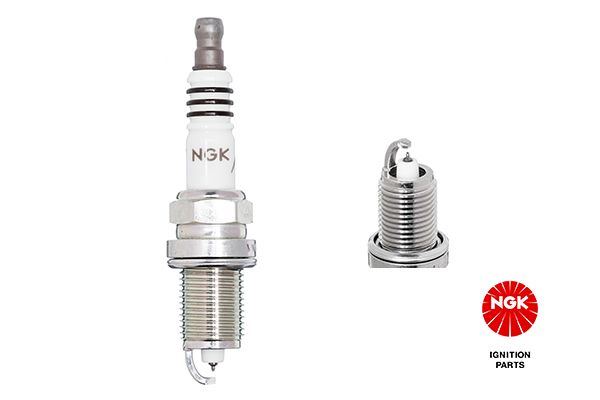

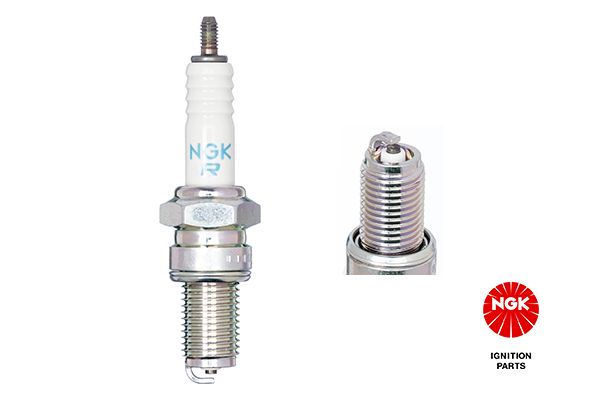

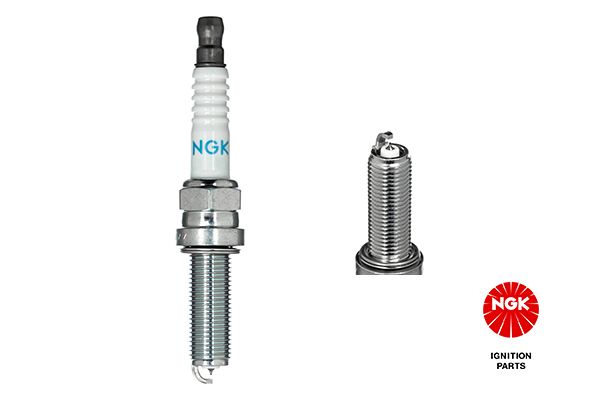

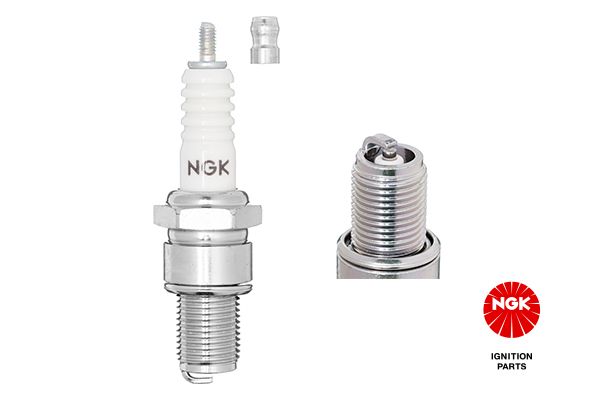

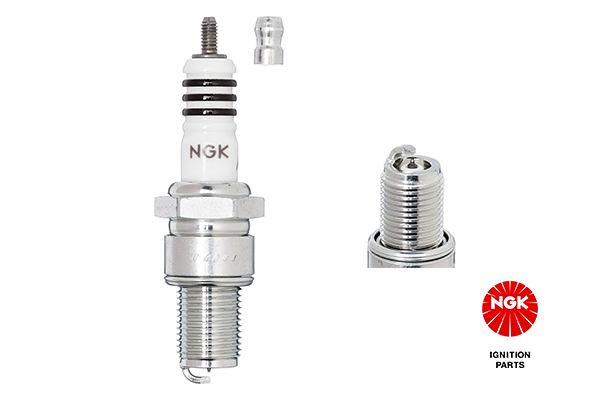

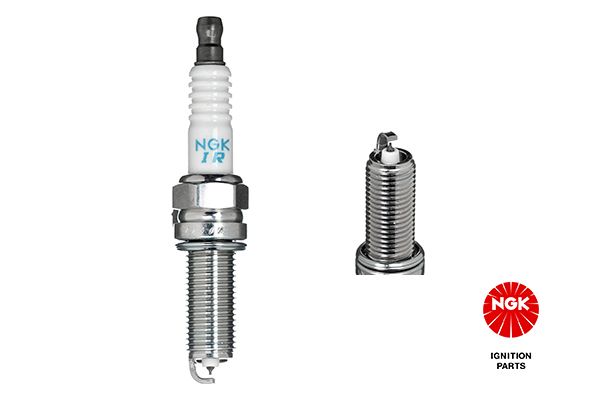

NGK offers nickel, platinum, iridium and application-specific electrode designs. Precious-metal construction does not make a plug a universal upgrade. The engine calibration, required gap, projection and electrical characteristics still govern choice. Multiple-ground, V-groove, supplementary-gap and other forms address particular operating needs. Replace with the listed NGK reference or a formally confirmed equivalent, not simply a plug sharing the same spanner size.

Read deposits cautiously. A dry black appearance can accompany rich running, repeated cold operation or ignition weakness; oily deposits may indicate mechanical oil entry. A very light or damaged firing end can signal excess temperature or abnormal combustion. Correct the underlying cause before fitting new plugs, otherwise the fresh set may quickly show the same condition.

Glow-plug specifications are not interchangeable

NGK distinguishes metal rod and ceramic high-temperature glow-plug technologies. The products sampled in this collection are described as metal glow plugs, but that should not be extended to every reference. A control unit drives the plugs according to an electrical strategy, and using the wrong voltage or resistance can cause poor starting, rapid failure or control-system damage.

The evidence illustrates wide dimensional differences: overall length ranges from compact designs to examples over 180 mm, with different fitting depths, M10 or M12 threads, pin or threaded terminals and stated tightening values. Some references include an engine code or construction-date restriction. These are functional distinctions, not minor packaging differences.

Test the complete pre-heating system where starting is poor. Battery state, starter speed, compression, fuel delivery, temperature sensing, relay or controller operation and wiring can mimic failed plugs. Resistance readings should be interpreted with an appropriate method because low values demand accurate test equipment and temperature affects results.

Ignition coils, leads and caps

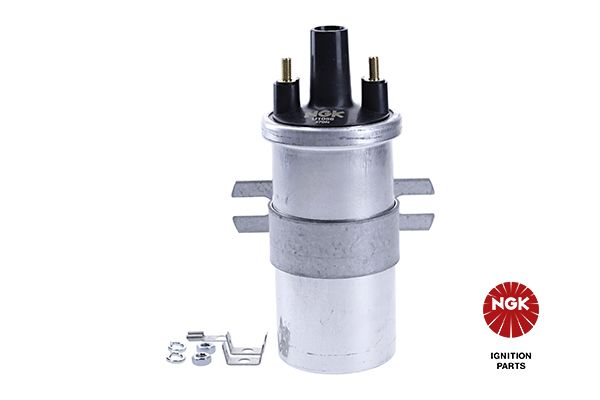

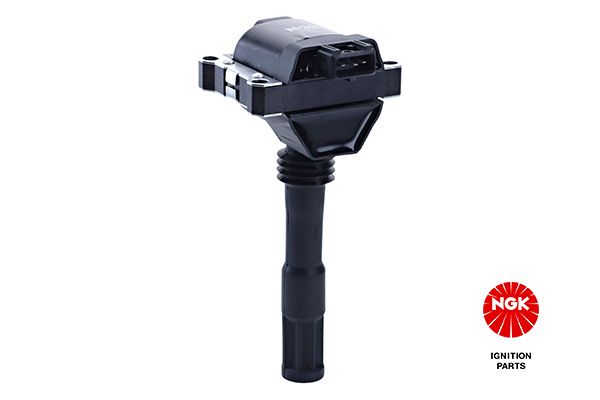

Niterra describes distributor, block, pencil and rail coil constructions, along with single- and dual-spark operating principles. A pencil coil sits directly over one plug, whereas a block coil can feed several cylinders through leads. A rail combines multiple coils in one housing. The engine's connector and triggering strategy make these designs application-specific.

Misfire does not prove a coil has failed. Check plugs, plug gaps, coil boots, leads, supply voltage, grounds, control signals, injector operation, compression and air leaks. Oil or water in a plug well can damage boots and allow high-voltage tracking. A repeated coil failure calls for the plug condition and charging voltage to be checked rather than another blind replacement.

When swapping coils between cylinders for diagnosis is permitted, record the original positions and observe whether the fault follows. Some engines use a combined rail that cannot be swapped individually. Disconnecting a coil on a running modern engine can damage electronics or the catalyst, so follow an approved test routine.

Lambda, EGT and position sensors

A lambda or oxygen sensor can be used before a catalyst for mixture control, after it for catalyst monitoring, or in more specialised arrangements. Location matters. Connector shape alone does not identify sensor technology, and universal splicing can alter resistance or admit moisture. Use the listed direct-fit reference and preserve cable routing away from exhaust heat and moving parts.

Exhaust-gas-temperature sensors protect and control systems such as turbochargers, catalysts or particulate filters according to application. A stored EGT fault may reflect an open circuit, short, implausible signal, damaged wiring or an exhaust condition outside expected limits. Compare live data with engine state and inspect the harness before removing a seized sensor.

Crankshaft and camshaft sensors provide timing and speed information. Symptoms can include non-starting, cutting out, extended cranking or a warning lamp, but wiring, timing alignment and the rotating target must also be considered. Use waveform or live-data diagnosis where appropriate. Metal debris or incorrect sensor air gap can disturb a signal without an internal sensor failure.

Installation and tightening

Niterra warns that incorrect spark-plug tightening can cause serious problems. Too little clamping may lead to poor heat transfer, leakage and vibration; too much can stretch or break the shell and impair heat dissipation. Torque depends on thread diameter, seat design and cylinder-head material. Use the value for the exact plug and engine, not a remembered generic figure.

• Work on a cool engine when the vehicle procedure requires it.
• Remove dirt from plug wells before opening the combustion chamber.
• Check the new and removed references and inspect threads.
• Start each plug by hand with the socket aligned to avoid cross-threading.
• Do not apply lubricant or anti-seize unless NGK or the vehicle maker specifies it.
• Use a calibrated torque wrench and the correct socket.
• Seat coil boots and electrical connectors fully, then restore every cable support.

Glow-plug removal carries a breakage risk, especially after long service. Observe the stated breakaway guidance and do not continue applying force beyond the approved method. Ceramic designs require particular care. If a plug will not release, use an appropriate workshop procedure instead of increasing leverage without limit.

UK emissions and safety context

The Great Britain MOT includes exhaust-emissions checks and inspection of the engine malfunction indicator lamp on applicable vehicles. Ignition misfire, sensor faults and combustion problems can contribute to excessive emissions or an illuminated lamp, but an MOT outcome does not identify the root cause. Stored faults and live values need diagnosis in context.

A flashing malfunction lamp can indicate a severe misfire with risk to the catalyst. Follow the vehicle guidance and avoid continued driving that may cause damage. Petrol vapour, high ignition voltage, hot exhaust components and fragile threads all make correct workshop precautions important.

Frequently asked questions

Q: Is every item here an NGK-branded ignition part?

A: The range is led by NGK spark and glow products, but it also contains sensing products that Niterra's current brand structure places under NTK Vehicle Electronics.

Q: Can I choose spark plugs by vehicle engine size?

A: No. Engine code, production date and exact plug specification are needed because equal-capacity engines can use different combustion and ignition designs.

Q: Is an iridium plug always a suitable upgrade?

A: Only when NGK lists that reference for the application. Electrode material does not override reach, heat range, seat, gap or electrical requirements.

Q: Should spark-plug gaps always be adjusted?

A: No. Check the part instructions; fine-wire and specialised plugs can be damaged by inappropriate regapping.

Q: Can all glow plugs be tested with direct 12-volt power?

A: No. Rated voltages and control strategies vary, and some plugs operate far below system voltage. Use the approved diagnostic method.

Q: Must every glow plug have the same resistance?

A: Compare readings under consistent conditions and with the correct specification. Lead resistance and meter accuracy matter at such low values.

Q: Does a cylinder misfire code confirm a failed coil?

A: It identifies a misfire event, not its cause. Plugs, injectors, wiring, compression and mixture faults remain possible.

Q: Are upstream and downstream lambda sensors interchangeable?

A: Not unless the application information gives the same reference. Their type, calibration, cable and connector may differ.

Q: Should sensor threads receive anti-seize compound?

A: Follow the exact product instructions. Some threaded sensors arrive with an approved coating, and extra compound may contaminate or alter tightening.

Q: Can a warning lamp be cleared after fitting a part?

A: Clear and relearn procedures vary, but first confirm the fault has actually been repaired and inspect live data or run the required drive cycle.

Q: Why compare an old plug's deposits?

A: The firing end can provide clues to mixture, oil entry, temperature or ignition problems that should be corrected before the new set is used.

Q: What is the final check after ignition work?

A: Verify connectors and cable routing, start and idle quality, absence of leaks or abnormal noise, fault status and correct operation under a controlled test.
