Regular price
£352.90
inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery
14-day returns
Need help choosing the right part? Call 01472 869 066

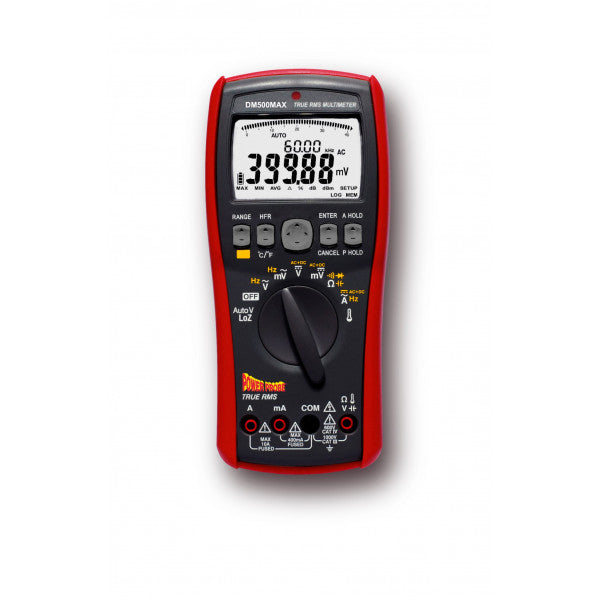

The DM500MAX Advanced Digital Multimeter Tester is a workshop service or equipment product that supports the inspection, inflation, programming or maintenance task stated in its product data. Use Powerprobe reference PPDM500MAX when cross-checking the part. Confirm the operating range, voltage or pressure, connections, included parts and intended application before use, and follow the equipment manufacturer's safety instructions.
- Added Convenience: The Power Probe DM500MAX Automotive Multimeter Voltage Tester has automatic back light that adjusts to changing light conditions; Drop resistant protective rubber holster
- Measuring Voltage: Accurately and automatically determine both AC and DC voltage from 0.01mV-1000V with 600V cat IV and 100V Cat III safety rating for testing vehicle batteries or home appliances
- Testing Current: Correctly calibrate amperage for both AC and DC currents with auto-range metering from 0.01mA-10.00A; Determine whether or not an outlet is active or if solar cells function properly
- For All Electrical Testing: Power Probe digital multimeters don’t just measure voltage and amperage but also resistance, frequency, continuity, capacitance, and even temperature
- Multimeter kit includes a DM500MAX multimeter, drop resistant rubber housing with kickstand, magnetic strap, 2 test leads (1 black, 1 red), 2 alligator clip lead attachments (1 black, 1 red), a USB plug, K-type thermocouple, and 4 AA batteries
Technical Info
- Measurement Capabilities: True RMS AC/DC voltage up to 1000V
- DC current up to 30A
- resistance up to 60MΩ
- Automotive Diagnostics: Cranking voltage tests
- alternator charging system tests for 12V/24V
- Fuse Current Testing: Measures current through fuses without removal (2A to 80A)
- Frequency and Duty Cycle: Measures PWM signals up to 40kHz
- duty cycle range: 1%-99%
- Thermal Imaging: Integrated infrared temperature measurement for advanced diagnostics
- Display: 3.5” high-resolution TFT color LCD with customizable interfaces
- Power Source: Rechargeable lithium-ion battery
- Durability: 4-foot drop protection
- IP54 dust and water resistance
- Safety Ratings: CAT IV 600V
- CAT III 1000V certified
- Data Storage: On-device memory for saving multiple test results.
Length
180
Thickness
240
Width
75
Weight
1.27
The PPDM500MAX Automotive Diagnostic Tool is the ultimate solution for professionals in automotive diagnostics and electrical testing. Combining True RMS multimeter functions, automotive-specific tests, and advanced thermal imaging, it provides unparalleled versatility and precision. Designed to withstand tough environments, this tool is a must-have for mechanics and engineers working on complex electrical systems. Key Features: Enhanced Diagnostic Tools: Includes cranking voltage tests and alternator charging system analysis for both 12V and 24V systems. Thermal Imaging: Integrated infrared measurement allows for quick detection of temperature anomalies in components. Advanced Fuse Testing: Tests fuse current (2A to 80A) without requiring removal, saving time and reducing the risk of damage. True RMS Multimeter: Measures AC/DC voltage up to 1000V, DC current up to 30A, and resistance up to 60MΩ with high accuracy. Frequency and Duty Cycle Testing: Supports PWM signal diagnostics up to 40kHz and duty cycle analysis from 1%-99%. Customizable Interface: The 3.5” TFT color LCD provides a clear and intuitive interface with adjustable layouts. Robust Design: Certified IP54 for dust and water resistance and built to survive drops from up to 4 feet. Rechargeable Battery: Long-lasting lithium-ion battery ensures extended use without frequent replacements. Safety and Compliance: CAT IV 600V and CAT III 1000V certifications ensure reliable performance in high-voltage environments. Specifications: Voltage Range: 1000V AC/DC. Current Measurement: DC current up to 30A with probes. Resistance Range: Up to 60MΩ. Fuse Current Measurement: 2A to 80A for MINI, ATC, and MAXI fuses. Frequency Range: Up to 40kHz with PWM compatibility. Thermal Imaging: Infrared sensor for temperature analysis. Applications: Diagnosing starter and alternator issues. Verifying the functionality of electrical systems in vehicles. Identifying thermal and electrical anomalies with precision.
- Vendor POWERPROBE
- SKU PPDM500MAX
