SHAFTEC

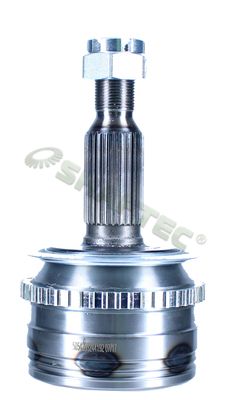

Shaftec CV1893N Joint Kit, drive shaft

SKU: CV1893N

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£40.45 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

L200 / TRITON (KA_T, KB_T)

Description	Cylinder Capacity	Horse Power	Year
2.5 DI-D (KA4T)	2477 CCM	167 HP	08/2007 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	136 HP	11/2005 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	167 HP	10/2007 - 12/2015
2.5 DI-D 4WD (KB4T)	2477 CCM	178 HP	04/2010 - 12/2015

L200 / TRITON (KJ_, KK_, KL_)

Description	Cylinder Capacity	Horse Power	Year
2.4 DI-D 4WD (KL1T)	2442 CCM	181 HP	From 11/2014
2.4 DI-D 4WD (KJ0T)	2442 CCM	154 HP	From 09/2015
2.4 DI-D (KJ0T)	2442 CCM	154 HP	From 09/2015
2.2 DI-D 4WD	2268 CCM	150 HP	From 07/2019

The Shaftec CV1893N Joint Kit, drive shaft is a replacement driveline component that transmits torque through the relevant section of the vehicle driveline while accommodating its designed movement. Its catalogue specification records 90 mm diameter, 69 mm seal ring diameter, 96 mm abs-ring diameter, and front axle and wheel side fitting position. Confirm the reference, spline or joint dimensions, transmission, fitting side and vehicle application before fitting; use the specified fasteners, lubricant and tightening procedure.

Function : Joint Kit, drive shaft

External Toothing wheel side : 30

Internal Toothing wheel side : 35

Supplementary Article/Supplementary Info : with retaining ring rear side

Length [mm] : 164

Diameter [mm] : 90

Seal Ring Diameter [mm] : 69

ABS-Ring Diameter [mm] : 96

Number of Teeth, ABS ring : 47

Length 2 [mm] : 98

Fitting Position : Front Axle

Fitting Position : Wheel Side

Shaftec CV1893N Joint Kit, drive shaft
