Shaftec steering and driveline range

Shaftec describes its business around drive, steer and stop components, with both new and remanufactured products. In this collection the emphasis is narrower: steering gears are the largest group, followed by CV boot kits, complete driveshafts and CV joint kits. Steering-rack gaiters, propshafts, steering pumps, axle nuts and steering columns complete the represented range.

These are application-sensitive and often safety-critical components. Similar housings can conceal different ratios, electronic generations, splines or internal lengths. The Shaftec part number, exact vehicle specification and comparison with the removed unit should agree before installation begins. Whether a particular reference is new or remanufactured must be read from its own product information rather than assumed across the collection.

Steering-rack identification

A steering rack can be manual, hydraulic, electro-hydraulic or electrically assisted. Electric racks may incorporate a motor, control module, torque sensor and position information. Hydraulic units depend on fluid pressure, pipes and seals. Selection needs more than vehicle make and model: steering position, rack generation, original number, production date, mounting-hole count, input-shaft form, total length, inner joints and electrical connections can all separate references.

Shaftec publishes a useful example for three generations of rack on one vehicle group. The generations have different production periods and mounting-hole counts, while retrofitting a later design to an earlier vehicle can require wiring or subframe changes. The wider lesson is important: a later superseding number does not always prove direct physical interchangeability. Inspect the original unit and consult the reference-specific bulletin where one exists.

Before removal, centre the steering and preserve the wheel position according to the vehicle procedure. Uncontrolled rotation of the steering wheel with the rack disconnected can damage the clock spring. Record pipe positions, electrical connectors, shims and brackets. A replacement arriving pre-centred must remain centred until the column and road wheels are correctly aligned.

Diagnosing steering faults before replacement

Heavy, noisy or uneven steering does not automatically mean the rack has failed. Check tyres and pressures, suspension joints, column universal joints, wheel alignment and mechanical freedom. Hydraulic systems require the correct fluid level and specification, a sound drive belt where fitted, clean reservoir, unrestricted hoses and adequate pump pressure. Aerated fluid may foam or whine and can follow a suction leak or incorrect bleeding.

For EPS, start with battery condition and charging voltage because assistance places a substantial electrical load on the vehicle. Read fault codes with equipment capable of communicating with the steering system. Inspect power, earth, network wiring and connectors before condemning a motorised rack. Shaftec's fitting guidance instructs technicians to identify the original failure, compare connections, manage stored faults, install to vehicle instructions, calibrate where required and complete a road test.

Fluid inside a rack gaiter can indicate an internal hydraulic seal leak; the gaiter is intended to exclude dirt, not act as a fluid reservoir. External leakage, roughness, play or an intermittent loss of assistance should be assessed promptly. Do not adjust rack preload as a casual cure for play because excessive preload can cause binding and poor self-centring.

Power-steering pumps and hydraulic cleanliness

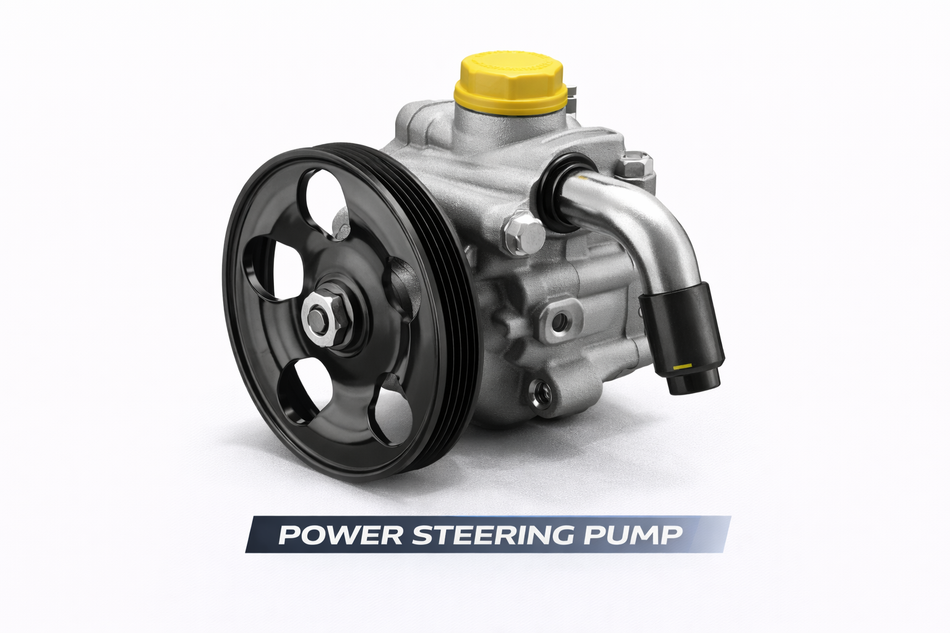

The range includes belt-driven hydraulic and electric-hydraulic pumps. Match the operating mode, rated pressure where specified, pulley diameter and grooves, mounting points, reservoir arrangement, hose fittings and electrical connections. Some replacement pumps require transfer of a serviceable original pulley; the individual instruction determines this.

Shaftec's pump installation guide emphasises finding the cause, comparing pulley and connections, checking hoses and O-rings, flushing with the vehicle-specified fluid, installing and tensioning the belt correctly, bleeding and rechecking the level after a road test. This is system work. Debris from a failed pump or rack can damage the next unit if left in hoses, reservoir or cooler.

Never mix fluids because their colour looks similar. Hydraulic steering systems can specify materially different chemistries. Use clean filling equipment, avoid running the pump dry and do not hold the steering against full lock longer than necessary during bleeding. If assistance remains noisy or erratic, stop and investigate air entry, fluid level, return flow and mechanical load.

Driveshafts and CV joints

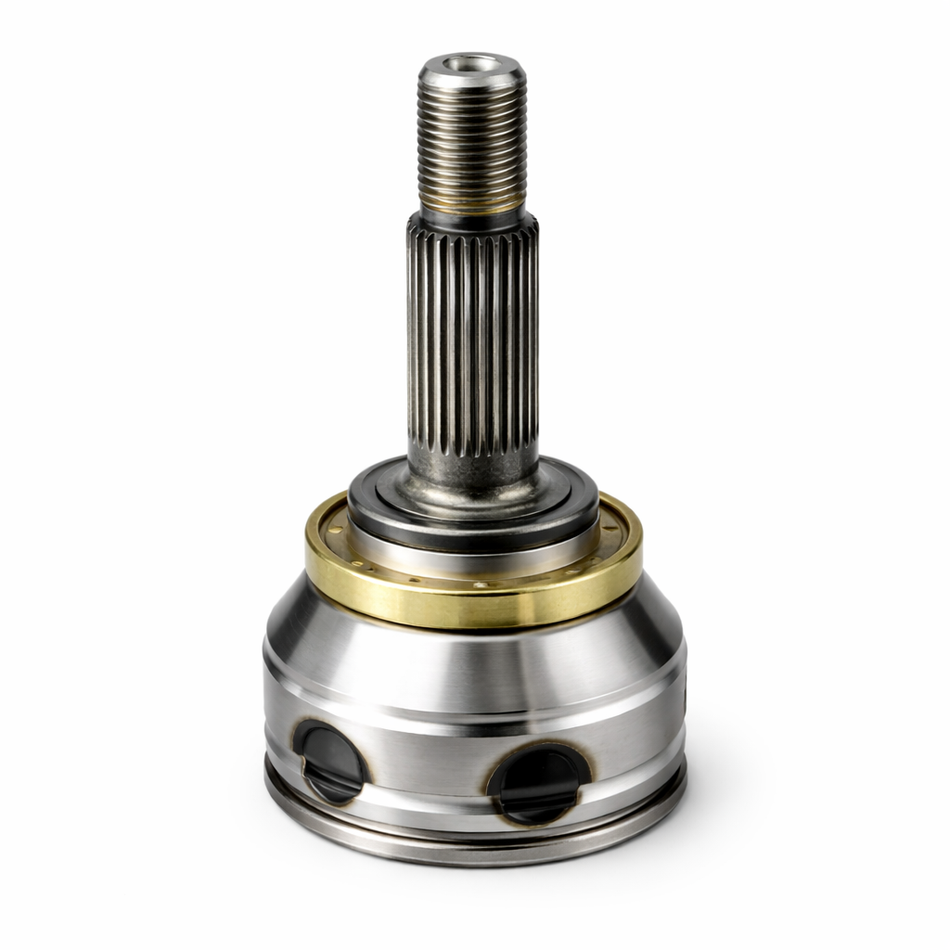

A complete driveshaft typically carries an inner and outer joint connected by a shaft. The outer joint accommodates steering angle and suspension movement; the inner joint also allows plunge as the suspension changes position. Designs vary, so left and right shafts are often different. Transmission type, engine output, hub spline, gearbox flange, shaft length and intermediate support can create further splits.

A clicking noise on steering lock often points towards an outer CV joint, while shudder under acceleration can involve an inner joint. Neither symptom is exclusive. Engine or gearbox mounts, tyres, bent wheels, wheel bearings, differential wear and hub run-out can mimic shaft problems. Inspect with the vehicle safely supported, looking for torn boots, escaped grease, corrosion dust, excessive play and impact damage.

Compare the old and new shaft before fitting. Check compressed length by the approved method, spline counts, sealing surfaces, ABS encoder arrangement, support bearing and retaining method. Do not suspend the shaft from a joint or stretch it beyond its normal articulation. Protect gearbox seals during insertion and make sure circlips or flange bolts have engaged correctly.

CV boots, gaiters and axle nuts

A CV boot keeps grease around the joint and excludes water and grit. Once split, contamination can turn a modest boot repair into joint replacement. A kit may include a shaped boot, clips, grease and an axle nut, but contents vary. Confirm boot height, small and large diameters, joint type and material compatibility. Stretch-fit or universal products require their specified tools and procedure; they should not be assumed suitable for every joint.

Clean old grease sufficiently to inspect the joint. Rust, pitting, blue heat marks, rough movement or clicking under load can justify replacing more than the boot. Use the supplied type and amount of grease only for its intended joint and keep friction surfaces and threads clean. Clips must be tightened with the correct tool without cutting the boot.

Steering-rack gaiters protect the rack bar and inner joint from dirt. Their venting and equalisation arrangement should remain as designed; a twisted or sealed gaiter can balloon or collapse. Axle nuts are frequently staked, prevailing-torque or otherwise single-use. Follow the precise tightening sequence and torque-angle value, normally with the vehicle supported as instructed. Improvised tightening can damage a wheel bearing or leave the hub insecure.

Propshafts and centre supports

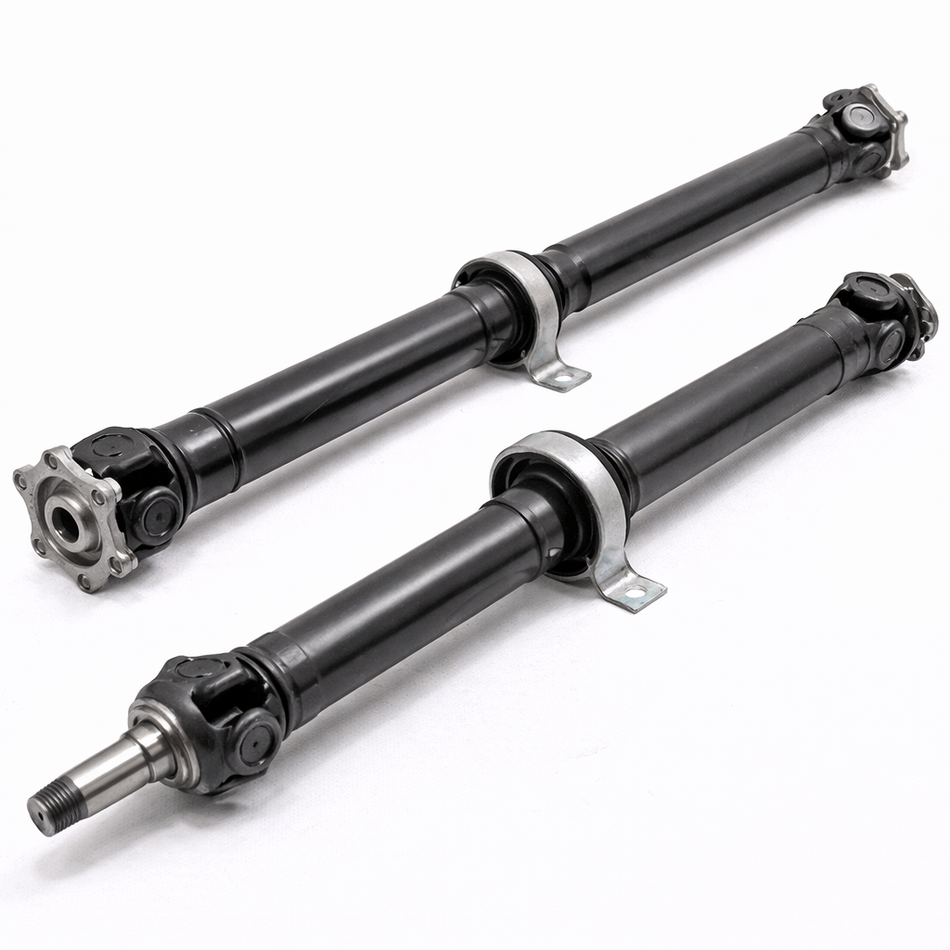

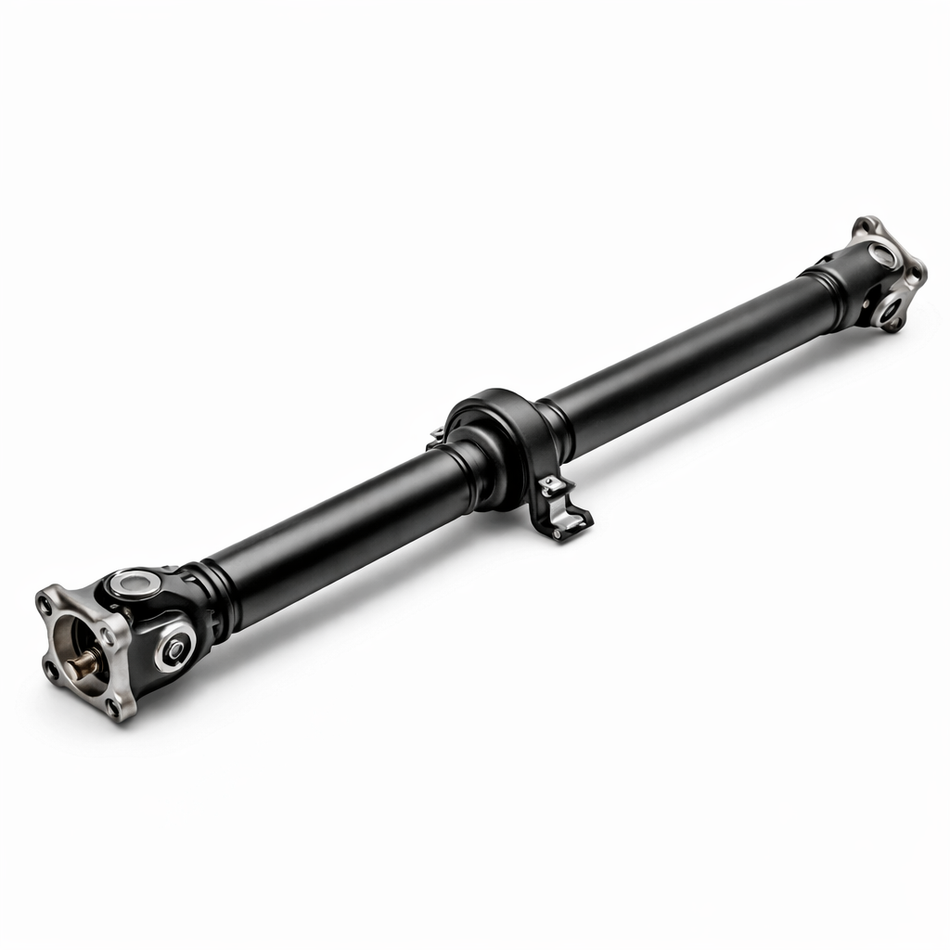

A propshaft can include universal joints, flexible couplings, sliding splines and a centre bearing. Match wheelbase, body and transmission, flange bolt pattern, tube length and support layout. Mark flange orientation before dismantling when the procedure calls for it, because balance and phasing matter. A missing balance weight, seized joint or worn support can cause vibration that rises with road speed.

Inspect adjacent mountings and differential or transfer-case flanges. Tighten fasteners in the specified sequence and replace one-use bolts where required. Do not allow a long shaft to hang from one joint during service. After fitting, confirm clearances to exhausts, heat shields and underbody parts through the available suspension travel.

Final checks after steering or driveline work

• Use specified fasteners and tightening values for racks, columns, hubs, shafts and flanges.
• Refill hydraulic systems only with the stated fluid and bleed until operation is quiet and consistent.
• Route pipes, cables and gaiter vents without twists, tension or contact with hot and moving parts.
• Carry out wheel alignment after rack or track-rod disturbance and centre the steering wheel correctly.
• Perform EPS coding, end-stop learning or steering-angle calibration where the vehicle procedure requires it.
• Check transmission and steering-fluid levels after the road test and inspect every disturbed joint for leakage.
• Investigate any remaining vibration or warning lamp instead of assuming bedding-in will remove it.

UK MOT and road safety

The Great Britain MOT manual assesses steering gear condition, security, linkage, play and power assistance. Roughness, excessive play, major leakage, an insecure component or assistance failure can be a significant defect, with dangerous classifications where steering is adversely affected. The inspection also covers relevant drive and prop shafts and their support or joint condition.

A test cannot establish the internal life of every joint, and a recent pass should not override new symptoms. Sudden loss of assistance, steering that binds or fails to self-centre, a loose hub, severe load-related vibration or a damaged shaft requires urgent attention. Road testing after repair should begin at low speed in a controlled setting before normal traffic use.

Shaftec questions and answers

Q: Can I choose a Shaftec steering rack from the registration alone?

A: Use registration data as a start, then verify the original number, generation, mountings, drive side and connections.

Q: Why can one model have several rack generations?

A: Manufacturers revise mountings, electronics and supporting parts during production, sometimes without an obvious model-name change.

Q: Does every electric rack need coding?

A: Requirements vary; follow the vehicle and reference-specific procedure for calibration, coding and learned values.

Q: Is fluid inside a rack gaiter normal?

A: No. On a hydraulic rack it can indicate internal seal leakage that needs investigation.

Q: What causes a power-steering pump to whine?

A: Low fluid, aeration, suction leaks, contamination, belt problems, restriction or pump wear are possibilities.

Q: Must the steering system be flushed?

A: Follow Shaftec and vehicle guidance; contamination from the previous failure must not be left to damage the replacement.

Q: Does clicking on full lock always mean the outer CV joint?

A: It is a common pattern, but hubs and other steering or suspension parts should also be checked.

Q: Can I repair a split boot without inspecting the joint?

A: The joint should be checked for lost grease, water entry, corrosion, roughness and excessive play first.

Q: Are left and right driveshafts interchangeable?

A: Usually not; lengths, joints, splines and support arrangements often differ by side.

Q: Should an old axle nut be reused?

A: Many are single-use; fit the specified new nut and apply the exact tightening method.

Q: What work follows steering-rack replacement?

A: Alignment, fluid checks or bleeding, diagnostic calibration and a controlled road test may all be required.

Q: Can a propshaft vibration be ignored at low speed?

A: No. Joint, support, balance or flange faults can worsen and should be diagnosed before further use.
