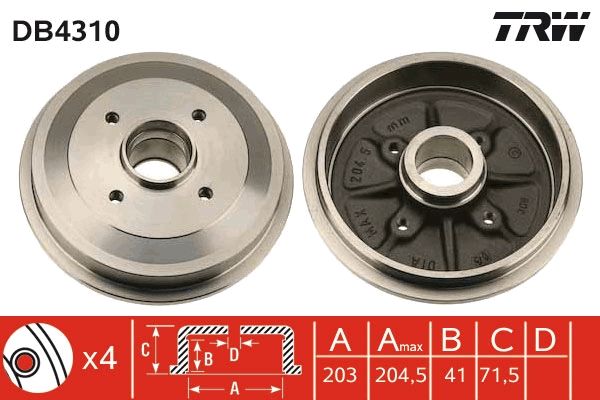

TRW DB4310 Brake Drum - 1

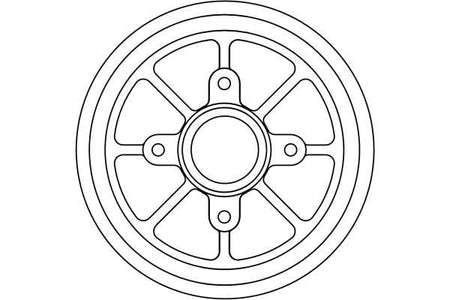

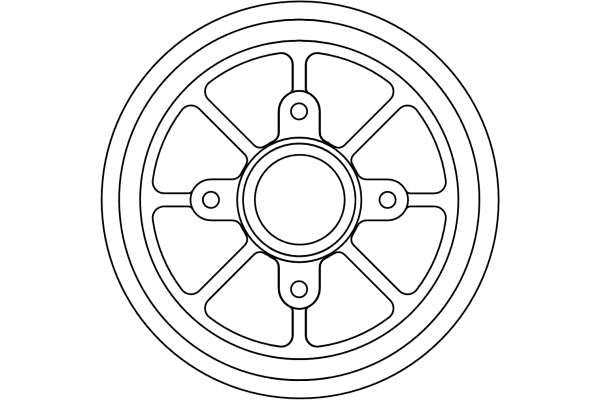

TRW DB4310 Brake Drum - 2
TRW DB4310 Brake Drum - 1
TRW DB4310 Brake Drum - 2
TRW

TRW DB4310 Brake Drum

SKU: DB4310
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£59.79 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CITROËN
C2 (JM_)
Description Cylinder Capacity Horse Power Year
1.1 1124 CCM 60 HP 09/2003 - 09/2012
1.4 1360 CCM 73 HP 09/2003 - 12/2009
1.4 HDi 1398 CCM 68 HP 07/2003 - 12/2009
1.4 16V 1360 CCM 90 HP 04/2005 - 12/2009
1.4 1360 CCM 75 HP 10/2006 - 12/2009
1.4 HDi 1398 CCM 69 HP 09/2003 - 04/2005
C2 ENTERPRISE (JG_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 1398 CCM 68 HP 09/2006 - 12/2009
1.1 1124 CCM 60 HP 11/2003 - 12/2009
C3 I (FC_, FN_)
Description Cylinder Capacity Horse Power Year
1.6 16V 1587 CCM 110 HP 04/2002 - 08/2010
1.4 HDi 1398 CCM 70 HP 04/2002 - 02/2011
1.1 i 1124 CCM 60 HP 08/2002 - 12/2010
1.4 HDi 1398 CCM 68 HP 02/2002 - 12/2009
1.4 i Bivalent 1360 CCM 73 HP 02/2002 - 12/2009
1.6 16V 1587 CCM 109 HP 02/2002 - 08/2010
1.4 16V HDi 1398 CCM 90 HP 02/2002 - 06/2008
1.4 16V 1360 CCM 88 HP 12/2003 - 08/2010
1.6 16V HDi 1560 CCM 90 HP 10/2005 - 12/2009
1.4 i 1360 CCM 73 HP 04/2002 - 12/2006
1.4 HDi 1398 CCM 75 HP 05/2005 - 12/2009
C3 Pluriel (HB_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 73 HP From 05/2003
1.4 HDi 1398 CCM 68 HP From 04/2004
1.4 1360 CCM 75 HP From 07/2003
C3 II (SC_)
Description Cylinder Capacity Horse Power Year
1.4 HDi 70 (SC8HZC, SC8HR0, SC8HP4) 1398 CCM 68 HP 01/2010 - 09/2016
PEUGEOT
1007 (KM_)
Description Cylinder Capacity Horse Power Year
1.4 1360 CCM 75 HP From 04/2005
1.4 HDi 1398 CCM 68 HP From 04/2005
1.4 16V 1360 CCM 88 HP From 10/2005

The TRW DB4310 Brake Drum is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 52 mm centering diameter, 220 mm outer brake drum diameter, 203 mm drum diameter, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Drum
Manufacturer Restriction : TRW
Total brake drum height [mm] : 72
Centering Diameter [mm] : 52
Outer brake drum diameter [mm] : 220
Drum diameter [mm] : 203
Inner brake drum height [mm] : 41
Number of Holes : 4
SVHC : No information available, please contact the manufacturer!
Fitting Position : Rear Axle
  • Vendor TRW
  • SKU DB4310
  • Barcode 3322937363506
  • CITROËN : 4247 46
  • PEUGEOT : 4247 46
  • APEC : BDR9012
  • APEC : DRM9922
  • BLUE PRINT : ADBP470012
  • BORG & BECK : BBR7201
  • BORG & BECK : BBR7274
  • BOSCH : 0 986 477 201
  • BREMBO : 14.E308.10
  • BREMBO : 14.E308.50
  • BREMBO : 14.E308.60
  • DELPHI : BF484
  • FEBI BILSTEIN : 171094
  • FTE : 9190009
  • FTE : 9190010
  • HELLA : 8DT 355 300-591
  • HELLA : 8DT 355 302-741
  • MINTEX : MBD304
  • TEXTAR : 94026600
  • TEXTAR : 94041200
