TRW

TRW DF4209S Brake Disc

SKU: DF4209S
Your selected vehicle
Out of stock
Out of Stock
£68.31 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A8 D2 (4D2, 4D8)
Description Cylinder Capacity Horse Power Year
2.8 2771 CCM 193 HP 04/1996 - 09/2002
2.8 quattro 2771 CCM 193 HP 04/1996 - 09/2002
S8 quattro 4172 CCM 340 HP 07/1996 - 06/1999
2.5 TDI 2496 CCM 150 HP 01/1997 - 04/2000
2.5 TDI quattro 2496 CCM 150 HP 07/1997 - 04/2000
4.2 quattro 4172 CCM 310 HP 11/1998 - 09/2002
3.7 quattro 3697 CCM 260 HP 11/1998 - 09/2002
A8 D3 (4E2, 4E8)
Description Cylinder Capacity Horse Power Year
4.2 quattro 4172 CCM 335 HP 10/2002 - 07/2010
3.7 quattro 3697 CCM 280 HP 10/2002 - 05/2006
4.0 TDI quattro 3936 CCM 275 HP 05/2003 - 07/2005
3.0 2976 CCM 220 HP 07/2003 - 05/2005
6.0 W12 quattro 5998 CCM 450 HP 12/2003 - 07/2010
3.0 TDI quattro 2967 CCM 233 HP 08/2003 - 07/2010
3.0 2976 CCM 218 HP 07/2003 - 05/2006
3.0 TDI quattro 2967 CCM 211 HP 11/2003 - 07/2010
S8 quattro 5204 CCM 450 HP 06/2006 - 07/2010
VW
PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)
Description Cylinder Capacity Horse Power Year
3.2 V6 3189 CCM 241 HP 04/2002 - 05/2005
3.0 V6 TDI 4motion 2967 CCM 224 HP 09/2004 - 05/2007

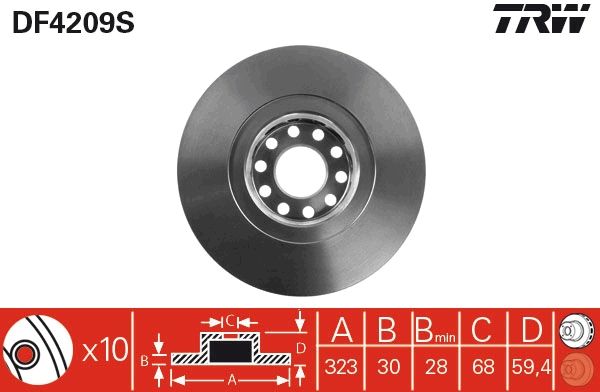

The TRW DF4209S Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 323 mm outer diameter, 30 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 323
Brake Disc Thickness [mm] : 30
Centering Diameter [mm] : 68
Height [mm] : 59.5
Number of Holes : 10
SVHC : No information available, please contact the manufacturer!
Fitting Position : Front Axle
  • Vendor TRW
  • SKU DF4209S
  • Barcode 3322937364411
  • VW : 3D0 615 301 G 4D0 615 301 F 4D0 615 301 J
  • AUDI : 3D0 615 301 G 4D0 615 301 A 4D0 615 301 F 4D0 615 301 J
  • APEC : DSK2119
  • BORG & BECK : BBD5730S
  • BOSCH : 0 986 479 060
  • BREMBO : 09.8324.11
  • BREMBO : 09.9911.11
  • DELPHI : BG3524
  • DELPHI : BG3714
  • FEBI BILSTEIN : 22964
  • FTE : 9071302
  • FTE : 9081246
  • HELLA : 8DD 355 127-421
  • MEYLE : 115 521 1109
  • MEYLE : 183 521 1109/PD
  • MINTEX : MDC1419
  • National : NBD1049
  • TEXTAR : 92098305
  • TEXTAR : 92122103
