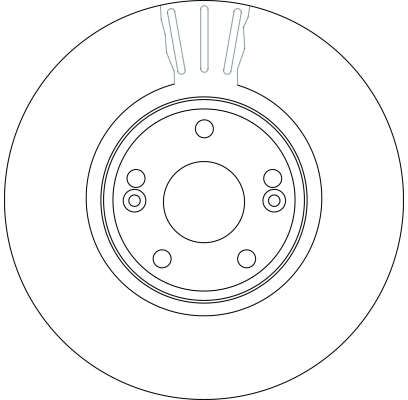

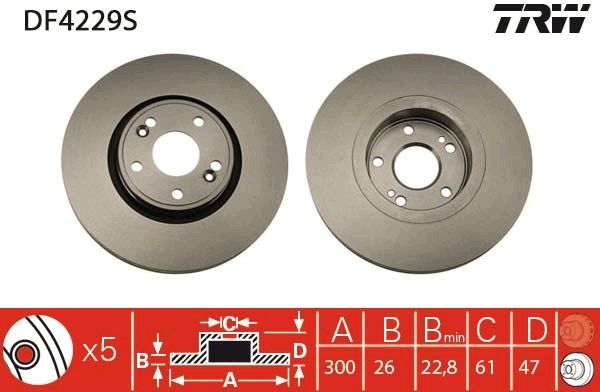

TRW DF4229S Brake Disc - 1
TRW DF4229S Brake Disc - 2
TRW DF4229S Brake Disc - 1
TRW DF4229S Brake Disc - 2
TRW

TRW DF4229S Brake Disc

SKU: DF4229S
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£41.28 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
LAGUNA II (BG0/1_)
Description Cylinder Capacity Horse Power Year
1.6 16V (BG0A, BG0L) 1598 CCM 107 HP 03/2001 - 05/2005
1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V) 1783 CCM 121 HP 03/2001 - 05/2005
3.0 V6 24V (BG01, BG02, BG0D, BG0Y) 2946 CCM 207 HP 03/2001 - 08/2007
1.9 dCi (BG08, BG0G) 1870 CCM 120 HP 03/2001 - 09/2007
2.0 16V IDE (BG0N) 1998 CCM 140 HP 04/2001 - 09/2007
1.9 dCI (BG0E) 1870 CCM 105 HP 06/2001 - 05/2005
2.2 dCi (BG0F) 2188 CCM 150 HP 10/2001 - 08/2006
1.8 16V (BG0B, BG0M) 1783 CCM 120 HP 03/2001 - 09/2007
1.8 16V (BG06, BG0J, BG0M) 1783 CCM 116 HP 03/2001 - 12/2007
1.9 dCi (BG0R, BG0E) 1870 CCM 100 HP 10/2001 - 05/2005
2.0 16V (BG00, BG0K, BG0P, BG0W) 1998 CCM 135 HP 08/2002 - 12/2007
2.0 16V Turbo (BG0S, BG1L, BG1M) 1998 CCM 163 HP 01/2003 - 03/2005
1.9 dCi (BG05) 1870 CCM 92 HP 03/2004 - 05/2005
2.0 16V (BG03, BG0Z, BG0T, BG1Y) 1998 CCM 170 HP 01/2005 - 09/2007
LAGUNA II Sport Tourer (KG0/1_)
Description Cylinder Capacity Horse Power Year
1.6 16V (KG0A, KG0L) 1598 CCM 107 HP 03/2001 - 12/2007
1.8 16V 1783 CCM 121 HP 03/2001 - 05/2005
3.0 V6 24V (KG0D, KG01) 2946 CCM 207 HP 03/2001 - 12/2007
1.9 dCi (KG0G) 1870 CCM 120 HP 03/2001 - 09/2007
2.0 16V IDE (KG0N) 1998 CCM 140 HP 04/2001 - 09/2007
1.9 dCI (KG0E) 1870 CCM 105 HP 06/2001 - 05/2005
2.2 dCi (KG0F) 2188 CCM 150 HP 10/2001 - 08/2006
1.8 16V (KG0J) 1783 CCM 116 HP 03/2001 - 05/2005
1.8 16V (KG0B, KG0M) 1783 CCM 120 HP 03/2001 - 05/2005
1.9 dCi (KG0E, KG0R) 1870 CCM 100 HP 10/2001 - 05/2005
2.0 16V (KG00, KG0K, KG0W, KG0P) 1998 CCM 135 HP 08/2002 - 12/2007
2.0 16V Turbo (KG0S, KG1L, KG03) 1998 CCM 163 HP 01/2003 - 08/2005
2.0 16V (KG03, KG0Z, KG0T, KG1Y) 1998 CCM 170 HP 01/2005 - 09/2007
2.0 16V (KG1Y) 1998 CCM 204 HP 01/2005 - 09/2007

The TRW DF4229S Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 26 mm brake disc thickness, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 26
Centering Diameter [mm] : 61
Height [mm] : 47
Number of Holes : 5
SVHC : No information available, please contact the manufacturer!
Fitting Position : Front Axle
  • Vendor TRW
  • SKU DF4229S
  • Barcode 3322937390793
  • RENAULT : 77 01 206 614 82 00 007 122
  • APEC : DSK2102
  • APEC : SDK6144
  • BLUE PRINT : ADR164319
  • BORG & BECK : BBD4271
  • BOSCH : 0 986 478 743
  • BOSCH : 0 986 479 B47
  • BREMBO : 09.9074.10
  • BREMBO : 09.9074.11
  • DELPHI : BG3688
  • FEBI BILSTEIN : 23333
  • FTE : 9071253
  • FTE : 9081180
  • HELLA : 8DD 355 109-301
  • MEYLE : 16-15 521 0015
  • MEYLE : 16-83 521 0015/PD
  • MINTEX : MDC1535
  • National : NBD1167
  • SKF : VKBD 80338 V1
  • TEXTAR : 92119000
  • TEXTAR : 92119003
  • VALEO : 197221
  • VALEO : 673131
