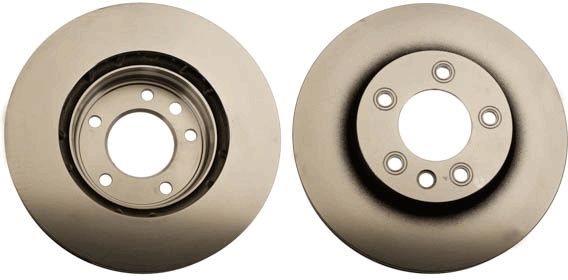

TRW DF4763S Brake Disc - 1

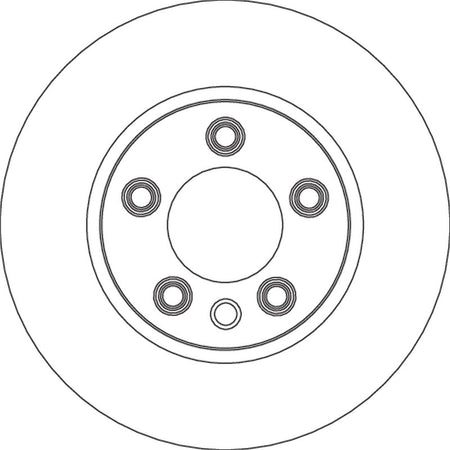

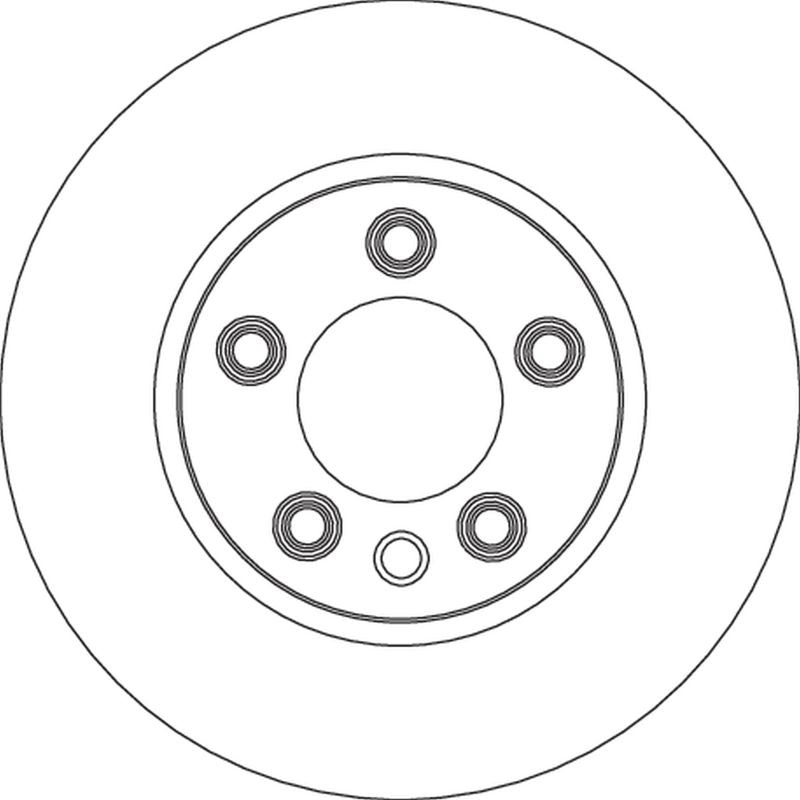

TRW DF4763S Brake Disc - 2
TRW DF4763S Brake Disc - 1
TRW DF4763S Brake Disc - 2
TRW

TRW DF4763S Brake Disc

SKU: DF4763S
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£80.50 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE
CAYENNE (9PA)
Description Cylinder Capacity Horse Power Year
Turbo S 4.5 4511 CCM 521 HP 05/2002 - 05/2006
3.6 3598 CCM 290 HP 02/2007 - 09/2010
3.0 TDI 2967 CCM 240 HP 02/2009 - 09/2010
VW
TOUAREG (7LA, 7L6, 7L7)
Description Cylinder Capacity Horse Power Year
3.2 V6 3189 CCM 220 HP 10/2002 - 11/2006
5.0 V10 TDI 4921 CCM 313 HP 10/2002 - 05/2010
4.2 V8 4172 CCM 310 HP 12/2002 - 11/2006
2.5 R5 TDI 2461 CCM 174 HP 01/2003 - 05/2010
3.2 V6 3189 CCM 241 HP 11/2004 - 11/2006
3.0 V6 TDI 2967 CCM 225 HP 11/2004 - 05/2010
3.6 V6 FSI 3597 CCM 280 HP 10/2005 - 05/2010
3.0 V6 TDI 2967 CCM 240 HP 11/2007 - 05/2010
3.0 TDI 2967 CCM 211 HP 04/2006 - 05/2010
TOUAREG (7P5, 7P6)
Description Cylinder Capacity Horse Power Year
3.0 V6 TSI 2995 CCM 290 HP 08/2010 - 03/2018
3.6 V6 FSI 3597 CCM 249 HP 08/2010 - 03/2018
3.0 V6 TDI 2967 CCM 204 HP 01/2010 - 03/2018
3.0 V6 TDI 2967 CCM 245 HP 05/2011 - 03/2018
4.2 V8 FSI 4163 CCM 360 HP 01/2011 - 03/2018
3.6 V6 FSI 3597 CCM 280 HP 04/2010 - 03/2018
3.0 V6 TDI 2967 CCM 240 HP 01/2010 - 03/2018
4.2 V8 TDI 4134 CCM 340 HP 01/2010 - 03/2018
3.0 V6 TSI Hybrid 2995 CCM 379 HP 04/2010 - 03/2018
3.0 V6 TDI 2967 CCM 225 HP 06/2010 - 03/2018
3.0 V6 TDI 2967 CCM 262 HP 09/2014 - 03/2018

The TRW DF4763S Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 31.9 mm brake disc thickness, and front axle right fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 31.9
Number of Holes : 5
Height [mm] : 68.4
Centering Diameter [mm] : 84.5
Paired article number : DF4762S
SVHC : No information available, please contact the manufacturer!
Fitting Position : Front Axle Right
for PR number : 1LK
  • Vendor TRW
  • SKU DF4763S
  • Barcode 3322937551019
  • SEAT : 7L6 615 302 D 7L6 615 302 J
  • VW : 7L6 615 302 D 7L6 615 302 J 7L6 615 302 N 7L6 615 302 P
  • AUDI : 7L6 615 302 D 7L6 615 302 J
  • PORSCHE : 955 351 402 00 955 351 402 40 955 351 402 41
  • APEC : DSK2308
  • APEC : DSK2308B
  • APEC : SDK6409
  • BLUE PRINT : ADV184329
  • BORG & BECK : BBD5757S
  • BOSCH : 0 986 479 250
  • BREMBO : 09.9768.10
  • BREMBO : 09.9768.11
  • BREMBO : 09.9768.1S
  • BREMBO : 09.9768.1X
  • BREMBO : 09.9868.11
  • BREMBO : 09.C881.11
  • DELPHI : BG9949
  • DELPHI : BG9949C
  • Fahren : FBD6409
  • FEBI BILSTEIN : 33164
  • FTE : 9071004
  • FTE : 9081040
  • FTE : 9081334
  • HELLA : 8DD 355 109-741
  • HELLA : 8DD 355 128-051
  • MEYLE : 115 521 1102
  • MEYLE : 183 521 1102/PD
  • MINTEX : MDC1610C
  • MINTEX : MDC1610LC
  • MINTEX : MDC1610R
  • MINTEX : MDC1610RC
  • NAPA : NBD5353
  • National : NBD1233
  • National : NBD1327
  • SKF : VKBD 80344 V1
  • TEXTAR : 92121605
  • VALEO : 197253
  • VALEO : 672879
