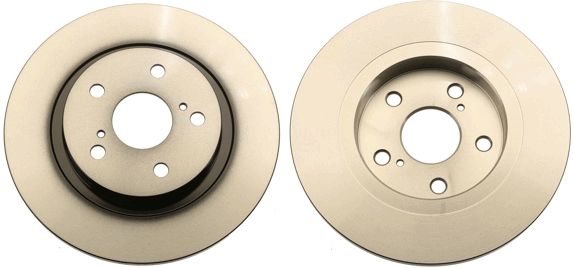

TRW DF6324 Brake Disc - 1

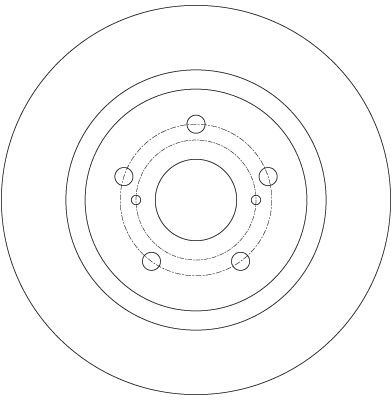

TRW DF6324 Brake Disc - 2
TRW DF6324 Brake Disc - 1
TRW DF6324 Brake Disc - 2
TRW

TRW DF6324 Brake Disc

SKU: DF6324
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£66.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AVENSIS Saloon (_T27_)
Description Cylinder Capacity Horse Power Year
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 124 HP 11/2011 - 10/2018
1.6 VVT-i (ZRT270_, ZRT270R) 1598 CCM 132 HP 11/2008 - 10/2018
1.8 VVT-i (ZRT271_, ZRT271R) 1798 CCM 147 HP 11/2008 - 10/2018
2.0 VVT-i (ZRT272_, ZRT272R) 1987 CCM 152 HP 11/2008 - 10/2018
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 126 HP 11/2008 - 10/2018
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 150 HP 11/2008 - 10/2018
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 177 HP 11/2008 - 10/2018
1.6 D4-D (WWT270_) 1598 CCM 112 HP 04/2015 - 10/2018
2.0 D-4D (WWT271_) 1995 CCM 143 HP 04/2015 - 10/2018
AVENSIS Estate (_T27_)
Description Cylinder Capacity Horse Power Year
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 124 HP 11/2011 - 10/2018
1.6 VVT-i (ZRT270_, ZRT270R) 1598 CCM 132 HP 11/2008 - 10/2018
1.8 VVT-i (ZRT271_, ZRT271R) 1798 CCM 147 HP 11/2008 - 10/2018
2.0 VVT-i (ZRT272_, ZRT272R) 1987 CCM 152 HP 11/2008 - 10/2018
2.0 D-4D (ADT270_, ADT270R) 1998 CCM 126 HP 11/2008 - 10/2018
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 150 HP 11/2008 - 10/2018
2.2 D-4D (ADT271_, ADT271R) 2231 CCM 177 HP 11/2008 - 10/2018
1.6 D4-D (WWT270_) 1598 CCM 112 HP 04/2015 - 10/2018
2.0 D-4D (WWT271_) 1995 CCM 143 HP 04/2015 - 10/2018

The TRW DF6324 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 11 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 11
Centering Diameter [mm] : 62
Height [mm] : 33.8
Number of Holes : 5
SVHC : No information available, please contact the manufacturer!
Fitting Position : Rear Axle
  • Vendor TRW
  • SKU DF6324
  • Barcode 3322938168452
  • TOYOTA : 42431-05070
  • APEC : DSK2656
  • APEC : SDK6299
  • BLUE PRINT : ADT343273
  • BORG & BECK : BBD4747
  • BOSCH : 0 986 479 656
  • BREMBO : 08.B045.10
  • BREMBO : 08.B045.11
  • DELPHI : BG4200
  • DELPHI : BG4200C
  • Fahren : FBD6299
  • FEBI BILSTEIN : 108412
  • FTE : 9072223
  • FTE : 9082136
  • HELLA : 8DD 355 116-121
  • MEYLE : 30-15 523 0108/PD
  • MINTEX : MDC2169
  • NAPA : NBD5473
  • National : NBD1731
  • SKF : VKBD 90395 S2
  • TEXTAR : 92195200
  • TEXTAR : 92195203
  • VALEO : 197655
  • VALEO : 672624
