TRW DF6684 Brake Disc

SKU: DF6684
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£73.92 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
SX4 (EY, GY)
Description Cylinder Capacity Horse Power Year
1.6 VVT 4x4 (RW416) 1586 CCM 112 HP From 07/2009
1.6 VVT 4x4 (RW416) 1586 CCM 107 HP From 06/2006
1.5 (RW 415) 1490 CCM 99 HP 06/2006 - 07/2010
1.6 VVT (RW416, YA21S) 1586 CCM 107 HP From 06/2006
1.6 VVT (RW416, YA21S) 1586 CCM 120 HP From 07/2009
1.6 VVT 4x4 (RW416) 1586 CCM 120 HP From 07/2009
1.5 VVTi (YA11S) 1490 CCM 110 HP 07/2007 - 12/2015
SX4 Saloon (GY, RW)
Description Cylinder Capacity Horse Power Year
1.6 (RW416) 1586 CCM 120 HP From 10/2007
1.6 (RW416) 1586 CCM 107 HP From 10/2007

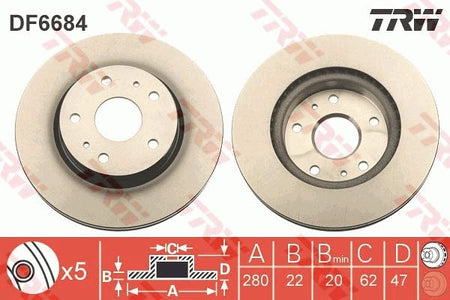

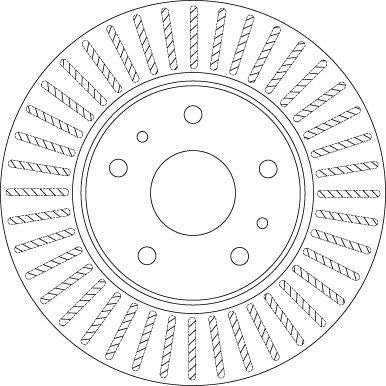

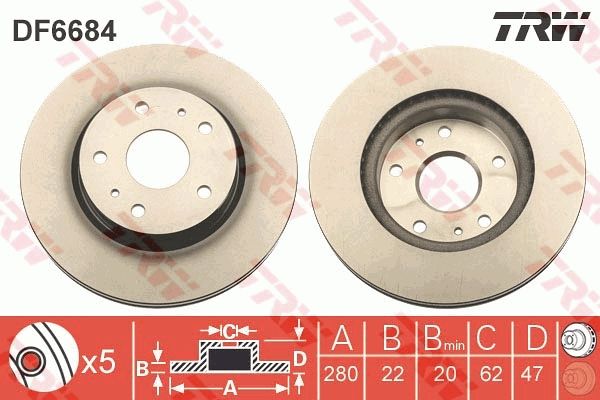

The TRW DF6684 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 5 mounting holes, 280 mm outer diameter, and front axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Number of Holes : 5
Outer Diameter [mm] : 280
Centering Diameter [mm] : 62
Height [mm] : 47
Brake Disc Thickness [mm] : 22
SVHC : No information available, please contact the manufacturer!
Fitting Position : Front Axle
Vehicle Production Country : Japan
Vehicle Identification Number (VIN) from : JSA#
  • Vendor TRW
  • SKU DF6684
  • Barcode 3322938271862
  • SUZUKI : 55311-80J02
  • APEC : DSK3207
  • APEC : SDK6839
  • BLUE PRINT : ADK84334
  • BORG & BECK : BBD5207
  • BOSCH : 0 986 479 403
  • BREMBO : 09.A296.11
  • BREMBO : 09.A296.14
  • DELPHI : BG4093
  • DELPHI : BG4093C
  • FEBI BILSTEIN : 108614
  • FTE : 9072833
  • FTE : 9082532
  • HELLA : 8DD 355 116-771
  • MEYLE : 33-15 521 0016
  • MEYLE : 33-15 521 0016/PD
  • MINTEX : MDC2179
  • National : NBD1758
  • SKF : VKBD 80100 V2
  • TEXTAR : 92222100
