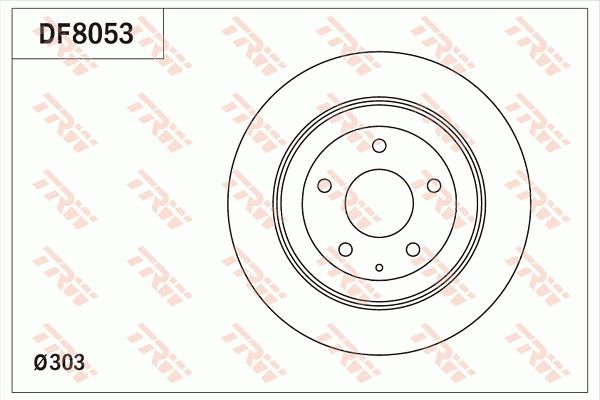

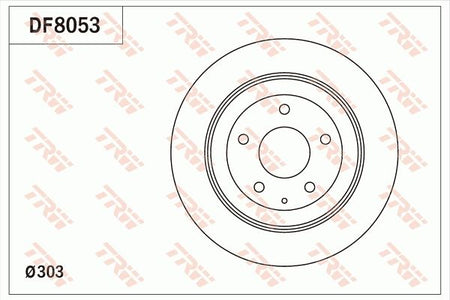

TRW DF8053 Brake Disc - 1

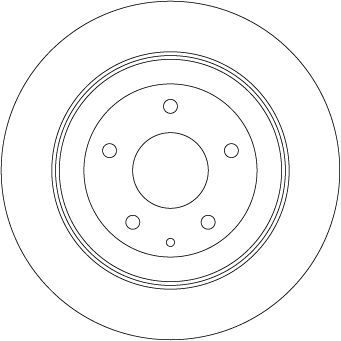

TRW DF8053 Brake Disc - 2
TRW DF8053 Brake Disc - 1
TRW DF8053 Brake Disc - 2
TRW

TRW DF8053 Brake Disc

SKU: DF8053
Your selected vehicle
Out of stock
Out of Stock
£72.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid AWD 1998 CCM 122 HP From 07/2019
SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) 1998 CCM 179 HP From 07/2019
1.8 SKYACTIV-D AWD 1759 CCM 116 HP From 07/2019
e-SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 06/2021

The TRW DF8053 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 303 mm outer diameter, 10 mm brake disc thickness, and rear axle fitting position. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 303
Brake Disc Thickness [mm] : 10
Number of Holes : 5
Centering Diameter [mm] : 68
Height [mm] : 39.5
SVHC : No information available, please contact the manufacturer!
Fitting Position : Rear Axle
  • Vendor TRW
  • SKU DF8053
  • Barcode 3322938162801
  • MAZDA : K011-26-251A K011-26-251B
  • APEC : DSK3010
  • APEC : SDK6755
  • BLUE PRINT : ADM543124
  • BORG & BECK : BBD5303
  • BOSCH : 0 986 479 C28
  • BOSCH : 0 986 479 V04
  • BREMBO : 08.C425.11
  • BREMBO : 08.C425.1X
  • BREMBO : 08.C425.75
  • DELPHI : BG4567C
  • Fahren : FBD6755
  • FEBI BILSTEIN : 108430
  • FTE : 9072327
  • FTE : 9082177
  • HELLA : 8DD 355 118-541
  • MEYLE : 35-15 523 0017/PD
  • MINTEX : MDC2388
  • NAPA : NBD5177
  • SKF : VKBD 91061 S2
  • TEXTAR : 92242703
  • VALEO : 197505
  • VALEO : 673089
