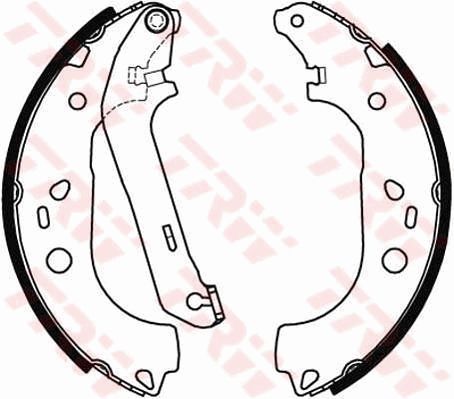

TRW GS8471 Brake Shoe Set - 1

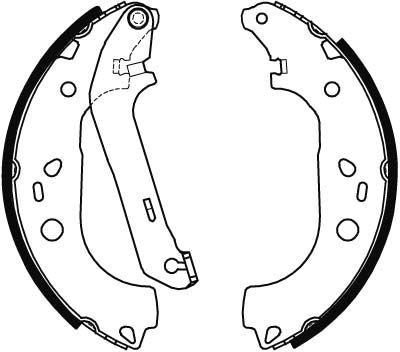

TRW GS8471 Brake Shoe Set - 2
TRW GS8471 Brake Shoe Set - 1
TRW GS8471 Brake Shoe Set - 2
TRW

TRW GS8471 Brake Shoe Set

SKU: GS8471
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£47.68 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 16V LPG 1796 CCM 116 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

The TRW GS8471 Brake Shoe Set is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records AP LOCKHEED manufacturer restriction, 228 mm inner brake drum diameter, 57 mm width, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Shoe Set
Manufacturer Restriction : AP LOCKHEED
Inner brake drum diameter [mm] : 228
Width [mm] : 57
SVHC : No information available, please contact the manufacturer!
Fitting Position : Rear Axle
Braking/Driving Dynamics : for vehicles with ABS
Braking/Driving Dynamics : for vehicles without TC
  • Vendor TRW
  • SKU GS8471
  • Barcode 3322937286980
  • FORD : 1365486 1511233 2T14-2200-AA 2T14-2200-AB 2T14-2200-AC 2T1J-2200-AB 4387344 5039061
  • APEC : BSH1034
  • APEC : SHU658
  • BLUE PRINT : ADBP410015
  • BORG & BECK : BBS6340
  • BOSCH : 0 986 487 667
  • BOSCH : F 026 004 667
  • BREMBO : S 24 539
  • DELPHI : LS1940
  • DELPHI : LY1310
  • FEBI BILSTEIN : 193856
  • FTE : 9100084
  • HELLA : 8DB 355 002-731
  • INTERMOTOR : 17486
  • MEYLE : 714 533 0007
  • MEYLE : 714 533 0007/K
  • MINTEX : MFR525
  • NAPA : NBS1051
  • National : NS4015
  • TEXTAR : 91061400
  • VALEO : 564011
